Brand: EMERSON.
Model: TREX-0004-0001.
Product type: AMS Trex Device Communicator.
For HART and FOUNDATION Fieldbus device diagnostics and configuration.
| Quantity: | |
|---|---|
TREX-0004-0001
EMERSON

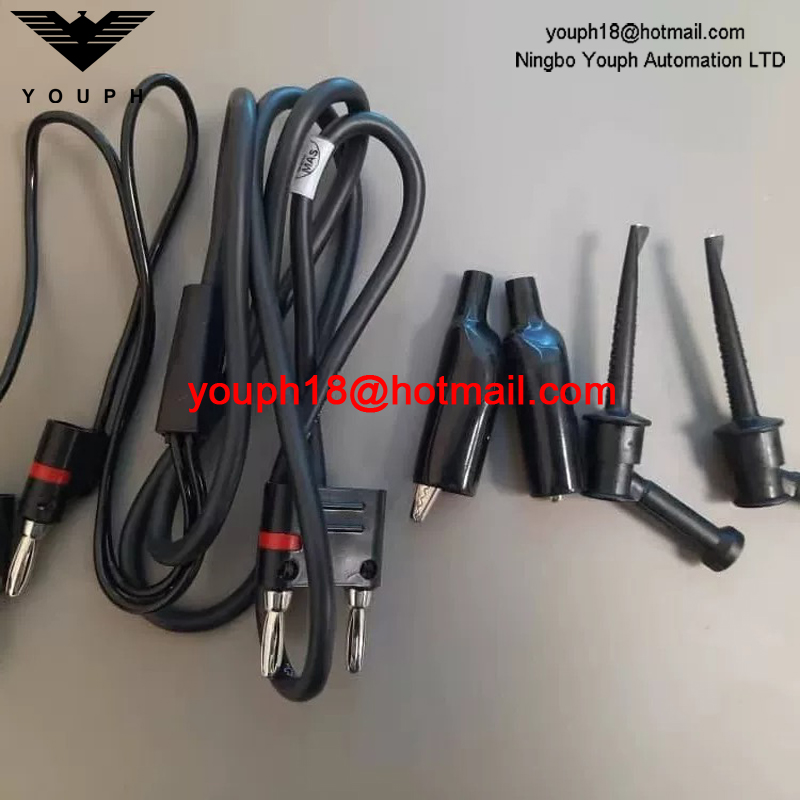

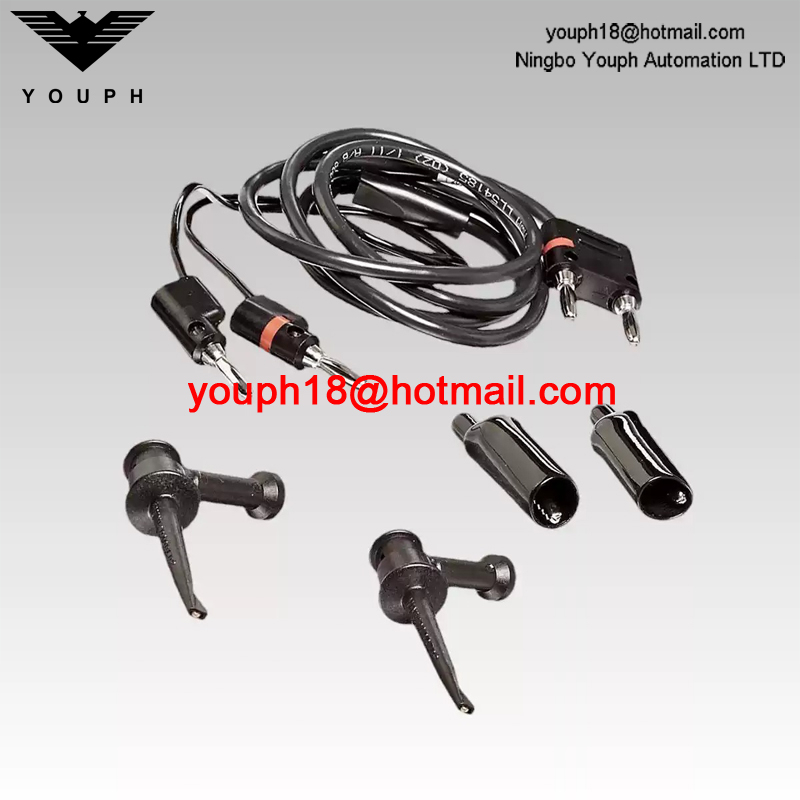

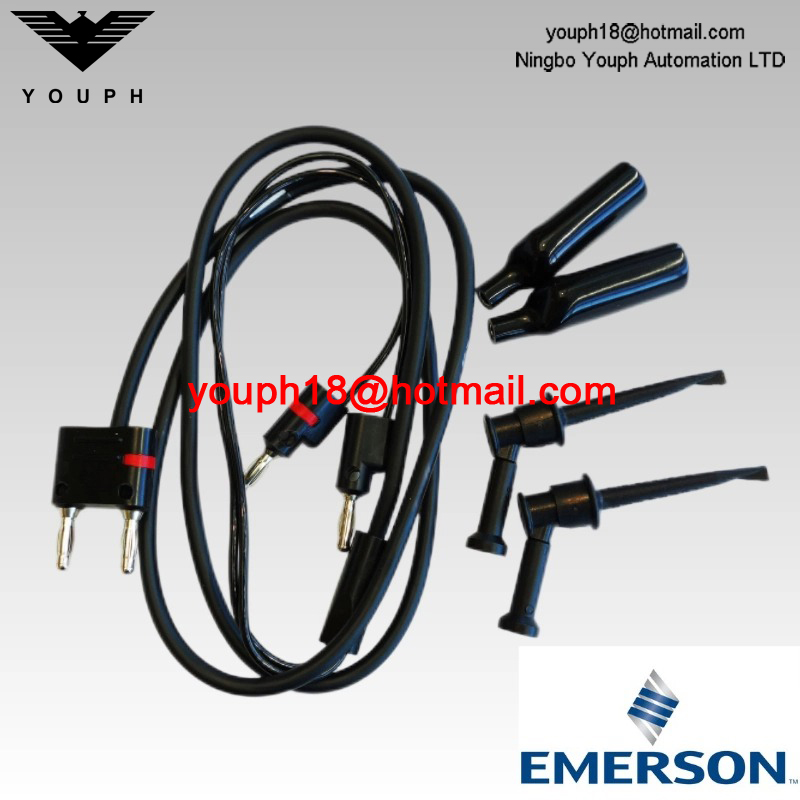

EMERSON TREX-0004-0001 is an AMS Trex Device Communicator Lead Set with connectors for configuring and diagnosing compatible HART and FOUNDATION Fieldbus instruments. It is also commonly referenced with compatible model code HART475.
Brand | EMERSON |
|---|---|
Model | TREX-0004-0001 |
Product Type | Lead Set with connectors |
Category | Process Control Unit |
Compatible Models | AMS Trex Device Communicator, HART475 |
Model TREX-0004-0001 with product information prepared from the supplied datasheet and images.
Designed for field configuration, diagnostics and maintenance of compatible process instruments.
Product images are kept in the gallery; PDF diagrams and ordering references are kept in the detail page.
Original EMERSON product for industrial automation maintenance and machine building.
Spare Parts(1) | Part Number |
|---|---|
Rechargeable Li-Ion Power Module | TREX-0002-1211 |
AC Adapter (includes US, EU, UK, AU outlet plugs) | TREX-0003-0012 |
DC Adapter (12v vehicle accessory outlet) | TREX-0003-0022 |
AC Outlet Plugs (square replacement for TREX-0003-0011, set includes US, EU, UK, AU) | TREX-0003-0002 |
AC Outlet Plugs (round replacement for TREX-0003-0012, set includes US, EU, UK, AU) | TREX-0003-0004 |
FOUNDATION Fieldbus Power Plug | TREX-FFPA-0001 |

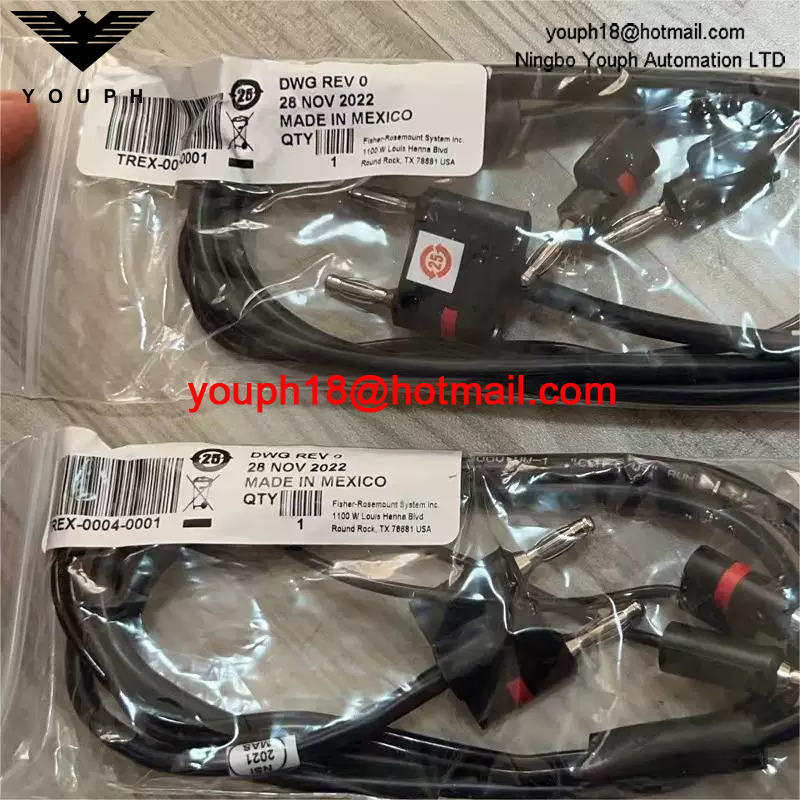

Lead Set with connectors | TREX-0004-0001 |
Hand Strap (replacement set of 2) | TREX-0005-0002 |
Carrying Case (includes hand & shoulder straps) | TREX-0005-0011 |
Shoulder Strap (replacement for use with carrying case) | TREX-0005-0009 |
Magnetic Hanger | TREX-0005-0004 |
USB cable (USB to micro USB) | TREX-0004-0002 |
Ruggedized 250 Ohm Load Resistor(2) | TREX-0096-0001 |
Device Communicator communication module(3) | TREX-PMDG-1211 |
Device Communicator Plus communication module(3) | TREX-PMDP-1211 |
Stand (replacement integral to communication module)(4) | TREX-0012-0011 |
Approvals and Certifications (Multilingual) | TREX-0045-0001 |
Applications(6) | Part Number |
FOUNDATION Fieldbus license bundle - 90 Day Demo(6) | TREX-ABFF-0301 |
FOUNDATION Fieldbus license bundle(6) | TREX-ABFF-PE01 |
WirelessHART Provisioning App | TREX-APWP-PE01 |
Radar Master App | TREX-APRM-PE01 |
Support Renewal(7) | Part Number |
Standard Support(8) | TREX-SUST-1201 |
Premium Support(9) | TREX-SUPR-1201 |
Processor, Memory, and Operating System | |
Microprocessor | 800 MHz ARM Cortex A8 / NXP |
Memory Internal Flash | 2 GB NAND and 32 GB extended flash |
Operating System | Windows Embedded Compact 2013 |
RAM | 512 MB DDR3 SDRAM |
Physical | |
Weight | Approximately 2.9 lbs (1330 grams) |
Display | 5.7 inch (14.5 cm) color VGA resistive touchscreen |
Keypad | X button – similar to a Back key |
AC Adapter | |
Battery | Rechargeable Lithium-Ion Power Module |
Operating Time | 8+ hours of typical use |
Charge Time | 3 to 4 hours |
LEDs | 6 LEDs. Five LEDs for indicating the progress of charging. One LED to indicate the AC adapter is charging the power module. |
Battery Charger Options | Input voltage 100-240 VAC, 50-60 Hz |
Connections | |
USB | Micro USB Connector. USB 2.0 |
Battery Charger | Barrel Round Plug Tip |
Wireless | |
Wireless Approvals | FCC, CE, RED and IC Approvals |
Wi-Fi | 802.11 b/g/n |
NFC | Active NFC |
Model | Product Description |
|---|---|
TREX | Base Trex Platform(1) |
Code | Communication Module |
C | Device Communicator communication module |
L | Device Communicator Plus communication module(2) |
Code | Applications |
H | HART Application |
F | HART + FOUNDATION Fieldbus Applications(3) |
Code | Power Module Type |
P | Rechargeable Li-Ion Power Module |
Code | Product Certifications |
KL | ATEX, CSA (US/Canada) and IECEx Intrinsically Safe (includes FISCO as applicable) |
NA | No Approval |
Code | Radio Options |
W | Wireless(4) |
9 | None |
Code | Support(5) |
S1 | Standard Support (1 Year)(6) |
S3 | Standard Support (3 Year)(6) |
P1 | Premium Support (1 Year)(7) |
P3 | Premium Support (3 Year)(7) |
Code | Option Codes (multi-select) |
S | Carrying Case(8) |
R | Radar Master App(9) |
W | WirelessHART Provisioning App(9) |
Typical HART Model Number | TREX L H P KL W S3 S |
Typical HART/Fieldbus Model Number | TREX L F P KL W S3 S |
Typical HART/Fieldbus with Radar Master and WirelessHART Provisioning Model Number | TREX L F P KL W S3 SRW |
TREX-0004-0001 supports field commissioning, configuration and diagnostics of compatible HART and FOUNDATION Fieldbus instruments.
Maintenance teams can use the handheld communicator for in-field troubleshooting, device verification and synchronizing field changes through Wi-Fi or USB connections.
Use this product according to the matching datasheet and machine requirements. Confirm port size, model code and operating conditions before replacement or installation.
The AMS Trex Device Communicator expands the long line of Emerson handheld devices while adding new capabilities that adapt it to consumer expectations for mobile device functionality.
Technicians armed with a Trex communicator won't waste time bringing devices back to the shop for analysis or reconfiguration. AMS Trex is delivered with a complete, pre-installed DD library for over 2,000 HART and FOUNDATION| Fieldbus devices so users can easily diagnose device problems in the field. Simple issues can be addressed on the spot, avoiding unnecessary, and potentially destructive, invasive physical investigation of the problem.
Technicians need powerful and portable diagnostic tools so they can identify and troubleshoot device issues to minimize process upsets. With a Trex communicator in hand, you can properly diagnose device issues in the field. With the right handheld, maintenance teams will experience significant savings in work hours and peace of mind knowing that problems will be fixed quickly and properly the first time.
Once changes are made in the field, AMS Trex will automatically synchronize the information with the AMS Device Manager database via Wi-Fi or USB connection.
Emerson 475 Field Communicator HART FOUNDATION Fieldbus Handheld Communicator
