Brand: YOKOGAWA.
Model: YHC4150X.
Product type: HART Communicator.
Category: Process Control Unit.
| Quantity: | |
|---|---|
YHC4150X
YOKOGAWA

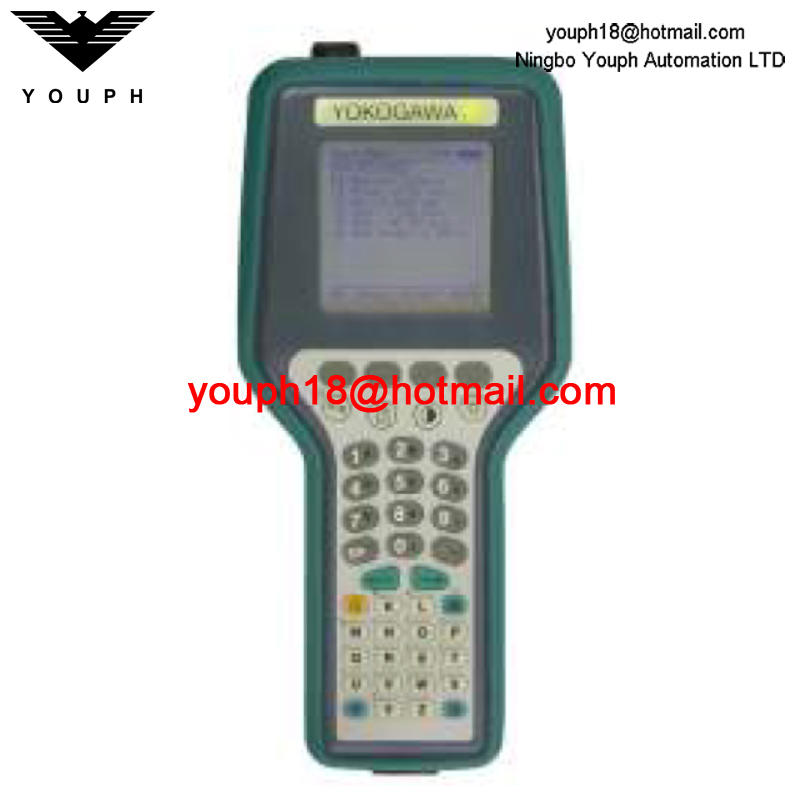

YOKOGAWA YHC4150X is a portable HART Communicator for commissioning, configuration and maintenance of HART field devices. It is also commonly referenced with compatible model code 4150X.
60 hours battery life (w/o backlight) using AA alkaline batteries Quick startup and connect: 15 seconds! Update new device profiles and firmware via the Internet - YHC4150X is never out of your hands Dongle coordinates AC power adapter and serial communication Clone / Upload / Download configurations Off-line mode for developing / reviewing configurations Document and store more than 200 configurations As-found / As-left history with DMS software 13-line, 128 x 128 pixel graphic, backlit display Full alpha-numeric keypad Edit directly from Review/Edit mode Quick Menu access key HART® menu Home key Dedicated text edit keys Programmable lock-out settings Contrast key for direct adjustment from any mode Elastic hand strap and adjustable shoulder strap Thumb keys (left hand) for menu Up, Down, and Select Custom “use-in-place” soft case with lead kit compartment
Brand | YOKOGAWA |
|---|---|
Model | YHC4150X |
Product Type | HART Communicator |
Category | Process Control Unit |
Compatible Models | 4150X |
Model YHC4150X with product information prepared from the supplied datasheet and images.
Suitable for Process Control Unit applications where portable HART communication and device maintenance are required.
Technical data, HART communicator accessories and software options are organized in the detail page.
Original YOKOGAWA product for industrial automation maintenance and process instrumentation work.
BASE UNIT: 10°/3"L x 4 '/4"to2 ZW x 1%" to1 7/8"D; ABS plastic case, 1.7 Ibs. (w/ batts.) KEYPAD: Membrane keypad: 4 soft, 8 single function 30 dual function, 3 thumb keys DISPLAY: 13 line, 128 x 128 pixel graphic display,
2.1" x 2.1” viewable area, backlight POWER: Six AA alkaline; or 100 — 240 Vac power adapter. Use only approved alkaline batteries for Intrinsically Safe certified YHC4150X Standard banana jacks (%" center) for HART®, Odu connector for dongle. Dongle coordinates AC power and DB-9 serial communications
In practical use, YHC4150X is a suitable choice for process instrumentation teams, maintenance departments and commissioning work that relies on HART communication.
This process control unit item is often selected for field device configuration, diagnostics, documentation and HART transmitter maintenance.
Use this product according to the matching datasheet and machine requirements. Confirm model code, communication requirements and approved power or battery conditions before field use.

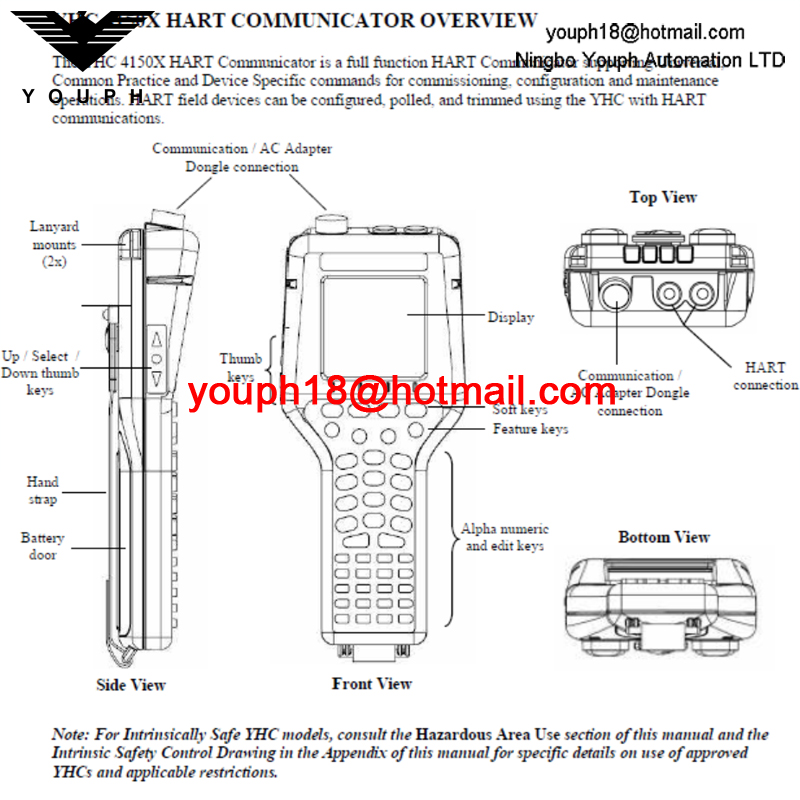

The YHC4150X HART® Communicator is the latest HART communicator from Yokogawa Corporation of America. All HART® YHC4150X with HART® communications. The YHC4150X is a full function HART® Communicator supporting Universal, Common Practice and Device Specific commands for commissioning, configuration and maintenance operations.
Model / Code | Description / Included Items |

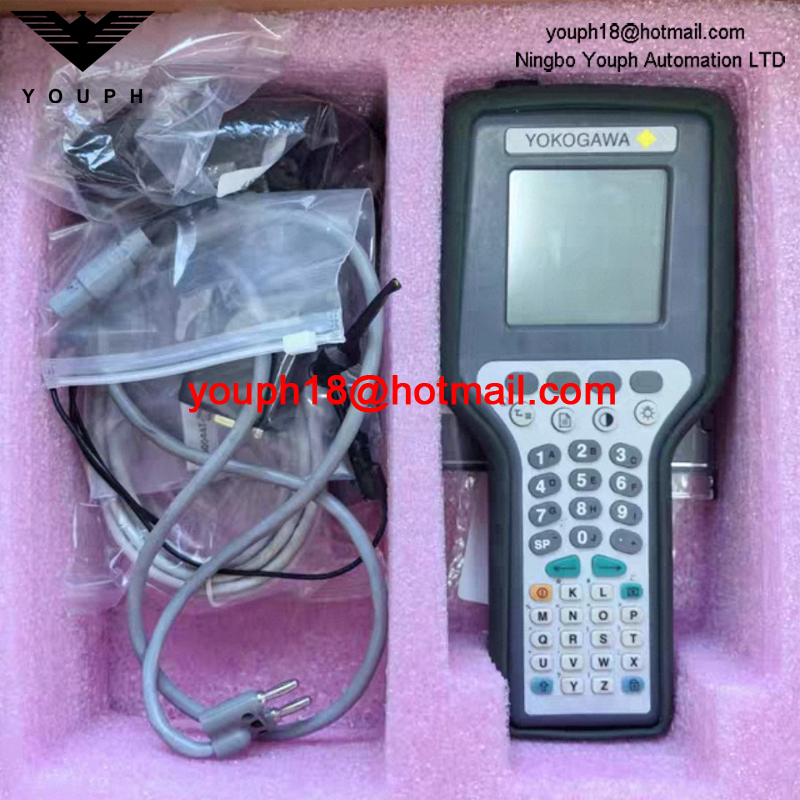

YHC4150X | HART Communicator Includes CE Mark, HART Lead Kit with 250Ω adapter, Batteries, Communication / AC Adapter Dongle, RS-232 Serial Cable, Universal Power Adapter, Protective Boot, Soft Carrying Case, Adjustable Shoulder Strap, User Manual, CD (Includes User's Manual and DPC Manager Utility) |
Download Subscription | |
-01 | Standard 3-year DOF Download Subscription |
Part Number | Description |
A900529-00014 | HART Test Lead Kit (Included w/YHC) - Standard banana plugs, mini-grabbers, 250 ohm resistor |
A36821 | Std size 250 ohm shunt resistor (Incl'd w/YHC) - req'd for HART low resistance loops |
A900447-00052 | DB-9 cable, Male x Female, 6 ft length (incl'd w/YHC); required for updates / communication |
4150-13 | YHC Carrying case (incl'd w/YHC) - custom soft case with adjustable shoulder strap and HART lead compartment |
A36937 | Adjustable, detachable hanging strap (incl'd w/YHC) clips directly to YHC attachment points. |
4150-10A | Dongle (incl'd w/YHC) Communications and AC Adapter input to mating YHC connector |
4150-7G | Protective boot provides degree of protection against drop related damage; slip on, green (incl'd w/YHC) |
1078 | Keyspan USB to Serial Converter, includes 35" USB cable |
A36800 | 6 pack, AA Alkaline Batteries (incl'd w/YHC) 6 required for operation |
9B000007 | Power Adapter, 100 VAC to 240 VAC, 50-60 Hz universal plug kit (incl'd w/YHC) |
9R00065 | Paper Instructions IM61AYHC1-E-A for YHC4150X (PDF instructions incl'd w/YHC on CD) |
DPC Manager Utility - Documentation Option; 1 license configuration Data Report | |
DPCMAN-CFG-1 | 1 Client |
DPCMAN-CFG-5 | 5 Client |
DPCMAN-CFG-10 | 10 Client |
DPCMAN-CFG-15 | 15 Client |
Standard 3-year DOF Download Subscription Renewal | |
DLS-Subscript-1 | Per Unit |
