Brand: ASCO.
Model: Emerson 475 Field Communicator.
Product type: 475 Model 475 Field Communicator.
Category: Process Control Unit.
| Quantity: | |
|---|---|
Emerson 475 Field Communicator
ASCO
ASCO Emerson 475 Field Communicator is an industrial 475 Model 475 Field Communicator for pneumatic automation and equipment control applications. It is also commonly referenced with compatible model code HART 5, HART 7.
Brand | ASCO |
|---|---|
Model | Emerson 475 Field Communicator |
Product Type | 475 Model 475 Field Communicator |
Category | Process Control Unit |
Compatible Models | HART 5, HART 7 |
Model Emerson 475 Field Communicator with product information prepared from the supplied datasheet and images.
Suitable for Process Control Unit applications where reliable replacement parts are required.
Product images are kept in the gallery; PDF diagrams and ordering references are kept in the detail page.
Original ASCO product for industrial automation maintenance and machine building.
Online | Licensing |
|---|---|
AMS Device Manager Handheld | Interface Kit©! |
Processor And Memory | |
Microprocessor | 80 MHz Hitachi® SH3 |
Memory Internal Flash | 32 MB |
System Card | 1 GB secure digital card |
RAM | 32 MB |
Physical | |
Weight | Approximately 1.65 lb. (0.75kg) with battery |
Display | 1/4 VGA (240 by 320 pixels) color, 3.5 in. (8.9 cm) transflective display with touchscreen |
Anti-glare coated | |
Keypad | 25 keys including 4 action keys, 12 alphanumeric keys, tab key, function key, backlight key, power key, and 4 cursor-control (arrow) keys; membrane design with tactile feedback |
Power Supply / Charger | |
Battery | Rechargeable Lithium-Ion power module |
Battery Operating Time | 20 hours – continuous use |
40 hours – typical use | |
80 hours – standby mode | |
Battery Charger Options | Input voltage 100-240 VAC, 50-60 Hz |
Cables included with U.S., Europe, and U.K. plugs | |

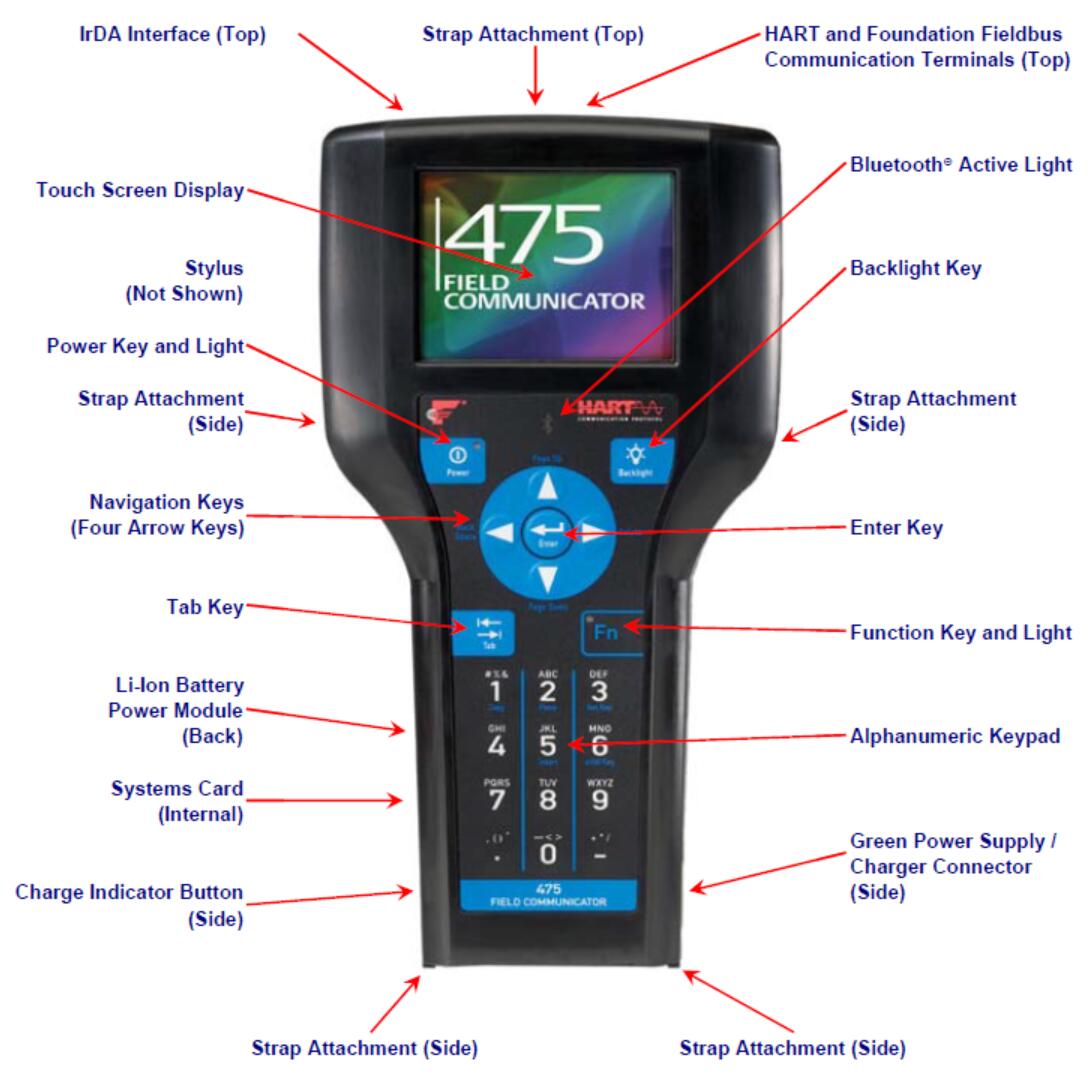

Connection | |
Battery Charger | Mini DIN 6-pin jack |
HART and Fieldbus | Three 4mm banana jacks (one common to HART and FOUNDATION Fieldbus) |
IrDA Port | IrDA (Infrared Data Access) port supporting up to 115 Kbps |
±15 degrees recommended maximum angle from center line | |
Approximately 18 in. (45.7 cm) recommended maximum distance | |
Bluetooth | Up to 32.8 ft. (10 m) communication distance |
| Uses standard Windows drivers |
| FCC, IC, and CE approvals |
| Certified for use in over 60 countries |
Environmental | |
Usage | -10°C (14°F) to +50°C (122°F) |
Battery | 0% to 95% RH (non-condensing) for 0°C (32°F) to +50°C (122°F) |
Charge | 10°C (50°F) to +40°C (104°F) |
Storage With Batteries | -20°C (-4°F) to +55°C (131°F) |
Storage Without Batteries | -20°C (-4°F) to +60°C (140°F) |
Enclosure Rating | IP51 (from front) |
Shock | Tested to survive a 1-meter drop test onto concrete |
Easy Upgrade Requirements | |
Usage | PC with Internet access |
CD Rom drive | |
IrDA port (or adapter) or Bluetooth (or adapter) | |
SD Card Reader (required for some upgrades) | |
Windows XP (SP2 or SP3), Windows Vista Business (SP1), or Windows 7 | |
Description | Part Number |
00275-0096-0001 | Ruggedized 250 Ohm Load Resistor |
00475-0002-0022 | Rechargeable Lithium-Ion Power Module |
00475-0003-0022 | Power Supply & Charger (Li-ion/NiMH) US/UK/EU connection types included |
00375-0003-0002 | Power Supply/Charger Standard Cord Set (US/UK/EU cords) |
00375-0003-0003 | Australian (AU) cord for Power Supply/Charger |

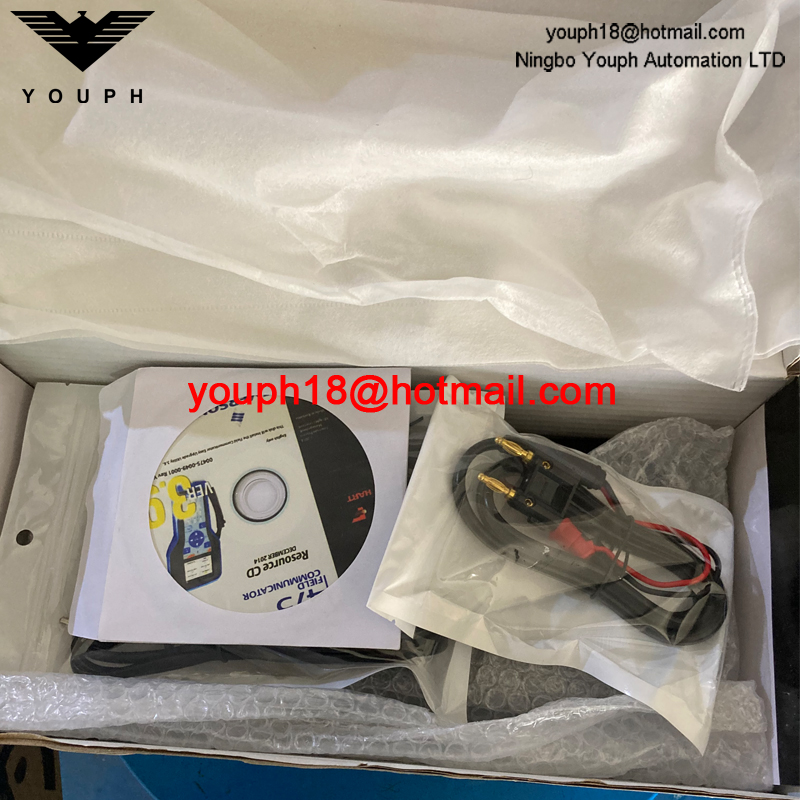

TREX-0004-0001 | Lead Set with connectors |
00475-0005-0002 | Hand Strap (pack of 2) |

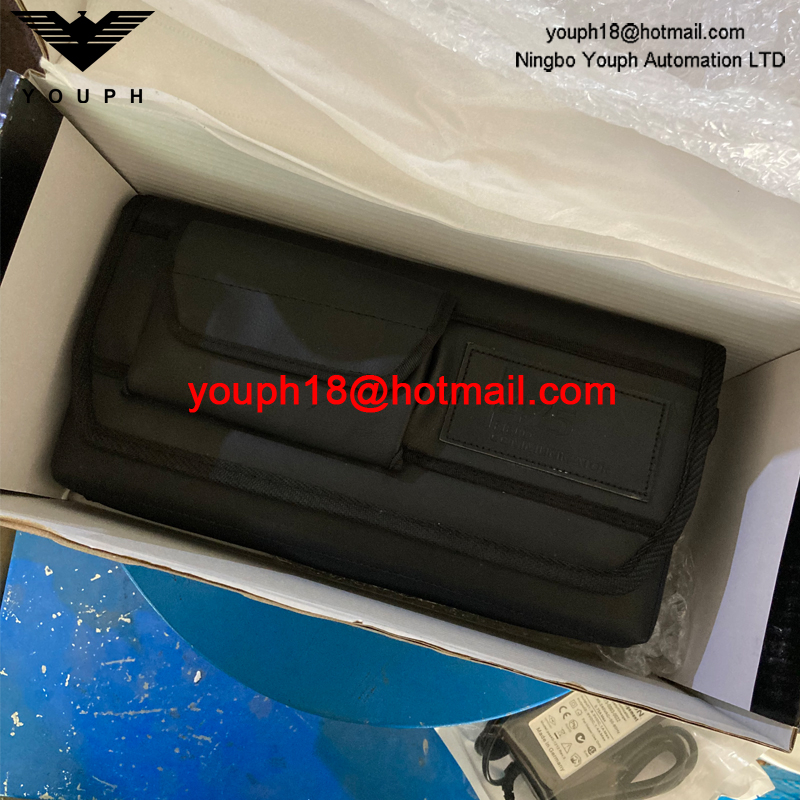

00475-0005-0003 | Carrying Case (with spare Hand Strap and Stylus) |
TREX-0005-0004 | Magnetic Hanger |
00475-0005-0005 | Protective Rubber Boot with Stand |
00475-0006-0001 | Stylus (pack of 2) |
00375-0015-0002 | IrDA to USB Adapter(1) |
00375-0018-0022 | System Card (SD) Reader (with USB Interface)(2) |
00475-0018-0023 | Bluetooth Adapter(1)(9) |
00475-0044-0001 | Stand |
00475-0019-FK01 | Field Accessory Kit(6) |
00475-0019-SK01 | Shop Accessory Kit (Bluetooth)(7)(9) |
00475-0019-SK02 | Shop Accessory Kit (non-Bluetooth)(7) |
00475-0045-3001 | Getting Started Guide |
00475-0049-DVD1 | Resource DVD |
Online Licensing(4) | |
00375-0142-0002 | FOUNDATION Fieldbus License Via Web |
00475-0142-2003 | Easy Upgrade (New/Renew) License via Web(3) |
AMS Device Manager Handheld Interface Kit(5) | |
AW7005HC00025 | AMS Device Manager Field Communicator Interface Kit (25 tags) |
AW7005HC20000 | AMS Device Manager Field Communicator Interface Kit (100 Tags and above) |
In practical use, Emerson 475 Field Communicator is a suitable choice for automation workshops, equipment maintenance departments and machine retrofit projects that rely on stable air signal control.
This process control unit item is often selected for assembly fixtures, pneumatic test benches and small control panels when the application involves mechanical valve actuation, signal switching and basic pneumatic control.
Use this product according to the matching datasheet and machine requirements. Confirm port size, model code and operating conditions before replacement or installation.
View device diagnostics in charts, graphs, and gauges for easy readability and diagnosis with full-color user
View, transfer, and print device configurations between your communicator and PC.
Achieve days of run-time with the Lithium-lon power module
Work more efficiently with fast start-up and operating
Establish quick connections between your PC and communicator with Bluetooth communication.
Take your communicator to all areas of the plant with Intrinsic Safety certifications, including CENELEC / ATEX, FM, CSA, FISCO, and IECEx.
The 475 Field Communicator builds on the industry-leading technology of the 375 Field Communicator while adding innovative new capabilities including color display, Bluetooth communication, and advanced field diagnostics with applications like ValveLink™ Mobile.
The 475 Field Communicator is designed to simplify your work in the field. The intuitive full color user interface allows you to leverage the same practices for both HART and Founpation Fieldbus devices. It includes a larger touch screen than PDAs or Pocket PCs, supports HART versions 5, 6, and 7 (including WirelessHART™) devices, and allows you to upgrade your 475 Field Communicator onsite using the Internet.
The 475 Field Communicator establishes the new standard for handheld communicators. With a full-color user interface, powerful diagnostic capabilities, and fast start up and operating times, the 475 Field Communicator will power your experience and simplify your work in the field. perform diagnostics for effective troubleshooting in the field. Create a quality segment, detect power supply problems, run valve diagnostics, or locate incorrect terminations and faulty devices. The 475 Field Communicator supports all HART 5, HART 7, and Foundation Fieldbus devices. It is intrinsically safe so it can go wherever you go.
