ABB DHH805A HART Handheld Communicator

Brand: ABB.

Model: DHH805A.

Product type: HART Handheld Communicator.

Category: Process Control Unit.

Availability:

Quantity:



Inquire Add to Basket

Model:
DHH805A
Brand:
ABB

Product Description

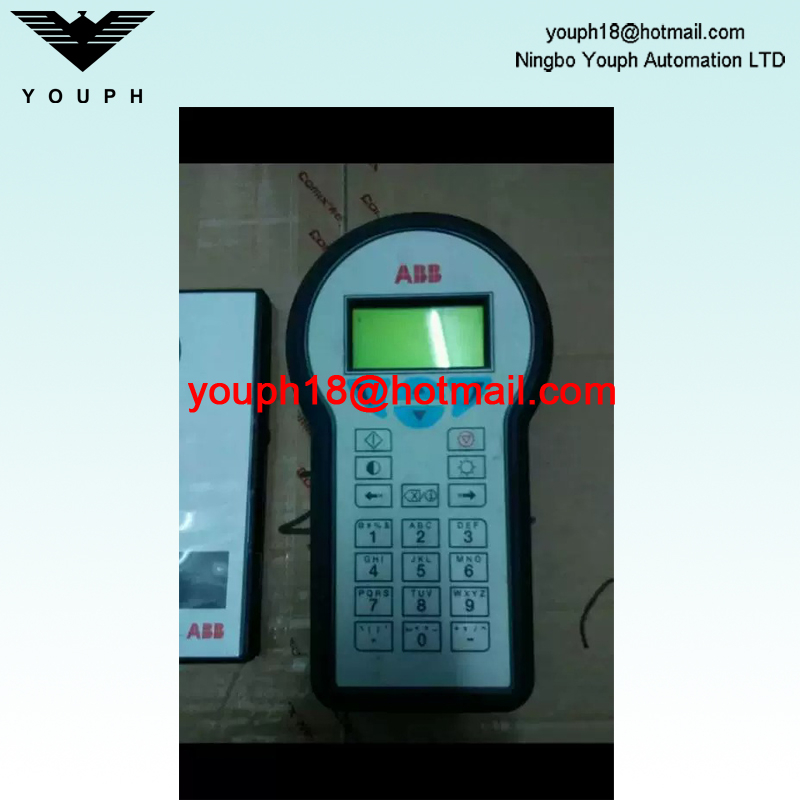

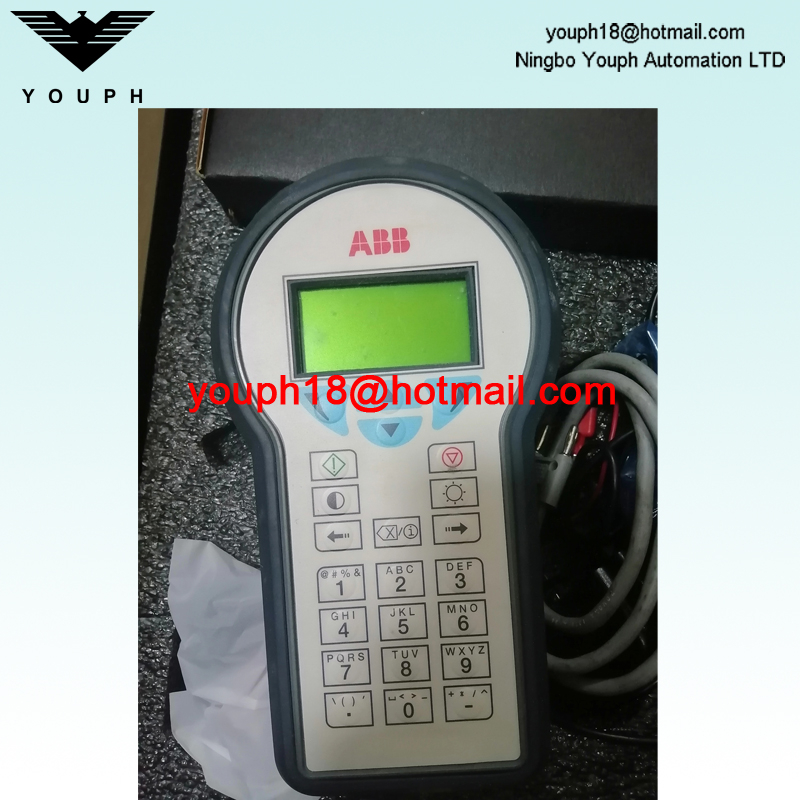

ABB DHH805A HART Handheld Communicator

ABB DHH805A is an industrial HART handheld communicator for instrument configuration and maintenance applications. It is also commonly referenced with compatible model code DHH805.

Technical Data Reference

Main ordering information for model DHH805 handheld communicator
model	1st to 6th characters D H H 8 0 5 X
Additional ordering information for model DHH805 handheld communicator
Item	no. Description Part no. Quantity used
8 SD memory card (8 GB) EV3032 1

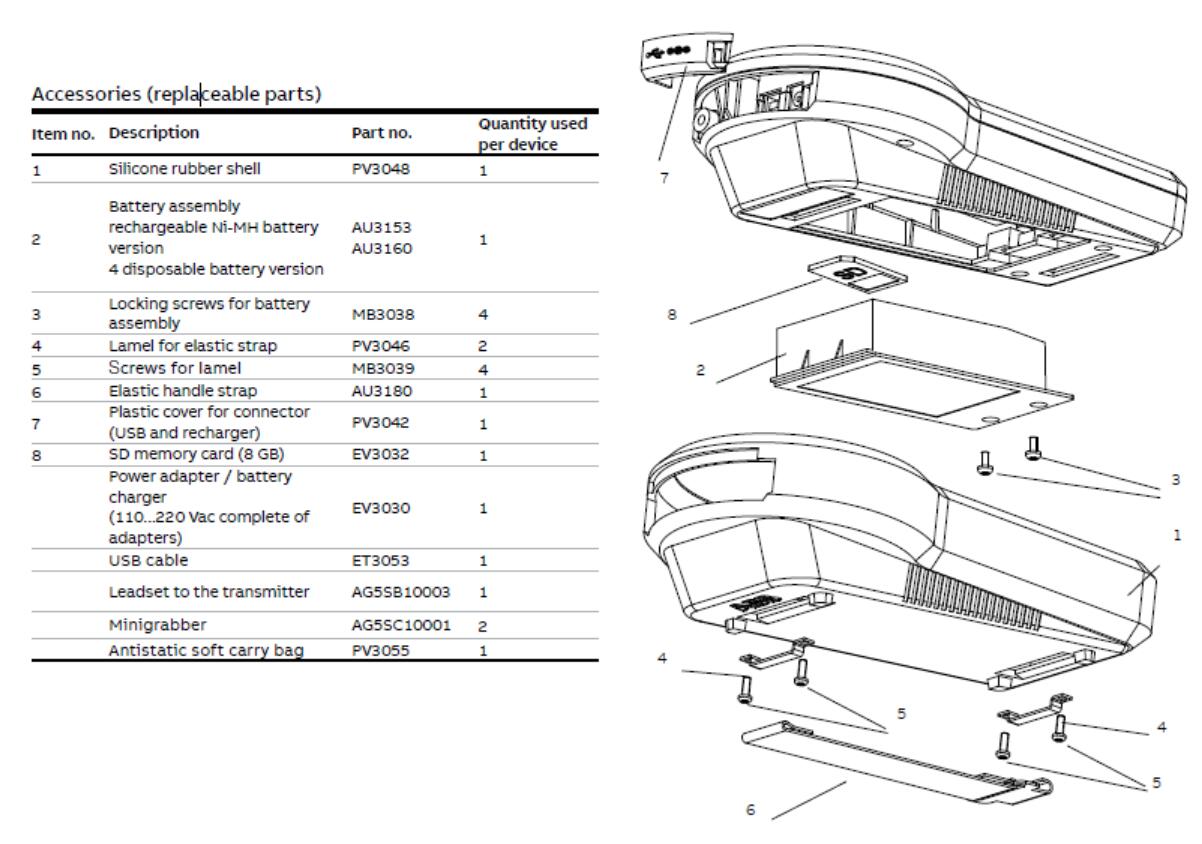

Power	adapter / battery

Physical specifications

Glass fiber reinforced, flame resistant, anti-static PAG single sheet molded dome switches with tactile feedback * 7 single function keys for editing and operation * 12 multifunction keys for alphanumeric and sumbols Wide screen LCD, 128 x 64 pixel,

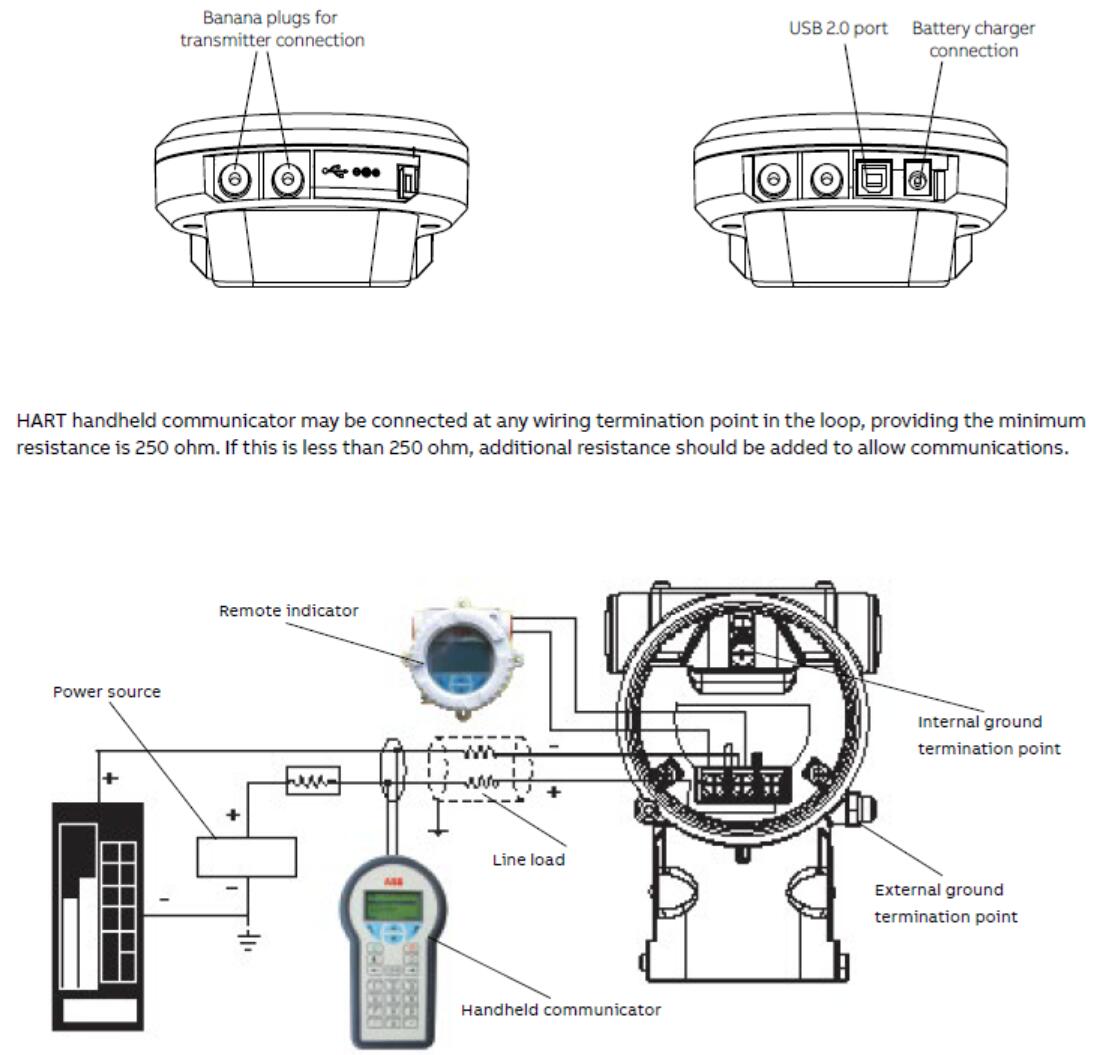

52.5 x 27.2 mm (2.06 x 1.07 in.) dot matrix. * to the transmitter: 2 standard banana jacks, suitable for 1.5 m (5 ft) leadset with insulated minigrabbers and alligator clips (provided). to the PC: USB port (type 8) suitable for cable (provided), to allow software and DD upgarde and to use the DHH805 in modem functionality. to the battery recharger: 5 mm dia. socket with inner pin as positive pole.

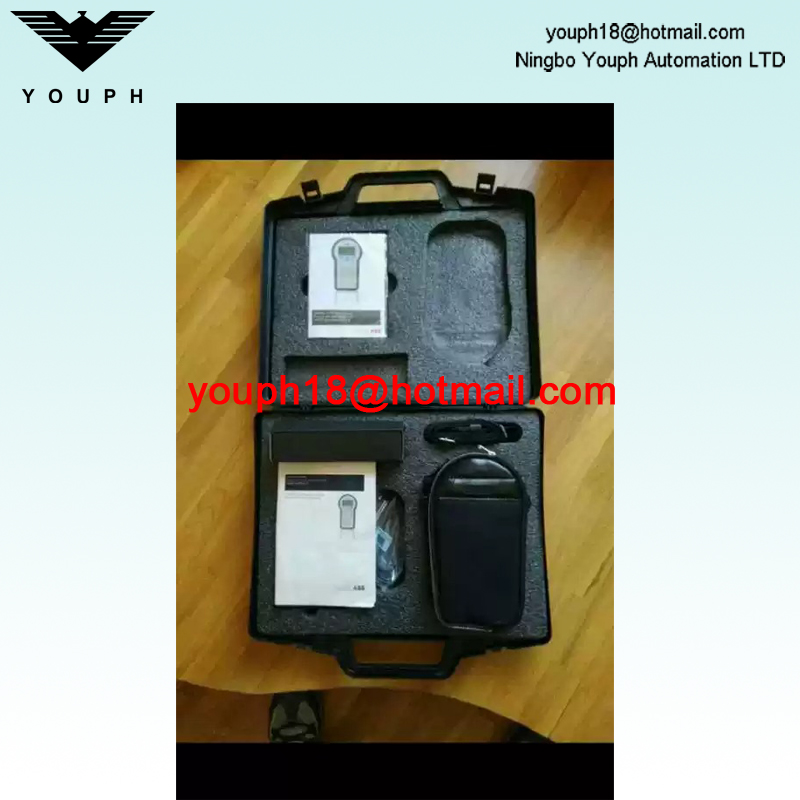

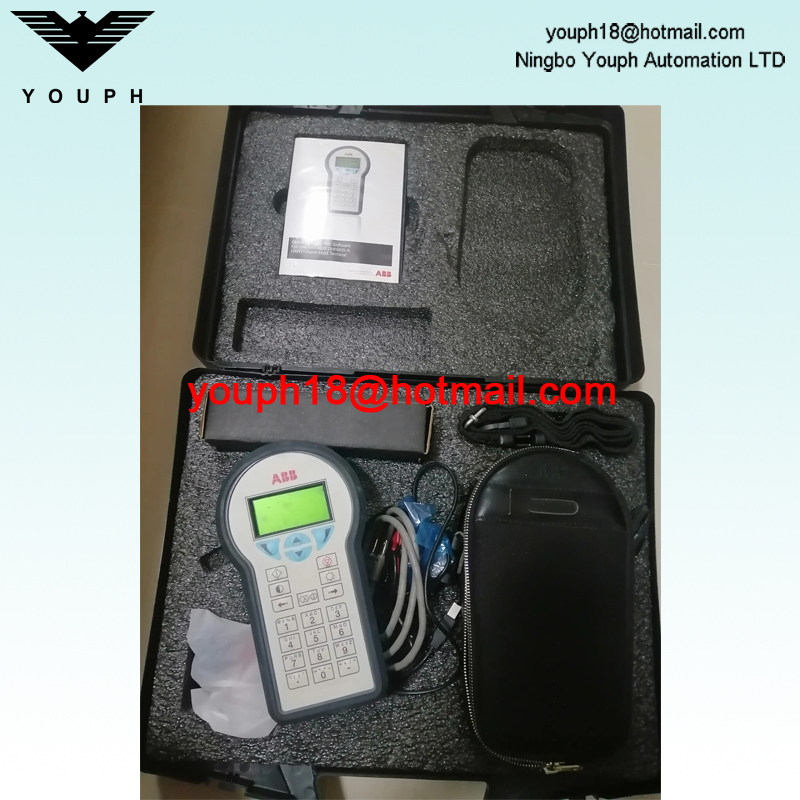

0.95 kg approx (2 Ib) Add 450g (1 Ib) for carrying case. Carton including all accessories and documentation. DHH805A is delivered in a hard plastic case including battery assemblies (rechargeable and disposable power adapter/battery recharger with universal plugs elastic handle strap and rubber shell USB cable and leadset to the transmitter with ‘soft carry bag with adjustable shoulder strap DVD with PC-Tool software and HART DD library

Functional specifications

8 GB memory card (SD) Four type AA 1.5 V disposable alkaline batteries + Rechargeable Ni-MH battery sealed pack (provided). + 100 hours approx without backlit + 60 hours approx with minimum backlit + Programmable auto power-off. is the operating temperature With rechargeablel battery pack temperature must not Relative humidity: up to 100 %.

Key Features

Model DHH805A with product information prepared from the supplied datasheet and images.
Suitable for Process Control Unit applications where reliable replacement parts are required.
Product images are kept in the gallery; PDF diagrams and ordering references are kept in the detail page.
Original ABB product for industrial automation maintenance and machine building.

Technical Data

Brand	ABB
Model	DHH805A
Product Type	HART Handheld Communicator
Category	Process Control Unit
Compatible Models	DHH805

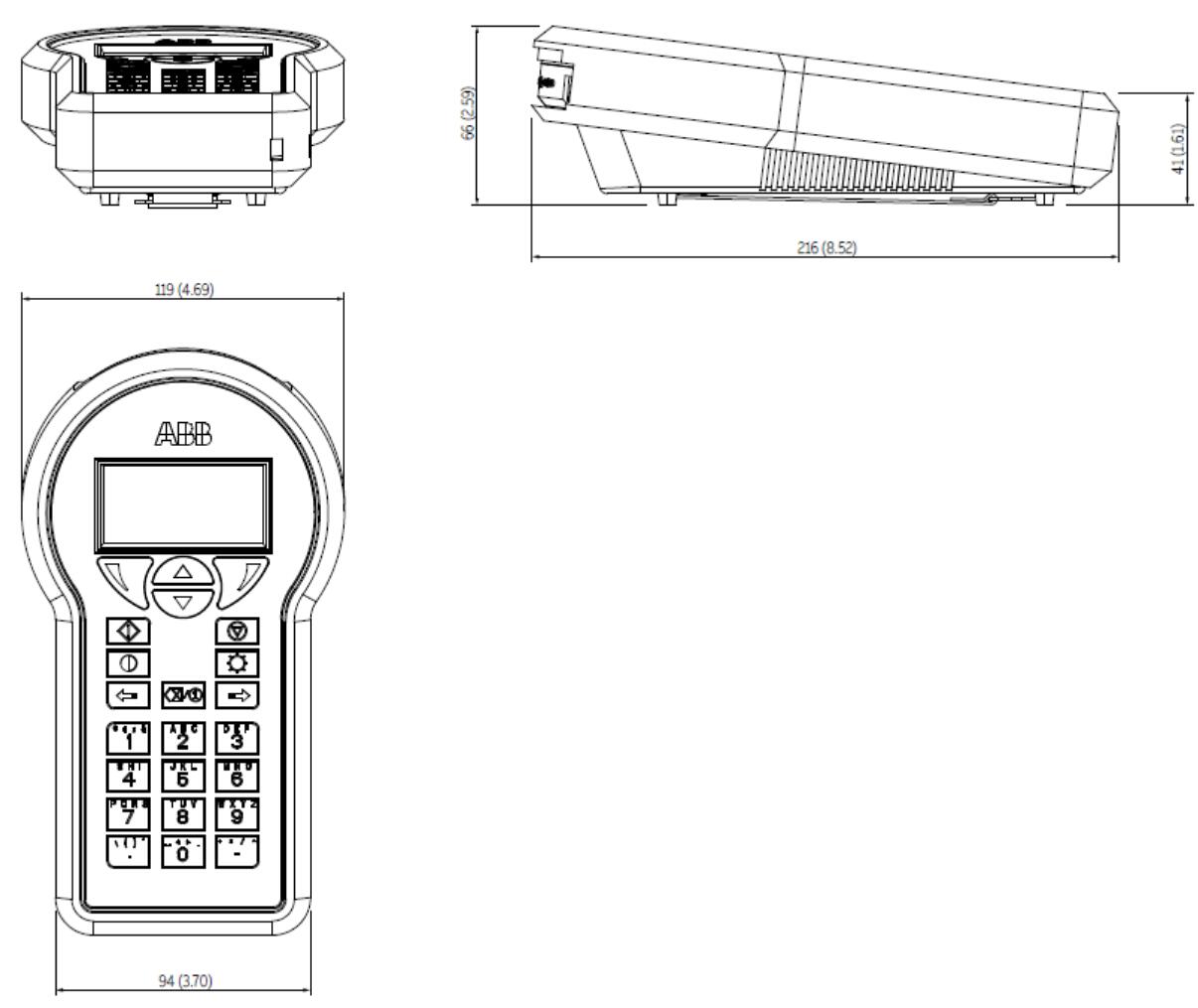

Dimensions Diagram

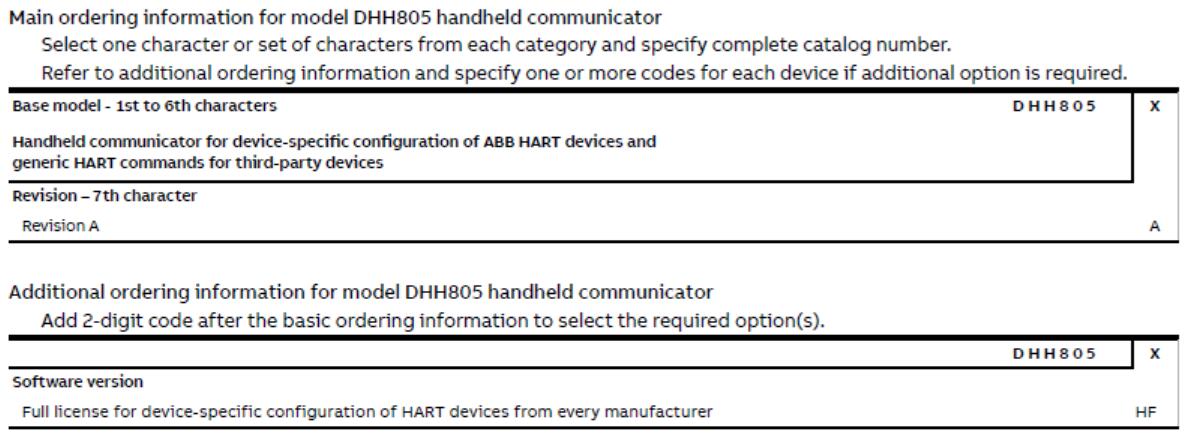

Ordering Code

Typical Applications

In practical use, DHH805A is a suitable choice for automation workshops, equipment maintenance departments and machine retrofit projects that rely on stable air signal control.

This process control unit item is often selected for commissioning, configuration and maintenance of HART field instruments in industrial automation systems.

Application Notes

Use this product according to the matching datasheet and machine requirements. Confirm port size, model code and operating conditions before replacement or installation.

Product Description

As part of ABB's Mobility line of device handhelds, the DHH805 is a handheld terminal for device configuration of HART® instruments. It interfaces to a wide range of devices supporting ABB instruments with an option to support those from third party suppliers. All supported HART field devices DHH805. As a full function HART communicator, the Mobility DHH805 supports Universal, Common Practice, and Device Specific commands for commissioning, configuration, and maintenance operations. The Mobility DHH805 provides a full view of information in a graphic dot matrix display. It’s easy to navigate parameter scrolling capability eliminates the need to memorize menus for online or offline device configuration. The Mobility DHH805 is designed for optimum convenience and usability. It’s sleek, easy to grasp contour with thumb key access makes the Mobility DHH805 suitable for single-handed operation.
