Brand: Honeywell.
Model: MCT202.
Product type: MC Toolkit Configurator.
Category: Process Control Unit.
| Quantity: | |
|---|---|
MCT202
Honeywell

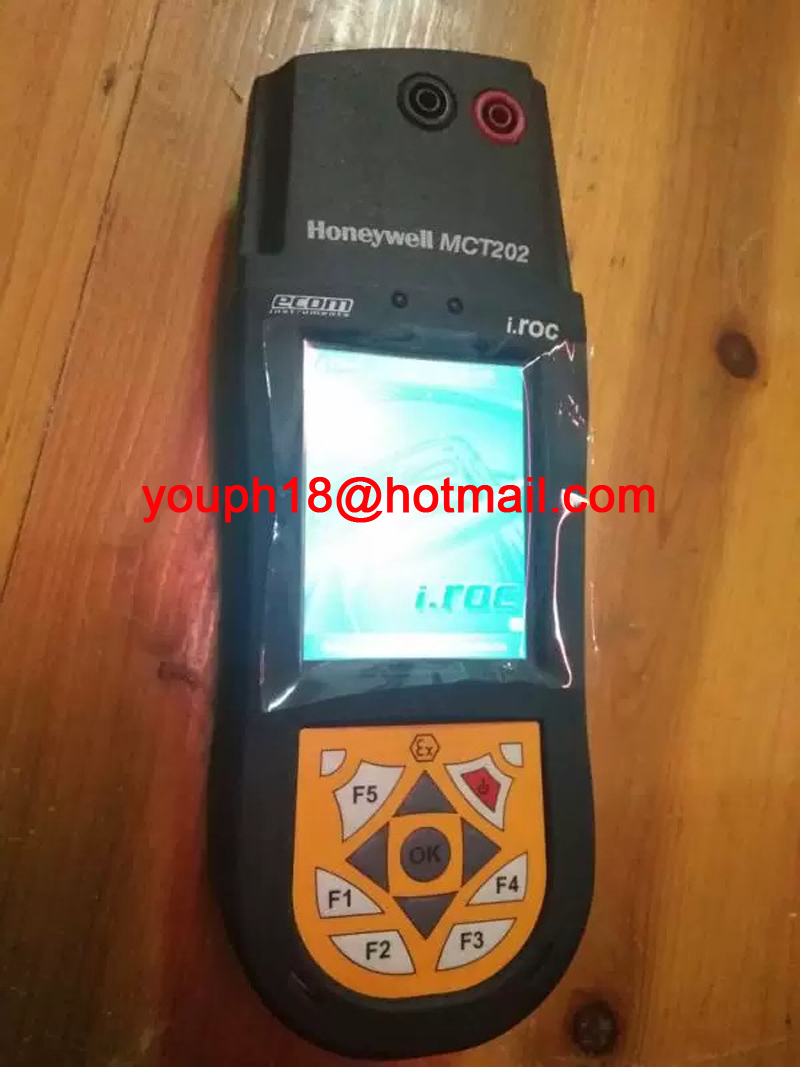

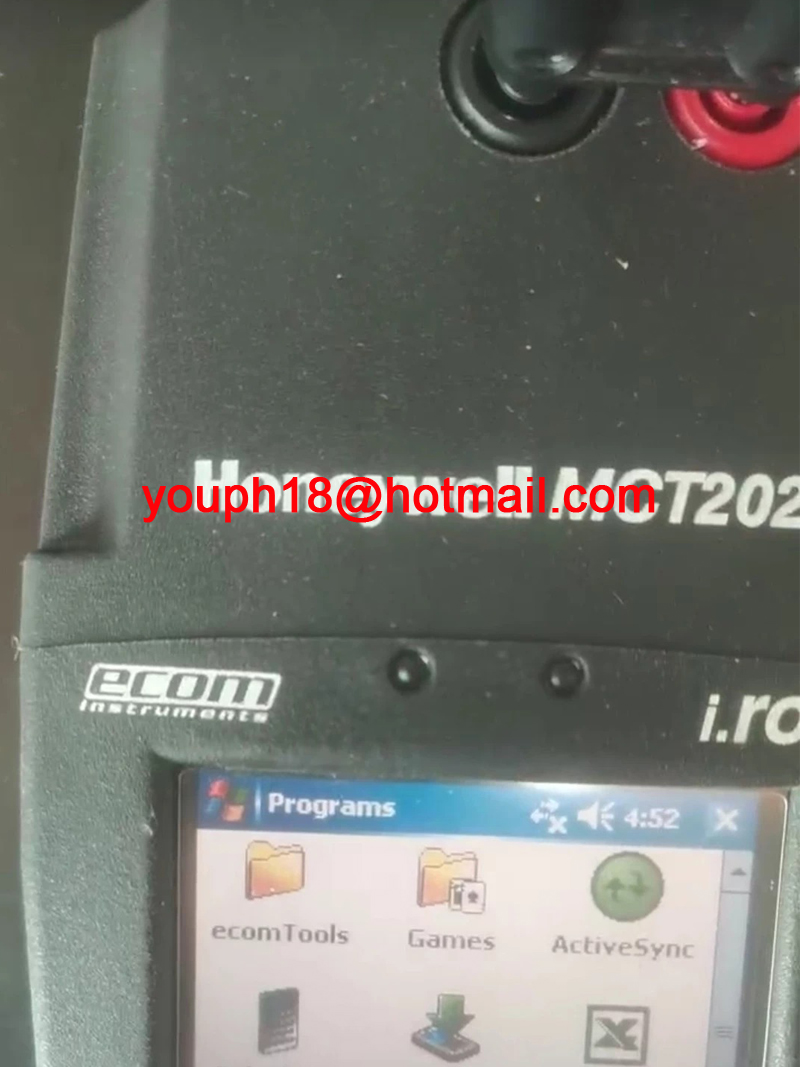

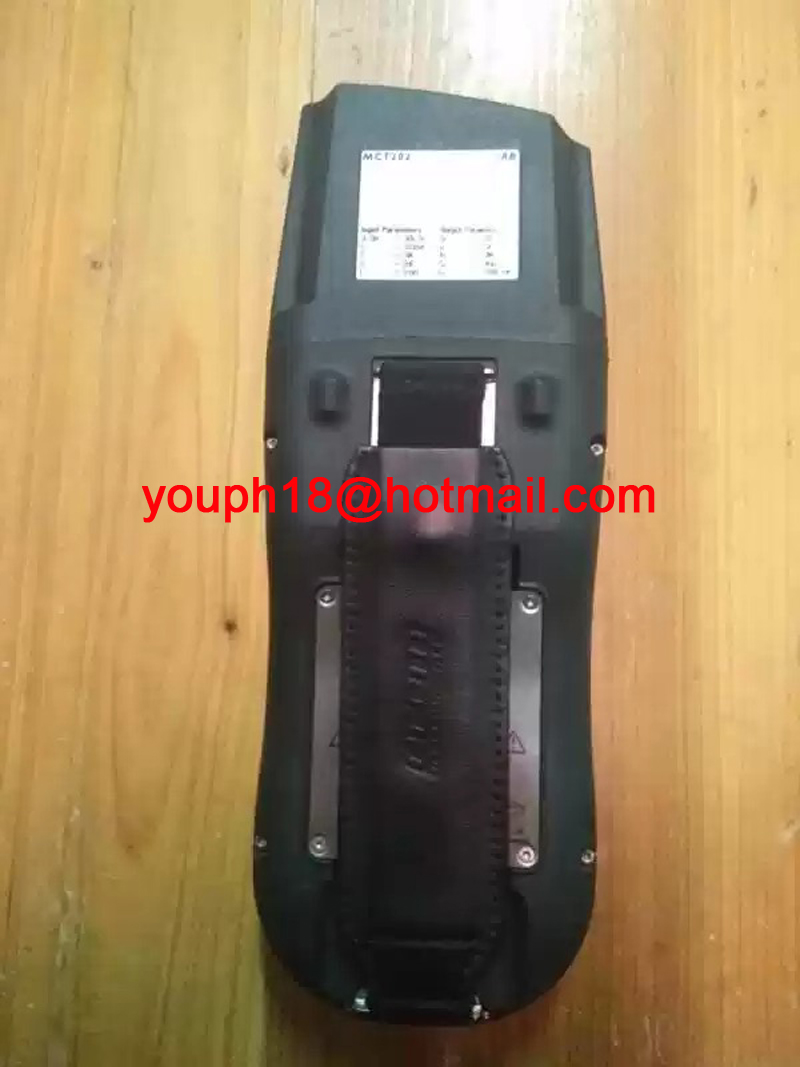

Honeywell MCT202 is an industrial MC Toolkit Configurator for HART and Honeywell DE device configuration. It is also commonly referenced with compatible model code ST3000, ST800, ST700 pressure, STT3000 temperature transmitters, 34-ST-03-80.
Item | MCT-202 |
|---|---|
Pocket PC | i.roc 6XX (HP iPAQ hx2490 or equivalent) |
Processor | Intel PXA270 520 MHz |
Memory | 128 MB ROM and 64 MB SDRAM; 1 GB San Disk Flash Memory card |
Operating System | Microsoft Windows Mobile 5.0 |
Display | 3.5 in. transflective TFT color with LED backlight; 240 x 320 pixels, 64K color, touch screen |
Power Supply | Rechargeable Lithium-Ion battery plus new charger options. All AC power options accept voltage inputs (Vac) of 90-264. Select the required version based on input connection type: US Type, EU Type, AU Type or UK Type. |
Dimensions | (6 x 2.875 x 1.5 in.) (15.24 x 7.3025 x 3.81 cm) |
Weight | 200 g (.4409 lbs) |
Operating Temperature | -10 to +50°C (+14 to +122°F) |
Storage Temperature | -20 to +60°C (-4 to +140°F) |
Operating Humidity | 10 to 90% RH |
Memory Requirements | Approximately 51MB (includes all HART registered device descriptions). MC Toolkit software, including FDC 2.X and HART DD files, are loaded on flash memory card. The flash memory card in the MCT202 is not removable. |
HART Device Description | Each MC Toolkit is loaded with a complete set of HART DD files available at the time of manufacture. If the device vendor has qualified their DD with the HART Foundation, the device description is assured of being compliant with the HON FDC 2.X Application. Additional DDs can be downloaded as new releases or new products become available through the ActiveSync connection. |
Approvals | European EMC Standards: EEC Directive 89/336 (EMC), CE Mark. FM C-US: Intrinsically Safe - Class I, Div 1 Group A, B, C, D; Non-incendive - Class I, Div 2 Group A, B, C, D. ATEX: Intrinsically Safe - Ex II 2G EEx ia IIC T4; Type n - Ex II 3G EEx nL IIC T4; Dust ignition proof - Ex II 2D T99oC IP65; Ex II 3D T55oC IP65. |
Suitable for Process Control Unit applications where reliable replacement parts are required.
Product images are kept in the gallery; PDF diagrams and ordering references are kept in the detail page.
Original Honeywell product for industrial automation maintenance and machine building.
Model MCT202 with product information prepared from the supplied datasheet and images.
Brand | Honeywell |
|---|---|
Model | MCT202 |
Product Type | MC Toolkit Configurator |
Category | Process Control Unit |
Compatible Models | ST3000, ST800, ST700 pressure, STT3000 temperature transmitters, 34-ST-03-80 |
ST 3000, ST 800 and ST 700 pressure and STT 3000 temperature transmitters. HART Device Descriptions (DD), regardless of device manufacturer. Supports easy downloading of any new vendor's DD files via a PC connection. Intuitive graphical user interface provides simple navigation and device configuration. Available in three versions handling almost hardened with no approvals. Zone 2 approvals: Intrinsically-safe version available with FM Class I, Div 2 and ATEX Zone 2 approvals. Zone 1 approvals: Intrinsically-safe version available with FM Class |, Div 1 and ATEX Zone 1 approvals. Fully supports all HART 5.X, HART6.X and wired HART7.X. Commands and utilizes DD IDE/SDC 625 technology and “Open” Tools
Honeywell MCT202 is used by maintenance technicians and commissioning engineers to configure and diagnose HART and Honeywell DE field instruments.
It is suitable for process plants, instrument workshops and field service teams working with transmitters such as ST3000, ST800 and ST700 pressure devices.
Use this product according to the matching datasheet and machine requirements. Confirm port size, model code and operating conditions before replacement or installation.

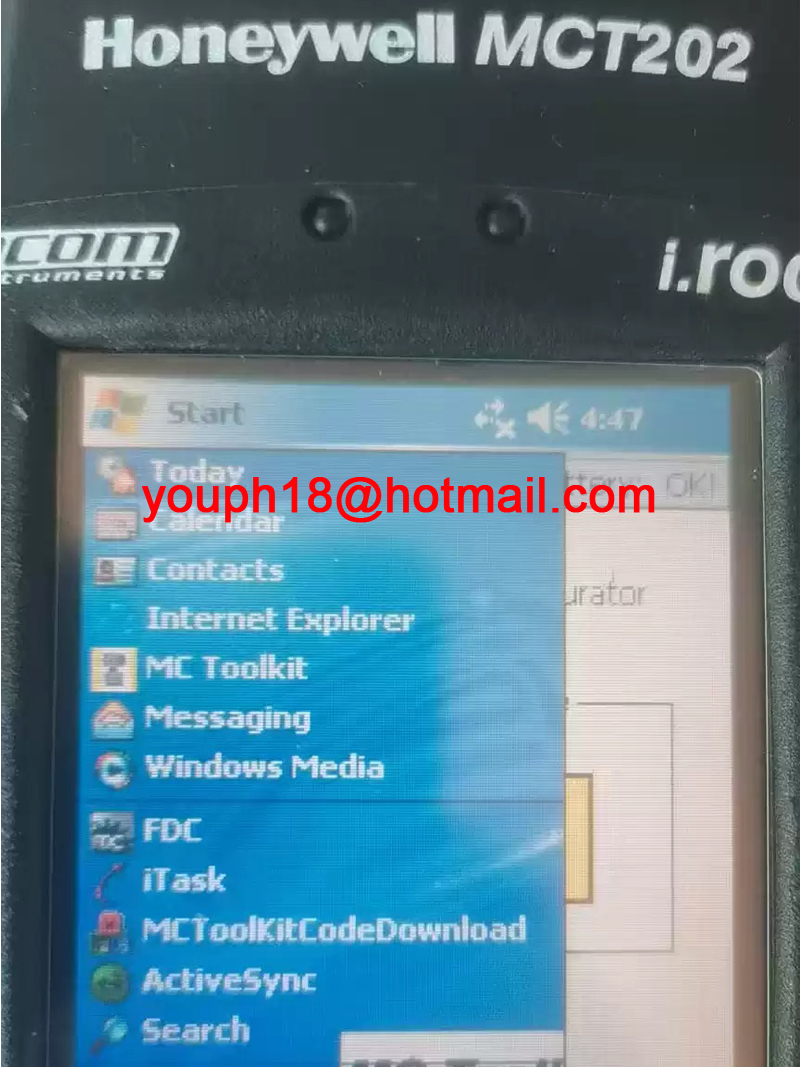

The Honeywell MC Toolkit Configurator is a Pocket PC-based engineering and maintenance tool used field instruments/devices. Designed specifically for ease-of-use and increased productivity, this multipurpose tool supports both HART and Honeywell's Digitally Enhanced (DE) communication protocols. The MC Toolkit allows easy access to instrument configuration database parameters without the need for prior training, user manuals or previous experience. Each MC Toolkit comes loaded with all registered HART Device Description (DD) files and may be supplemented with non-published DD files at any time — so any DD can be downloaded. New DD files are easily downloaded and installed using ActiveSync software and the USB cable provided. The MC Toolkit Configurator is loaded with two
1. The MC Toolkit software configures Honeywell
2. The FDC 2.X software configures universal The combination of these two applications enables true “Universal” configuration of HART devices and Honeywell DE devices. The MCT202 is rated intrinsically safe for Zones 1& 2 for both FM C and ATEX.
Supports transmitter diagnostic and on-line monitoring as well as transmitter calibration. Standardizes both HART and DE field instrument configuration with one hand-held device. Configuration of common, universal and specific device commands is supported. User interface provides detailed explanations and sub-menus during the configuration process for ease of operation for even the casual user.
Supports communication with HART devices when the operator is performing the following Determining the actual “state” or process variable of a particular device Activating a device's internal diagnostic Avoid obsolescence issues when vendors publish Download new device descriptions from the Acquire the latest DD releases from the manufacture’s website including device descriptions not available from HART. Honeywell FDC 2.X Application comes with built in DD manager which allows easy addition and deletion of DDs. FDC 2.X also supports IEC 61804-3 EDDL Standards. Honeywell FDC 2.X Application has the facility to create custom views for easier and quicker access to device information. Improved DD selection mechanism enables the following configuration options when the proper
Item Number | Description | MCT202 |
|---|---|---|
50036088 | MC Toolkit Upgrade Kit: San Disk card loaded with MC Toolkit and FDC 2.X software plus HART DD files | |
50018046-001 | Transmitter connector cable with one set of Alligator clips and one set of EZ clips | Available |
50017823-001 | Stylus pens, set of two (2) | Available |
50017828-001 | Spare charger LG x 10 (US adaptor) | Available |
50017828-002 | Spare charger LG x 10 (EU adaptor) | Available |
50017828-003 | Spare charger LG x 10 (UK adaptor) | Available |
50017828-004 | Spare charger LG x 10 (AU adaptor) | Available |
50017822-001 | Leather carrying case | Available |
50017824-001 | Hand Strap | Available |
50018626-001 | Docking station with charger adapter and USB cable for computer interface | Available |
50017827-001 | Docking station with USB cable | Available |
50017825-001 | Charger adapter for docking station | Available |
50018045-001 | USB interface kit with charger cable | Available |
51453286-501 | Honeywell CD-ROM software (FDC 2.X and MC Toolkit software) | Available |
