YOKOGAWA BT200 BRAIN Terminal Handheld Communicator

YOKOGAWA BT200 BRAIN Terminal Handheld Communicator

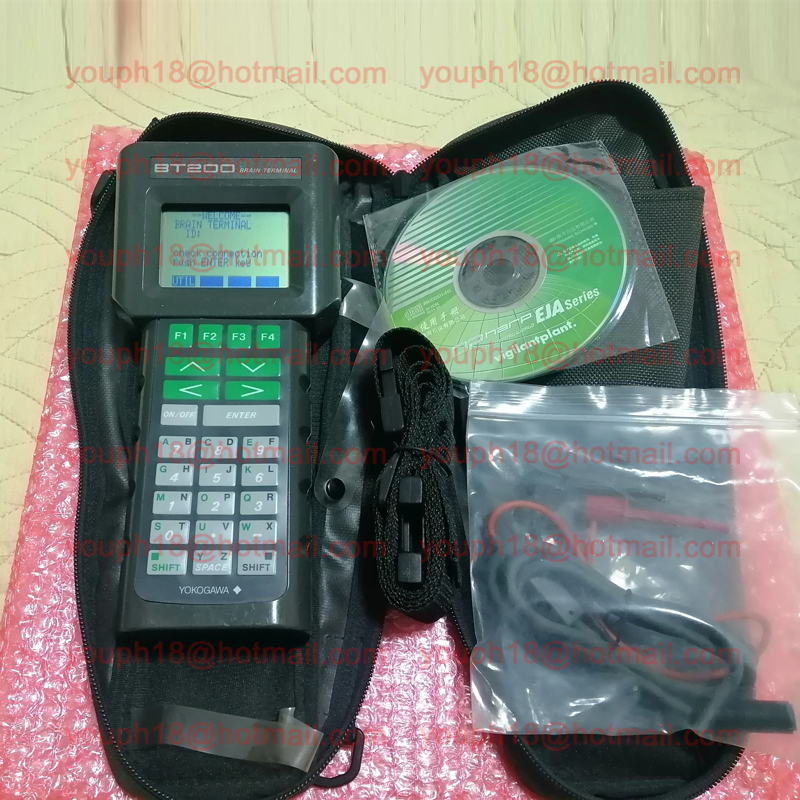

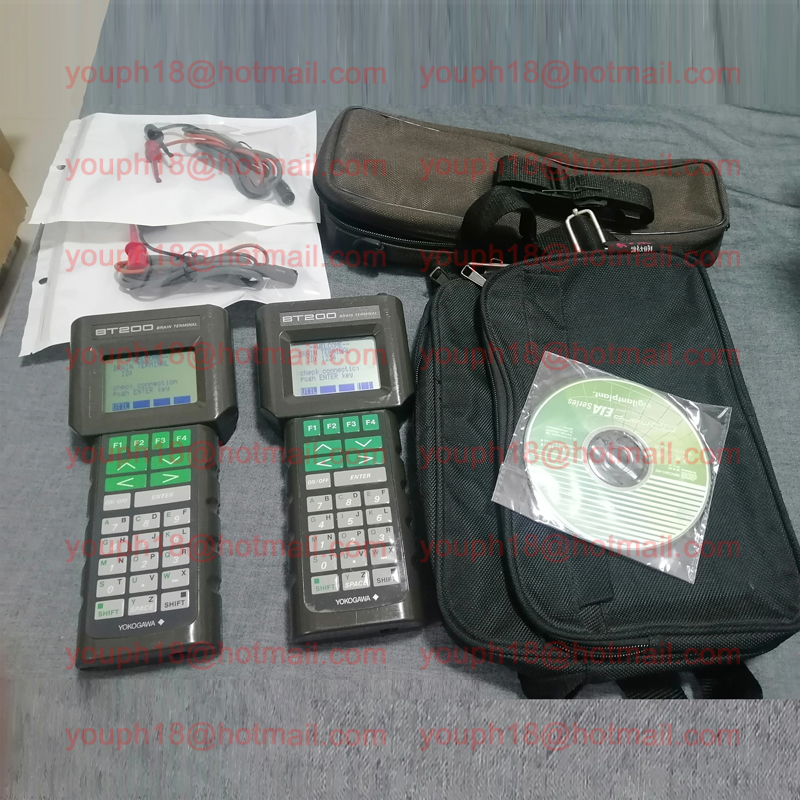

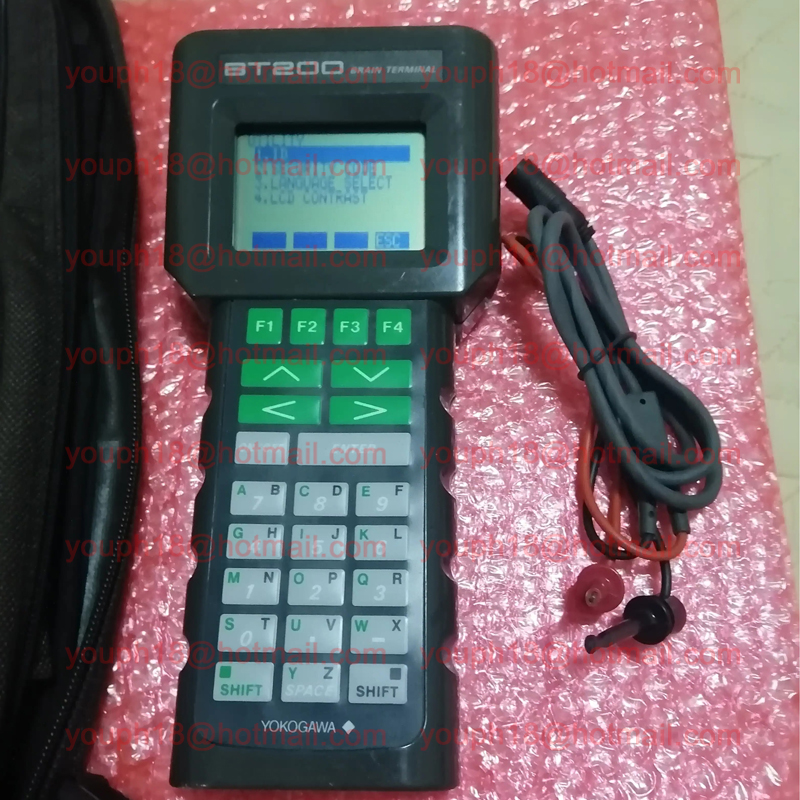

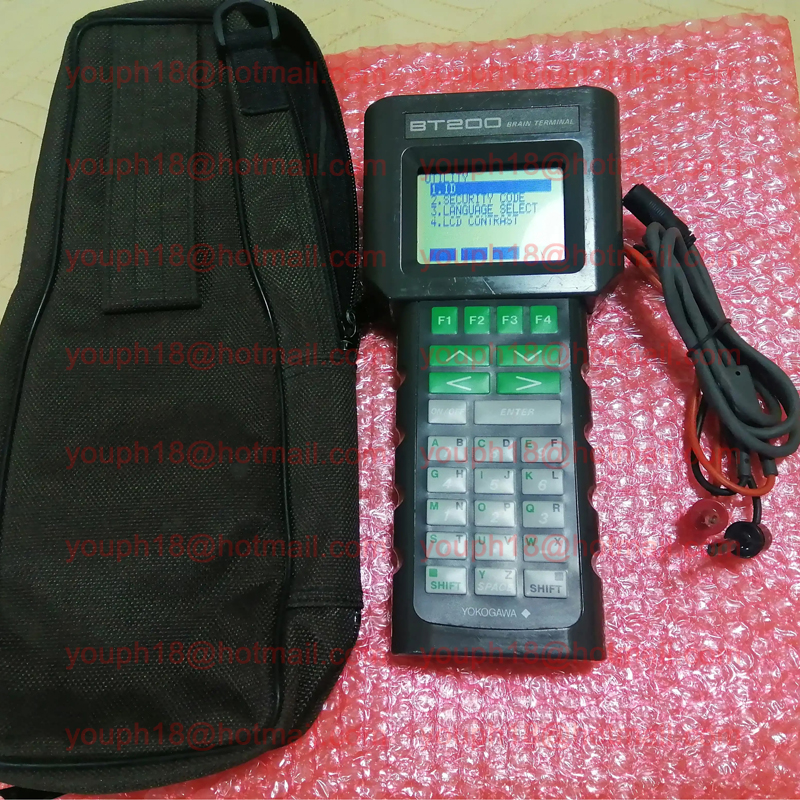

YOKOGAWA BT200 BRAIN Terminal Handheld Communicator is an industrial handheld communicator for pneumatic automation and equipment control applications. It is also commonly referenced with compatible model code BT200-N00, BT200-P00.

Product Features

1. Online monitoring and communication: The modulated communication signal does not interrupt the 4 to 20 mA DC signals during.

2. Common to all Yokogawa’s equipment: The Model BT200 BRAIN TERMINAL works with all equipment that uses BRAIN communication.

3. A large display (21 characters by 8 lines) eases setup and alteration procedures in English prompting interactive sequences.

4. Diagnostics/security with error messages + Security code protection of setpoints + Low battery voltage alarm

5. Printer prints out tag numbers and other parameters on the spot.

Technical Data

Functional Specification

@ Setup, alteration, and display of parameters BRAIN communication. @ Batch upload/download of data Security code entry is required to alter setpoints. An alarm message appearing on the LCD announces low battery voltages. The terminal is switched off automatically if no key access is made for approximately 5 minutes. Parameter list within each menu item Setup change data list

Standard Specification

Signal Conditioner for CENTUM Communication Specification: Yokogawa original host to device: +/- 0.5 V (load resistance 250 0) device to host: +/- 2 mA Load resistance: 250 to 600 Q (including cable Load capacitance: 0.22 uF or less Load inductance: 3.3 mH or less Power line spacing: 15 cm (6 inch) or more (Avoid Up to 2 km (1.24 mile) (0.75 to 1.25 mm?

1.1 m with dedicated cable Dedicated cable, 1.1 m long (3.6 ft)

Key Features

• Model BT200 with product information prepared from the supplied datasheet and images.

• Suitable for Process Control Unit applications where reliable replacement parts are required.

• Product images are kept in the gallery; PDF diagrams and ordering references are kept in the detail page.

• Original YOKOGAWA product for industrial automation maintenance and machine building.

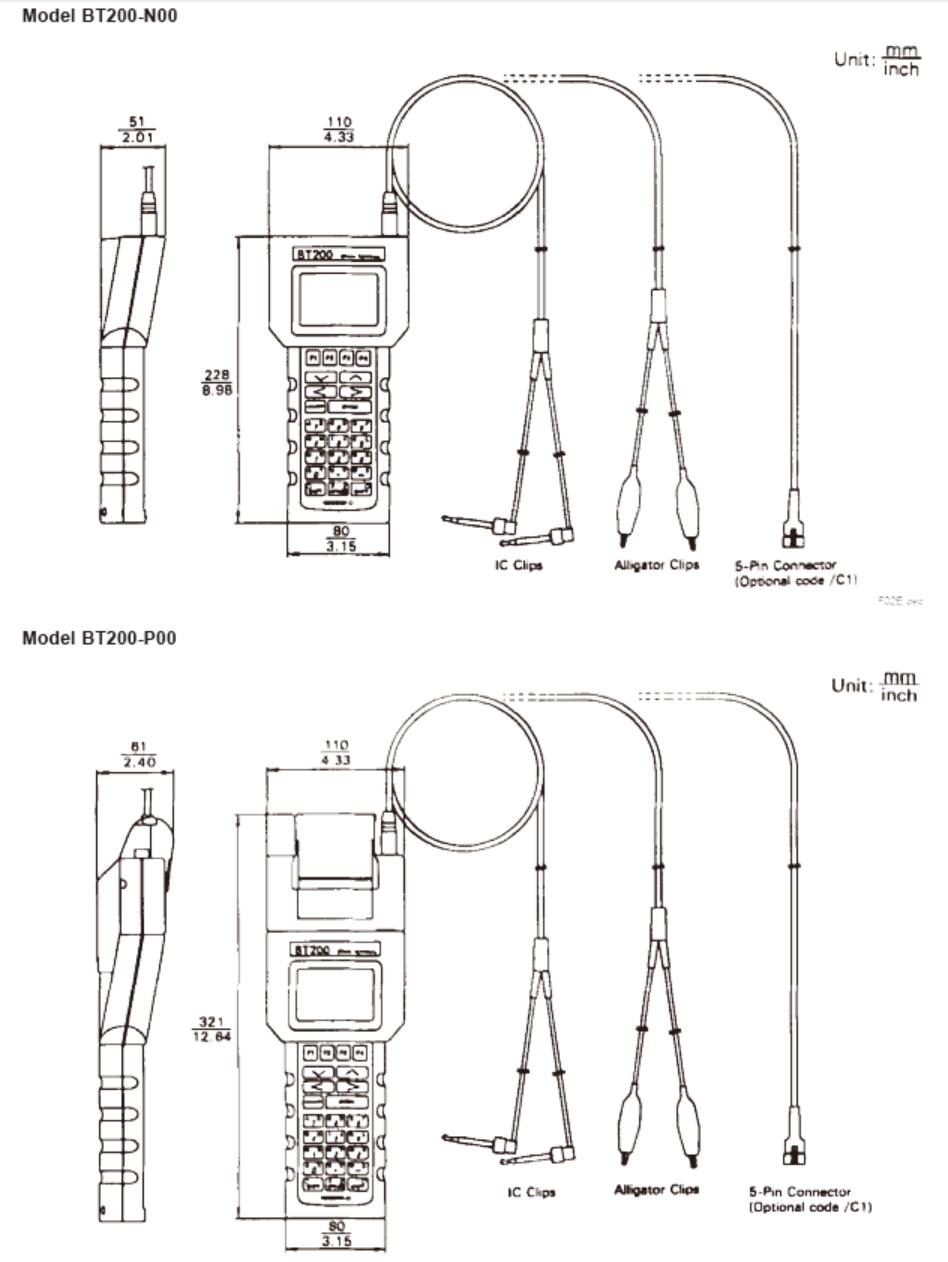

Dimensions Diagram

Typical Applications

In practical use, BT200 is a suitable choice for automation workshops, equipment maintenance departments and machine retrofit projects that rely on stable air signal control.

Application Notes

Use this product according to the matching datasheet and machine requirements. Confirm port size, model code and operating conditions before replacement or installation.

ACCESSORIES

Two cables, one with alligator clips and one with IC clips (both snap-removable)

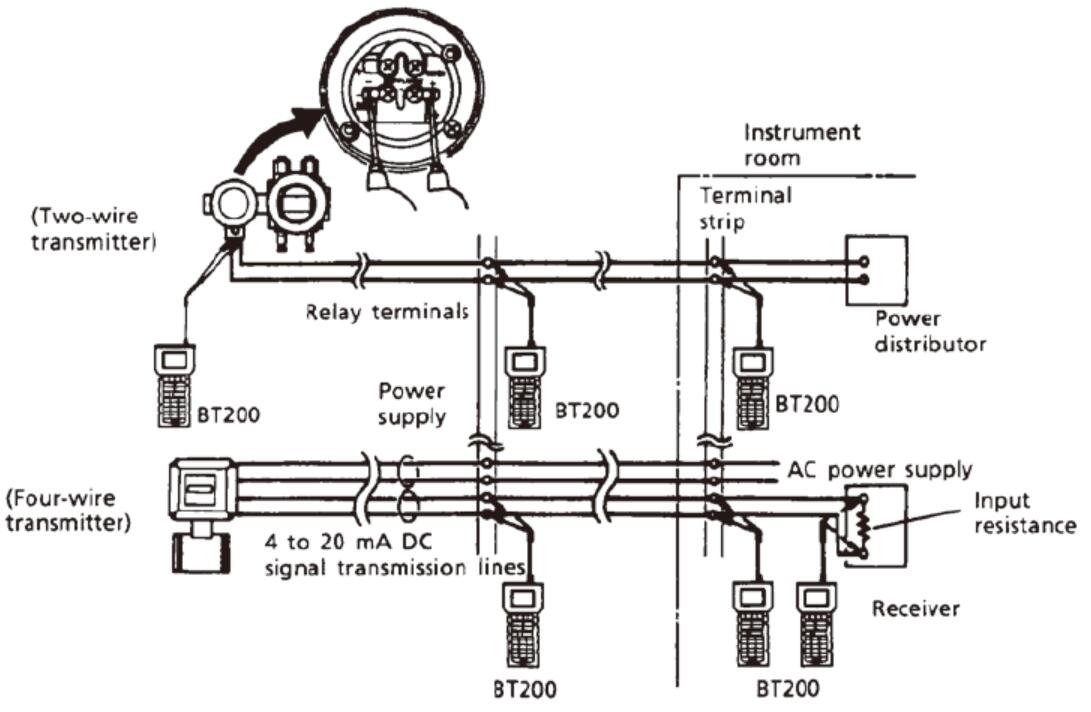

Connection Method

Model and Code

Part Numbers
