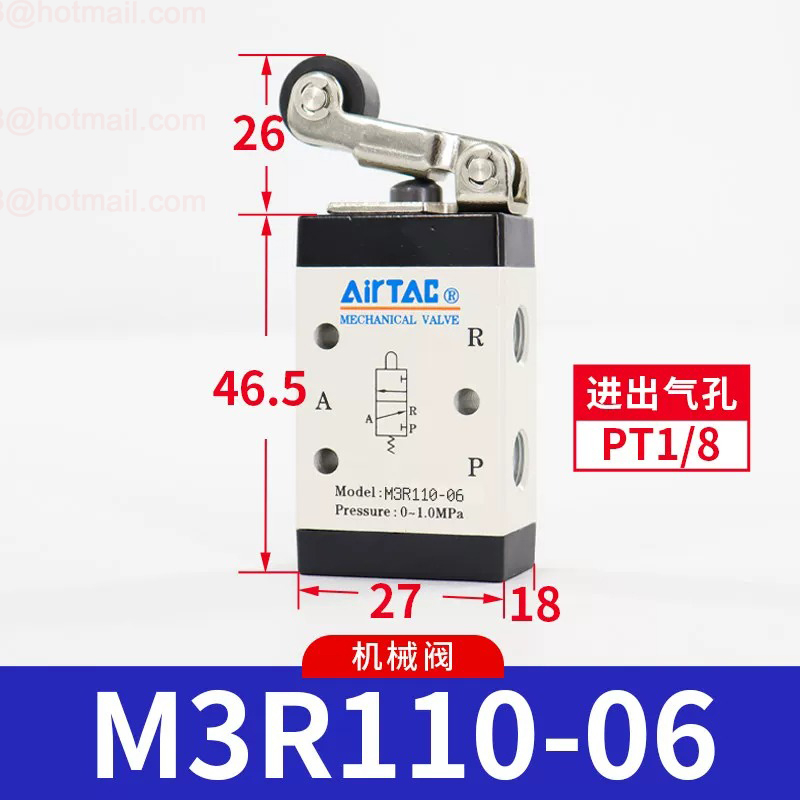

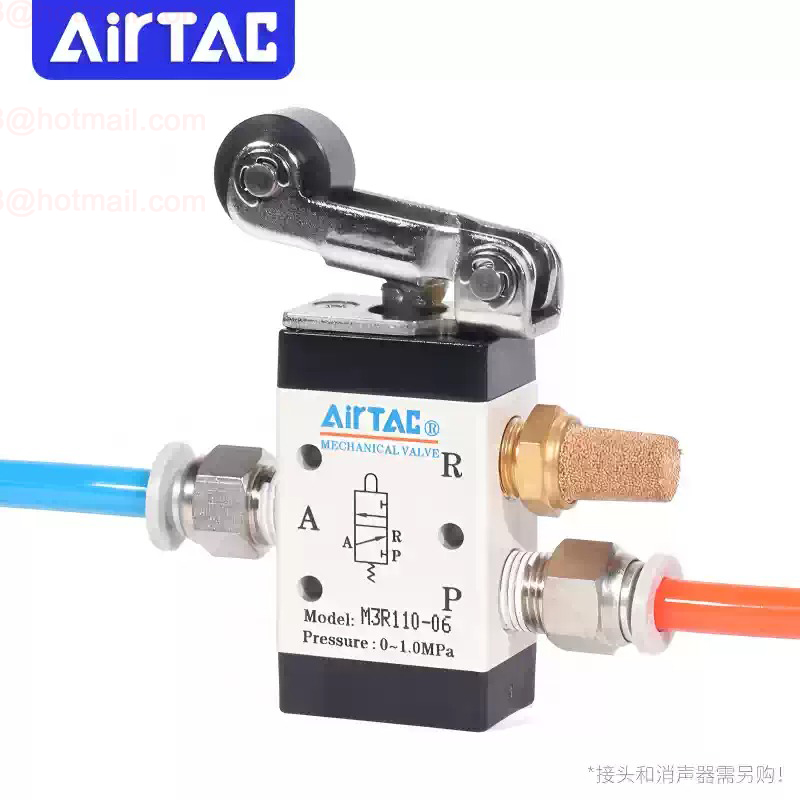

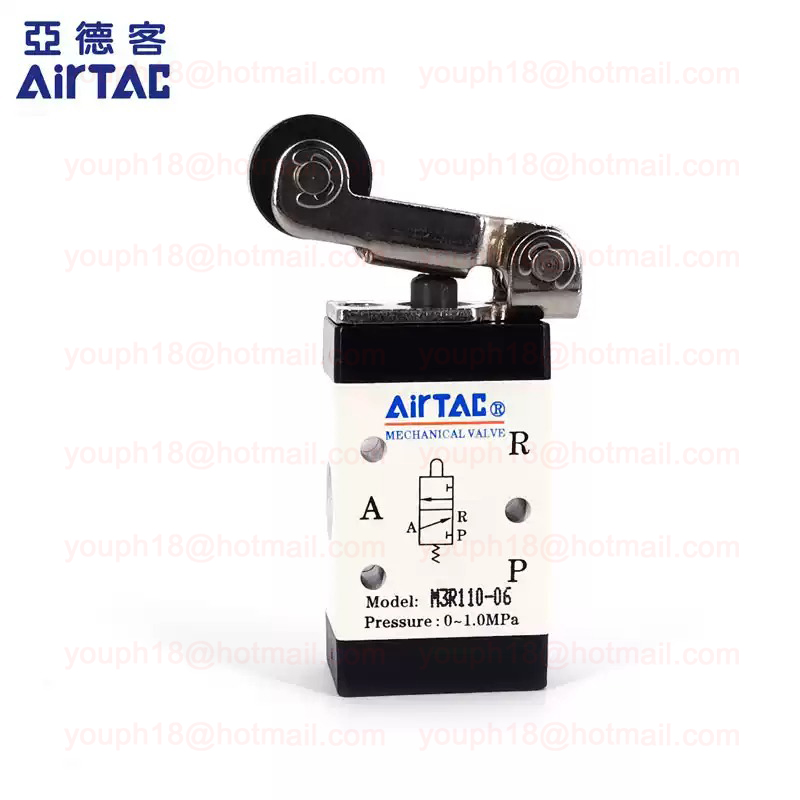

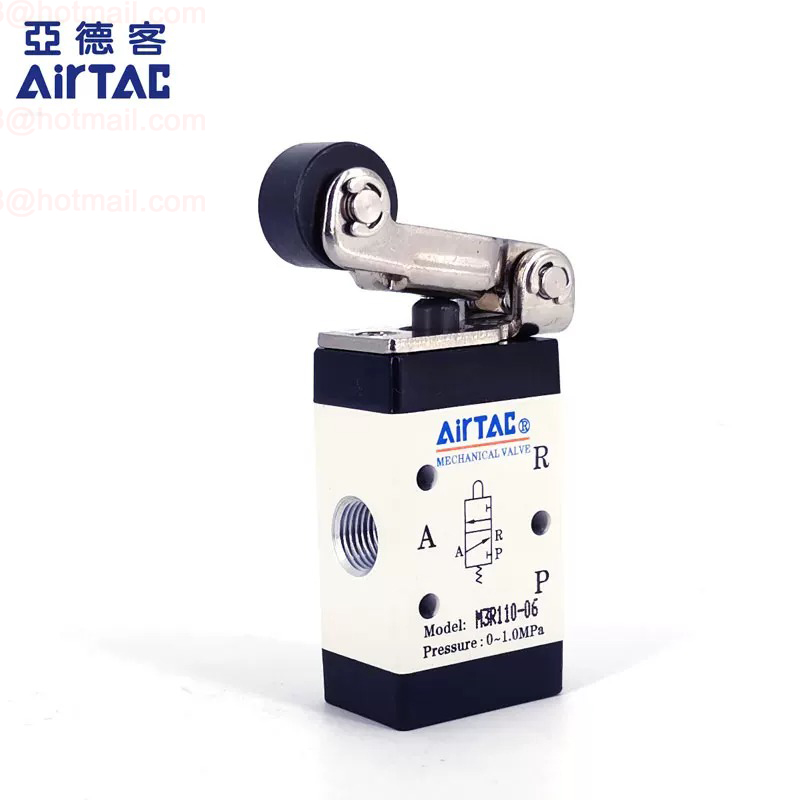

Airtac M3R110-06 G1/8" M3 Series Roller type M3R Control Valve

Airtac M3R110-06 G1/8" M3 Series Control Valve

Airtac M3R110-06 is an industrial M3 Series Control Valve for pneumatic automation and equipment control applications. It is also commonly referenced with compatible model code M3R05-P14A, M3R210-P14A.

Product Features

1, Exhaust outlet locates over the body, which is convenient to install muffler to decrease noise and pollution.

2. The external force required by direction-change of series of M3B, M3R and M3 L is provided by external mechanism, which can be used for position test or stroke switch] limit switch.

3. M3C, M3D, M3Y, M3PF, M3PM, M3PP, M3PL and M3HS are operated manually, owning control joints with several structure forms and suitable for application under different

4, It is in sliding column structure that the control force is not influenced by working pressure (thatis, there is no back pressure effect); internal circle is sealed with good tightness and the direction-change is sensitive.

5. No need to add oil for lubrication.

6. Multi-mounting makes it convenient to install and apply;

7. The control joints of series of M3C, M3D, M3Y, M3R, and M3L are made of metal which has long service life and more reliable and steady performance.

Installation Notes

1) Body and panel installation ( picture at right )

2)The control set is made of engineering plastic which only allows manual operation and switching valves through metal impact is forbidden,

3)The series of M3B, M3C, M3D, M3PM, M3PF and M3PP get the function of automatic restoration. The hand valves of M3Y, M3HS and M3PL are in the type of manual restoration.M3PL will be restored by turning the revolve button after being pressed into orientation,

4) Pay attention to the reversing stroke, The reversing stroke can not surpass its stroke stipulated in stroke control table when the direction-change of the valve is forced by any external forces, otherwise it will cause the damage of the valve.

5) The M3L can only switch the valve in single direction (impact from right to left). The impact from the other direction is invalid (from left to right).

6) Control joint combination can be ordered individually. Please refer to the following tables for order details.

Technical Data

Key Features

• Product images are kept in the gallery; PDF diagrams and ordering references are kept in the detail page.

• Original Airtac product for industrial automation maintenance and machine building.

• Model M3R110-06 with product information prepared from the supplied datasheet and images.

• Suitable for Pneumatic Valves applications where reliable replacement parts are required.

Technical Data Reference

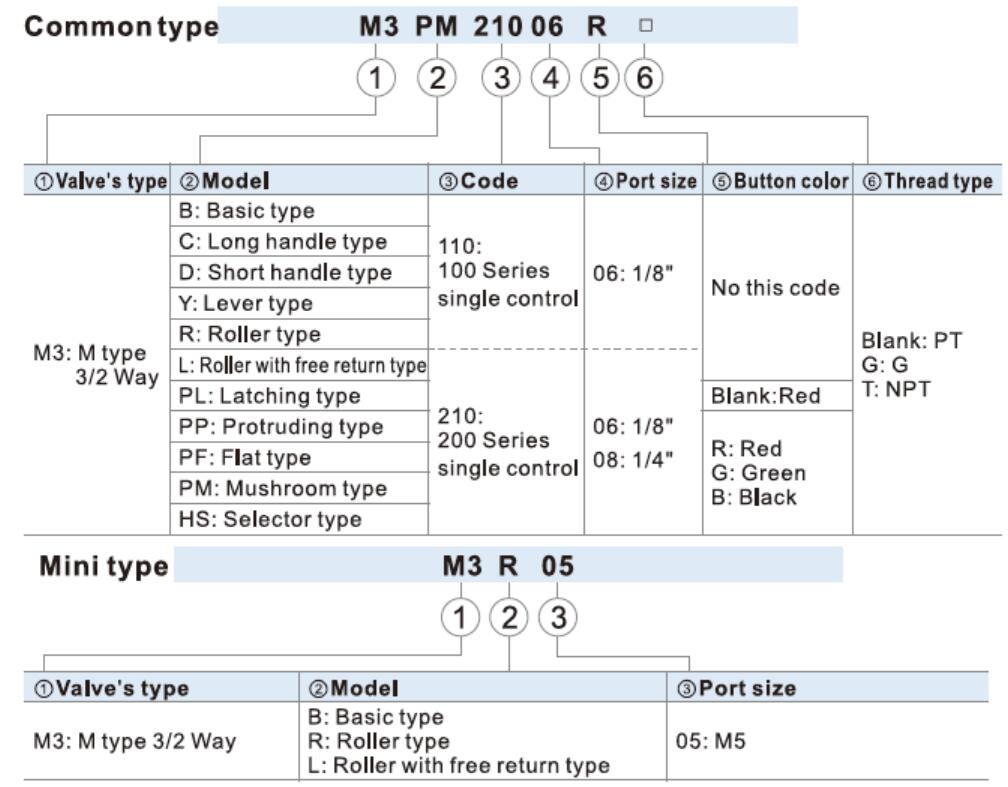

Ordering Code

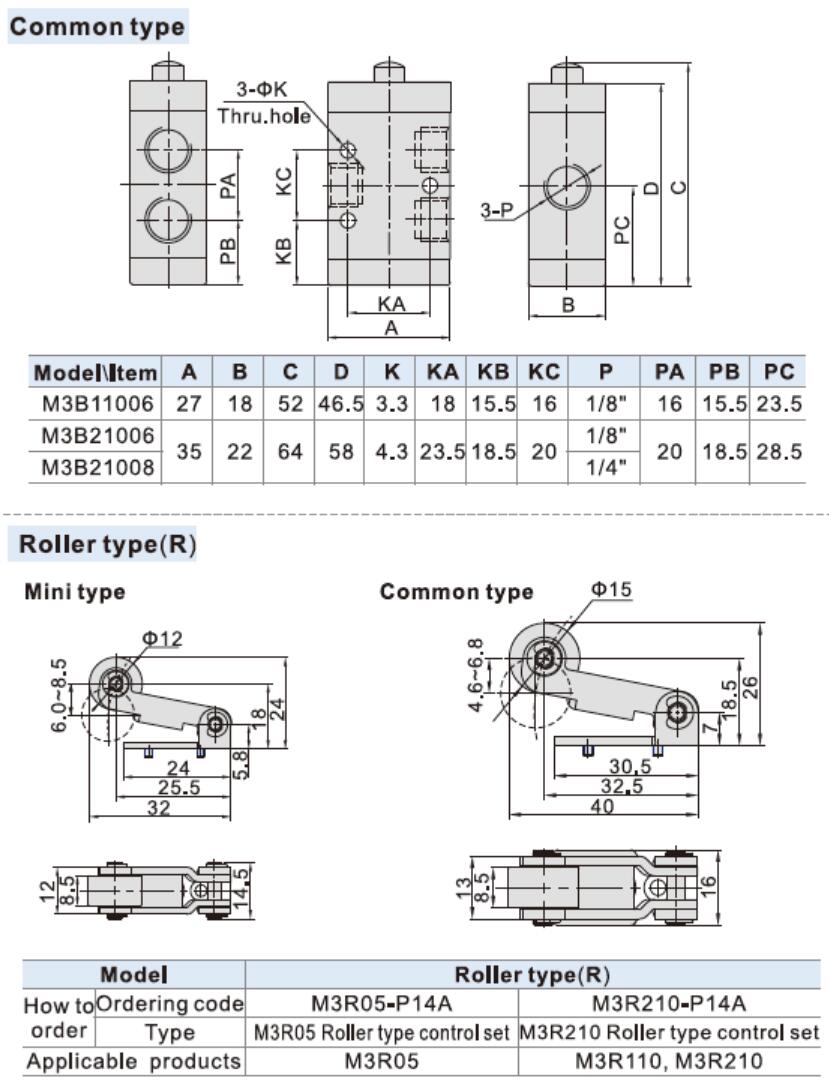

Dimensions Diagram

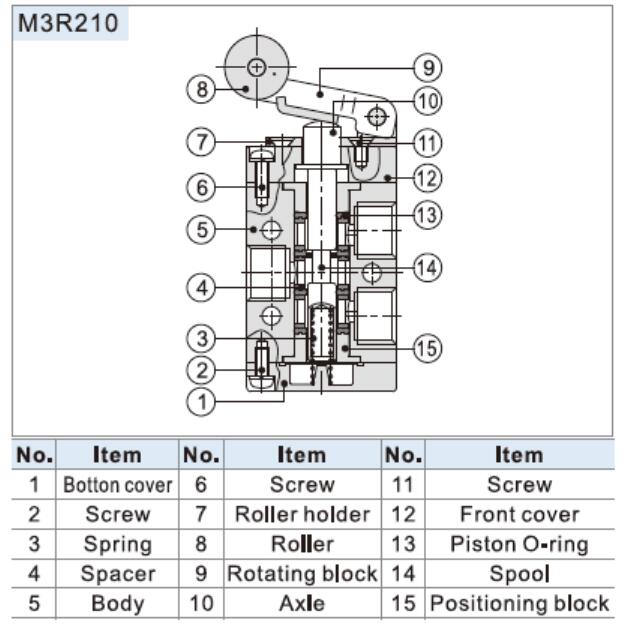

Inner Structure Diagram

Typical Applications

M3R110-06 can be applied in automation workshops, equipment maintenance departments and machine retrofit projects as a compact m3 series control valve.

It is suitable for assembly fixtures, pneumatic test benches and small control panels, especially where users need mechanical valve actuation, signal switching or basic pneumatic control.

Application Notes

Use this product according to the matching datasheet and machine requirements. Confirm port size, model code and operating conditions before replacement or installation.
