Airtac PK510 0.1 ~ 1.0 MPa Pressure Controller

Brand: Airtac.

Model: PK510.

Product type: Pressure Controller.

Category: Pneumatic Valves.

Availability:

Quantity:



Inquire Add to Basket

Model:
PK510
Brand:
Airtac

Product Description

Airtac PK510 Pressure Controller

Airtac PK510 is an industrial Pressure Controller for pneumatic pressure control applications. It is also commonly referenced with compatible model code PK503, PK506.

1. Suitable for refrigerants, air, liquids, and other non-corrosive media (allowable fluid temperature: -10°C to

100°C).

2. Equipped with an international standard mounting bracket, allowing installation in any position.

3. SPDT switch design ensures reliable contact changeover functionality.

4. Protection Rating: IP40.

Model	Operating Pressure (MPa)		Adjustable Pressure Difference (MPa)		Factory Setting (MPa)		Max. Airtight Test Pressure (MPa)
Model	Min.	Max.	Min.	Max.	OFF	ON	Max. Airtight Test Pressure (MPa)
PK503	-0.05	0.30	0.035	0.150	0.2	0.1	1.65
PK506	-0.05	0.60	0.060	0.400	0.3	0.2	1.65
PK510	0.10	1.00	0.100	0.300	0.6	0.5	1.65

Note: The scale plate features dual measurement units: "MPa" and "kgf/cm²".

Electrical Parameters

Rated Current (A) \ Rated Voltage (V)		125V (AC)	250V (AC)	24V (DC)
Non-inductive Current		20A	10A	8A
Inductive Current	Full Load Current	15A	8A	5A
Inductive Current	Instantaneous Current	72A

Technical Data

Brand	Airtac
Model	PK510
Product Type	Pressure Controller
Category	Pneumatic Valves
Compatible Models	PK503, PK506

PK510 Ordering Code

Item	Description
Series Code	PK: Pressure Controller
Pressure Range	503: -0.05 ~ 0.3 MPa / 506: -0.05 ~ 0.6 MPa / 510: 0.1 ~ 1.0 MPa
Port Connection	Blank: PT1/4" M: M12x1.25 N: 7/16"-20NPT S: Capillary Tube

Key Features

Pressure controller for pneumatic pressure regulation and machine automation use.
PK510 pressure range is 0.1 ~ 1.0 MPa, with PK503 and PK506 as related range options.
Product images are kept in the gallery; diagrams and ordering references are kept in the detail page.
Original Airtac product for industrial automation maintenance and machine building.

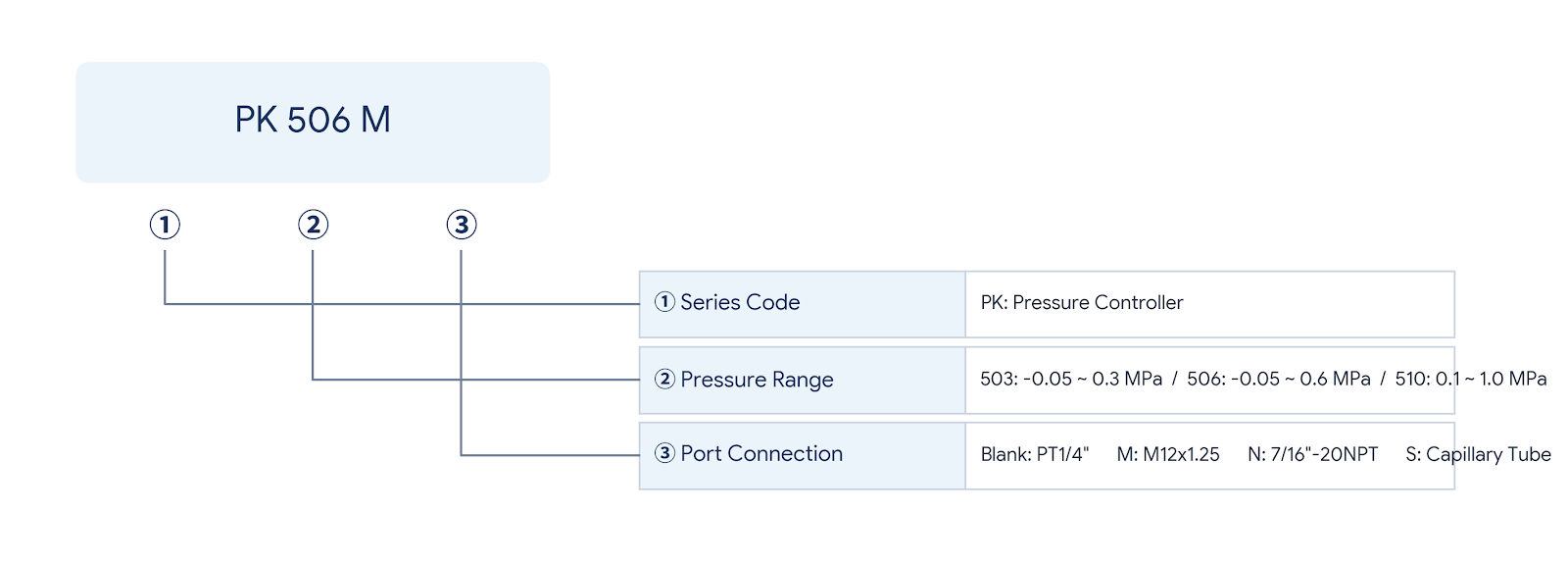

Ordering Code

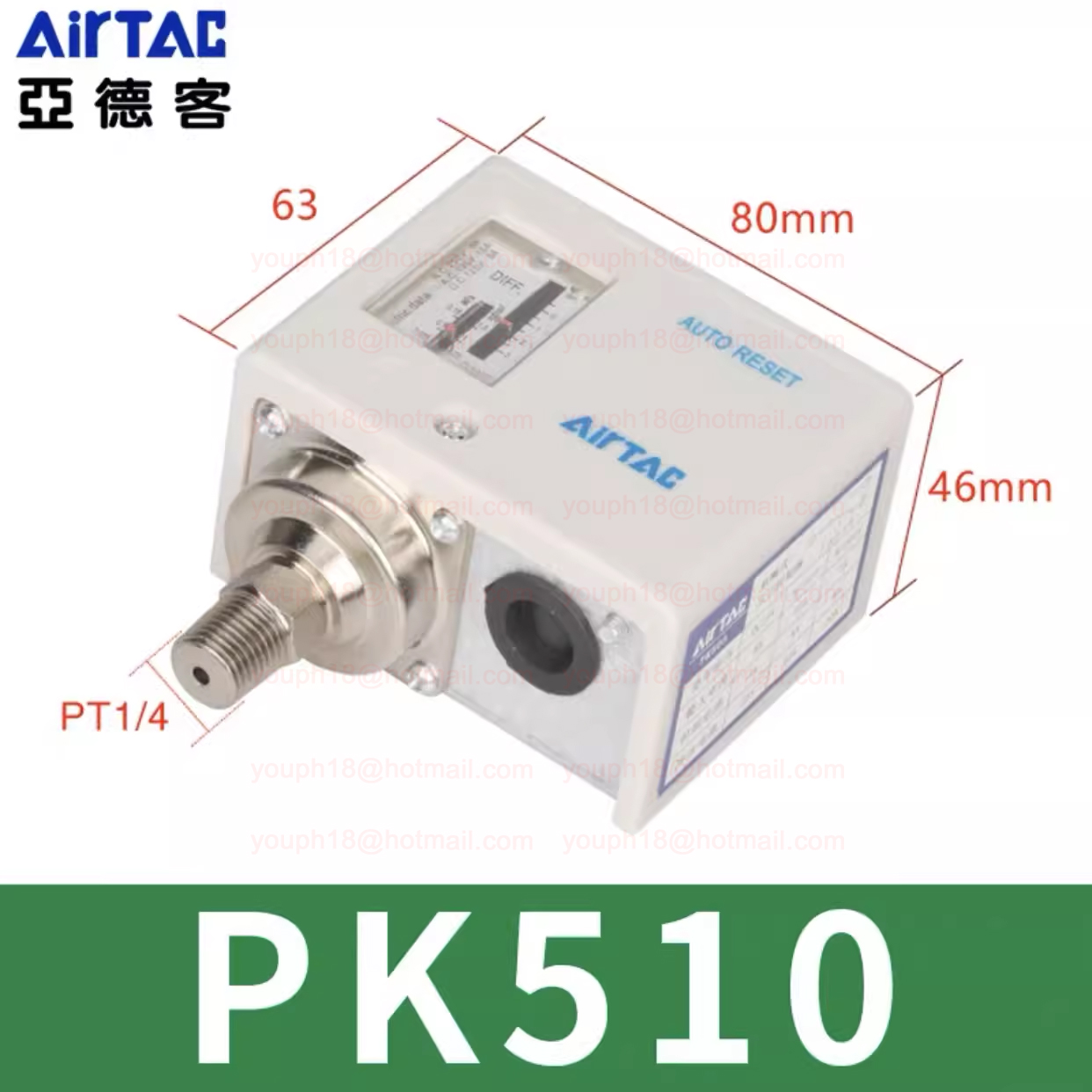

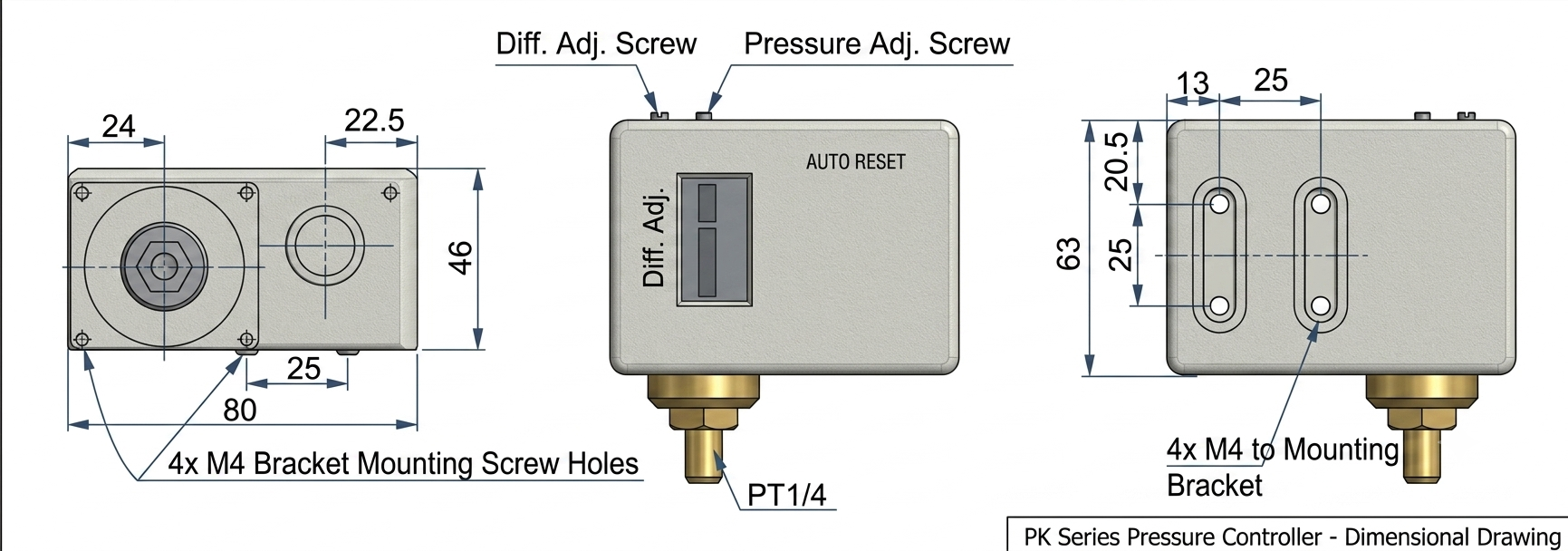

Dimensions Diagram

Typical Applications

Airtac PK510 is used for pneumatic pressure control in automation equipment, fixtures, conveyors and maintenance replacement applications.

Application Notes

Confirm pressure range, port connection and operating conditions before replacement or installation.

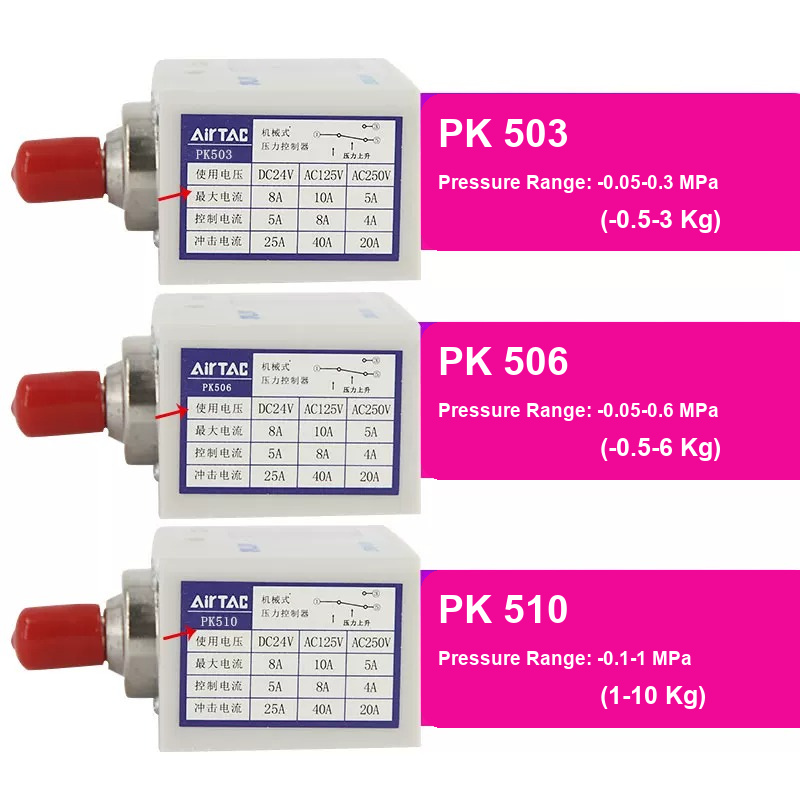

Pressure Range

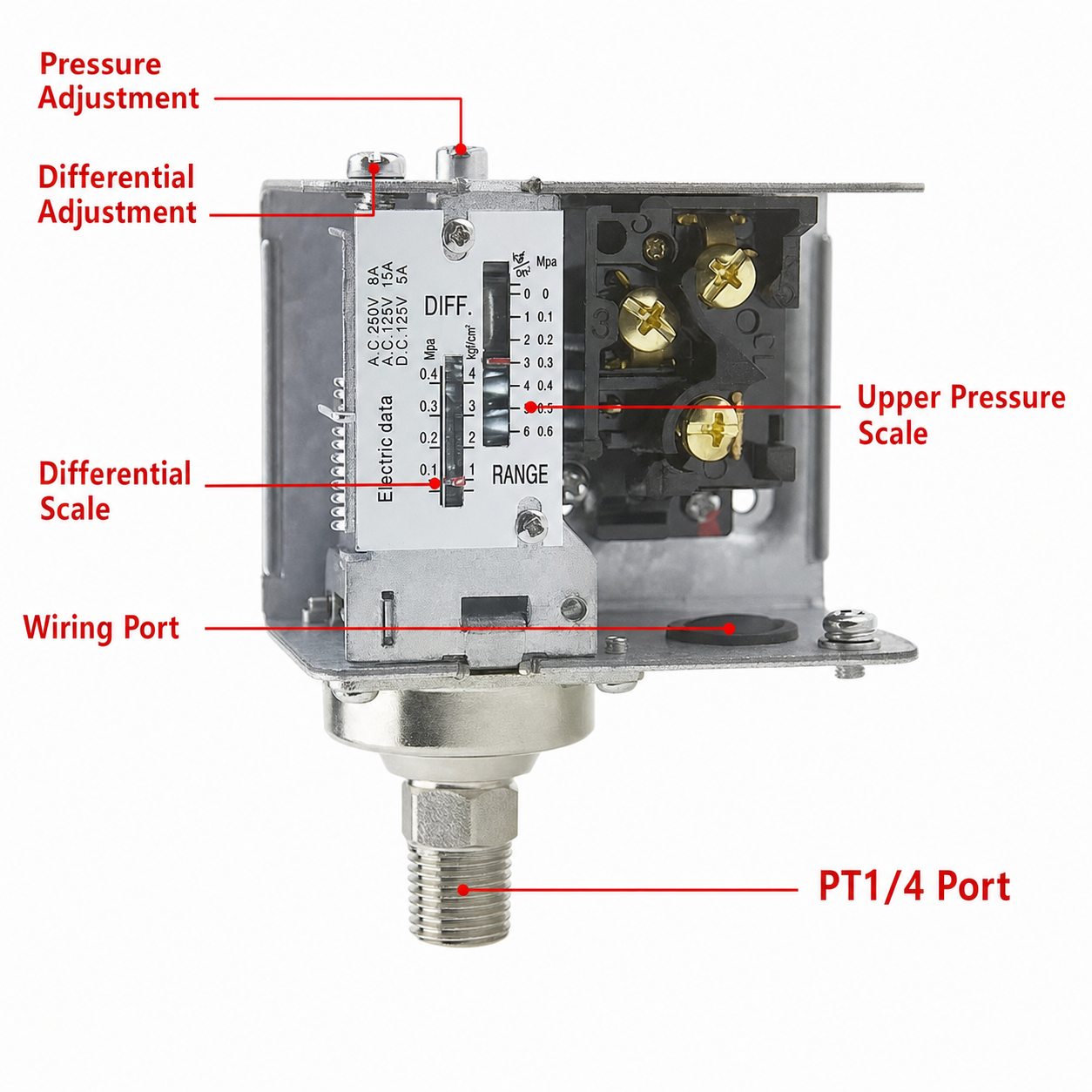

Structural Description
