Brand: Airtac.
Model: PK503.
Product type: Pressure Controller.
Category: Pneumatic Valves.
| Quantity: | |
|---|---|
PK503
Airtac
Airtac PK503 is an industrial Pressure Controller for pneumatic pressure control applications. It is also commonly referenced with compatible model code PK506, PK510.
Model | Operating Pressure (MPa) | Adjustable Pressure Difference (MPa) | Factory Setting (MPa) | Max. Airtight Test Pressure (MPa) | |||
Min. | Max. | Min. | Max. | OFF | ON | ||
PK503 | -0.05 | 0.30 | 0.035 | 0.150 | 0.2 | 0.1 | 1.65 |
PK506 | -0.05 | 0.60 | 0.060 | 0.400 | 0.3 | 0.2 | 1.65 |
PK510 | 0.10 | 1.00 | 0.100 | 0.300 | 0.6 | 0.5 | 1.65 |
Note: The scale plate features dual measurement units: "MPa" and "kgf/cm²". | |||||||
Rated Current (A) \ Rated Voltage (V) | 125V (AC) | 250V (AC) | 24V (DC) | |
Non-inductive Current | 20A | 10A | 8A | |
Inductive Current | Full Load Current | 15A | 8A | 5A |
Instantaneous Current | 72A | |||
Brand | Airtac |
|---|---|
Model | PK503 |
Product Type | Pressure Controller |
Category | Pneumatic Valves |
Compatible Models | PK506, PK510 |

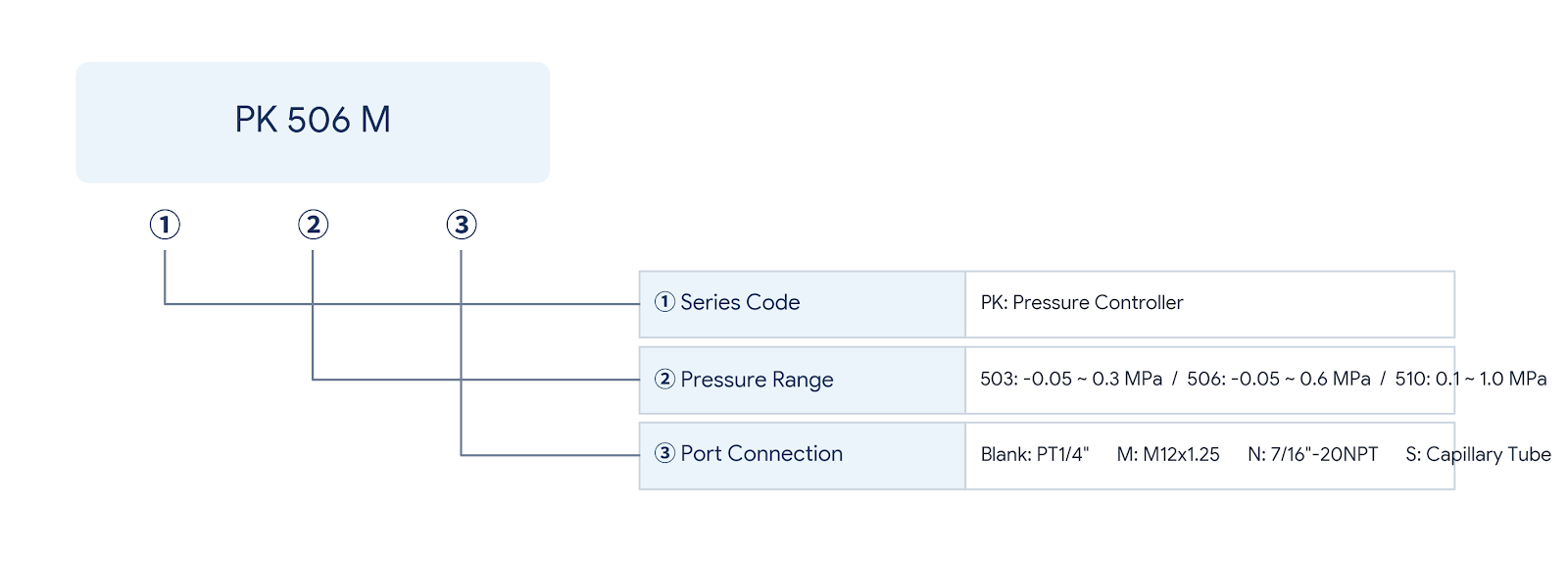

Item | Description |
|---|---|
Series Code | PK: Pressure Controller |

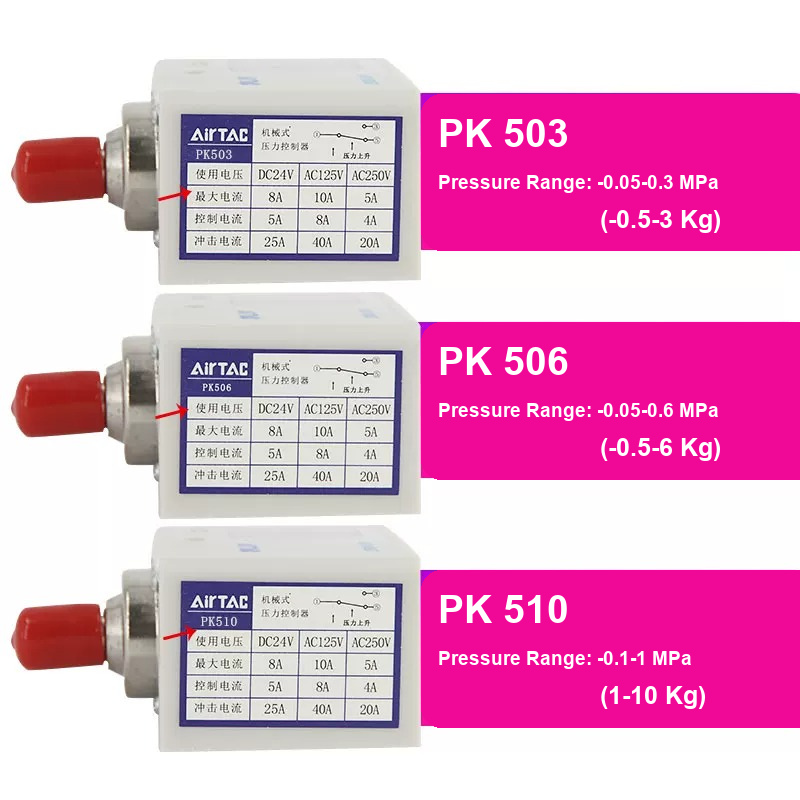

Pressure Range | 503: -0.05 ~ 0.3 MPa / 506: -0.05 ~ 0.6 MPa / 510: 0.1 ~ 1.0 MPa |

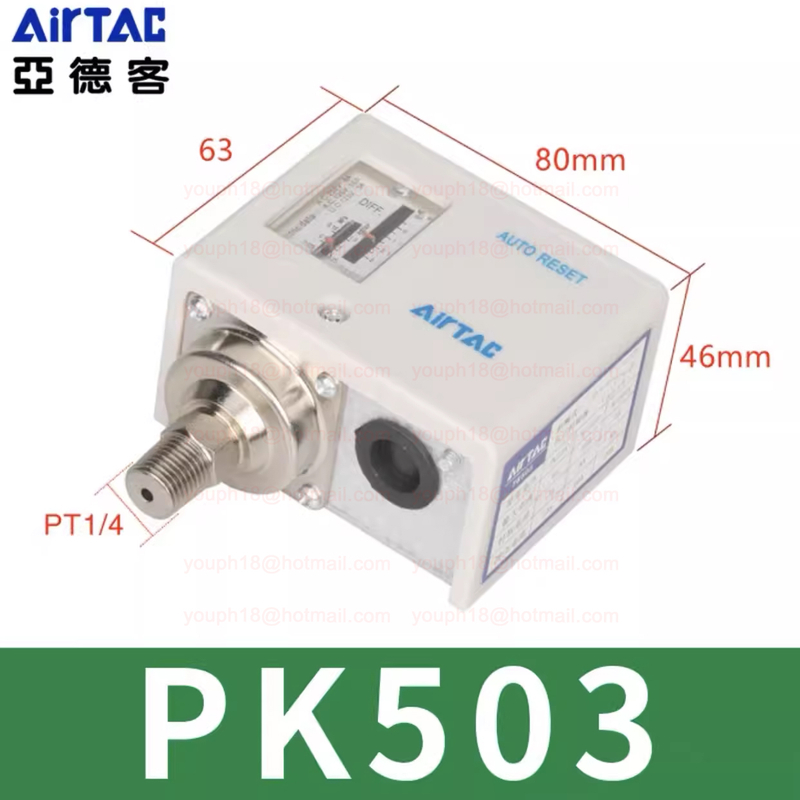

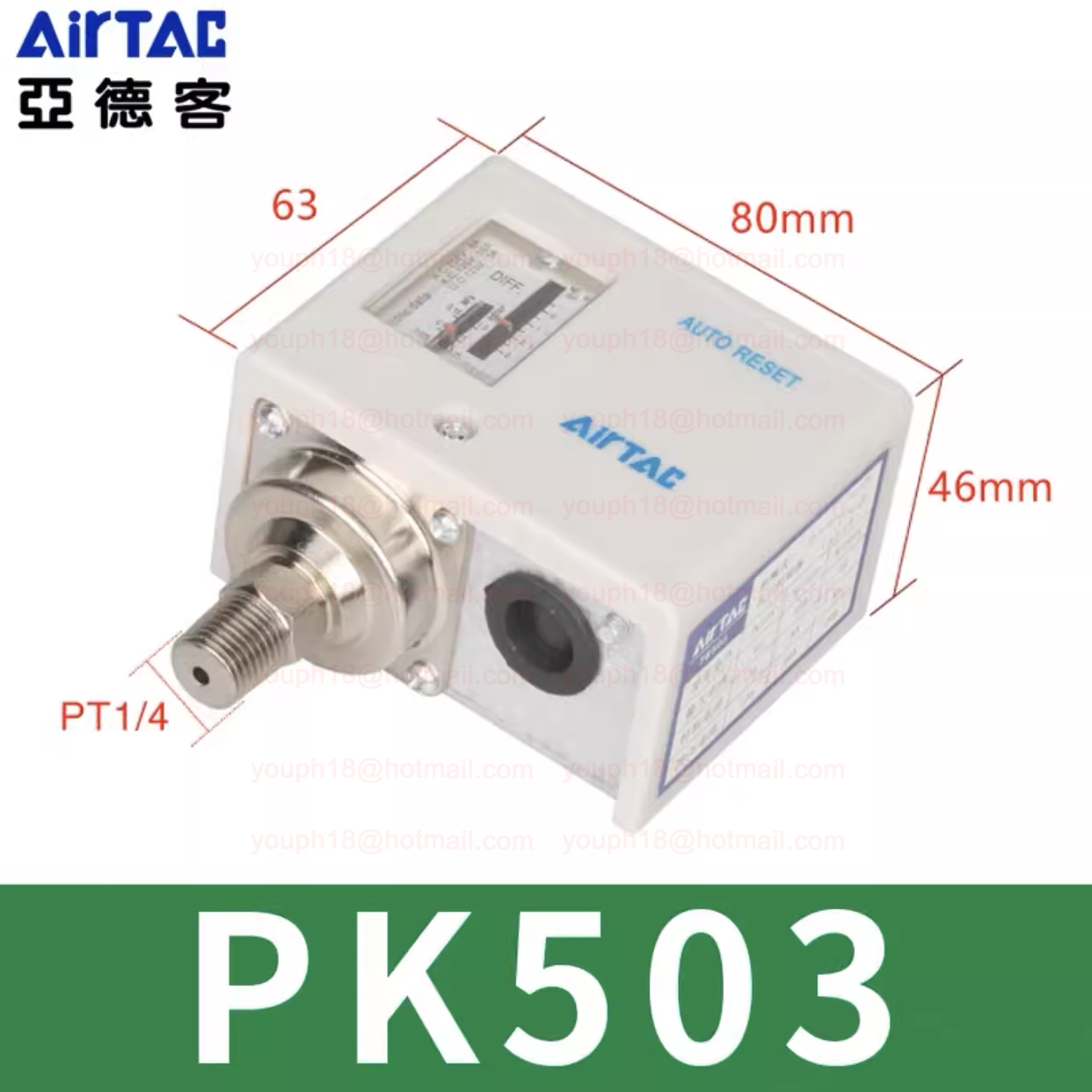

Port Connection | Blank: PT1/4" M: M12x1.25 N: 7/16"-20NPT S: Capillary Tube |

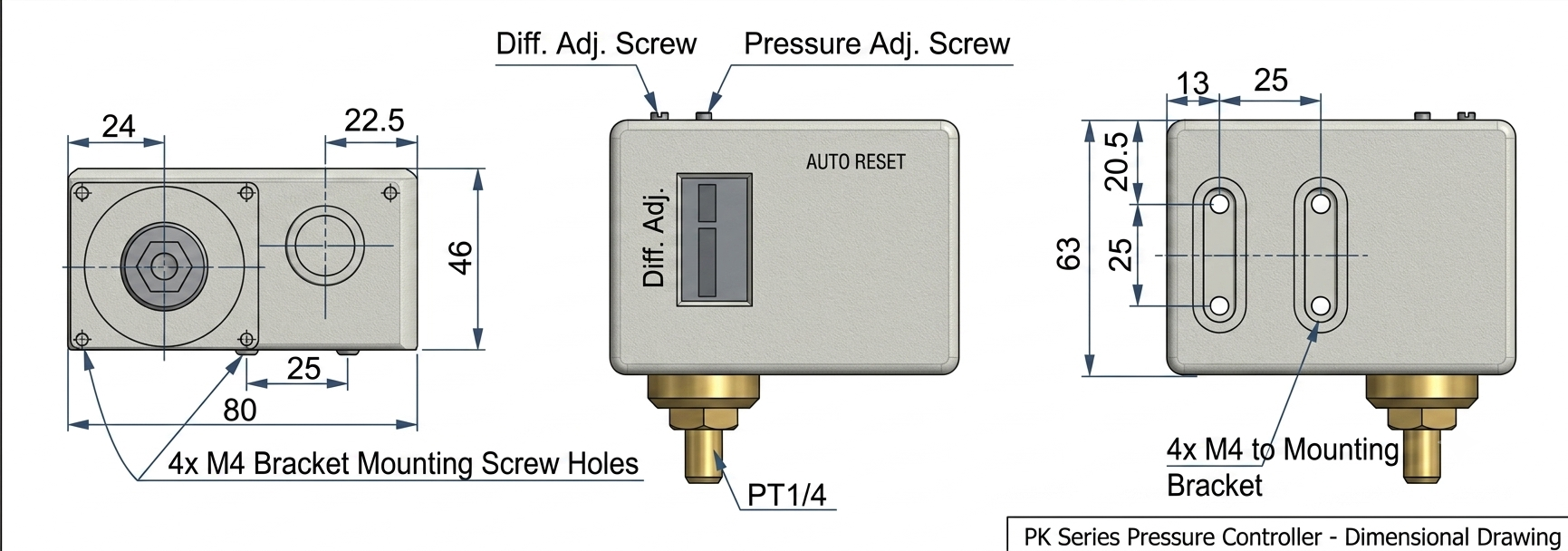

Product images are kept in the gallery; PDF diagrams and ordering references are kept in the detail page.
Original Airtac product for industrial automation maintenance and machine building.
Model PK503 with product information prepared from the supplied datasheet and images.
Suitable for Pneumatic Valves applications where reliable replacement parts are required.
Airtac PK503 is used in pneumatic systems that require pressure monitoring and pressure control in compact machine assemblies.
It is suitable for air preparation units, automated equipment panels and pressure control circuits where PK503, PK506 or PK510 pressure range options are required.
Use this product according to the matching datasheet and machine requirements. Confirm port size, model code and operating conditions before replacement or installation.
