Brand: Airtac.
Model: PK506.
Product type: Pressure Controller.
Category: Pneumatic Valves.
| Quantity: | |
|---|---|
PK506
Airtac

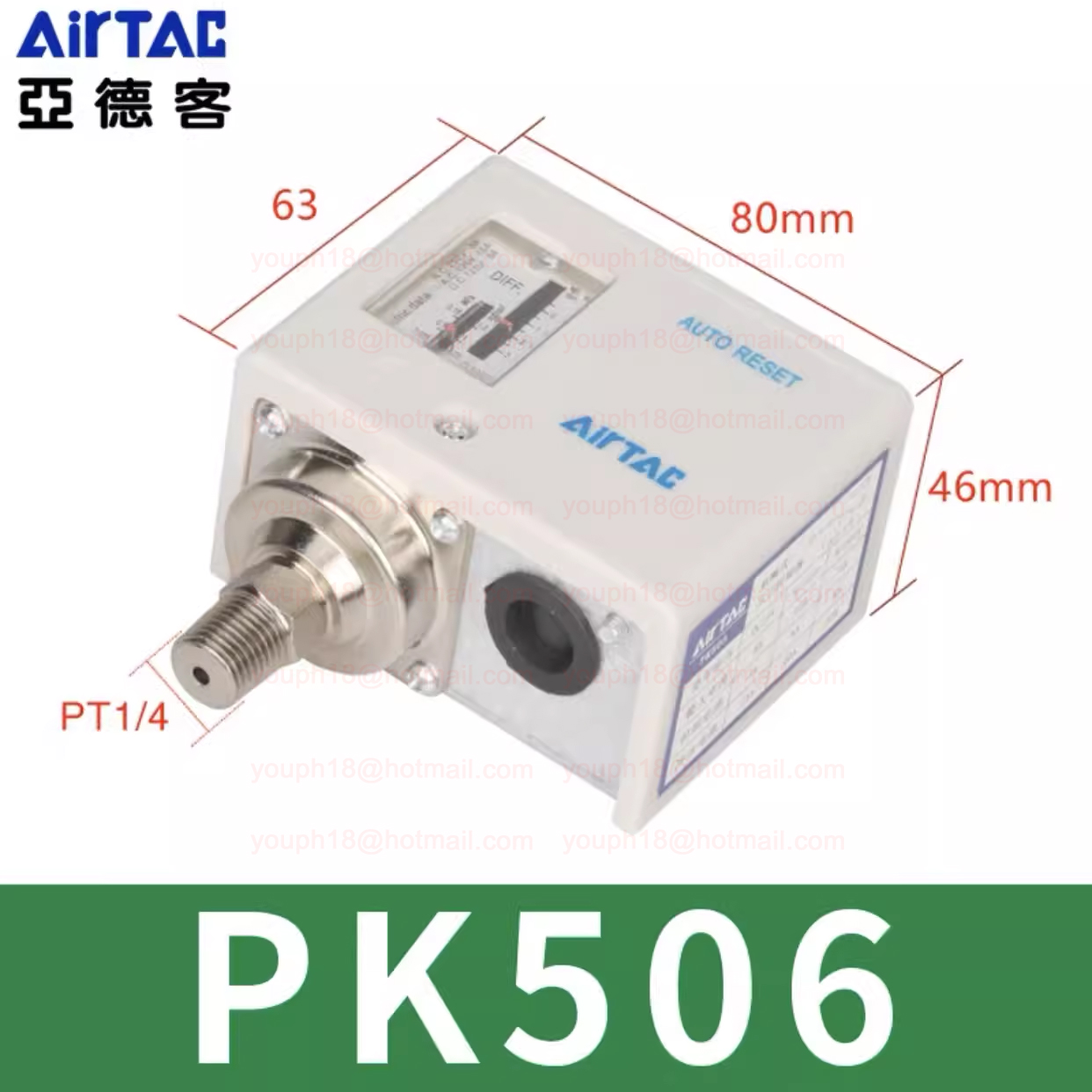

Airtac PK506 is an industrial Pressure Controller for pneumatic pressure control applications. It is also commonly referenced with compatible model code PK503, PK510.
Model | Operating Pressure (MPa) | Adjustable Pressure Difference (MPa) | Factory Setting (MPa) | Max. Airtight Test Pressure (MPa) | |||
Min. | Max. | Min. | Max. | OFF | ON | ||
PK503 | -0.05 | 0.30 | 0.035 | 0.150 | 0.2 | 0.1 | 1.65 |
PK506 | -0.05 | 0.60 | 0.060 | 0.400 | 0.3 | 0.2 | 1.65 |
PK510 | 0.10 | 1.00 | 0.100 | 0.300 | 0.6 | 0.5 | 1.65 |
Note: The scale plate features dual measurement units: "MPa" and "kgf/cm²". | |||||||

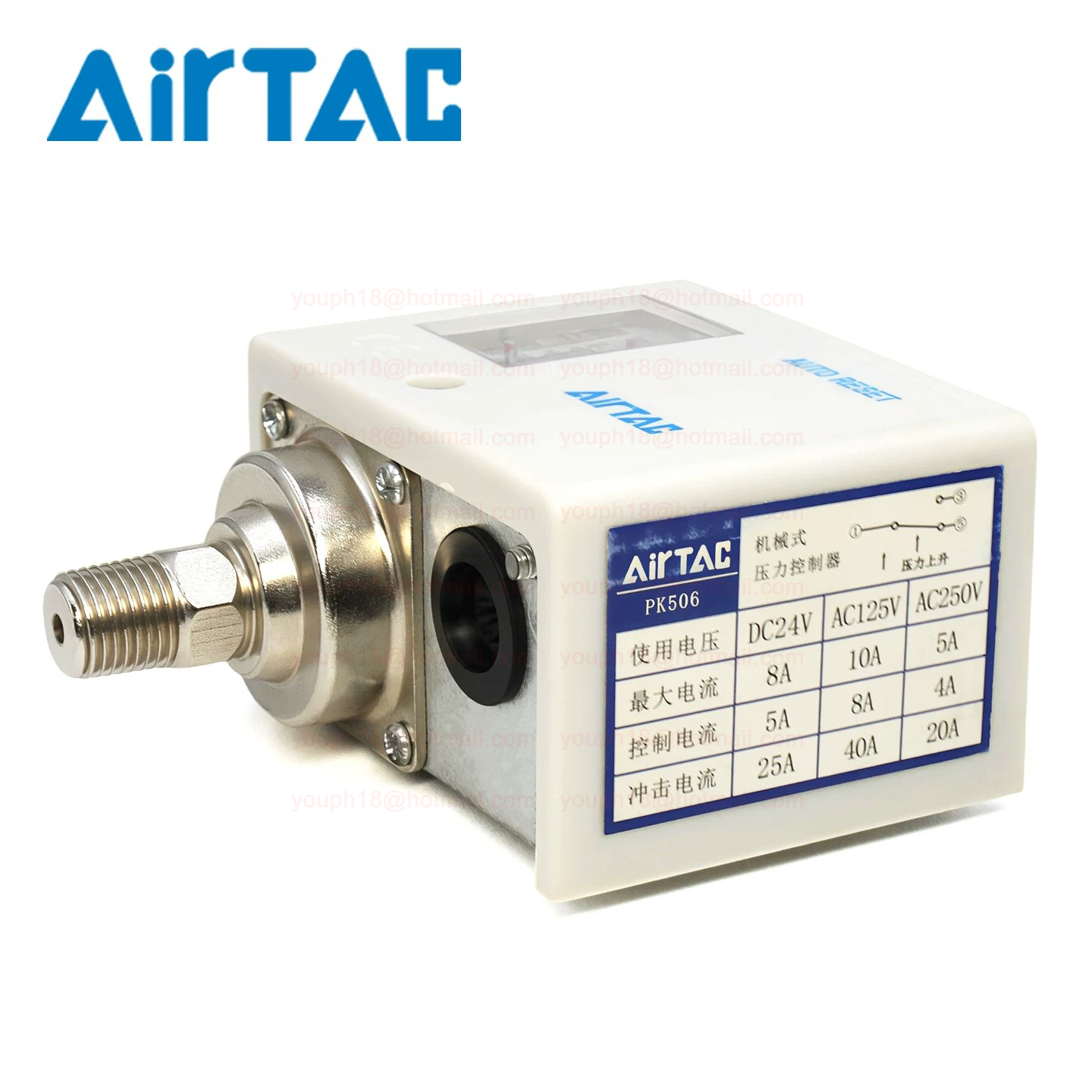

Rated Current (A) \ Rated Voltage (V) | 125V (AC) | 250V (AC) | 24V (DC) | |
Non-inductive Current | 20A | 10A | 8A | |
Inductive Current | Full Load Current | 15A | 8A | 5A |
Instantaneous Current | 72A | |||
Brand | Airtac |
|---|---|
Model | PK506 |
Product Type | Pressure Controller |
Category | Pneumatic Valves |
Compatible Models | PK503, PK510 |

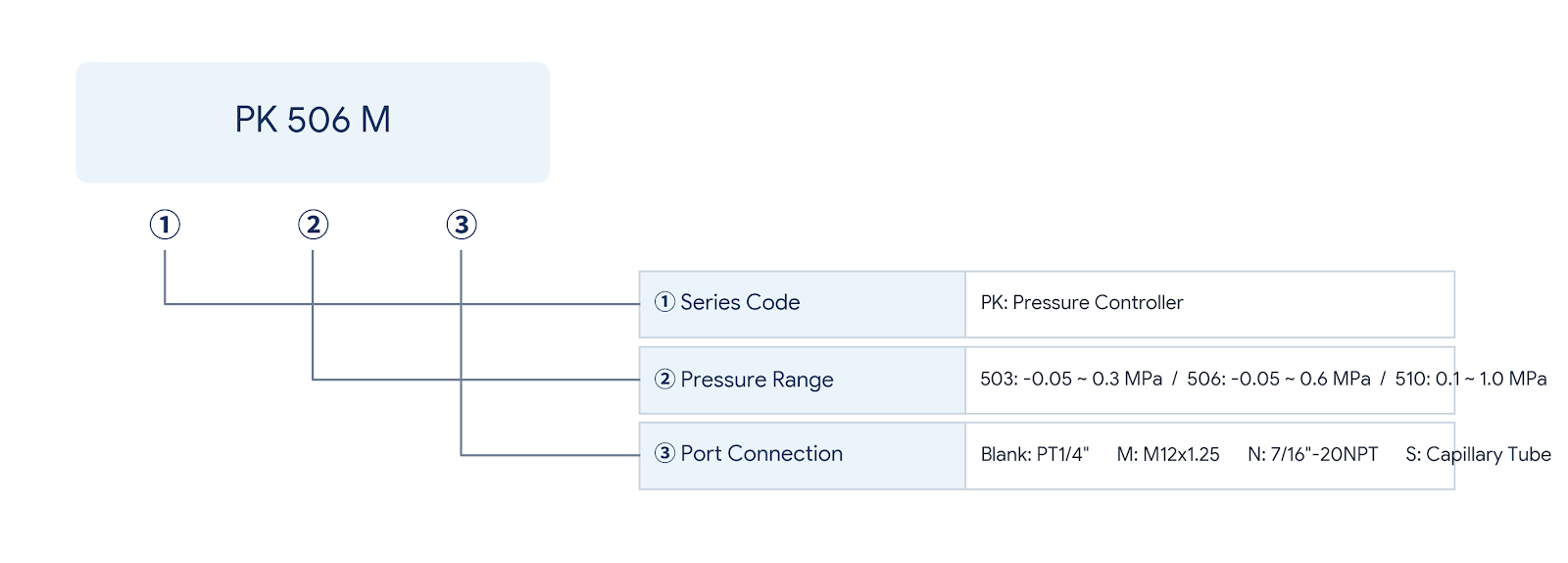

Item | Description |
|---|---|
Series Code | PK: Pressure Controller |
Pressure Range | 503: -0.05 ~ 0.3 MPa / 506: -0.05 ~ 0.6 MPa / 510: 0.1 ~ 1.0 MPa |
Port Connection | Blank: PT1/4" M: M12x1.25 N: 7/16"-20NPT S: Capillary Tube |
Pressure controller for pneumatic pressure regulation and machine automation use.

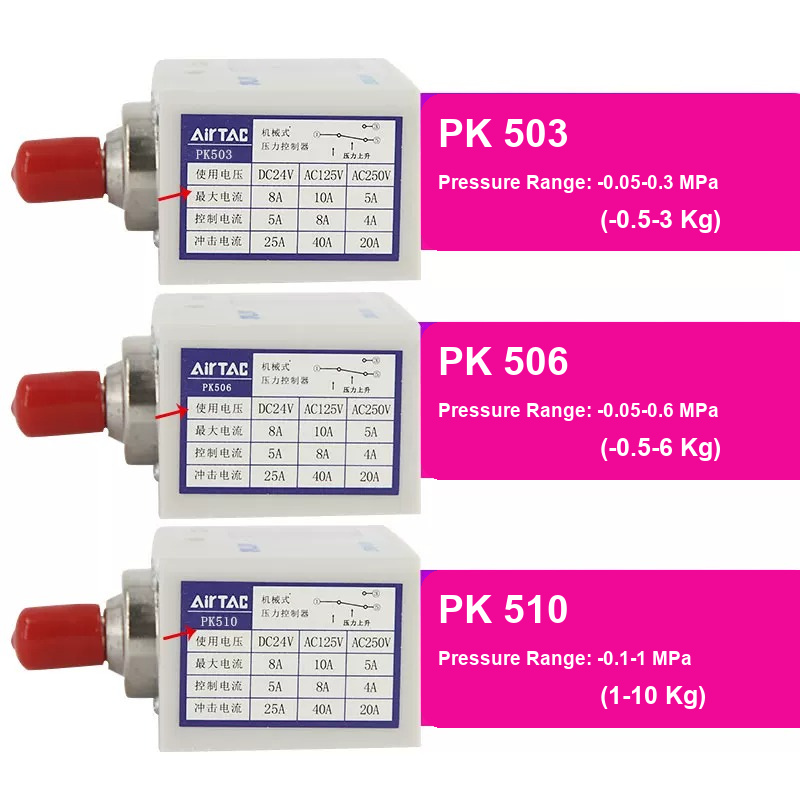

PK506 pressure range is -0.05 ~ 0.6 MPa, with PK503 and PK510 as related range options.

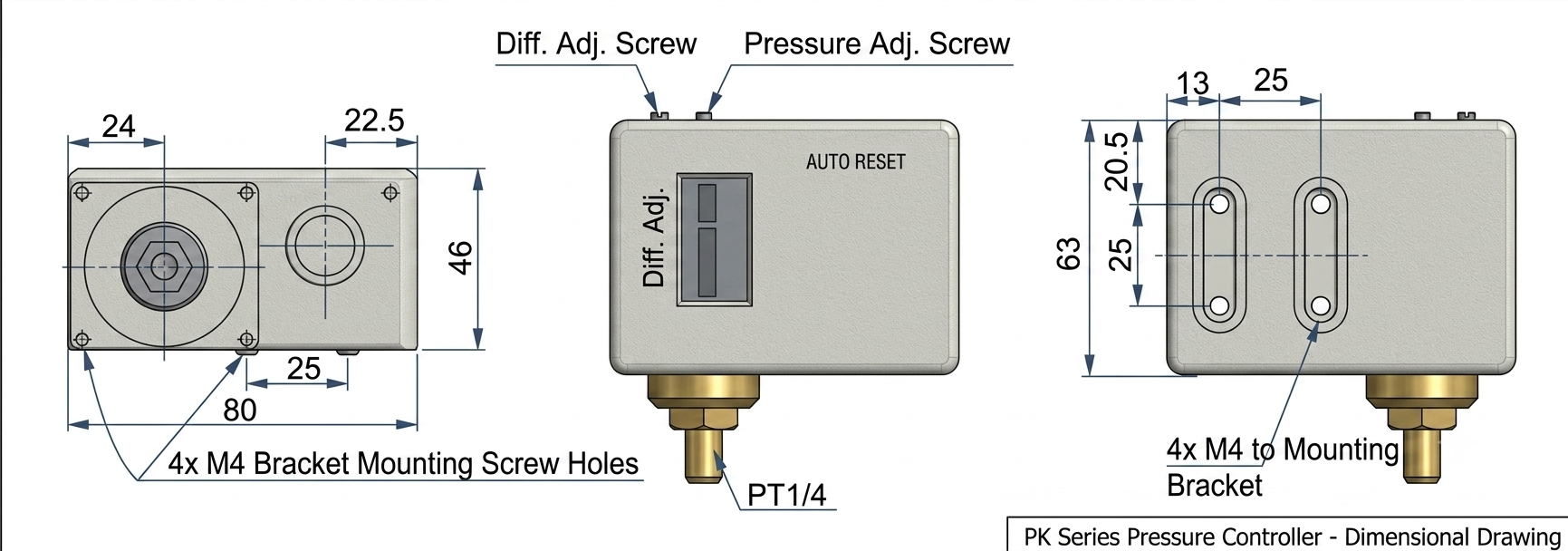

Product images are kept in the gallery; diagrams and ordering references are kept in the detail page.
Original Airtac product for industrial automation maintenance and machine building.
Airtac PK506 is used for pneumatic pressure control in automation equipment, fixtures, conveyors and maintenance replacement applications.
Confirm pressure range, port connection and operating conditions before replacement or installation.
