Brand: Airtac.
Model: 4M310-08.
Product type: 4M (NAMUR) Series Solenoid Valve.
Category: Pneumatic Valves.
| Quantity: | |
|---|---|
4M310-08
Airtac
Airtac 4M310-08 is an industrial 4M (NAMUR) Series Solenoid Valve for pneumatic automation and equipment control applications. It is also commonly referenced with compatible model code 4M320-08, 4M320-10.
Item | 4M110 4M120 | 4M210 4M220 4M310 4M320 | ||||||||
Standard voltage | AC220V | AC110V | AC24V | DC24V | DC12V | AC220V | AC110V | AC24V | DC24V | DC12V |
Scope of voltage | AC: ±15% DC: ±10% | |||||||||
Power consumption | 3.5VA | 3.5VA | 4.0VA | 2.8W | 2.5W | 4.5VA | 4.5VA | 5.0VA | 3.0W | 2.5W |
Protection | IP65(DIN40050) | |||||||||
Temperature classification | B Class | |||||||||
Electrical entry | Terminal, Grommet | |||||||||
Activating time | 0.05 sec and below | |||||||||
Model | 4M110-M5 | 4M110-06 | 4M210-06 | 4M210-08 | 4M310-08 | 4M310-10 |
Fluid | Air(to be filtered by 40μm filter element) | |||||
Acting | Internal pilot | |||||
Port size [Note1] | In=Out=M5 | In=Out | In=Out | In=1/4" | In=Out | In=3/8" |
Orifice size(Cv) [Note4] | 4M110-06,4M120-06: | 4M210-08,4M220-08: | 4M310-10,4M320-10: | |||
Valve type | 5 port 2 position | |||||
Operating pressure | 0.15~0.8MPa(21~114psi) | |||||
Proof pressure | 1.2MPa(175psi) | |||||
Temperature | -20~70°C | |||||
Material of body | Aluminum alloy | |||||
Lubrication [Note2] | Not required | |||||
Max.frequency[Note3] | 5 cycle/sec | 4 cycle/sec | ||||
Weight (g) | 4M110:120 | 4M110:120 | 4M210:220 | 4M210:220 | 4M310:310 | 4M310:310 |
[Note1] PT thread, G thread and NPT thread are available. | ||||||
[Note2] Once lubricated air is used, continue with same medium to optimise valve life span. Lubricants like ISO VG32 or equivalent are recommended. | ||||||
[Note3] The maximum actuation frequency is in the no-load state. | ||||||
[Note4] Equivalent orifice S and Cv are all calculated from the flow rate data. | ||||||
Original Airtac product for industrial automation maintenance and machine building.
Model 4M310-08 with product information prepared from the supplied datasheet and images.
Suitable for Pneumatic Valves applications where reliable replacement parts are required.

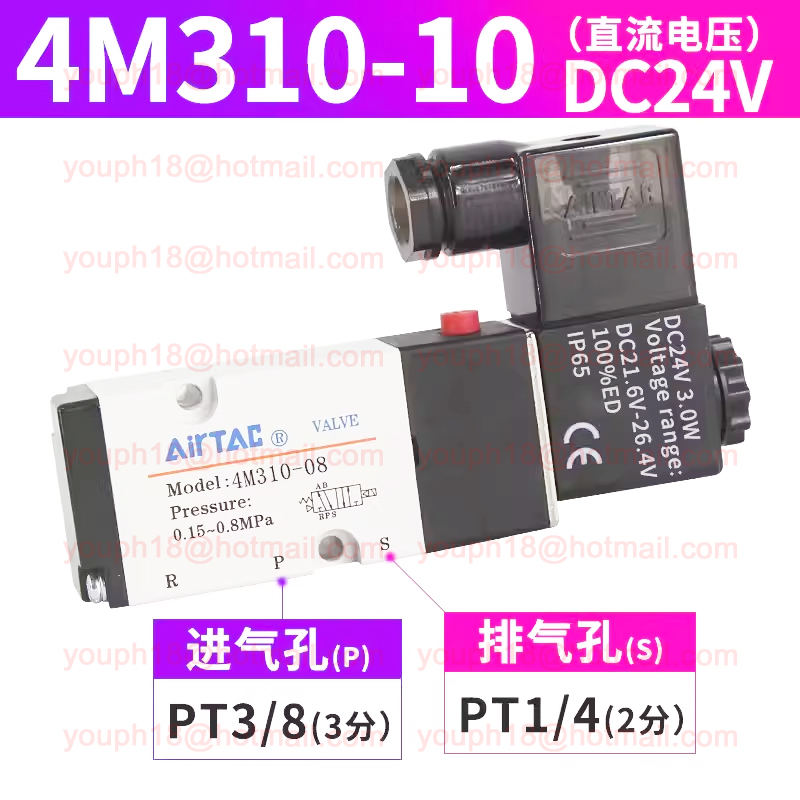

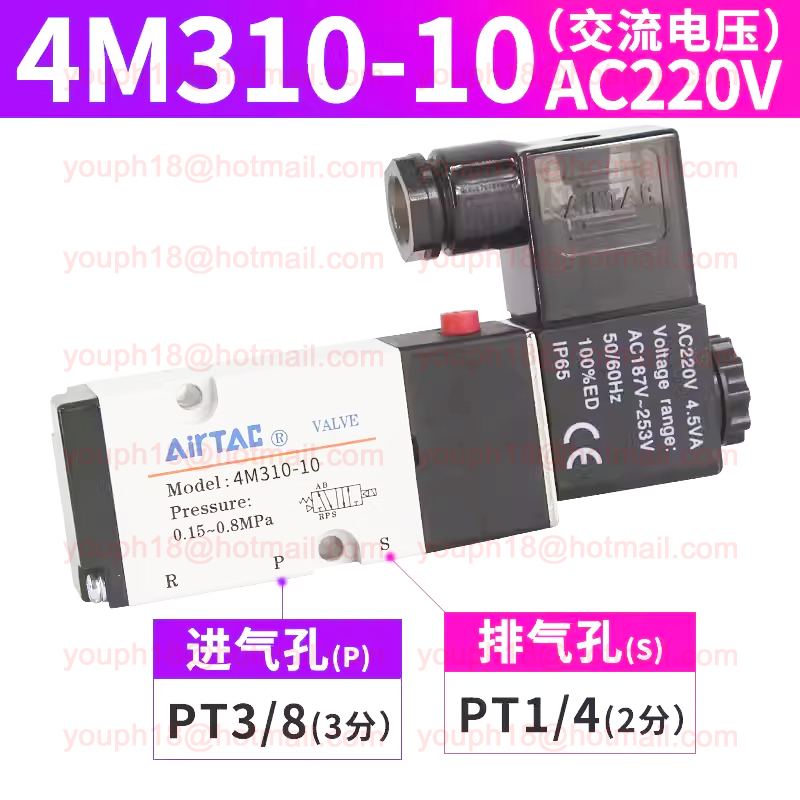

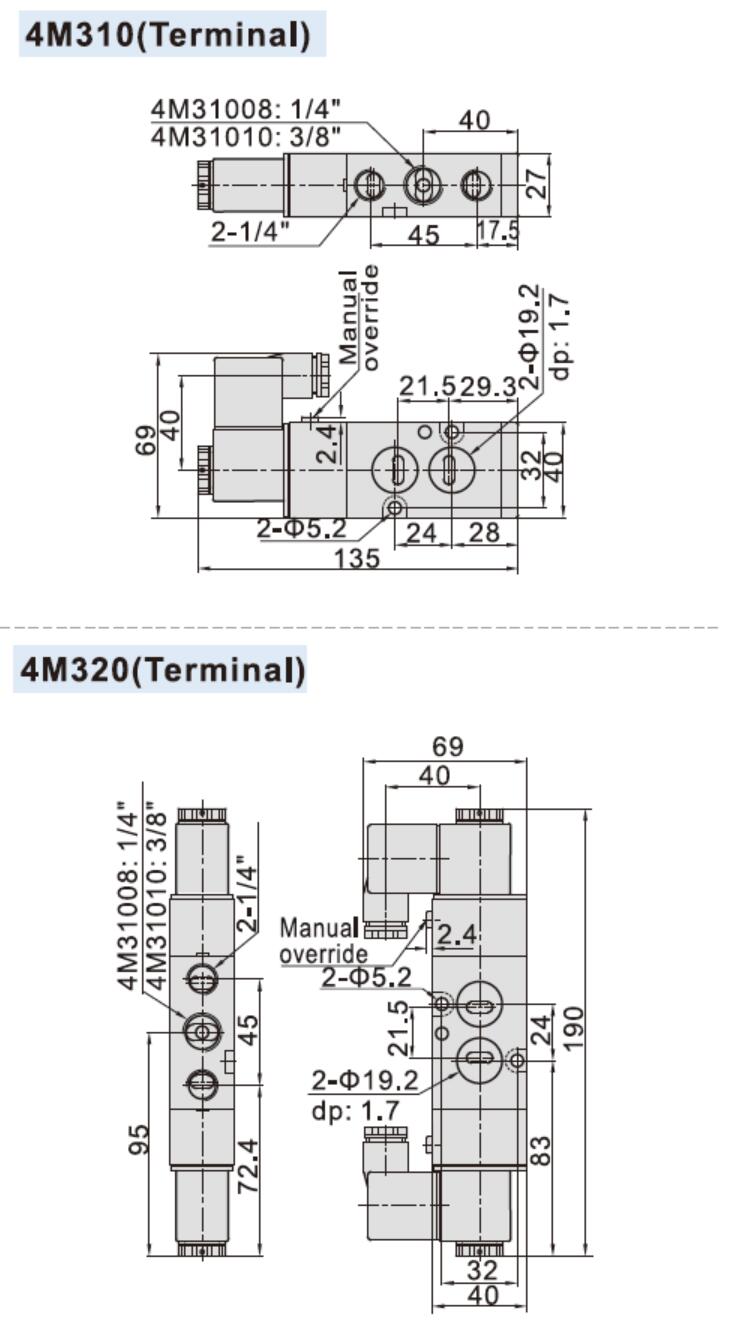

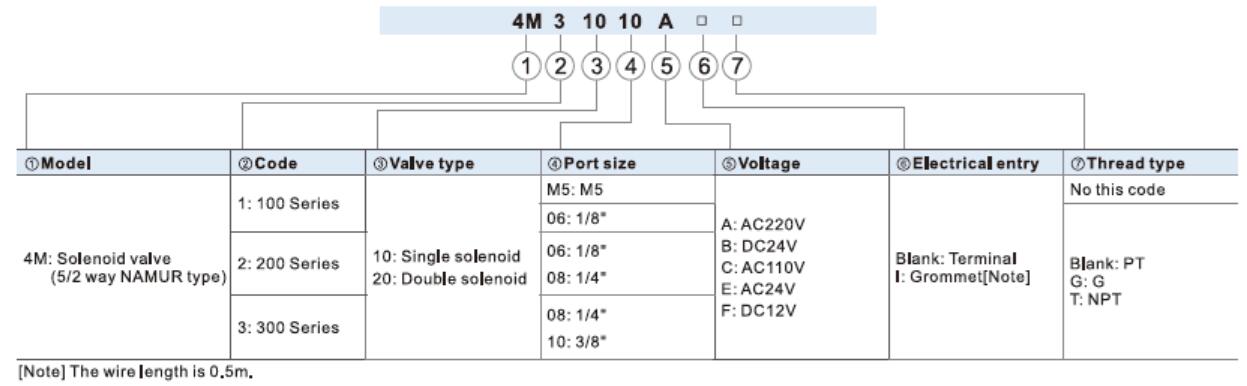

Product images are kept in the gallery; PDF diagrams and ordering references are kept in the detail page.
Brand | Airtac |
|---|---|
Model | 4M310-08 |
Product Type | 4M (NAMUR) Series Solenoid Valve |
Category | Pneumatic Valves |
Compatible Models | 4M320-08, 4M320-10 |
1, Internally piloted structure,
2. Structure in sliding column mode: good tightness and sensitive reaction.
3. Double control solenoid valves have memory function.
4. Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
5. No need to add oil for lubrication.
6. Install in the side plate with the surface upward, which can be used by directly connecting with the actuators.
7. Affiliated manual devices are equipped to facilitate installation and debugging.
8. Several standard voltage grades are optional,
Airtac 4M310-08 is commonly used in automation workshops, equipment maintenance departments and machine retrofit projects where compact pneumatic control parts are needed.
Typical installation points include assembly fixtures, pneumatic test benches and small control panels, helping engineers handle mechanical valve actuation, signal switching and basic pneumatic control.
Use this product according to the matching datasheet and machine requirements. Confirm port size, model code and operating conditions before replacement or installation.
