Brand: Airtac.
Model: 3V308.
Product type: 3V3 Series Solenoid Valve.
Category: Pneumatic Valves.
| Quantity: | |
|---|---|
3V308
Airtac
Airtac 3V308 is an industrial 3V3 Series Solenoid Valve for pneumatic automation and equipment control applications. It is also commonly referenced with compatible model code 3V308NC, 3V308NO.
Item | Specification |
Standard voltage | AC220V、AC110V、AC24V、DC24V、DC12V |
Scope of voltage | AC: ±15% DC: ±10% |
Power consumption | AC: 10VA DC: 6.5W |
Protection | IP65(DIN40050) |
Temperature classification | B Class |
Electrical entry | Terminal, Grommet |
Activating time | 0.05 sec and below |
Max. frequency [Note1] | 10 cycle/sec |
[Note1] The maximum actuation frequency is in the no-load state. | |
Model | 3V308 |
Fluid | Air(to be filtered by 40μm filter element) |
Acting | Direct acting |
Port size [Note1] | 1/4" |
Valve type | 3 port 2 position |
Orifice size | 11mm²(Cv=0.62) |
Lubrication | Not required |
Operating pressure (Common) | 0~0.8MPa(0~114psi) |
Operating pressure (vacuum) | -102.2kPa~0.1MPa(-1.45~14.2psi) |
Proof pressure | 1.2MPa(175psi) |
Temperature | -20~70°C |
Material of body | Aluminum alloy |
[Note1] PT thread, G thread and NPT thread are available. | |
1. Direct acting type and normally closed mode, flexible in direction change.
2. Normally closed and normally open types are optional
3. Structure in coaxial blanking mode: leakage proof and large air flow.
4, No need to add oil for lubrication.
5. Affiliated manual devices are equipped to facilitate installation and debugging.
6. Several standard voltage grades are optional.
7. Can be used under vacuum condition.

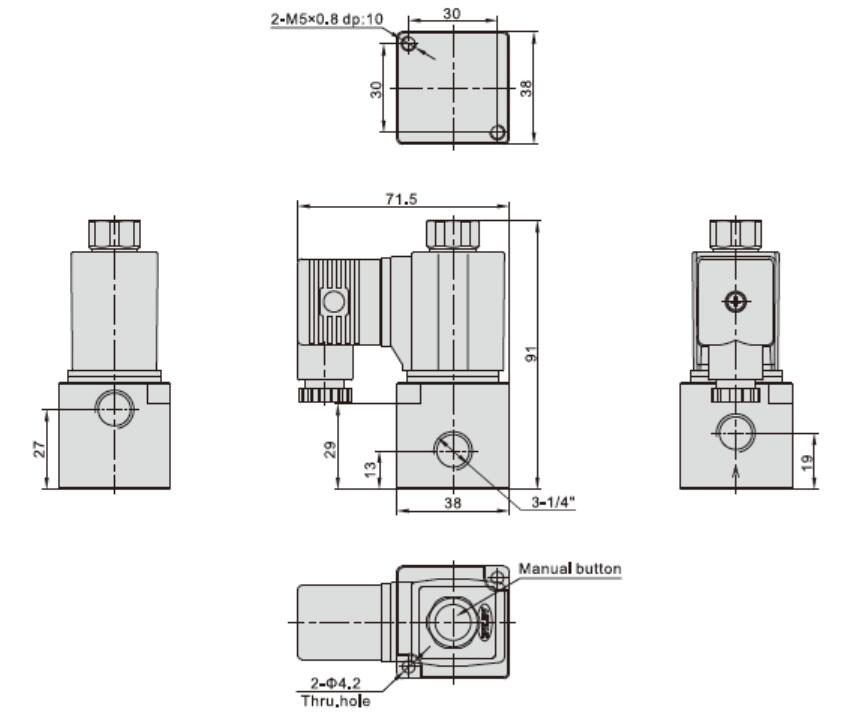

Product images are kept in the gallery; PDF diagrams and ordering references are kept in the detail page.
Original Airtac product for industrial automation maintenance and machine building.
Model 3V308 with product information prepared from the supplied datasheet and images.
Suitable for Pneumatic Valves applications where reliable replacement parts are required.
Brand | Airtac |
|---|---|
Model | 3V308 |
Product Type | 3V3 Series Solenoid Valve |
Category | Pneumatic Valves |

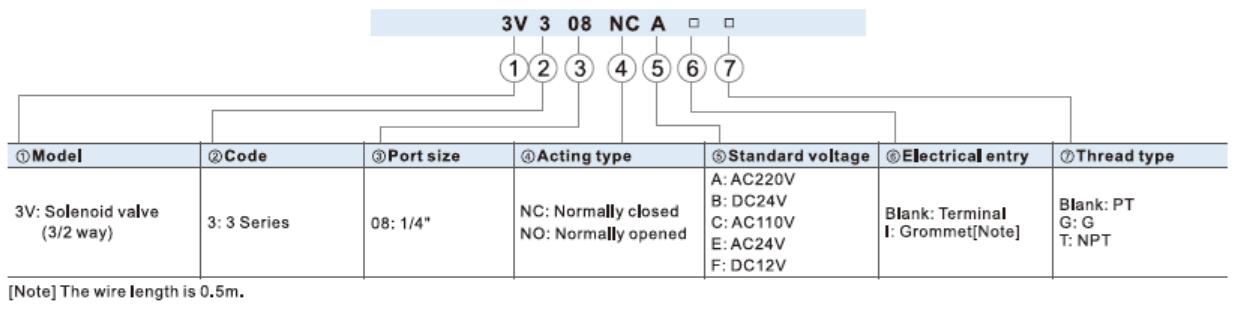

Compatible Models | 3V308NC, 3V308NO |
3V308 can be applied in automation workshops, equipment maintenance departments and machine retrofit projects as a compact 3v3 series solenoid valve.
It is suitable for assembly fixtures, pneumatic test benches and small control panels, especially where users need mechanical valve actuation, signal switching or basic pneumatic control.
Use this product according to the matching datasheet and machine requirements. Confirm port size, model code and operating conditions before replacement or installation.
