Brand: Airtac.
Model: 3V2-08.
Product type: 3V2 Series Solenoid Valve.
Category: Pneumatic Valves.
| Quantity: | |
|---|---|
3V2-08
Airtac
Airtac 3V2-08 is an industrial 3V2 Series Solenoid Valve for pneumatic automation and equipment control applications. It is also commonly referenced with compatible model code 3V208NC, 3V208NO.
Brand | Airtac |
|---|---|
Model | 3V2-08 |
Product Type | 3V2 Series Solenoid Valve |
Category | Pneumatic Valves |

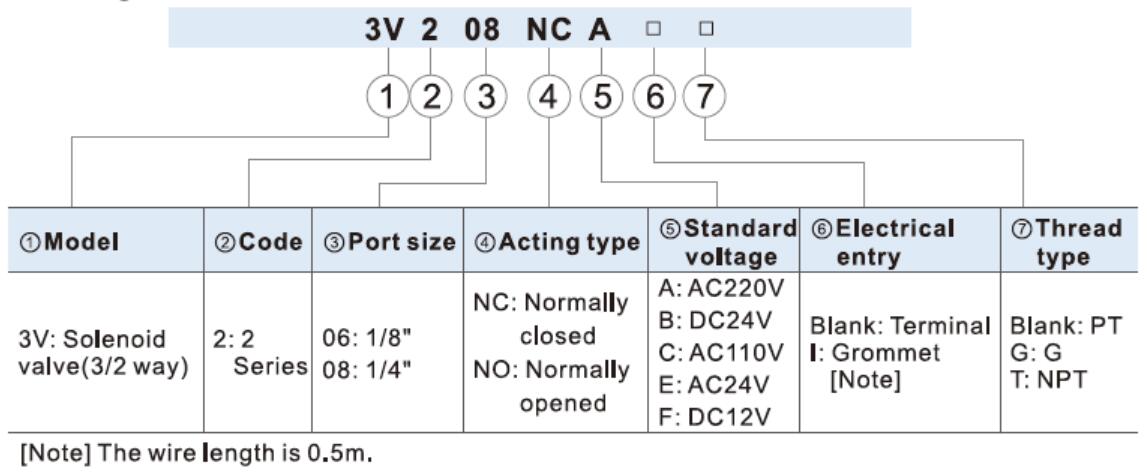

Compatible Models | 3V208NC, 3V208NO |
Item | Specification |
Standard voltage | AC220V、AC110V、AC24V、DC24V、DC12V |
Scope of voltage | AC: ±15% DC: ±10% |
Power consumption | AC: 7VA DC: 7.0W |
Protection | IP65(DIN40050) |
Temperature classification | B Class |
Electrical entry | Terminal, Grommet |
Activating time | 0.05 sec and below |
Max. frequency [Note1] | 10 cycle/sec |
[Note1] The maximum actuation frequency is in the no-load state. | |
Model | 3V206 | 3V208 |
Fluid | Air(to be filtered by 40μm filter element) | |
Acting | Direct acting | |
Port size [Note1] | 1/8" | 1/4" |
Valve type | 3 port 2 position | |
Orifice size | 3.2mm²(Cv=0.18) | 3.4mm²(Cv=0.19) |
Lubrication | Not required | |
Operating pressure (Common) | 0~0.8MPa(0~114psi) | |
Operating pressure (vacuum) | -102.2kPa~0.1MPa(-1.45~14.2psi) | |
Proof pressure | 1.2MPa(175psi) | |
Temperature | -20~70°C | |
Material of body | Aluminum alloy | |
[Note1] PT thread, G thread and NPT thread are available. | ||
Suitable for Pneumatic Valves applications where reliable replacement parts are required.
Product images are kept in the gallery; PDF diagrams and ordering references are kept in the detail page.
Original Airtac product for industrial automation maintenance and machine building.
Model 3V2-08 with product information prepared from the supplied datasheet and images.
1, Direct acting type and normally closed mode, flexible in direction change.
2. Normally closed and normally open types are optional.
3. Structure in coaxial blanking mode: leakage proof and large air flow.
4, No need to add oil for lubrication,
5, Affiliated manual devices are equipped to facilitate installation and debugging.
6. Several standard voltage grades are optional.
7. Can be used under vacuum condition.
For daily machine building and replacement work, Airtac 3V2-08 often appears in automation workshops, equipment maintenance departments and machine retrofit projects.
Use this product according to the matching datasheet and machine requirements. Confirm port size, model code and operating conditions before replacement or installation.
