Brand: Airtac.
Model: 4L310-08.
Product type: 4L Series Push pull Valve.
Category: Pneumatic Valves.
| Quantity: | |
|---|---|
4L310-08
Airtac
Airtac 4L310-08 is an industrial 4L Series Push pull Valve for pneumatic automation and equipment control applications.
Original Airtac product for industrial automation maintenance and machine building.
Model 4L310-08 with product information prepared from the supplied datasheet and images.
Suitable for Pneumatic Valves applications where reliable replacement parts are required.

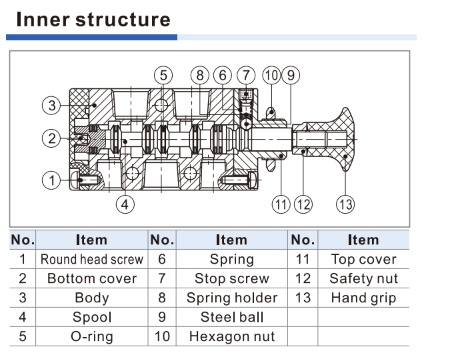

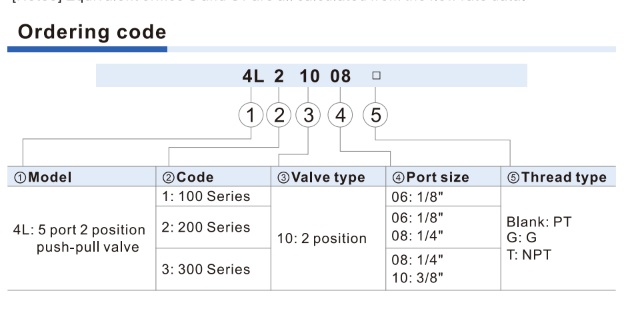

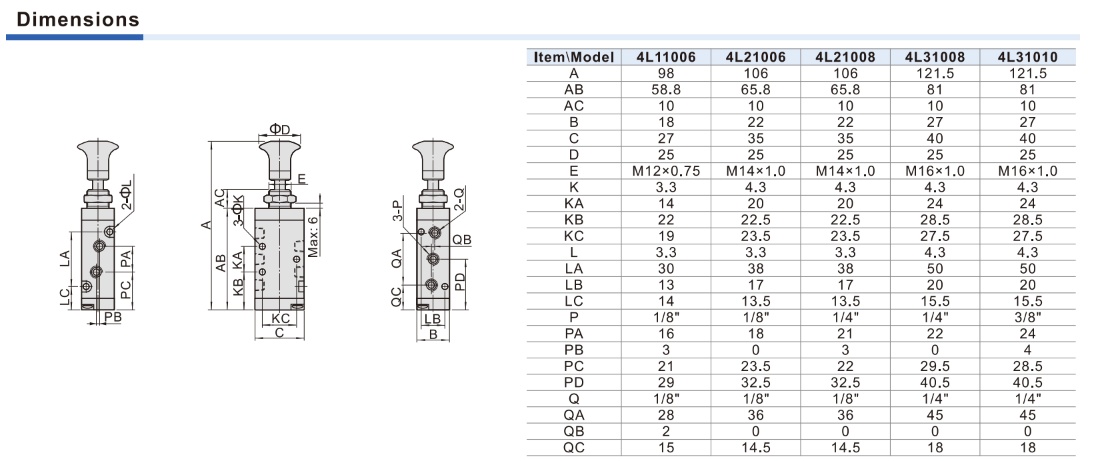

Product images are kept in the gallery; PDF diagrams and ordering references are kept in the detail page.
Brand | Airtac |
|---|---|
Model | 4L310-08 |
Product Type | 4L Series Push pull Valve |
Category | Pneumatic Valves |
Model | 4L110-06 | 4L210-06 | 4L210-08 | 4L310-08 | 4L310-10 |
Fluid | Air (to be filtered by 40 um filter element) | ||||
Operating | Manual control direct acting type) | ||||
Port size[Note1] | 1/8" | 1/4" | 3/8" | ||
Orifice size(Cv) | 10.2mm² | 4L210-08:17.0mm² | 4L310-10:28.0mm² | ||
Valve type | 5/2 Way | ||||
Lubrication [Note2] | Not required | ||||
Pressure range | 0~1.0MPa(0~145psi) | ||||
Proof pressure | 1.5MPa(215psi) | ||||
Temperature | -20~70°C | ||||
Material of body | Aluminum alloy | ||||
Use this product according to the matching datasheet and machine requirements. Confirm port size, model code and operating conditions before replacement or installation.
