Brand: Airtac.
Model: 3F210-08.
Product type: 3F 3FM Series Foot Pedal Valve.
Category: Pneumatic Valves.
| Quantity: | |
|---|---|
3F210-08
Airtac
Airtac 3F210-08 is an industrial 3F 3FM Series Foot Pedal Valve for pneumatic automation and equipment control applications. It is also commonly referenced with compatible model code 3F210-06.
Original Airtac product for industrial automation maintenance and machine building.
Model 3F210-08 with product information prepared from the supplied datasheet and images.
Suitable for Pneumatic Valves applications where reliable replacement parts are required.
Product images are kept in the gallery; PDF diagrams and ordering references are kept in the detail page.
Brand | Airtac |
|---|---|
Model | 3F210-08 |
Product Type | 3F 3FM Series Foot Pedal Valve |
Category | Pneumatic Valves |

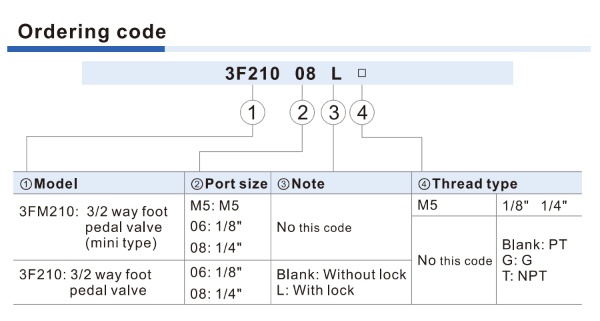

Model | 3FM210-M5 | 3F210-06 | 3FM210-06 | 3F210-08 | 3FM210-08 |
|---|---|---|---|---|---|
Fluid | Air (to be filtered by 40 ym filter element) | ||||
Operating | Acting type controlled by foot normally closed | ||||

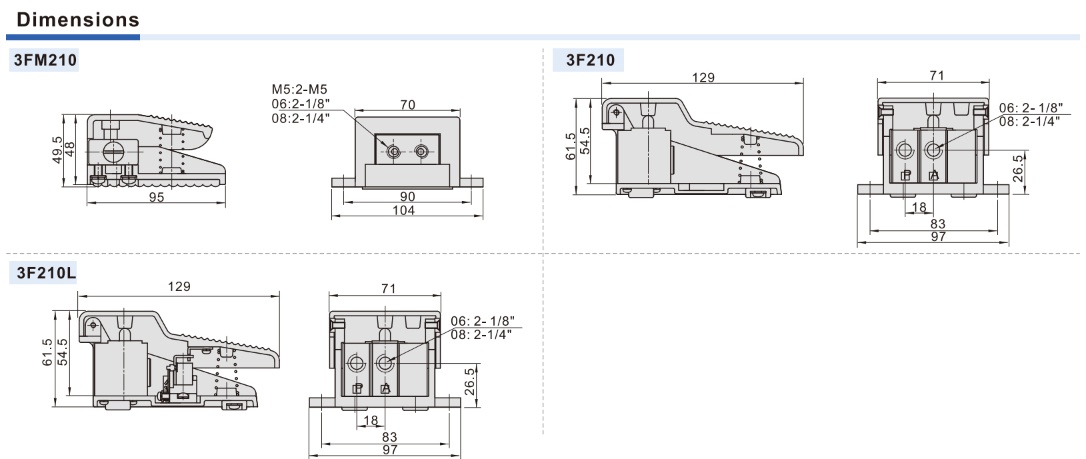

Port size[Note1] | M5 | 1/8" | 1/8" | 1/4" | 1/4" |
Valve type | 3/2 Way | ||||
Pressure range | 0~1,0MPa(0~145psi) | ||||
Proof pressure | 1,5MPa(215psi) | ||||
Temperature | -20~70 | ||||
Material of body | 3FM:Plastic; 3F:Aluminum alloy | ||||
Lubrication | Not required | ||||

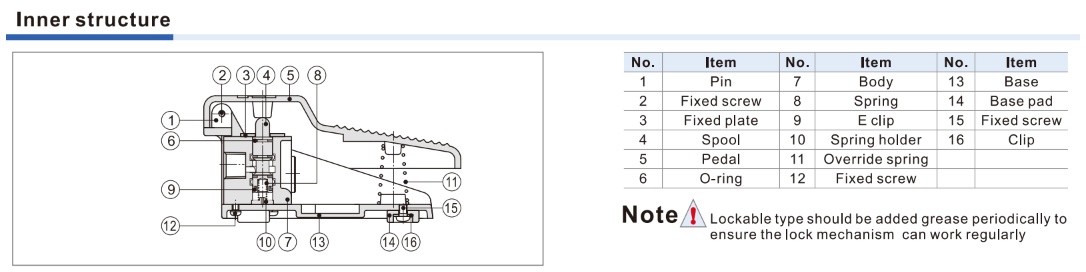

No. | Item | No. | Item | No. | Item |
|---|---|---|---|---|---|
1 | Pin | 7 | Body | 13 | Base |
2 | Fixedscrew | 8 | Spring | 14 | Base pad |
3 | Fixed plate | 9 | Eclip | 15 | Fixed screw |
4 | Spool | 10 | Springholder | 16 | Clip |
5 | Pedal | 11 | Override spring | ||
6 | O-ring | 12 | Fixed screw |
Use this product according to the matching datasheet and machine requirements. Confirm port size, model code and operating conditions before replacement or installation.
