1. Brand: Festo.
2. Model: EV-20/75-5 13291.
3. Type: single-acting clamping module.
4. Key data: 20x75 mm, 5 mm stroke, M5 port.
| Quantity: | |
|---|---|
EV-20/75-5
Festo
13291

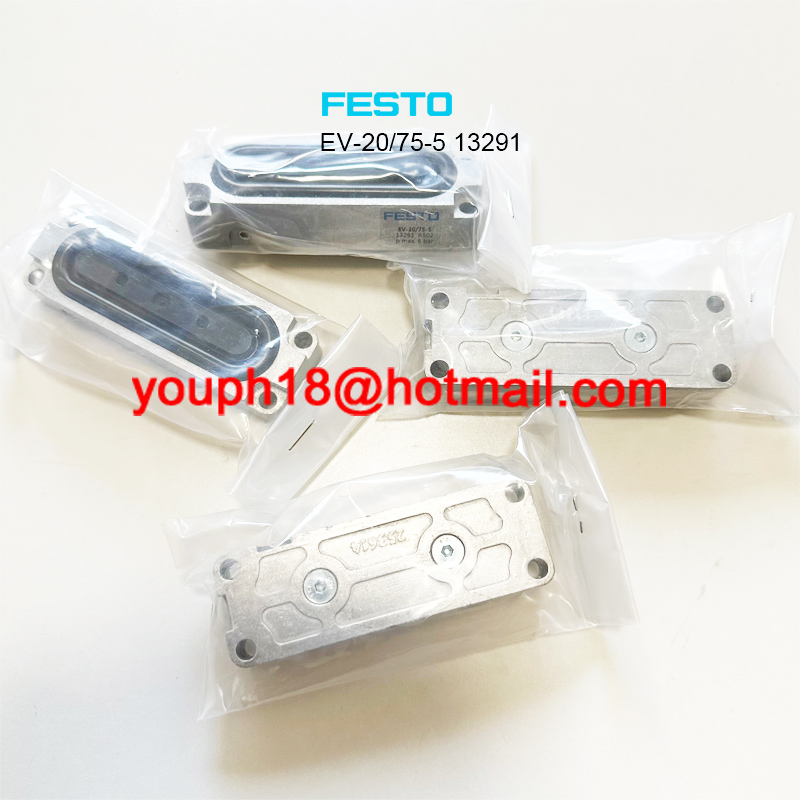

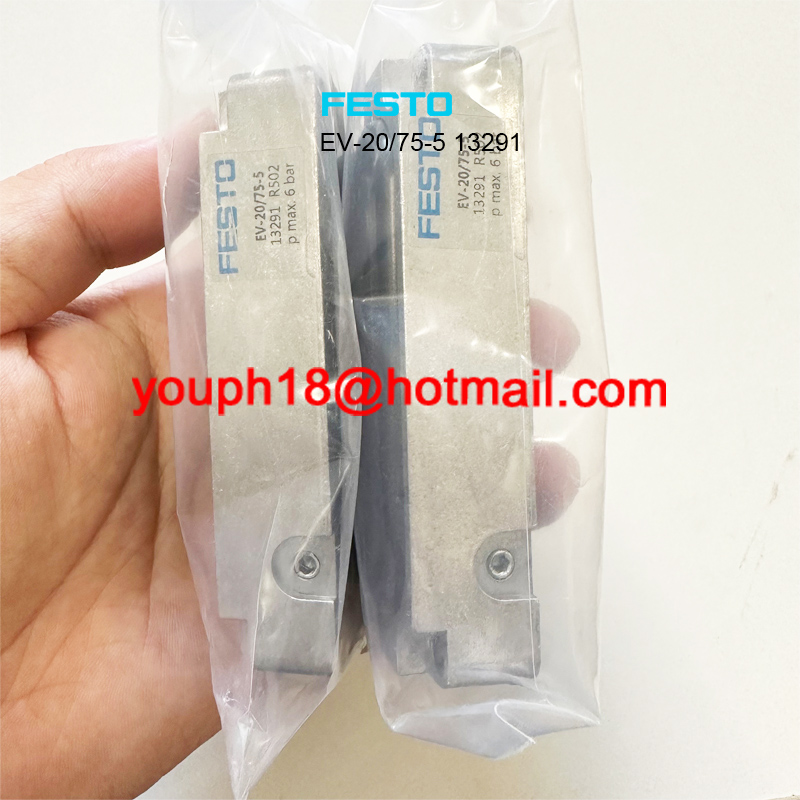

Festo EV-20/75-5 13291 is a compact single-acting EV series pneumatic clamping module for short-stroke holding and fixture positioning. It provides a 20x75 mm rectangular clamping area, 5 mm stroke, M5 pneumatic connection and up to 600 N clamping force at 6 bar.
Original Festo EV series clamping module, part number 13291.
Single-acting diaphragm design for compact pneumatic clamping.
20x75 mm clamping area with 5 mm stroke and M5 port.
Suitable for workpiece clamping, fixture positioning and automation holding tasks.
Brand | Festo |
|---|---|
Model | EV-20/75-5 |
Part No. | 13291 |
Clamping Area | 20x75 mm |
Stroke | 5 mm |
Pneumatic Connection | M5 |
Clamping Force at 6 bar, 1 mm stroke | 660 N |
Clamping Force at 6 bar, max stroke | 600 N |
Weight | 130 g |

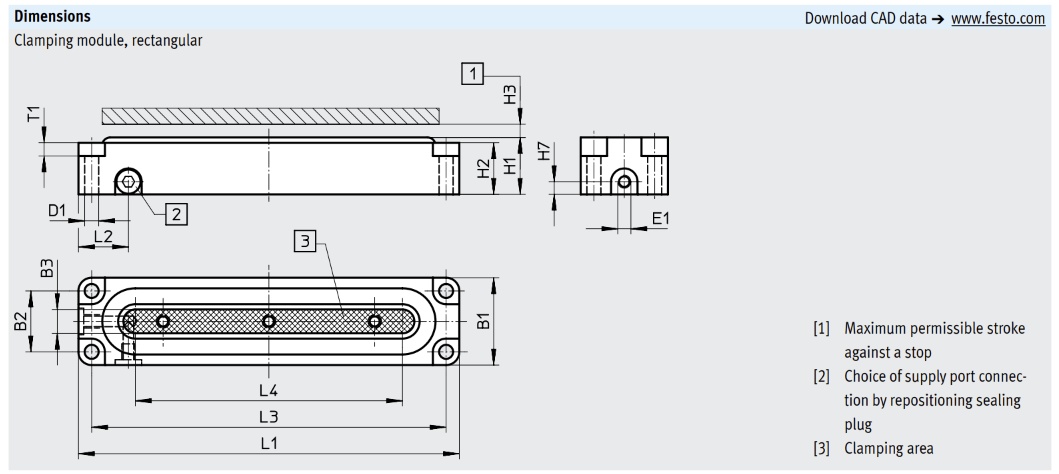

E1 | H1 | H2 | H3 | H7 | L1 | L2 | L3 | L4 | T1 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
10x30 | 17 | 9 | 3 | 3.3 | M3 | 14.5 | +0.3 | 12.5 | 3 | 3 | 45 | 13.5 | 37 | 16 | 4.6 |
15x40 | 23 | 15.5 | 4.9 | 4.3 | M5 | 18 | ±0.54 | 16 | 4 | 4.8 | 55 | 13 | 47 | 25 | 3 |
15x63 | 80 | 13 | 72 | 50 | 3 | ||||||||||
20x75 | 33 | 23 | 9.5 | 5.3 | M5 | 21.5 | ±0.57 | 19.5 | 5 | 4.8 | 98 | 18.9 | 88 | 55 | 5.2 |
20x120 | 144 | 18.9 | 134 | 103 | 5.2 | ||||||||||
20x180 | 204 | 18.9 | 194 | 161 | 5.2 |
Clamping | area | 10x30 | 15x40 | 15x63 | 20x75 | 20x120 | 20x180 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Clamping | force | at | 6 | bar, | stroke | 1 | mm1) | 95 | 195 | 350 | 660 | 1100 | 1690 |
Clamping | force | at | 6 | bar, | maximum | stroke1) | 80 | 165 | 290 | 600 | 1000 | 1480 | |
1) | With | 0.6 | MPa, | 87 | psi, | 6 | bar |
Clamping | area | 10x30 | 15x40 | 15x63 | 20x75 | 20x120 | 20x180 |
|---|---|---|---|---|---|---|---|
Operating | pressure | [MPa] | š | 0.6 | 0.2 | ... | 0.6 |
[psi] | š | 87 | 2.9 | ... | 87 | ||
[bar] | š | 6 | 2 | ... | 6 | ||
Ambient | temperature | [°C] | –20 | ... | +40 |
10x30 | 3 | 151993 | EV-1 | 0/30-3 | 12 | 3 | 150681 | EV-12-3 |
|---|---|---|---|---|---|---|---|---|
15x40 | 4 | 13289 | EV-1 | 5/40-4 | 16 | 4 | 150682 | EV-16-4 |
15x63 | 4 | 13290 | EV-1 | 5/63-4 | 20 | 4 | 150683 | EV-20-4 |
20x75 | 5 | 13291 | EV-2 | 0/75-5 | 25 | 4 | 150684 | EV-25-4 |
20x120 | 5 | 13292 | EV-2 | 0/120-5 | 32 | 5 | 150685 | EV-32-5 |
20x180 | 5 | 13293 | EV-2 | 0/180-5 | 40 | 5 | 184857 | EV-40-5 |
50 | 5 | 184858 | EV-50-5 | |||||
63 | 5 | 184859 | EV-63-5 |
H4 | H5 | H6 | L5 | KBK1) | Part | no. | Type | |||
|---|---|---|---|---|---|---|---|---|---|---|
10x30 | 17 | 5 | 2.5 | 19 | 2 | 151994 | EV-1 | 0/30-DP | ||
15x40 | 20.5 | 5.6 | 2.5 | 29 | 2 | 13783 | EV-1 | 5/40-DP | ||
15x63 | 54 | 2 | 13784 | EV-1 | 5/63-DP | |||||
20x75 | 24.5 | 6.6 | 3 | 63 | 2 | 13785 | EV-2 | 0/75-DP | ||
20x120 | 109 | 2 | 13786 | EV-2 | 0/120-DP | |||||
20x180 | 169 | 2 | 13787 | EV-2 | 0/180-DP | |||||
1) | Corrosion | resistance | class | CRC | 2 | to | Festo | standard | FN | 940070 |
Type | Part No. | Clamping Area | Stroke | Pneumatic Connection | Force at 6 bar, 1 mm stroke | Force at 6 bar, max stroke | Weight |
|---|---|---|---|---|---|---|---|
EV-10/30-3 | 151993 | 10x30 mm | 3 mm | M3 | 95 N | 80 N | 20 g |
EV-15/40-4 | 13289 | 15x40 mm | 4 mm | M5 | 195 N | 165 N | 45 g |
EV-15/63-4 | 13290 | 15x63 mm | 4 mm | M5 | 350 N | 290 N | 65 g |
EV-20/75-5 | 13291 | 20x75 mm | 5 mm | M5 | 660 N | 600 N | 130 g |
EV-20/120-5 | 13292 | 20x120 mm | 5 mm | M5 | 1100 N | 1000 N | 190 g |
EV-20/180-5 | 13293 | 20x180 mm | 5 mm | M5 | 1690 N | 1480 N | 270 g |
The EV clamping module should be operated with a counter-stop. Its flat diaphragm design is useful for workpiece clamping, compact pneumatic holding, fixture positioning and machine automation applications where installation space is limited.
