Airtac 4L210-08 G1//4 5/2-way 4L Series Push pull Valve

Brand: Airtac.

Model: 4L210-08.

Product type: 4L Series Push pull Valve.

Category: Pneumatic Valves.

Availability:

Quantity:



Inquire Add to Basket

Model:
4L210-08
Brand:
Airtac

Product Description

Airtac 4L210-08 4L Series Push pull Valve

Airtac 4L210-08 is an industrial 4L Series Push pull Valve for pneumatic automation and equipment control applications.

Key Features

Original Airtac product for industrial automation maintenance and machine building.
Model 4L210-08 with product information prepared from the supplied datasheet and images.
Suitable for Pneumatic Valves applications where reliable replacement parts are required.
Product images are kept in the gallery; PDF diagrams and ordering references are kept in the detail page.

Technical Data

Brand	Airtac
Model	4L210-08
Product Type	4L Series Push pull Valve
Category	Pneumatic Valves

Technical Specifications

Model	4L110-06	4L210-06	4L210-08	4L310-08	4L310-10
Fluid	Air (to be filtered by 40 um filter element)
Operating	Manual control direct acting type)
Port size[Note1]	1/8"		1/4"		3/8"
Orifice size(Cv) [Note3]	10.2mm² (Cv=0.6)	4L210-08:17.0mm² (Cv=1.0)		4L310-10:28.0mm² (Cv=1.65)
Valve type	5/2 Way
Lubrication [Note2]	Not required
Pressure range	0~1.0MPa(0~145psi)
Proof pressure	1.5MPa(215psi)
Temperature	-20~70°C
Material of body	Aluminum alloy

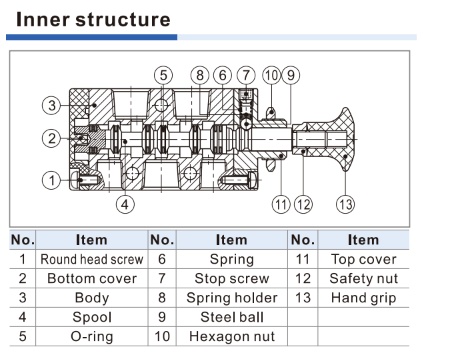

Inner Structure Diagram

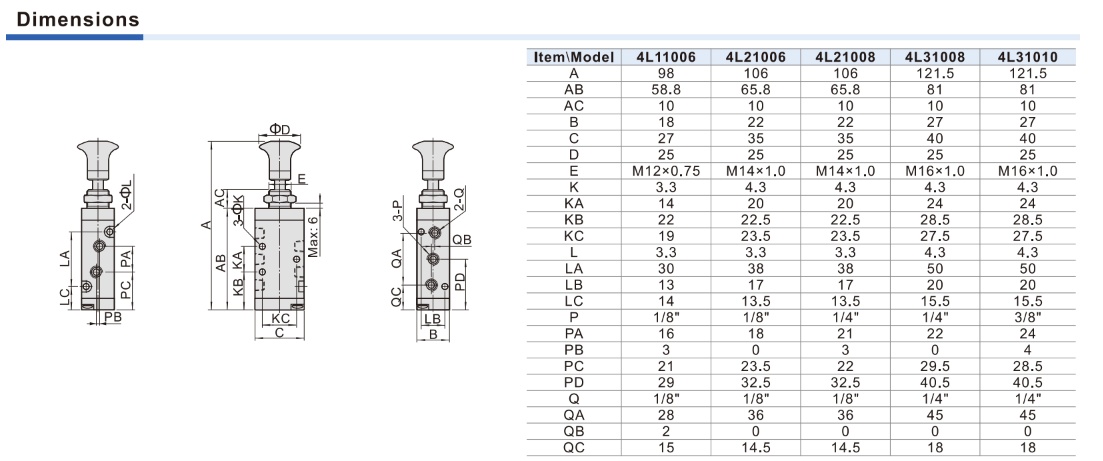

Dimensions Diagram

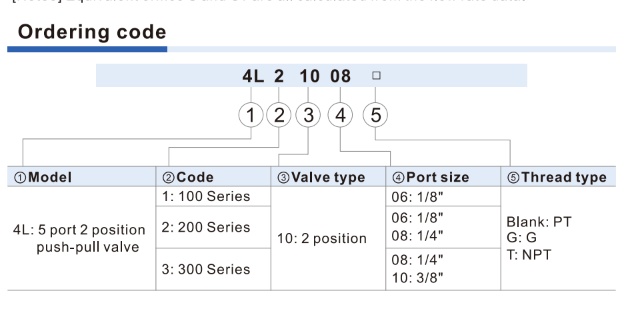

Ordering Code

Application Notes

Use this product according to the matching datasheet and machine requirements. Confirm port size, model code and operating conditions before replacement or installation.
