Brand: Airtac.
Model: 4L210-06.
Product type: 4L Series Push pull Valve.
Category: Pneumatic Valves.
| Quantity: | |
|---|---|
4L210-06
Airtac
Airtac 4L210-06 is an industrial 4L Series Push pull Valve for pneumatic automation and equipment control applications.
Original Airtac product for industrial automation maintenance and machine building.
Suitable for Pneumatic Valves applications where reliable replacement parts are required.
Model 4L210-06 with product information prepared from the supplied datasheet and images.

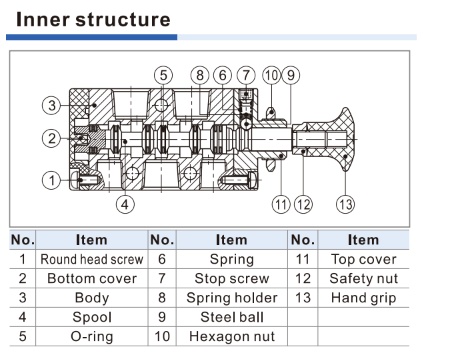

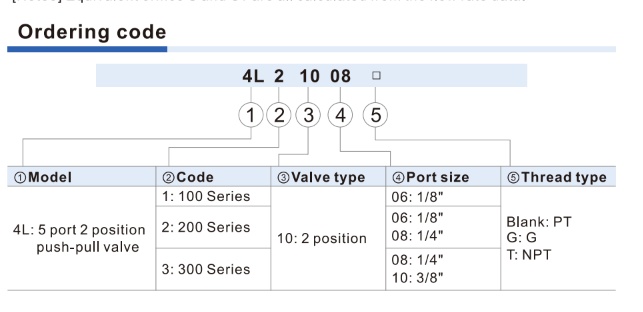

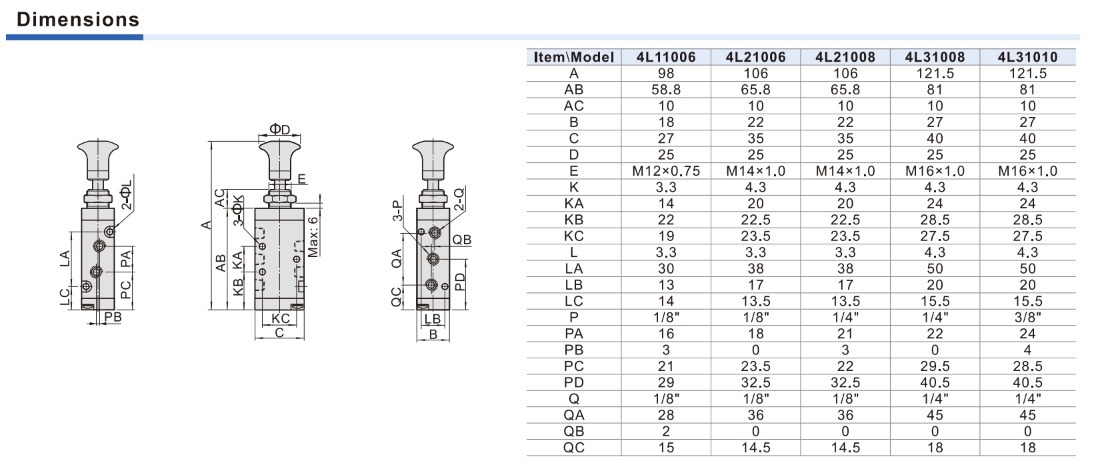

Product images are kept in the gallery; PDF diagrams and ordering references are kept in the detail page.
Brand | Airtac |
|---|---|
Model | 4L210-06 |
Product Type | 4L Series Push pull Valve |
Category | Pneumatic Valves |
Model | 4L110-06 | 4L210-06 | 4L210-08 | 4L310-08 | 4L310-10 |
Fluid | Air (to be filtered by 40 um filter element) | ||||
Operating | Manual control direct acting type) | ||||
Port size[Note1] | 1/8" | 1/4" | 3/8" | ||
Orifice size(Cv) | 10.2mm² | 4L210-08:17.0mm² | 4L310-10:28.0mm² | ||
Valve type | 5/2 Way | ||||
Lubrication [Note2] | Not required | ||||
Pressure range | 0~1.0MPa(0~145psi) | ||||
Proof pressure | 1.5MPa(215psi) | ||||
Temperature | -20~70°C | ||||
Material of body | Aluminum alloy | ||||
Use this product according to the matching datasheet and machine requirements. Confirm port size, model code and operating conditions before replacement or installation.
