Brand: Airtac.
Model: 3V110-M5
Product type: 3V100 Series Solenoid Valve.
Category: Pneumatic Valves.
| Quantity: | |
|---|---|
3V110-M5
Airtac
Airtac 3V110-M5-NC is an industrial 3V100 Series Solenoid Valve for pneumatic automation and equipment control applications. It is also commonly referenced with compatible model code 3V110-M5.
Brand | Airtac |
|---|---|
Model | 3V110-M5-NC |
Product Type | 3V100 Series Solenoid Valve |
Category | Pneumatic Valves |
Compatible Models | 3V110-M5 |
Original Airtac product for industrial automation maintenance and machine building.
Model 3V110-M5-NC with product information prepared from the supplied datasheet and images.
Suitable for Pneumatic Valves applications where reliable replacement parts are required.

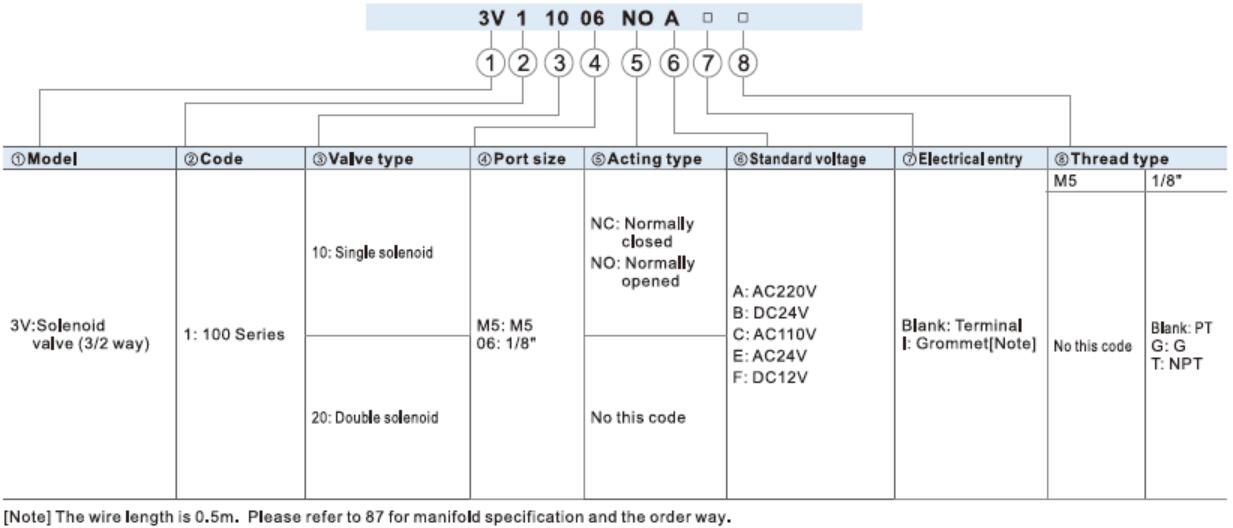

Product images are kept in the gallery; PDF diagrams and ordering references are kept in the detail page.
Pilot-oriented mode: Internal pilot or external pilot. Structure in sliding column mode: good tightness and sensitive reaction. Double control solenoid valves have memory function. Internal hole adopts special processing technology which has little attrition friction, low start pressure and long No need to add oil for lubrication. Affiliated manual devices are equipped to facilitate installation and debugging. Several standard voltage grades are optional. Integrate with the manifold to save installation space.
Item | Specification | ||||
Standard voltage | AC220V | AC110V | AC24V | DC24V | DC12V |
Scope of voltage | AC: ±15% DC: ±10% | ||||
Power consumption | 3.5VA | 3.5VA | 4.0VA | 2.8W | 2.5W |
Protection | IP65(DIN40050) | ||||
Temperature classification | B Class | ||||
Electrical entry | Terminal, Grommet | ||||
Activating time | 0.05 sec and below | ||||
Max. frequency [Note 1] | 5 cycle/sec | ||||
[Note 1] The maximum actuation frequency is in the no-load state. | |||||
Model | 3V110-M5 | 3V120-M5 | 3V110-06 | 3V120-06 |
Fluid | Air(to be filtered by 40μm filter element) | |||
Acting | Internal pilot or external pilot | |||
Port size [Note1] | M5 | 1/8" | ||
Orifice size(Cv)[Note3] | 3V110-06,3V120-06:10.2mm²(Cv=0.6) | |||
Valve type | 3 port 2 position | |||
Lubrication [Note2] | Not required | |||
Operating pressure | 0.15~0.8MPa(21~114psi) | |||
Proof pressure | 1.2MPa(175psi) | |||
Temperature | -20~70°C | |||
Material of body | Aluminum alloy | |||
[Note 1] PT thread, G thread and NPT thread are available. | ||||
[Note 2] Once lubricated air is used, continue with same medium to optimise valve life span. Lubricants like ISO VG32 or equivalent are recommended. | ||||
[Note3] Equivalent orifice S and Cv are all calculated from the flow rate data. | ||||
Airtac 3V110-M5-NC is commonly used in automation workshops, equipment maintenance departments and machine retrofit projects where compact pneumatic control parts are needed.
Typical installation points include assembly fixtures, pneumatic test benches and small control panels, helping engineers handle mechanical valve actuation, signal switching and basic pneumatic control.
Use this product according to the matching datasheet and machine requirements. Confirm port size, model code and operating conditions before replacement or installation.
