Brand: Airtac.
Model: 2V130-15.
Product type: 2V Series Fluid Control Valve.
Category: Pneumatic Valves.
| Quantity: | |
|---|---|
2V130-15
Airtac
Airtac 2V130-15 is an industrial 2V Series Fluid Control Valve for pneumatic automation and equipment control applications. It is also commonly referenced with compatible model code 2V130-10.
Brand | Airtac |
|---|---|
Model | 2V130-15 |
Product Type | 2V Series Fluid Control Valve |
Category | Pneumatic Valves |
Compatible Models | 2V130-10 |
Original Airtac product for industrial automation maintenance and machine building.
Model 2V130-15 with product information prepared from the supplied datasheet and images.
Suitable for Pneumatic Valves applications where reliable replacement parts are required.

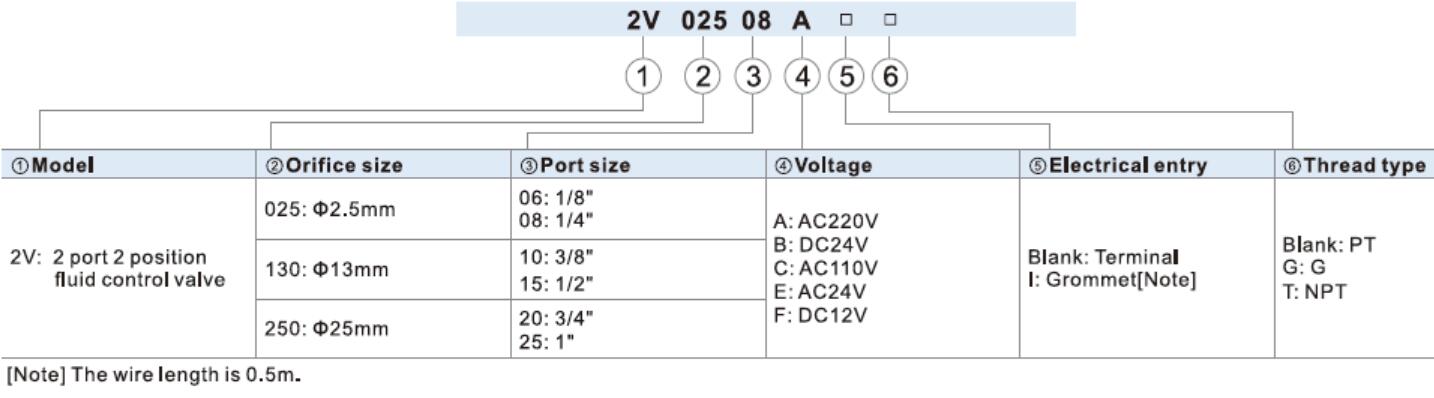

Product images are kept in the gallery; PDF diagrams and ordering references are kept in the detail page.
1. Direct acting and normally closed type 2/2 way solenoid valve. Its high sensitivity allows it to change direction quickly.
2. The structure is small and compact.
3. The valve body is made of brass which is heat resistance and the coil conforms to Class B classification, The seals are made of fluorine rubber (VITON) which is suitable for several types of working medium.

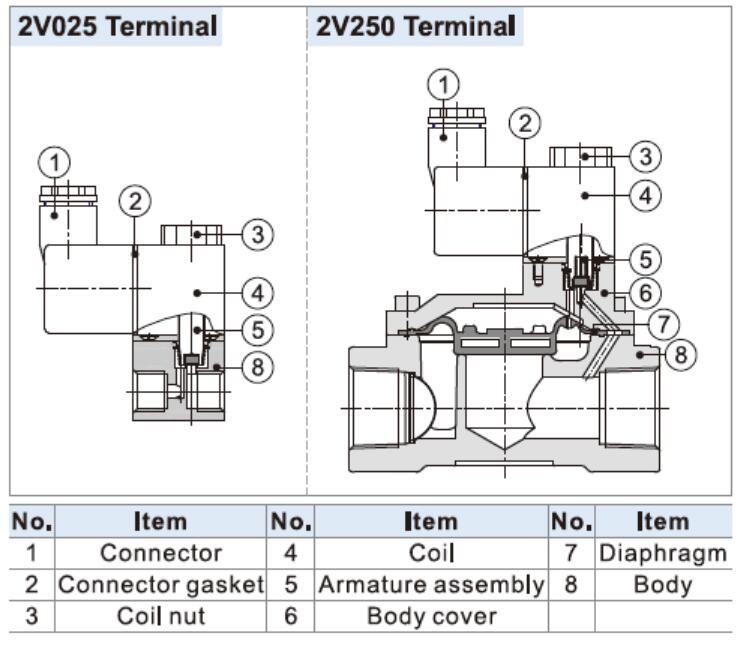

1.This 2/2 way diaphragm piloted solenoid valve has low energy consumption and large air flow.
2. The starting pressure is low and the Min, operational differential pressure is 0.05MPa.
3. The valve body is made of brass whichis heat resistance and the coil conforms to Class B classification . The seals are made of NBR.
Valve type | Power type | Frequency (Hz) | Voltage range | Electrical entry | Power Consumption (VA/W) | Insulation | Temp.rise (°C) |
2V025 | AC | 50 | ±15% | Terminal | 7.0VA | Class B | 35 |
60 | |||||||
DC | - | ±10% | 7.0W | 45 |
Model | 2V025-06 | 2V025-08 | 2V130-10 | 2V130-15 | 2V250-20 | 2V250-25 |
Fluid | Air, Water, Oil | |||||
Acting | Direct acting | Internally piloted acting | ||||
Initial state | Normally closed | |||||
Orifice size (mm) | 2.5 | 2.5 | 13 | 13 | 25 | 25 |
Cv | 0.23 | 0.25 | 6.2 | 6.2 | 13 | 13 |
Port size [Note] | 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" |
Viscosity limit | Under 20CST | |||||
Pressure range | 0~1.0MPa(0~145psi) | 0.05~1.0MPa(7~145psi) | ||||
Proof pressure | 1.5MPa(215psi) | |||||
Material body | Brass with nickel plated | Brass | ||||
Seal material | VITON | NBR | ||||
Activating time | 0.05 sec and below | |||||
[Note] PT thread, G thread and NPT thread are available. | ||||||
Airtac 2V130-15 is commonly used in automation workshops, equipment maintenance departments and machine retrofit projects where compact pneumatic control parts are needed.
Use this product according to the matching datasheet and machine requirements. Confirm port size, model code and operating conditions before replacement or installation.

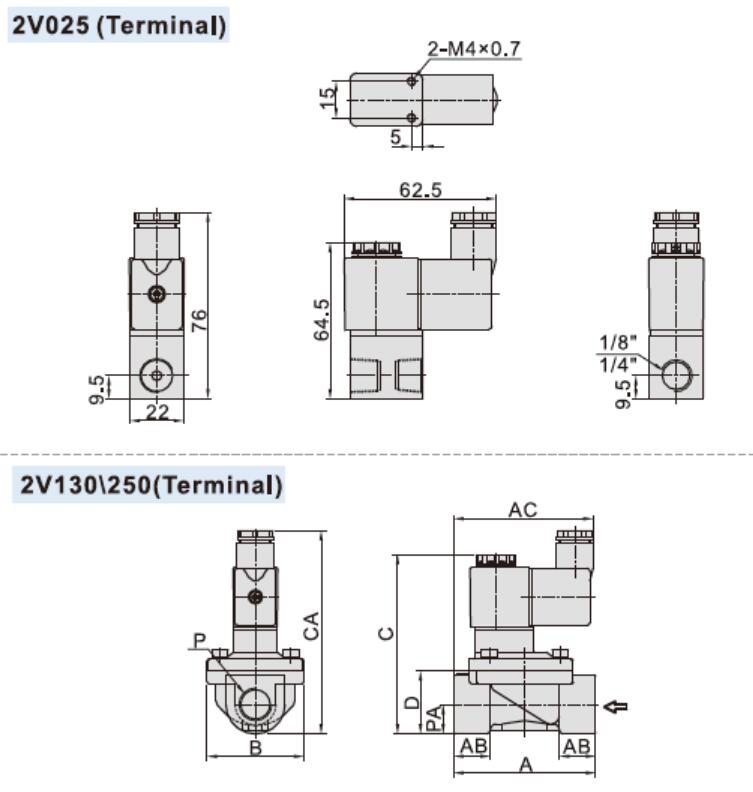

Model\Item | A | AB | AC | B | C | CA | D | P | PA |
|---|---|---|---|---|---|---|---|---|---|
2V130-10 | 72 | 18.5 | 71 | 49 | 91 | 103 | 32 | 3/8" | 15 |
2V130-15 | 72 | 18.5 | 71 | 49 | 91 | 103 | 32 | 1/2" | 15 |
2V250-20 | 102 | 23 | 74 | 77.5 | 107.5 | 120 | 45 | 3/4" | 21 |
2V250-25 | 102 | 23 | 74 | 77.5 | 107.5 | 120 | 45 | 1" | 21 |
