Brand: Airtac.
Model: 2V025-06.
Product type: 2V Series Fluid Control Valve.
Category: Pneumatic Valves.
| Quantity: | |
|---|---|
2V025-06
Airtac
Airtac 2V025-06 is an industrial 2V Series Fluid Control Valve for pneumatic automation and equipment control applications. It is also commonly referenced with compatible model code 2V025-08.
2V025 series

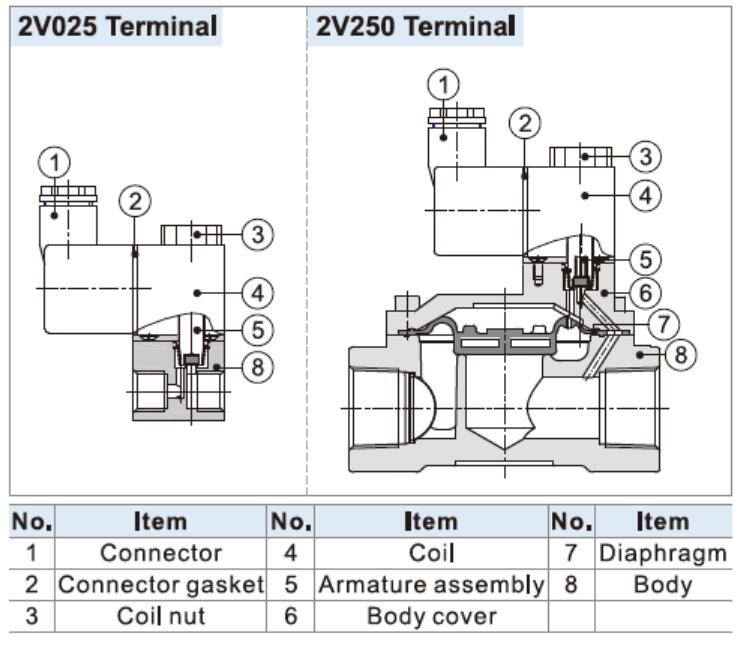

1. Direct acting and normally closed type 2/2 way solenoid valve. Its high sensitivity allows it to change direction quickly.
2. The structure is small and compact.
3. The valve body is made of brass which is heat resistance and the coil conforms to Class B classification, The seals are made of fluorine rubber (VITON) which is suitable for several types of working medium.
2V130 series and 2V250 series
1.This 2/2 way diaphragm piloted solenoid valve has low energy consumption and large air flow.
2. The starting pressure is low and the Min, operational differential pressure is 0.05MPa.
3. The valve body is made of brass whichis heat resistance and the coil conforms to Class B classification . The seals are made of NBR.
Brand | Airtac |
|---|---|
Model | 2V025-06 |
Product Type | 2V Series Fluid Control Valve |
Category | Pneumatic Valves |
Compatible Models | 2V025-08 |
Product images are kept in the gallery; PDF diagrams and ordering references are kept in the detail page.
Original Airtac product for industrial automation maintenance and machine building.
Model 2V025-06 with product information prepared from the supplied datasheet and images.
Suitable for Pneumatic Valves applications where reliable replacement parts are required.
Valve type | Power type | Frequency (Hz) | Voltage range | Electrical entry | Power Consumption (VA/W) | Insulation | Temp.rise (°C) |
2V025 | AC | 50 | ±15% | Terminal | 7.0VA | Class B | 35 |
60 | |||||||
DC | - | ±10% | 7.0W | 45 |
Model | 2V025-06 | 2V025-08 | 2V130-10 | 2V130-15 | 2V250-20 | 2V250-25 |
Fluid | Air, Water, Oil | |||||
Acting | Direct acting | Internally piloted acting | ||||
Initial state | Normally closed | |||||
Orifice size (mm) | 2.5 | 2.5 | 13 | 13 | 25 | 25 |
Cv | 0.23 | 0.25 | 6.2 | 6.2 | 13 | 13 |
Port size [Note] | 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" |
Viscosity limit | Under 20CST | |||||
Pressure range | 0~1.0MPa(0~145psi) | 0.05~1.0MPa(7~145psi) | ||||
Proof pressure | 1.5MPa(215psi) | |||||
Material body | Brass with nickel plated | Brass | ||||
Seal material | VITON | NBR | ||||
Activating time | 0.05 sec and below | |||||
[Note] PT thread, G thread and NPT thread are available. | ||||||
2V025-06 can be applied in automation workshops, equipment maintenance departments and machine retrofit projects as a compact 2v series fluid control valve.
It is suitable for assembly fixtures, pneumatic test benches and small control panels, especially where users need mechanical valve actuation, signal switching or basic pneumatic control.
Use this product according to the matching datasheet and machine requirements. Confirm port size, model code and operating conditions before replacement or installation.

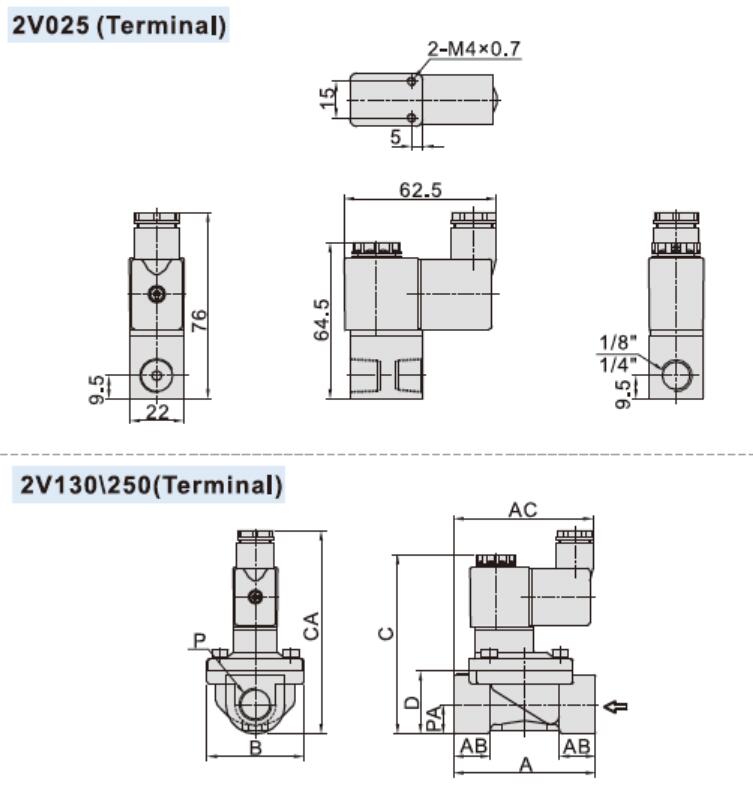

Model\Item | A | AB | AC | B | C | CA | D | P | PA |
|---|---|---|---|---|---|---|---|---|---|
2V130-10 | 72 | 18.5 | 71 | 49 | 91 | 103 | 32 | 3/8" | 15 |
2V130-15 | 72 | 18.5 | 71 | 49 | 91 | 103 | 32 | 1/2" | 15 |
2V250-20 | 102 | 23 | 74 | 77.5 | 107.5 | 120 | 45 | 3/4" | 21 |
2V250-25 | 102 | 23 | 74 | 77.5 | 107.5 | 120 | 45 | 1" | 21 |
