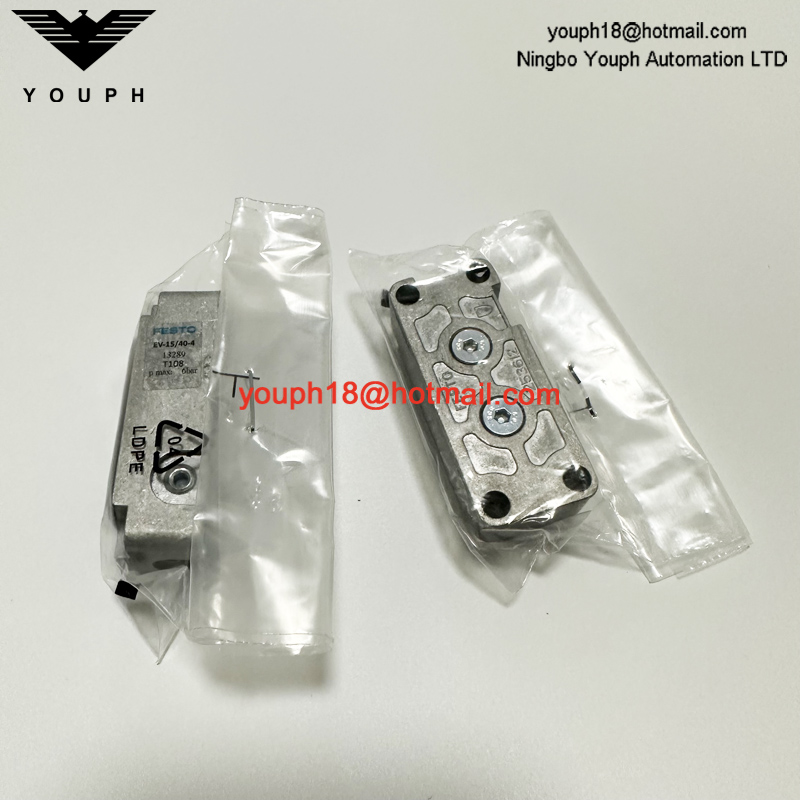

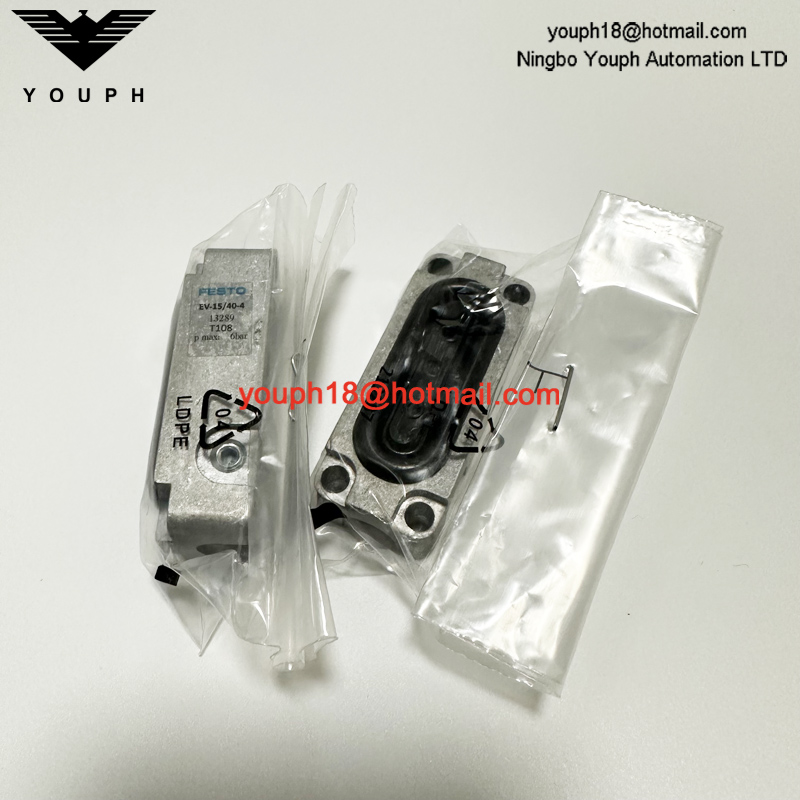

Festo EV-15/40-4 13289 is a compact single-acting EV series pneumatic clamping module for short-stroke holding and fixture positioning. It provides a 15x40 mm rectangular clamping area, 4 mm stroke, M5 pneumatic connection and up to 165 N clamping force at 6 bar.

Key Features

• Original Festo EV series clamping module, part number 13289.

• Single-acting diaphragm design for compact pneumatic clamping.

• 15x40 mm clamping area with 4 mm stroke.

• M5 pneumatic connection and any mounting position.

• Aluminium housing with polyurethane / TPE-U(PU) diaphragm.

Technical Data

Structure and Dimensions Diagram

Rectangular EV Series Models

Application Notes

The EV clamping module should be operated with a counter-stop. Its flat diaphragm design is useful for compact pneumatic holding, workpiece clamping, fixture positioning and machine automation where installation space is limited....
