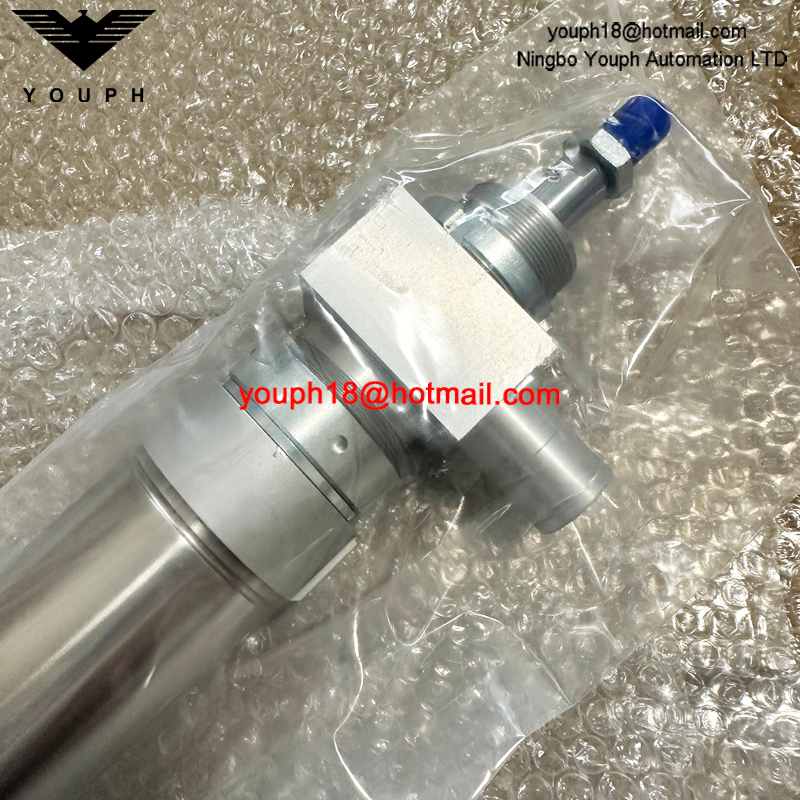

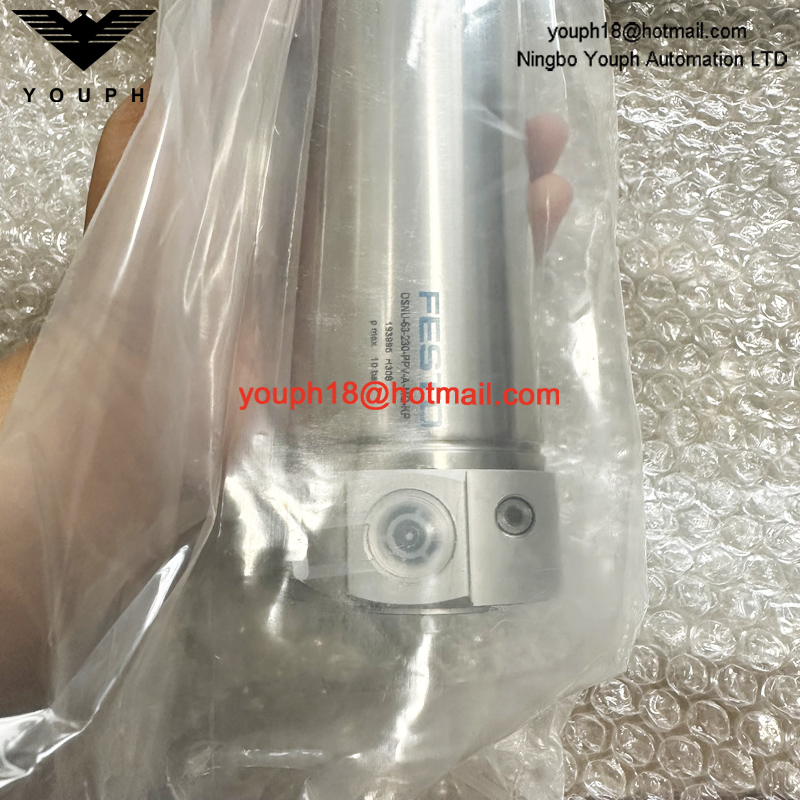

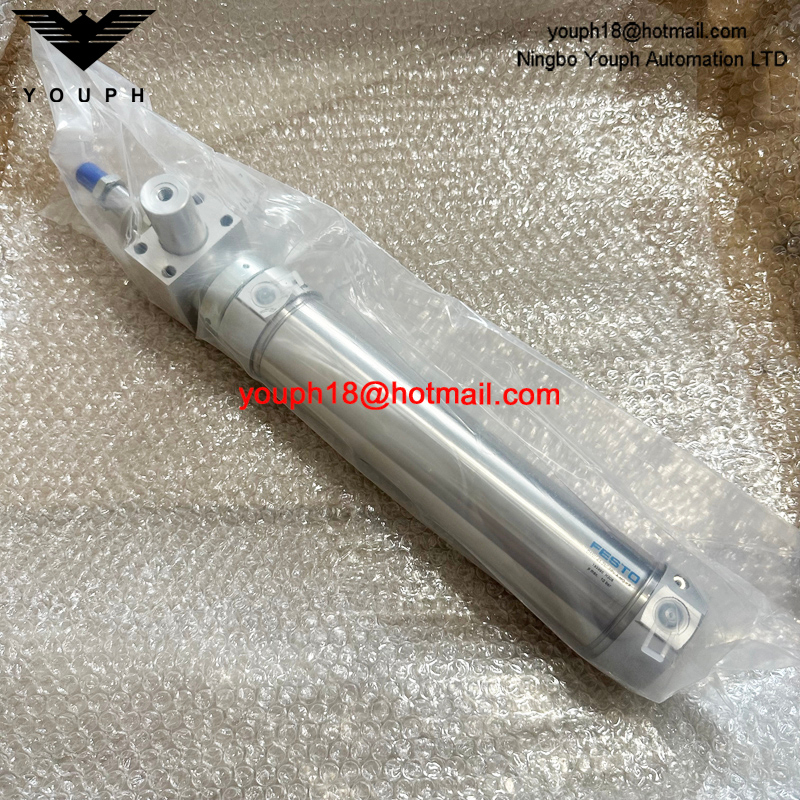

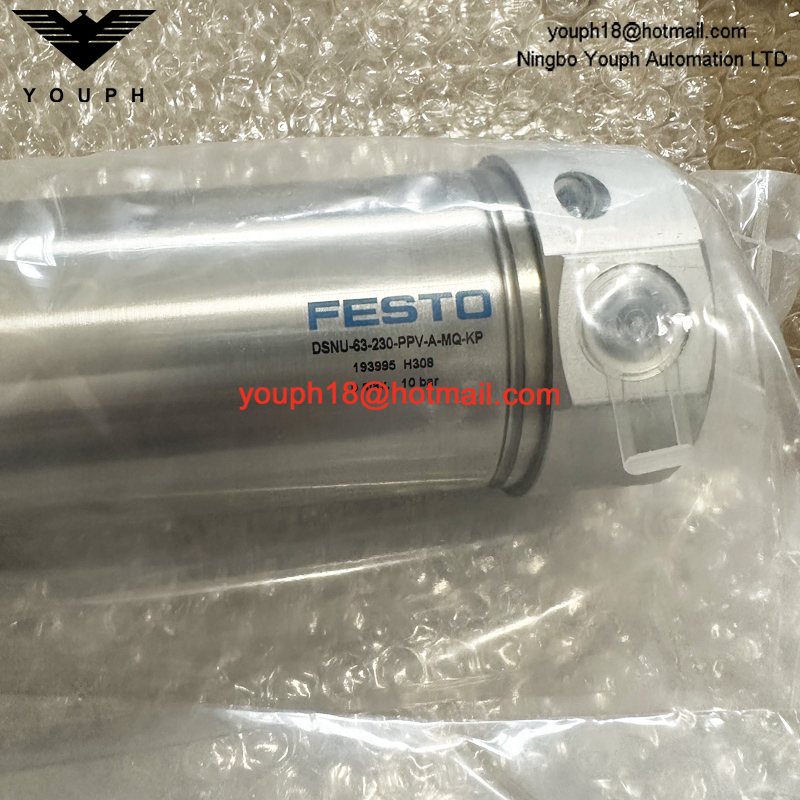

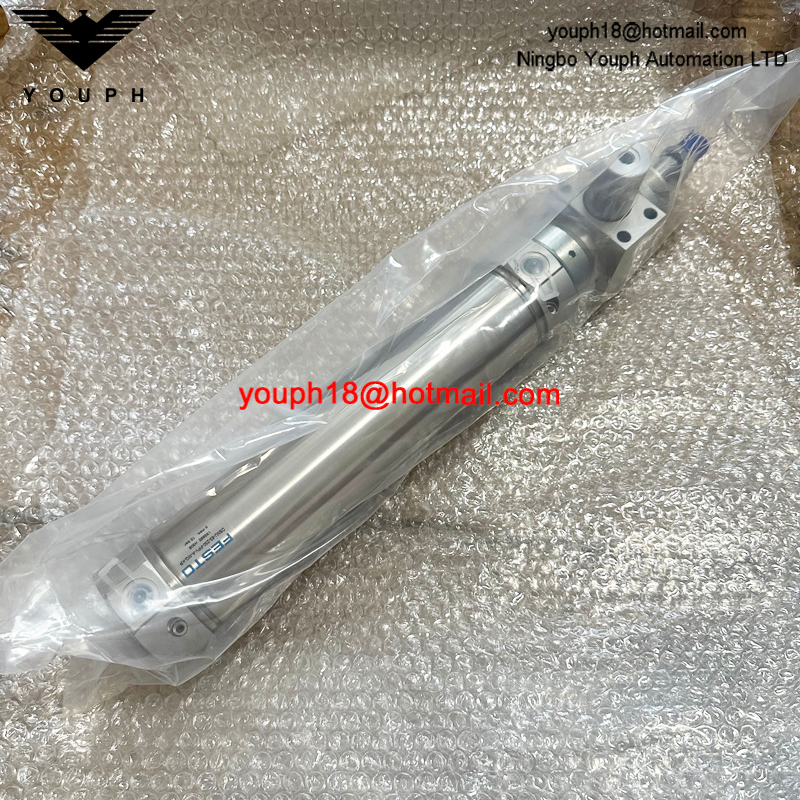

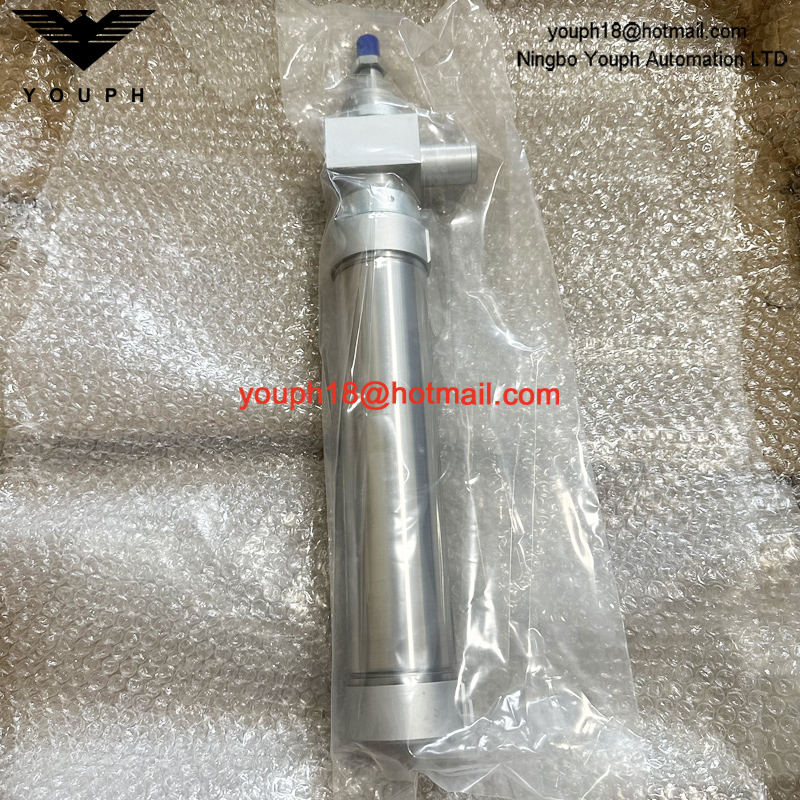

Festo DSNU-63-230-PPV-MQ-KP 193995 DSNU MQ KP ISO cylinder

Festo DSNU-63-230-PPV-MQ-KP 193995 DSNU MQ KP ISO cylinder

Technical Data

• Stroke 230 mm

• Piston diameter 63 mm

• CushioningElastic cushioning rings/plates at both ends Self-adjusting pneumatic end-position cushioning Pneumatic cushioning, adjustable at both ends

• Mounting positionoptional

• DesignPiston Piston rod Cylinder barrel

• Position detectionVia proximity switch

• VariantsExtended male piston rod thread Piston rod with female thread Custom thread on the piston rod Piston rod with male thread shortened at one end Extended piston rod Clamping unit on the piston rod Axial supply port With direct mounting Lateral supply port Metal scraper With protection against rotation High corrosion protection Dust protection Uniform, slow movement Low friction Through piston rod Heat-resistant seals max. 120°C Piston rod at one end

• Protection against torque/guideSquare piston rod

• Operating pressure0.1 MPa ... 1 MPa

• Operating pressure1 bar ... 10 bar

• Mode of operationDouble-acting

• CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX)

• UKCA marking (see declaration of conformity)To UK EX instructions

• Explosion protection certification outside the EUEPL Db (GB) EPL Gb (GB)

• Explosion protectionZone 1 (ATEX) Zone 1 (UKEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 21 (UKEX) Zone 22 (ATEX)

• ATEX category gasII 2G

• ATEX category dustII 2D

• Explosion ignition protection type for gasEx h IIC T4 Gb

• Explosion ignition protection type for dustEx h IIIC T120°C Db

• Explosion ambient temperature-20°C <= Ta <= +60°C

• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

• Corrosion resistance class CRC2 - Moderate corrosion stress 3 - high corrosion stress

• LABS (PWIS) conformityVDMA24364-B1/B2-L VDMA24364 zone III

• Ambient temperature-20 °C ... 120 °C

• Cushioning length21 mm

• Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke1682 N

• Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke1870 N

• Moving mass for 0 mm stroke459 g

• Additional moving mass per 10 mm stroke25 g

• Basic weight for 0 mm stroke1445 g

• Additional weight per 10 mm stroke44 g

• Type of mountingWith accessories

• Pneumatic connectionG3/8

• Note on materialsRoHS-compliant

• Material coverWrought aluminium alloy

• Material sealsNBR TPE-U(PU)

• Material piston rodHigh-alloy stainless steel

• Material cylinder barrelHigh-alloy stainless steel
