Brand: Airtac.
Model: M5R210-08.
Product type: M5 Series Control Valve.
Category: Pneumatic Valves.
| Quantity: | |
|---|---|
M5R210-08
Airtac
Airtac M5R210-08 is an industrial M5 Series Control Valve for pneumatic automation and equipment control applications.
Original Airtac product for industrial automation maintenance and machine building.
Model M5R210-08 with product information prepared from the supplied datasheet and images.
Suitable for Pneumatic Valves applications where reliable replacement parts are required.

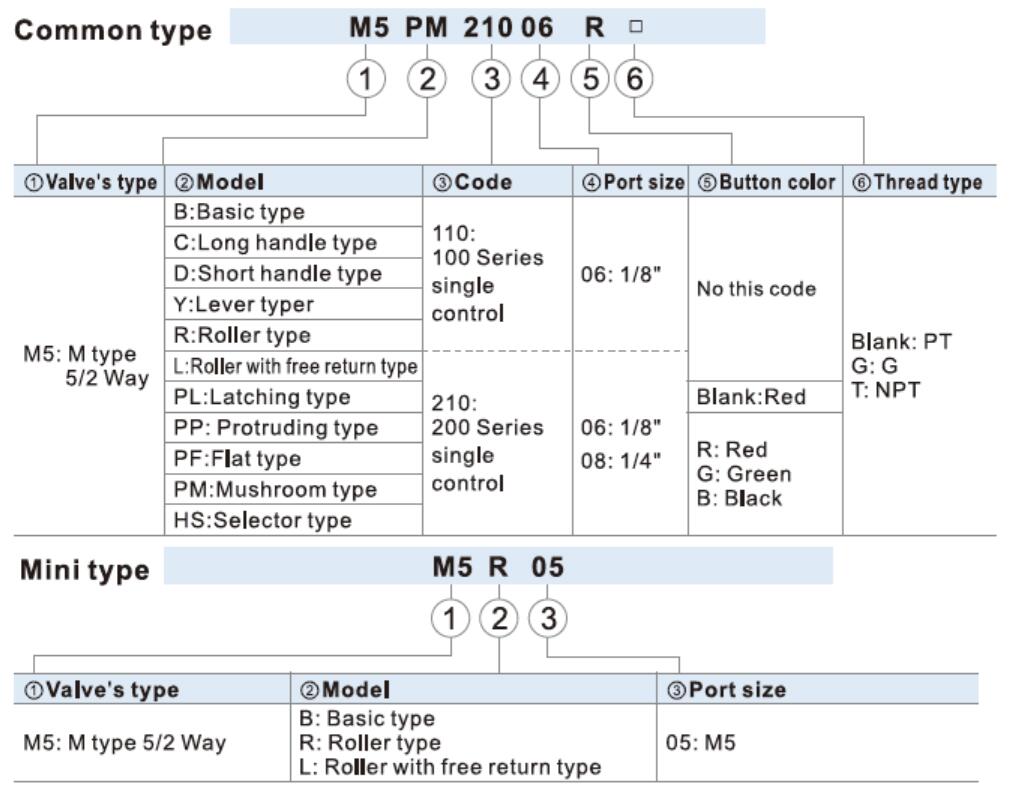

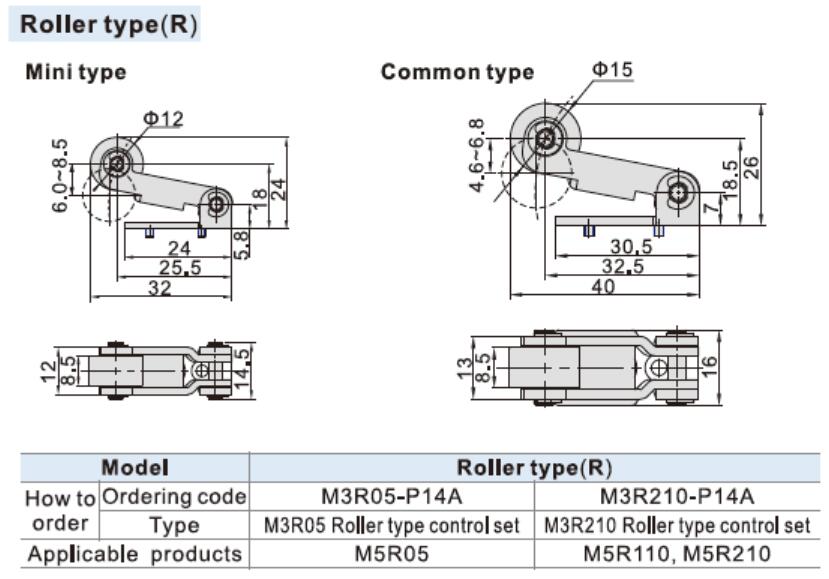

Product images are kept in the gallery; PDF diagrams and ordering references are kept in the detail page.
Brand | Airtac |
|---|---|
Model | M5R210-08 |
Product Type | M5 Series Control Valve |
Category | Pneumatic Valves |
Common type | Common type | Mini type | ||||||
Type | Spool | Button | Type | Spool | Roller(handle) | Type | Spool | Roller |
M5B | 2.0~3.3 | - | M5R | 2.0~3.0 | 4.6~6.8 | M5B05 | 2.0~3.3 | - |
M5PF | 2.0~3.3 | 3.8~5.1 | M5L | 2.0~3.0 | 5.0~7.8 | M5R05 | 2.0~3.0 | 6.0~8.5 |
M5PP | 2.0~3.3 | 3.8~5.1 | M5C | 2.0~3.0 | 11.0~16.0 | M5L05 | 2.0~3.0 | 7.0~10.0 |
M5PM | 2.0~3.3 | 3.8~5.1 | M5D | 2.0~3.0 | 5.5~8.0 |
|
|
|
M5PL | 2.0~3.3 | 5.9~7.2 |
|
|
|
|
|
|
M5HS | 2.0~3.3 | 5.1~6.4 |
|
|
|
|
|
|
Unit:mm | ||||||||
Model | M5B | M5C | M5D | M5R | M5L | M5Y | M5PM | M5PP | M5PF | M5PL | M5HS | |
Fluid | Air (to be filtered by 40 μm filter element) | |||||||||||
Operating | External control direct acting type | |||||||||||
Port size [Note1] | 05:M5 06: 1/8" 08:1/4" | |||||||||||
Orifice size | Mini type | 05: 2.5mm² (Cv=0.14) | ||||||||||
110 | 06: 8.0mm² (Cv=0.45) | |||||||||||
210 | 06: 9.0mm² (Cv=0.50), 08: 12.0mm² (Cv=0.67) | |||||||||||
Valve type | 5/2 Way | |||||||||||
Lubrication [Note2] | Not required | |||||||||||
Pressure range | 0~1.0MPa(0~145psi) | |||||||||||
Proof pressure | 1.5MPa(215psi) | |||||||||||
Temperature °C | -20~70 | |||||||||||
Material of body | Aluminum alloy | |||||||||||
[Note1] PT thread, G thread and NPT thread are available. | ||||||||||||
[Note2] Once lubricated air is used, continue with same medium to optimise valve life span. | ||||||||||||
It is suggested to use ISO VG32 lubricant or the oil with the same grade. | ||||||||||||
Use this product according to the matching datasheet and machine requirements. Confirm port size, model code and operating conditions before replacement or installation.
