Brand: Airtac.
Model: M5R05.
Product type: M5 Series Control Valve.
Category: Pneumatic Valves.
| Quantity: | |
|---|---|
M5R05
Airtac

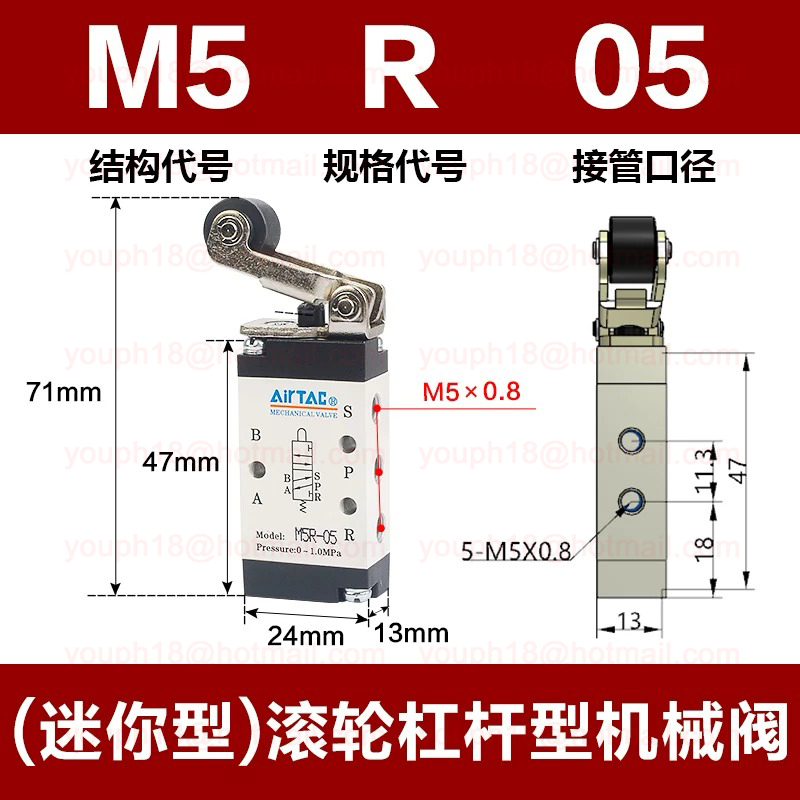

Airtac M5R05 is an industrial M5 Series Control Valve for pneumatic automation and equipment control applications.
Original Airtac product for industrial automation maintenance and machine building.
Model M5R05 with product information prepared from the supplied datasheet and images.
Suitable for Pneumatic Valves applications where reliable replacement parts are required.
Product images are kept in the gallery; PDF diagrams and ordering references are kept in the detail page.

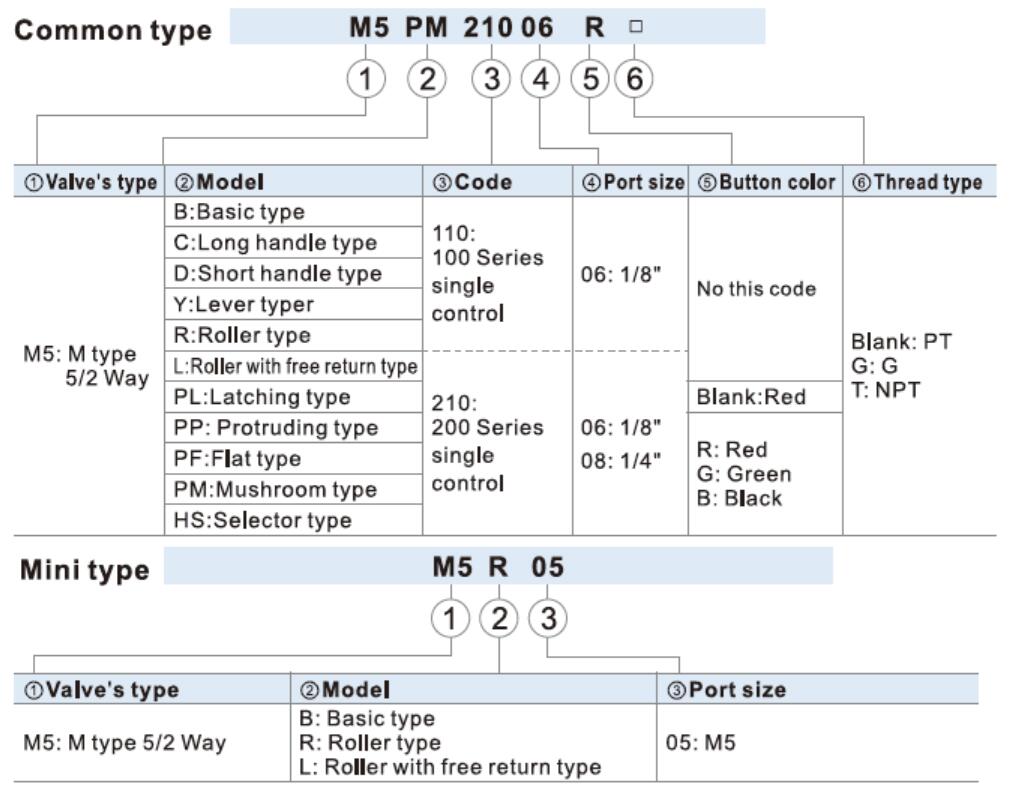

Brand | Airtac |
|---|---|
Model | M5R05 |
Product Type | M5 Series Control Valve |
Category | Pneumatic Valves |
Common type | Common type | Mini type | ||||||
Type | Spool | Button | Type | Spool | Roller(handle) | Type | Spool | Roller |
M5B | 2.0~3.3 | - | M5R | 2.0~3.0 | 4.6~6.8 | M5B05 | 2.0~3.3 | - |
M5PF | 2.0~3.3 | 3.8~5.1 | M5L | 2.0~3.0 | 5.0~7.8 | M5R05 | 2.0~3.0 | 6.0~8.5 |
M5PP | 2.0~3.3 | 3.8~5.1 | M5C | 2.0~3.0 | 11.0~16.0 | M5L05 | 2.0~3.0 | 7.0~10.0 |
M5PM | 2.0~3.3 | 3.8~5.1 | M5D | 2.0~3.0 | 5.5~8.0 |
|
|
|
M5PL | 2.0~3.3 | 5.9~7.2 |
|
|
|
|
|
|
M5HS | 2.0~3.3 | 5.1~6.4 |
|
|
|
|
|
|

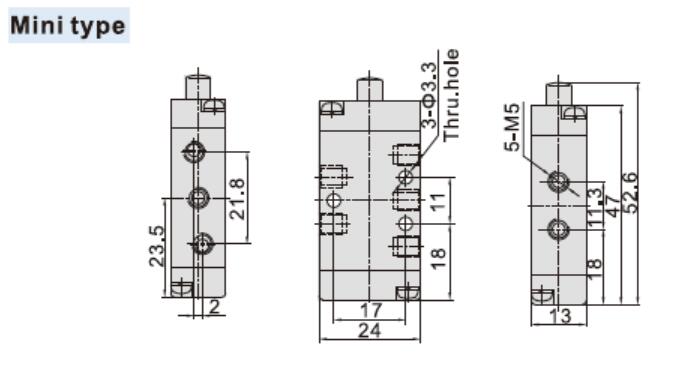

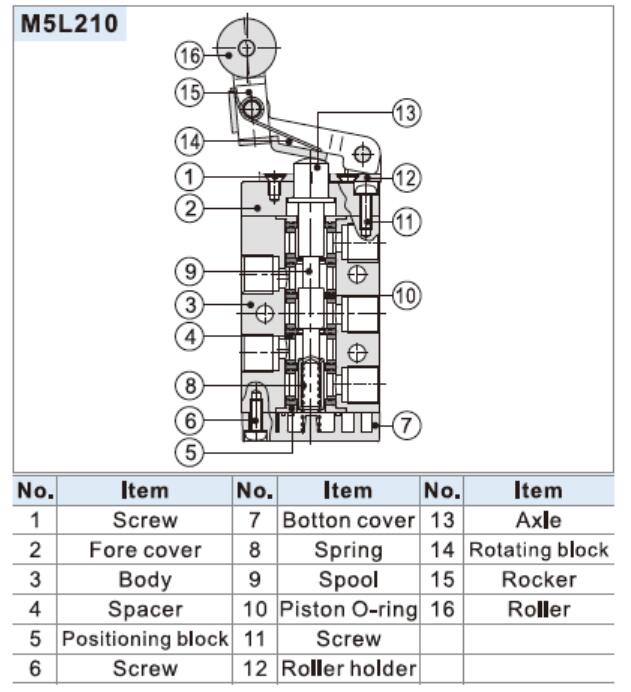

Unit:mm | ||||||||
Model | M5B | M5C | M5D | M5R | M5L | M5Y | M5PM | M5PP | M5PF | M5PL | M5HS | |
Fluid | Air (to be filtered by 40 μm filter element) | |||||||||||
Operating | External control direct acting type | |||||||||||
Port size [Note1] | 05:M5 06: 1/8" 08:1/4" | |||||||||||
Orifice size | Mini type | 05: 2.5mm² (Cv=0.14) | ||||||||||
110 | 06: 8.0mm² (Cv=0.45) | |||||||||||
210 | 06: 9.0mm² (Cv=0.50), 08: 12.0mm² (Cv=0.67) | |||||||||||
Valve type | 5/2 Way | |||||||||||
Lubrication [Note2] | Not required | |||||||||||
Pressure range | 0~1.0MPa(0~145psi) | |||||||||||
Proof pressure | 1.5MPa(215psi) | |||||||||||
Temperature °C | -20~70 | |||||||||||
Material of body | Aluminum alloy | |||||||||||
[Note1] PT thread, G thread and NPT thread are available. | ||||||||||||
[Note2] Once lubricated air is used, continue with same medium to optimise valve life span. | ||||||||||||
It is suggested to use ISO VG32 lubricant or the oil with the same grade. | ||||||||||||
Use this product according to the matching datasheet and machine requirements. Confirm port size, model code and operating conditions before replacement or installation.
