EV-10/30-3 151993
Festo
151993

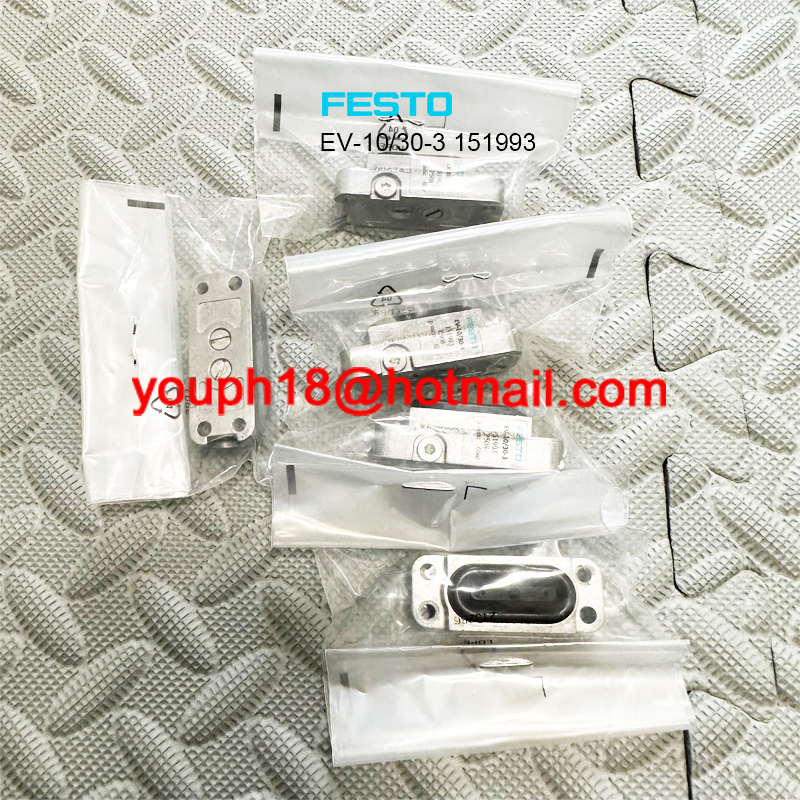

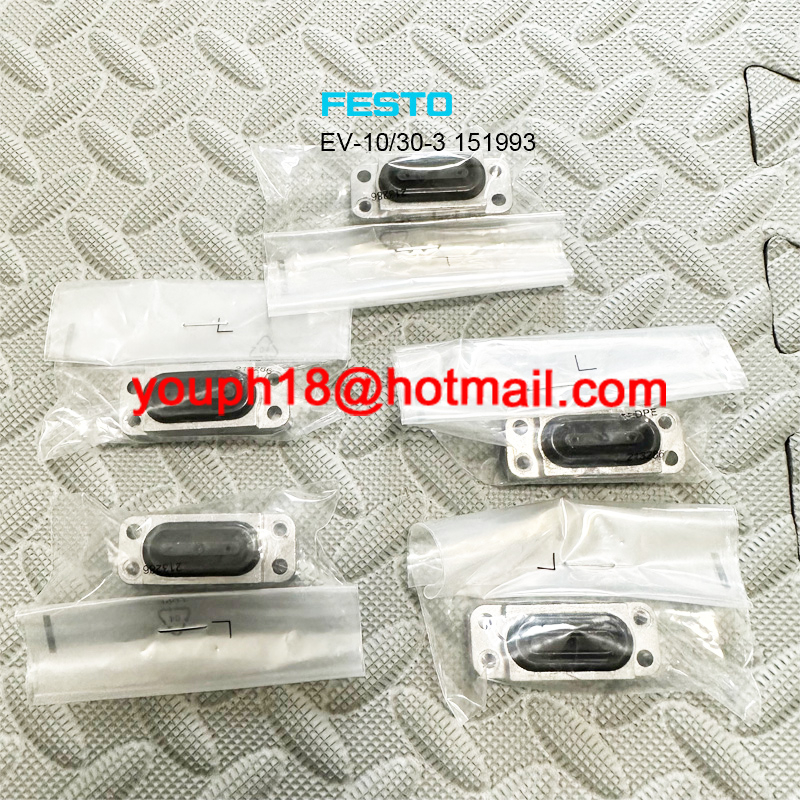

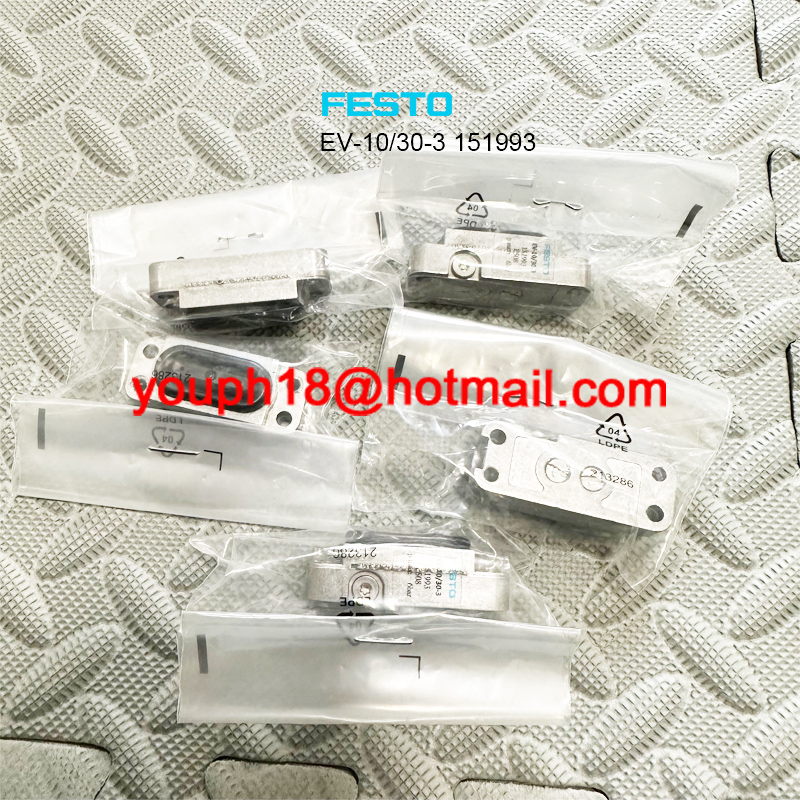

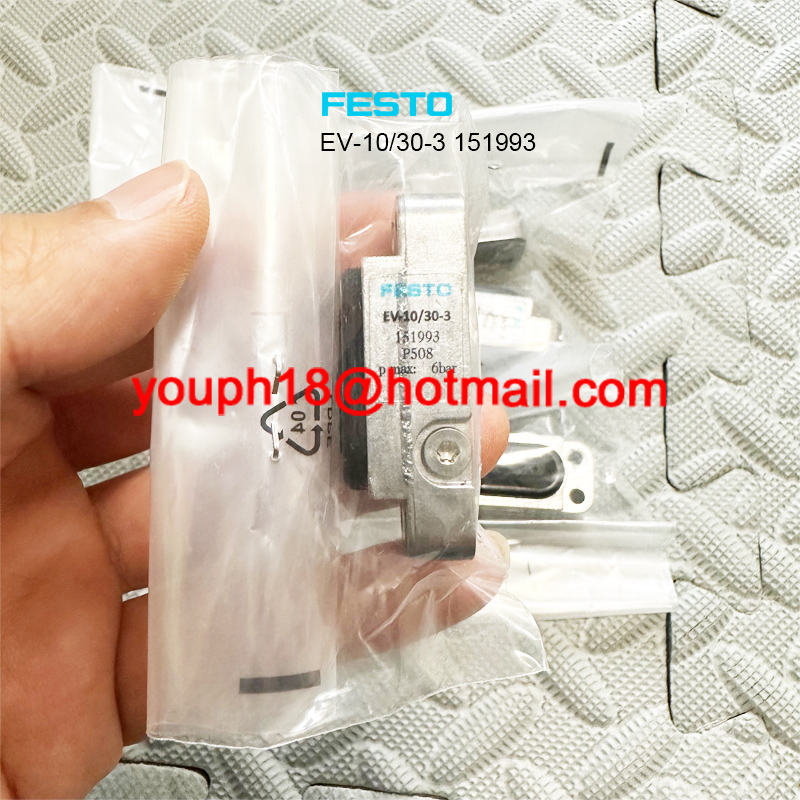

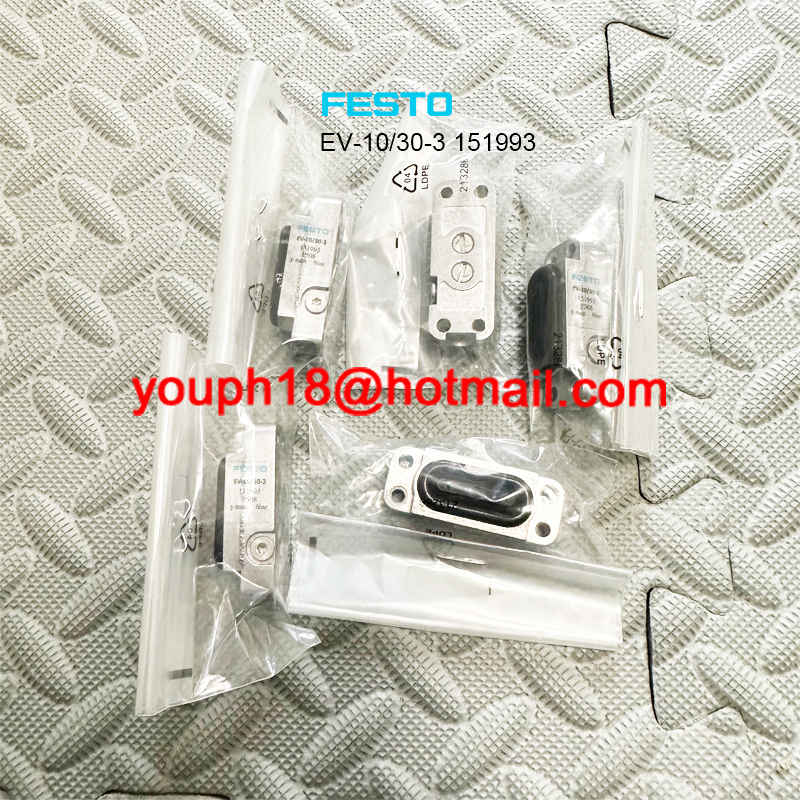

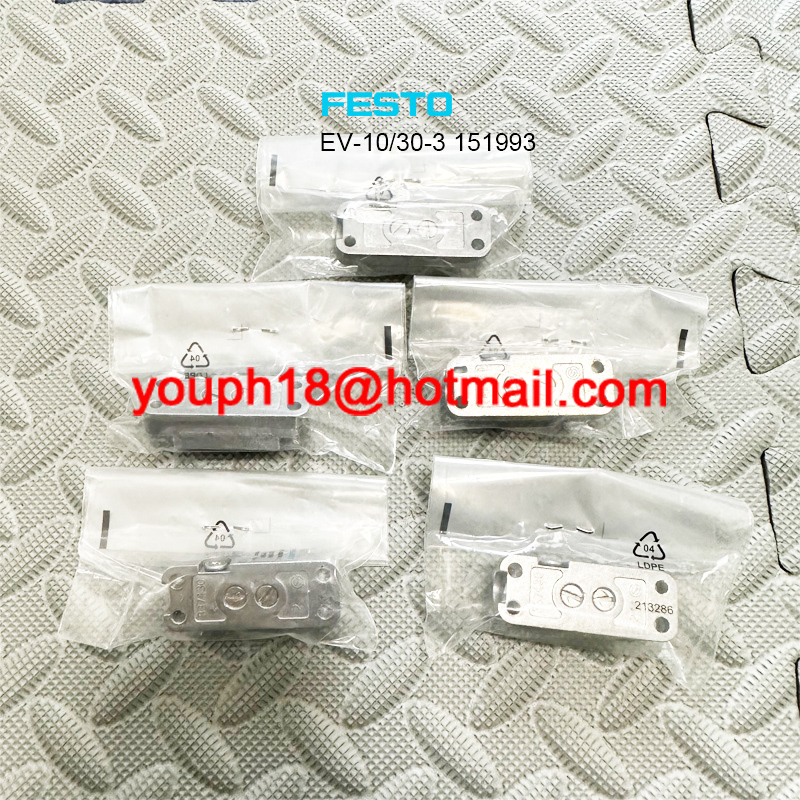

Festo EV-10/30-3 151993 is a compact single-acting EV series pneumatic clamping module for short-stroke holding and clamping tasks in industrial automation. The rectangular 10 x 30 mm clamping surface, 3 mm stroke and M3 pneumatic connection make it suitable for narrow installation spaces where a flat diaphragm actuator is preferred.
Original Festo EV series clamping module, part number 151993.
Single-acting diaphragm design for compact pneumatic clamping.
Rectangular 10 x 30 mm clamping area with 3 mm stroke.
Operating pressure up to 0.6 MPa / 6 bar / 87 psi.
M3 pneumatic connection, through-hole mounting and any mounting position.
Aluminium housing with polyurethane diaphragm.
Copper and PTFE free material information; RoHS-compliant.
Feature | Value |
|---|---|
Brand | Festo |
Model | EV-10/30-3 |
Part Number | 151993 |
Product Type | Single-acting pneumatic clamping module |
Clamping Area | 10 x 30 mm |
Stroke | 3 mm |
Pneumatic Connection | M3 |
Operating Pressure | 0.6 MPa / 6 bar / 87 psi |
Operating Medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
Ambient Temperature | -20 to +40 °C |
Product Weight | 20 g |
Housing Material | Aluminium / die-cast aluminium |
Diaphragm Material | Polyurethane / TPE-U(PU) |

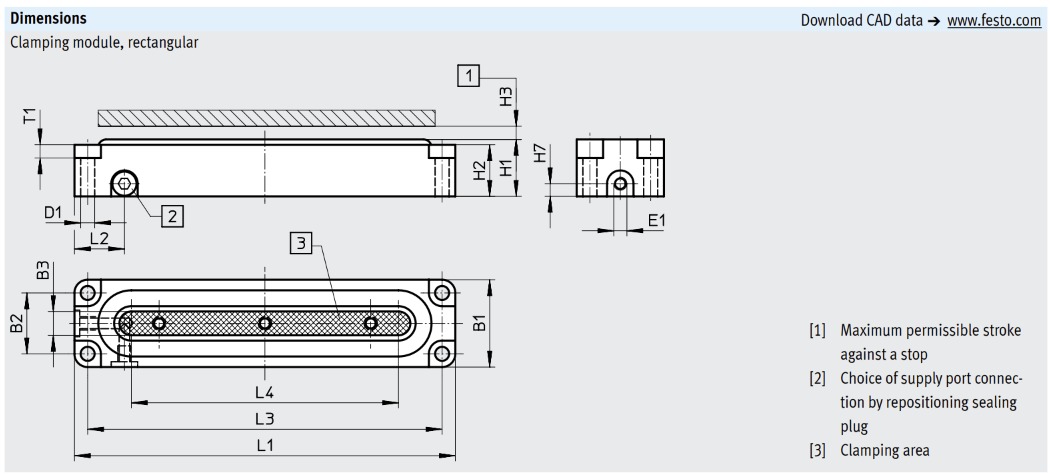

Clamping Area | B1 | B2 | B3 | D1 | E1 | H1 | H2 | H3 | H7 | L1 | L2 | L3 | L4 | T1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
10 x 30 | 17 | 9 | 3 | 3.3 | M3 | 14.5 +0.3 | 12.5 | 3 | 3 | 45 | 13.5 | 37 | 16 | 4.6 |
15 x 40 | 23 | 15.5 | 4.9 | 4.3 | M5 | 18 ±0.54 | 16 | 4 | 4.8 | 55 | 13 | 47 | 25 | 3 |
15 x 63 | 23 | 15.5 | 4.9 | 4.3 | M5 | 18 ±0.54 | 16 | 4 | 4.8 | 80 | 13 | 72 | 50 | 3 |
20 x 75 | 33 | 23 | 9.5 | 5.3 | M5 | 21.5 ±0.57 | 19.5 | 5 | 4.8 | 98 | 18.9 | 88 | 55 | 5.2 |
20 x 120 | 33 | 23 | 9.5 | 5.3 | M5 | 21.5 ±0.57 | 19.5 | 5 | 4.8 | 144 | 18.9 | 134 | 103 | 5.2 |
20 x 180 | 33 | 23 | 9.5 | 5.3 | M5 | 21.5 ±0.57 | 19.5 | 5 | 4.8 | 204 | 18.9 | 194 | 161 | 5.2 |
Type | Part No. | Clamping Area | Stroke | Pneumatic Connection | Force at 6 bar, 1 mm stroke | Force at 6 bar, max stroke | Weight |
|---|---|---|---|---|---|---|---|
EV-10/30-3 | 151993 | 10 x 30 mm | 3 mm | M3 | 95 N | 80 N | 20 g |
EV-15/40-4 | 13289 | 15 x 40 mm | 4 mm | M5 | 195 N | 165 N | 45 g |
EV-15/63-4 | 13290 | 15 x 63 mm | 4 mm | M5 | 350 N | 290 N | 65 g |
EV-20/75-5 | 13291 | 20 x 75 mm | 5 mm | M5 | 660 N | 600 N | 130 g |
EV-20/120-5 | 13292 | 20 x 120 mm | 5 mm | M5 | 1100 N | 1000 N | 190 g |
EV-20/180-5 | 13293 | 20 x 180 mm | 5 mm | M5 | 1690 N | 1480 N | 270 g |
The EV clamping module should be operated with a counter-stop. Its flat diaphragm design is useful for workpiece clamping, fixture positioning, machine automation and compact pneumatic holding applications where installation space is limited.
For another related Festo pneumatic product, see Festo DSNU-63-230-PPV-MQ-KP 193995 ISO cylinder.
