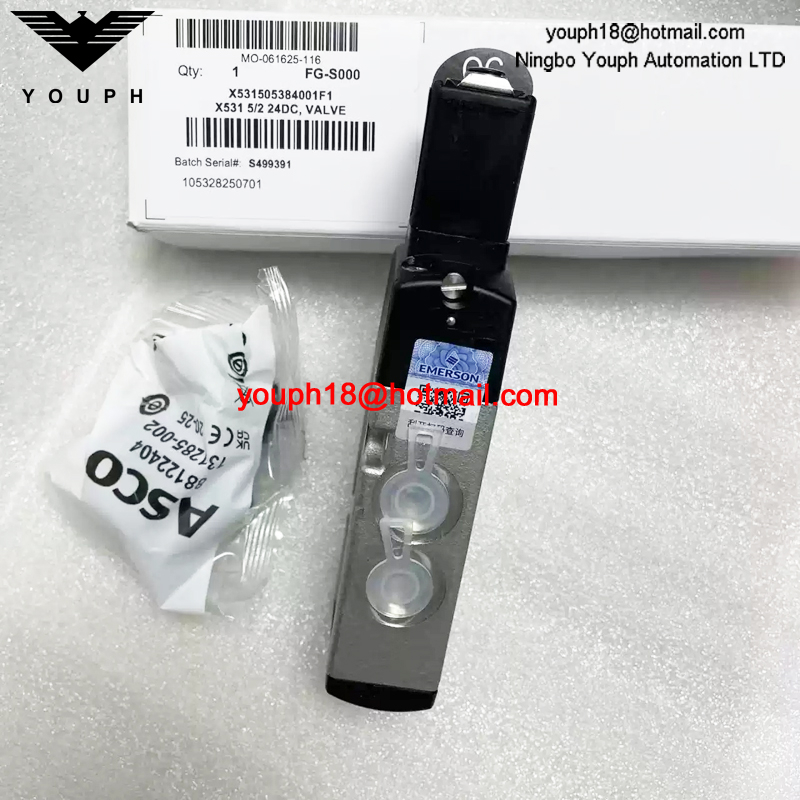

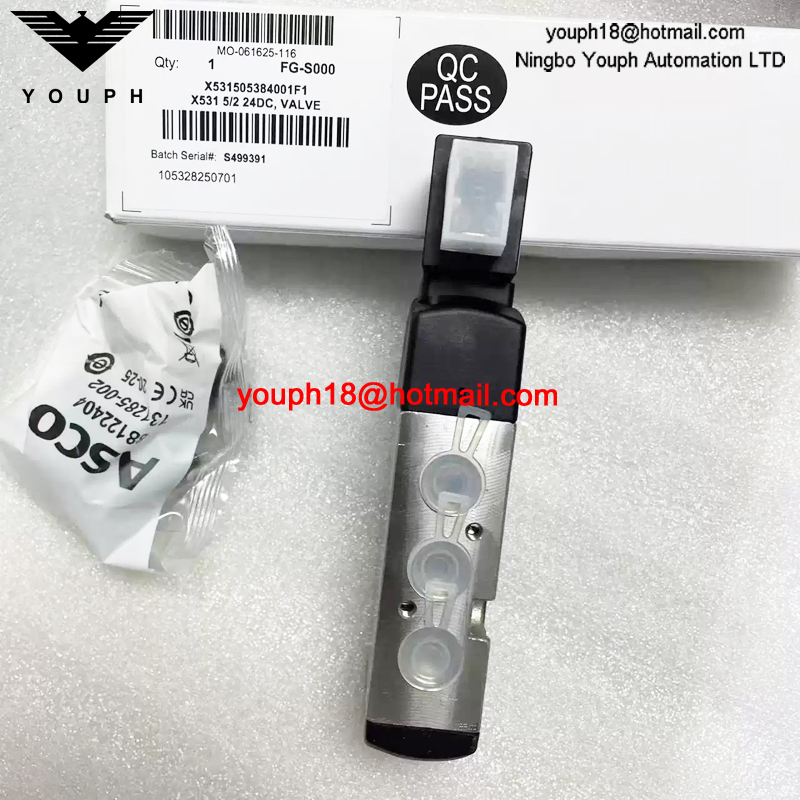

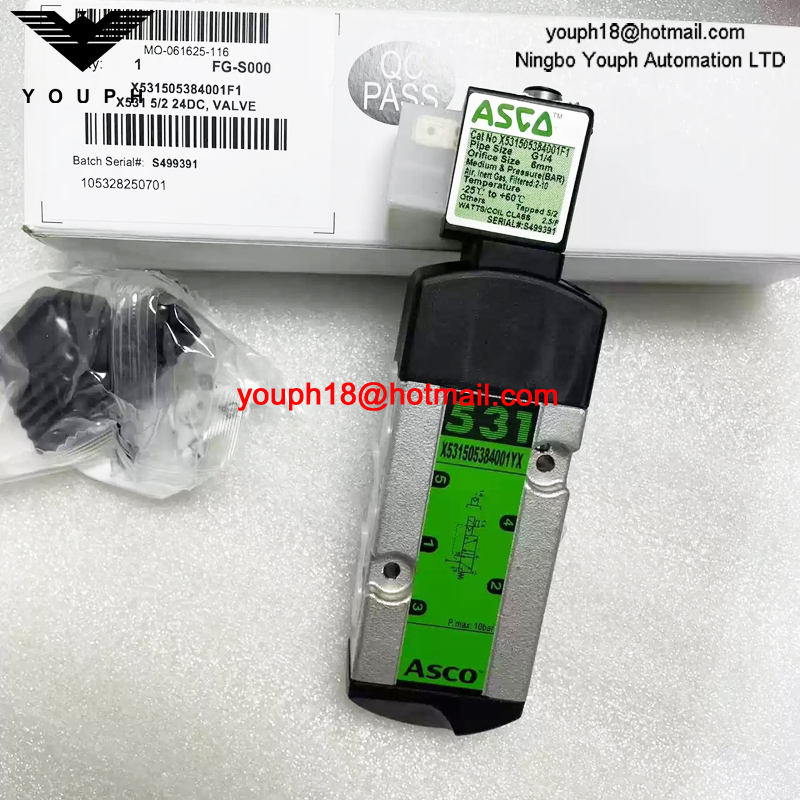

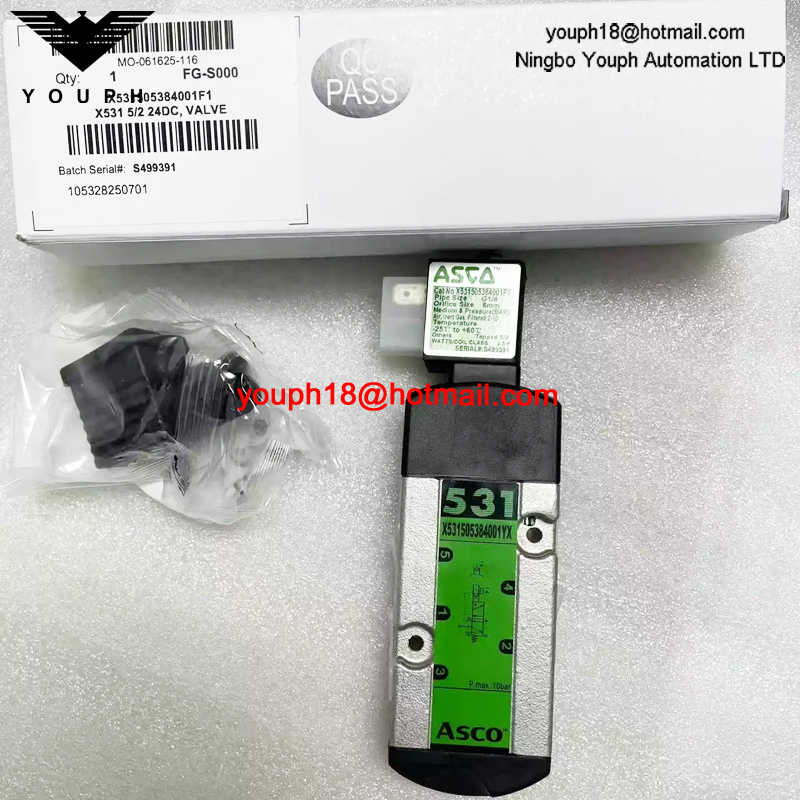

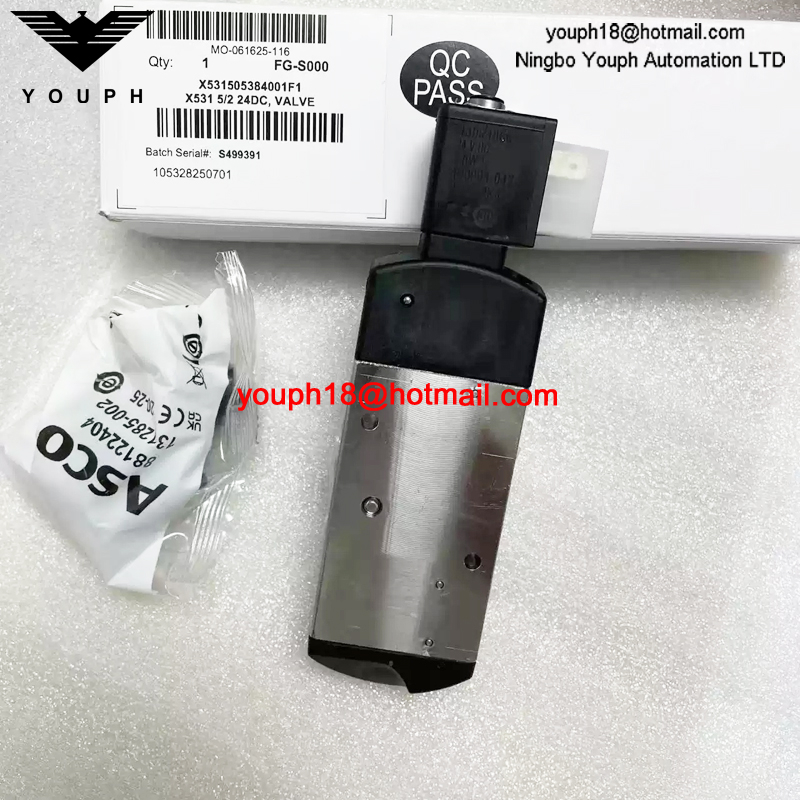

X531505384001F1 ASCO G1/4 24DC Electromagnetic Valve

X531505384001F1 ASCO G1/4 24DC Electromagnetic Valve

ASCO X531505384001F1 is an industrial Electromagnetic Valve for automation and equipment control applications.

Key Features

• X531505384001F1 ASCO G1/4 24DC Electromagnetic Valve supports industrial valve replacement work where the original model reference needs to be preserved.

• Useful for pneumatic control circuits that require confirmed connection size, actuation type and electrical compatibility.

• Prepared with product images and technical data to help compare the installed valve before maintenance or ordering.

Technical Data

Model Matching

Model matching should be based on the full code rather than only a few visible characters. Products in the same series may have similar appearance but different suffixes, port sizes, voltage options or mounting styles. Checking the old part label, equipment manual, purchase record and installation position together can improve matching accuracy and help avoid unnecessary return or rework.

Maintenance Check

Before replacing model X531505384001F1, maintenance staff should inspect the original component marking, connection ports, mounting position, electrical interface, sealing area and nearby pipes or cables. For equipment that has been running for a long time, it is also useful to check for wear, aging, leakage, loose fittings or poor contact. These checks can reduce repeated adjustment after installation.

Payment Options

We support several common payment methods for different purchasing situations. International orders can be paid in USD by T/T, PayPal or other agreed methods depending on order amount and shipment arrangement. For RMB payments in mainland China, Alipay QR and WeChat Pay QR can also be arranged. The final payment method can be confirmed before order processing so the purchasing record and delivery plan remain clear.

Application Notes

X531505384001F1 ASCO G1/4 24DC Electromagnetic Valve is intended for industrial equipment maintenance, automation repair and spare part replacement where the exact ASCO model reference is important. For pneumatic or electromagnetic valve use, check the connection size, pressure range, electrical rating and actuation method against the original equipment. Make sure the media, ambient temperature and installation orientation are suitable before the valve is fitted into the automation line. For this specific listing, pay special attention to 24DC, G1/4 when comparing it with the installed part. Before ordering or installing model X531505384001F1, compare the full nameplate information with the existing component, including 24DC, port or mounting details, electrical data, pressure range and operating environment. During installation, isolate the machine safely, remove pressure or power according to site procedure, and check that seals, fittings, cables and fasteners are clean and correctly seated. After replacement, test the equipment at low speed or low pressure first, then confirm normal operation, leakage condition, response timing and repeatability before returning the machine to continuous production.

Specification Overview
