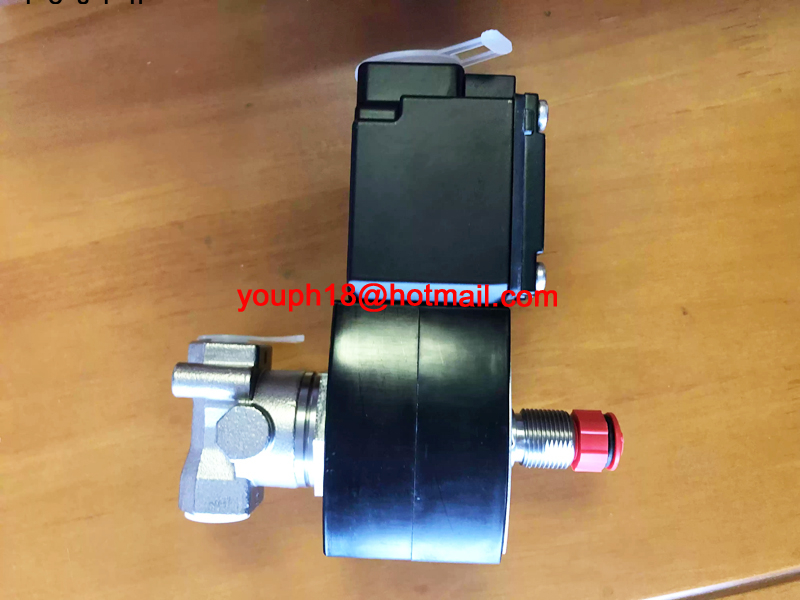

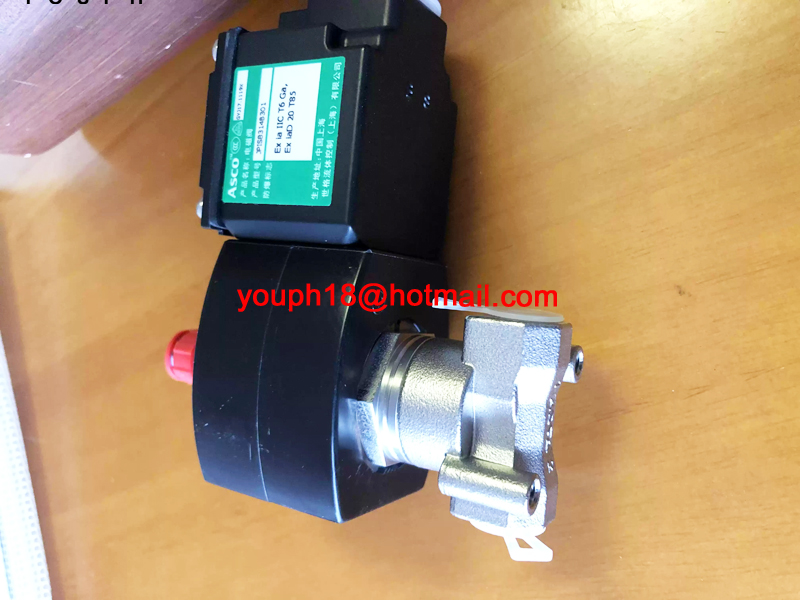

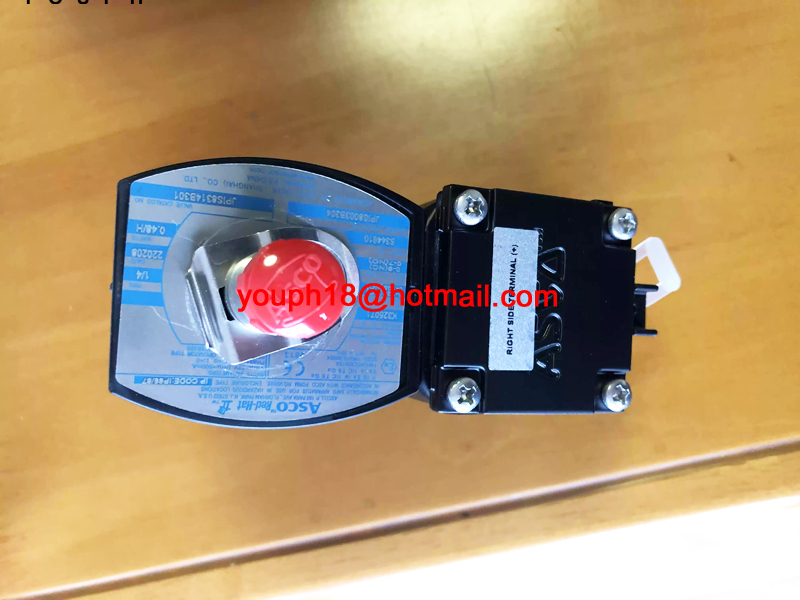

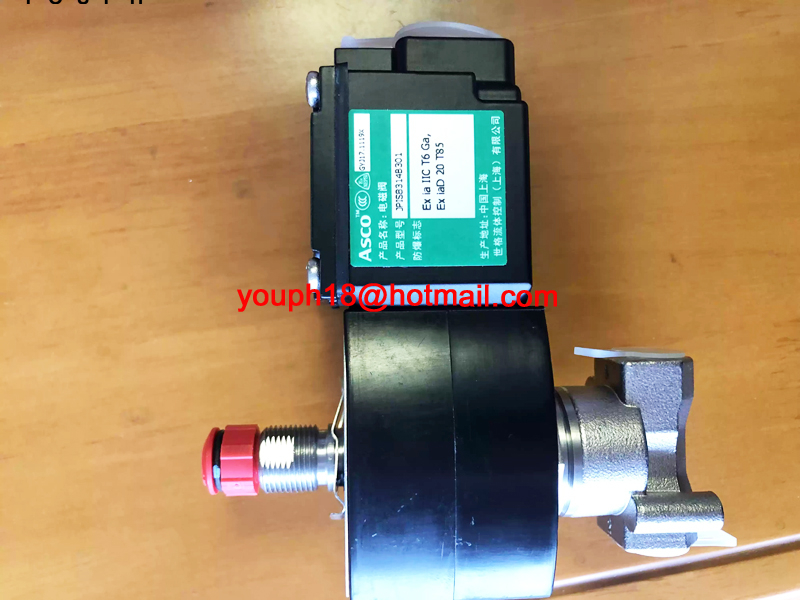

JPIS8314B301 24DC ASCO 1/4NPT Intrinsically Safe Solenoid Valve

JPIS8314B301 24DC ASCO 1/4NPT Intrinsically Safe Solenoid Valve

ASCO JPIS8314B301 is an industrial Intrinsically Safe Solenoid Valve for automation and equipment control applications. It is also commonly referenced with compatible model code 24DC.

Key Features

• ASCO JPIS8314B301 is prepared as a practical Intrinsically Safe Solenoid Valve replacement for pneumatic automation service.

• Designed for model-code matching, port verification and machine maintenance where reliable air control is required.

• Suitable for repair stock where coil data, pressure range and installation interface must be checked before fitting.

Technical Data

Installation Reminder

Before installation, the machine should be placed in a safe condition according to site procedure, including disconnecting power, air supply or pressure source when required. During fitting, pay attention to interface direction, fixed position, seal placement and connection tightness. After installation, start with low-speed, low-pressure or no-load testing before returning the equipment to normal operation.

After-Replacement Testing

After replacement, it is better not to return the machine directly to continuous production. Start testing in manual, low-speed or low-pressure mode and observe whether the action, response, signal, leakage condition and fastening position are normal. When operation becomes stable, the equipment can gradually return to normal working conditions, followed by a short recheck after initial running.

Our Service Advantages

We support global industrial automation spare parts supply and can arrange international shipment by FedEx, UPS, DHL or other suitable express services according to order requirements. For model confirmation, replacement suggestions, photo comparison and basic technical questions, we try to reply within 24 hours. If the customer is not sure whether the part is suitable, old nameplate photos or equipment pictures can be provided for preliminary checking.

Application Notes

JPIS8314B301 24DC ASCO 1/4NPT Intrinsically Safe Solenoid Valve is intended for industrial equipment maintenance, automation repair and spare part replacement where the exact ASCO model reference is important. For valve replacement, confirm the flow direction, port thread, coil voltage, sealing material and normal operating position before installation. The valve should be matched with the machine circuit, compressed air quality and duty cycle so that switching response and service life remain stable. For this specific listing, pay special attention to 24DC, 1/4NPT, Confirm by product photos and nameplate, Explosion-proof version, Intrinsically Safe version when comparing it with the installed part. Before ordering or installing model JPIS8314B301, compare the full nameplate information with the existing component, including intrinsically safe, explosion proof, 24DC, port or mounting details, electrical data, pressure range and operating environment. During installation, isolate the machine safely, remove pressure or power according to site procedure, and check that seals, fittings, cables and fasteners are clean and correctly seated. After replacement, test the equipment at low speed or low pressure first, then confirm normal operation, leakage condition, response timing and repeatability before returning the machine to continuous production. If cross reference numbers are involved, compare 24DC with the installed part before ordering.

Specification Overview
