Brand: BFEC.
Model: DMK-4CSA-20.
Product type: 20-Output DMK-4CSA Series Pulse Jet Controller.
Category: Pulse Jet Valves.
| Quantity: | |
|---|---|
DMK-4CSA-20
BFEC
BFEC DMK-4CSA-20 is an industrial 20-Output DMK-4CSA Series Pulse Jet Controller for pneumatic automation and equipment control applications. It is also commonly referenced with compatible model code DMK-4CSA.
Brand | BFEC |
|---|---|
Model | DMK-4CSA-20 |
Product Type | 20-Output DMK-4CSA Series Pulse Jet Controller |
Category | Pulse Jet Valves |
Compatible Models | DMK-4CSA |

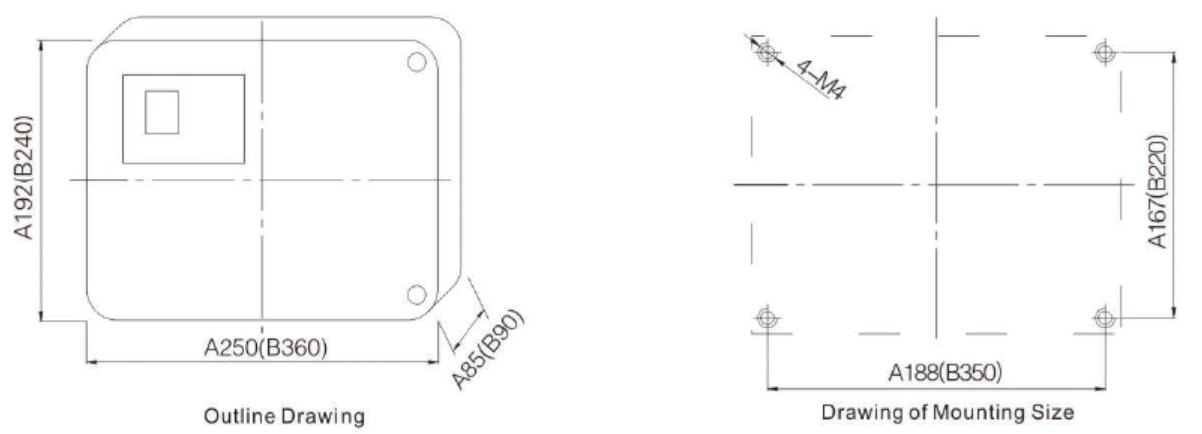

Type | Output digits | Number of controlling electromagnetic valves | Size (L × W × H) |
|---|---|---|---|
DMK-4CSA-6 | 6 | 1–6 | A |
DMK-4CSA-10 | 10 | 1–10 | A |
DMK-4CSA-14 | 14 | 9–14 | A |
DMK-4CSA-16 | 16 | 9–16 | A |
DMK-4CSA-20 | 20 | 9–20 | A |
DMK-4CSA-25 | 25 | 9–25 | A |
DMK-4CSA-28 | 28 | 9–28 | A |
DMK-4CSA-35 | 35 | 25–35 | B |
DMK-4CSA-40 | 40 | 25–40 | B |
DMK-4CSA-50 | 50 | 30–50 | B |
DMK-4CSA-60 | 60 | 40–60 | B |
DMK-4CSA-72 | 72 | 50–72 | B |
Input voltage | AC220V (1 ± 10%) 50Hz–60Hz (or another specification) |
|---|---|
Output voltage | DC24V (or another specification) |
Rated output current | 1A |
Power consumption | ≤8W (both the duration and interval of the pulse are within the relevant rated ranges) |
Pulse width | 0.01–0.99 sec |
Pulse interval | 1–99 sec |
Cycle interval | 0–99 min |
Control signal | Contact Switch |
Working environment | −25℃–+55℃; Relative humidity < 85%; No serious corrosive gases, conductive dust, violent vibration or impact. |
Model DMK-4CSA-20 with product information prepared from the supplied datasheet and images.
Suitable for Pulse Jet Valves applications where reliable replacement parts are required.

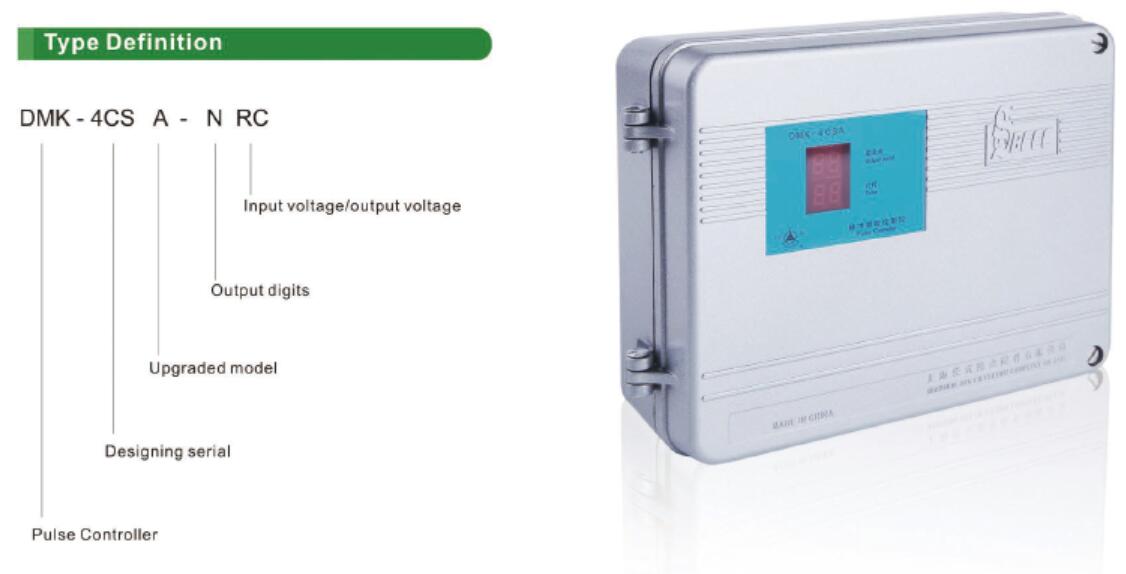

Product images are kept in the gallery; PDF diagrams and ordering references are kept in the detail page.
Original BFEC product for industrial automation maintenance and machine building.
In practical use, DMK-4CSA-20 is a suitable choice for automation workshops, equipment maintenance departments and machine retrofit projects that rely on stable air signal control.
This pulse jet valves item is often selected for assembly fixtures, pneumatic test benches and small control panels when the application involves mechanical valve actuation, signal switching and basic pneumatic control.
Use this product according to the matching datasheet and machine requirements. Confirm port size, model code and operating conditions before replacement or installation.

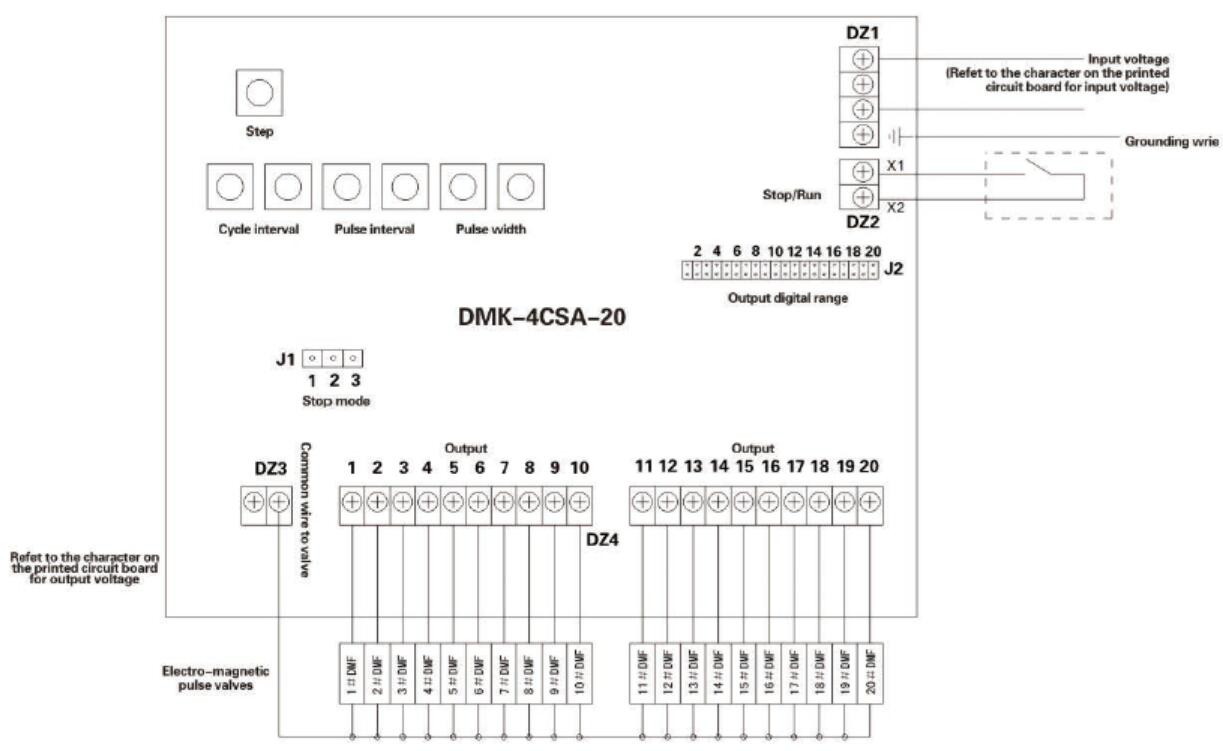

The pulse controller employs an MCU for its core control over key parameter setup, digital dispiay, cycle interval, pulse interval and pulse duration. It controls dust cleaning according to the "Stop/Run” signal. The output terminals control opening of the electromagnetic pulse valve, then compressed air starts to blow for dust cleaning and the blowing sequence is displayed by an LED. The pulse controller has complete functions and easy to operate. @ Online and time mode. @ Remote or differential pressure controlling mode. ®@ Aluminum alloy housing can be used under any tough condition.
