Brand: BFEC.
Model: DMK-4CSA-14.

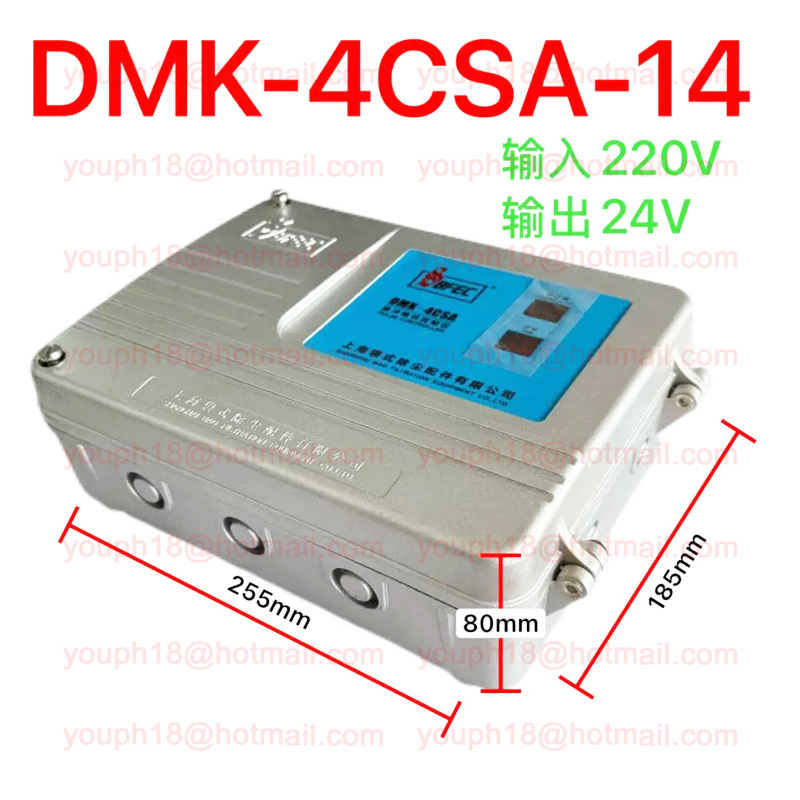

Product type: 14-Output DMK-4CSA Series Pulse Jet Controller.
Category: Pulse Jet Valves.
| Quantity: | |
|---|---|
DMK-4CSA-14
BFEC
BFEC DMK-4CSA-14 is an industrial DMK 4CSA for pneumatic automation and equipment control applications. It is also commonly referenced with compatible model code DMK-4CSA.
Brand | BFEC |
|---|---|
Model | DMK-4CSA-14 |
Product Type | DMK 4CSA |
Category | Pulse Jet Valves |
Compatible Models | DMK-4CSA |

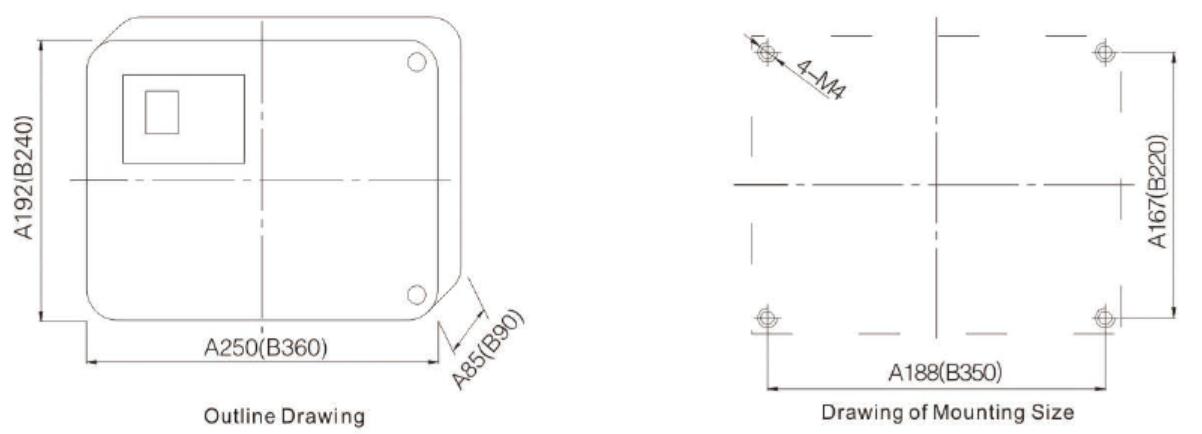

Type | Output digits | Number of controlling electromagnetic valves | Size (L × W × H) |
|---|---|---|---|
DMK-4CSA-6 | 6 | 1–6 | A |
DMK-4CSA-10 | 10 | 1–10 | A |
DMK-4CSA-14 | 14 | 9–14 | A |
DMK-4CSA-16 | 16 | 9–16 | A |
DMK-4CSA-20 | 20 | 9–20 | A |
DMK-4CSA-25 | 25 | 9–25 | A |
DMK-4CSA-28 | 28 | 9–28 | A |
DMK-4CSA-35 | 35 | 25–35 | B |
DMK-4CSA-40 | 40 | 25–40 | B |
DMK-4CSA-50 | 50 | 30–50 | B |
DMK-4CSA-60 | 60 | 40–60 | B |
DMK-4CSA-72 | 72 | 50–72 | B |
Product images are kept in the gallery; PDF diagrams and ordering references are kept in the detail page.
Original BFEC product for industrial automation maintenance and machine building.
Model DMK-4CSA-14 with product information prepared from the supplied datasheet and images.
Suitable for Pulse Jet Valves applications where reliable replacement parts are required.
DMK-4CSA-14 can be applied in automation workshops, equipment maintenance departments and machine retrofit projects as a compact dmk 4csa.
Use this product according to the matching datasheet and machine requirements. Confirm port size, model code and operating conditions before replacement or installation.

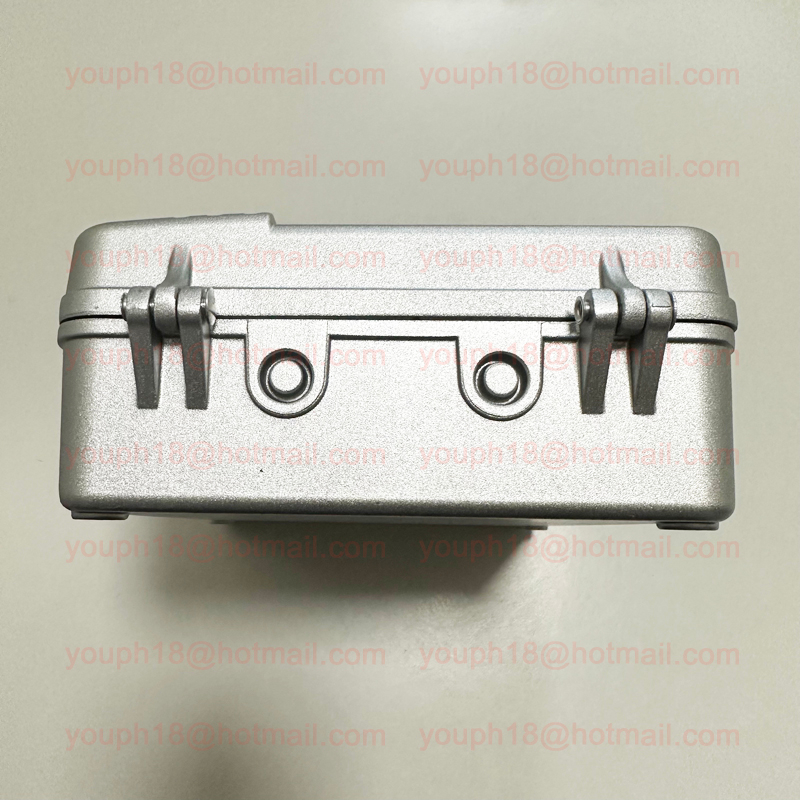

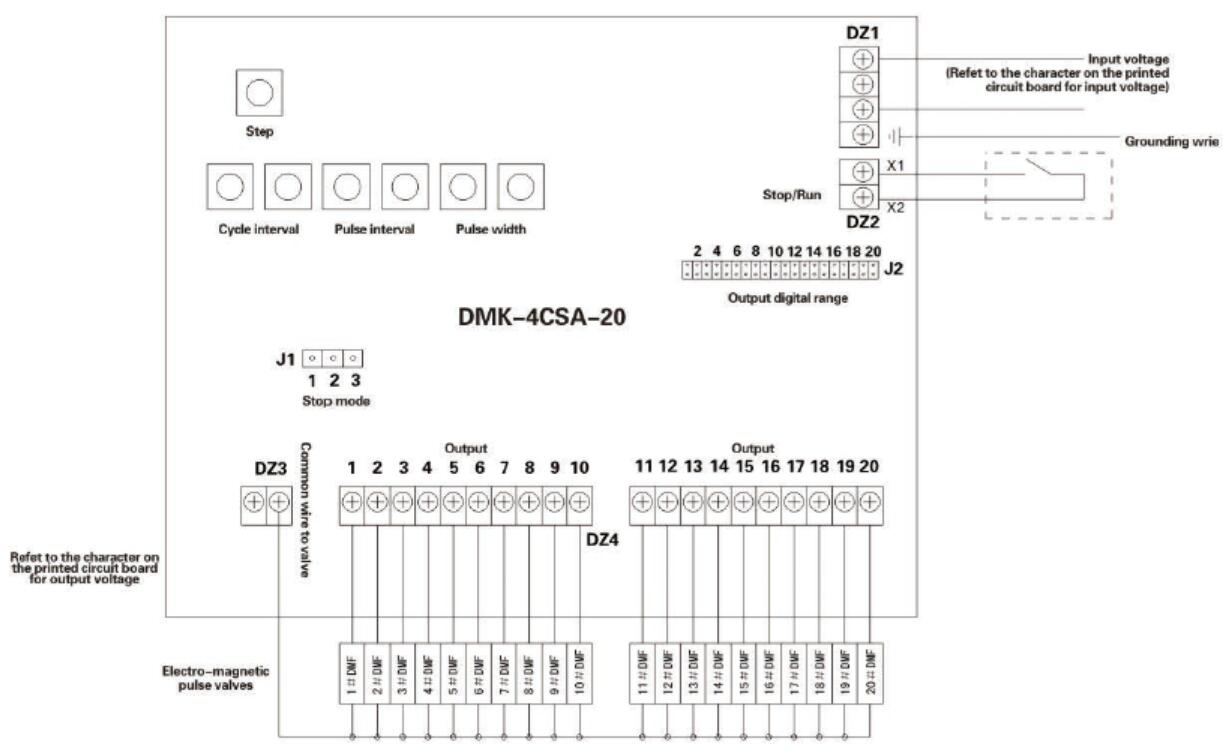

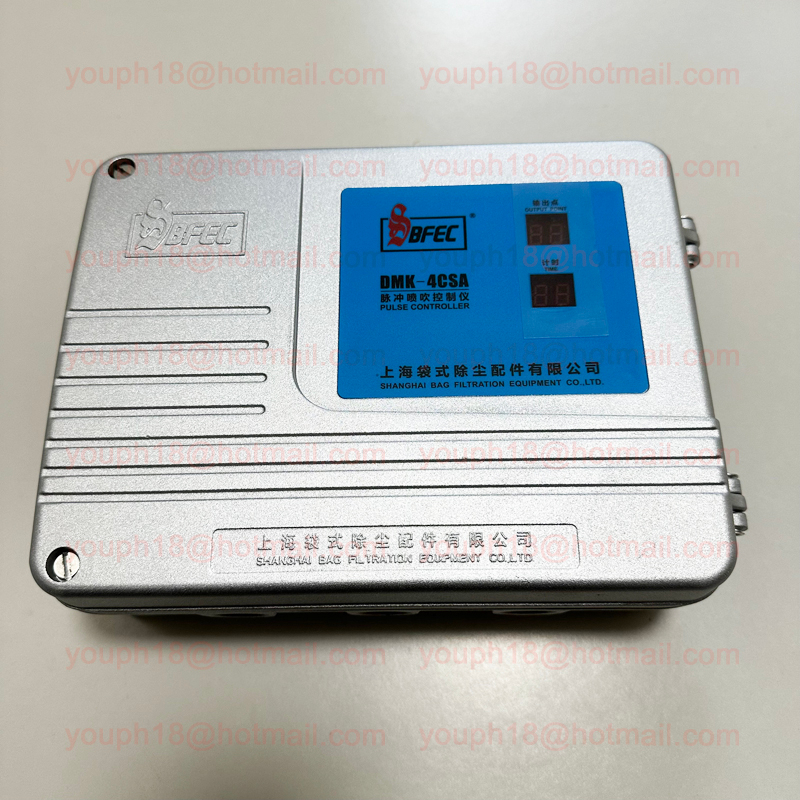

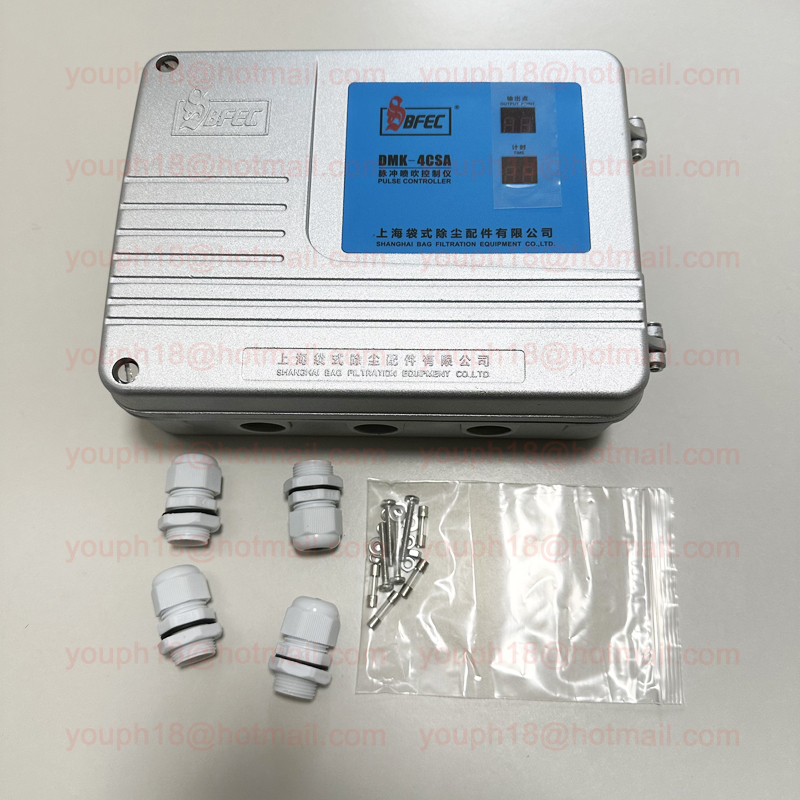

The pulse controller employs an MCU for its core control over key parameter setup, digital dispiay, cycle interval, pulse interval and pulse duration. It controls dust cleaning according to the "Stop/Run” signal. The output terminals control opening of the electromagnetic pulse valve, then compressed air starts to blow for dust cleaning and the blowing sequence is displayed by an LED. The pulse controller has complete functions and easy to operate. @ Online and time mode. @ Remote or differential pressure controlling mode. ®@ Aluminum alloy housing can be used under any tough condition.
