BFEC DMK-4CSA-10 10-Output DMK-4CSA Series Pulse Jet Controller

Brand: BFEC.

Model: DMK-4CSA-10.

Voltage: input-220VAC, output-24VDC

10-output pulse jet controller for baghouse dust collector solenoid-valve timing and sequential control.

Availability:

Quantity:



Inquire Add to Basket

Model:
DMK-4CSA-10
Brand:
BFEC

Product Description

BFEC DMK-4CSA-10 10-Output Pulse Jet Controller

BFEC DMK-4CSA-10 is a 10-output pulse jet controller for timed and sequential operation of dust-collector electromagnetic valves. It is also commonly referenced with the DMK-4CSA series designation.

Technical Data

Brand	BFEC
Model	DMK-4CSA-10
Product Type	10-Output Pulse Jet Controller
Category	Pulse Jet Valves
Compatible Models	DMK-4CSA

Key Features

Product images are kept in the gallery; PDF diagrams and ordering references are kept in the detail page.
Original BFEC product for industrial automation maintenance and machine building.
Model DMK-4CSA-10 with product information prepared from the supplied datasheet and images.
Designed for dust-collector pulse timing and sequential solenoid-valve control.

Technical Specifications

Item	Value
Input voltage	AC220V (1 ± 10%) 50Hz–60Hz (or another specification)
Output voltage	DC24V (or another specification)
Rated output current	1A
Power consumption	≤8W (both the duration and interval of the pulse are within the relevant rated ranges)
Pulse width	0.01–0.99 sec
Pulse interval	1–99 sec
Cycle interval	0–99 min
Control signal	Contact Switch
Working environment	−25℃ to +55℃; relative humidity < 85%; no serious corrosive gases, conductive dust, violent vibration or impact.

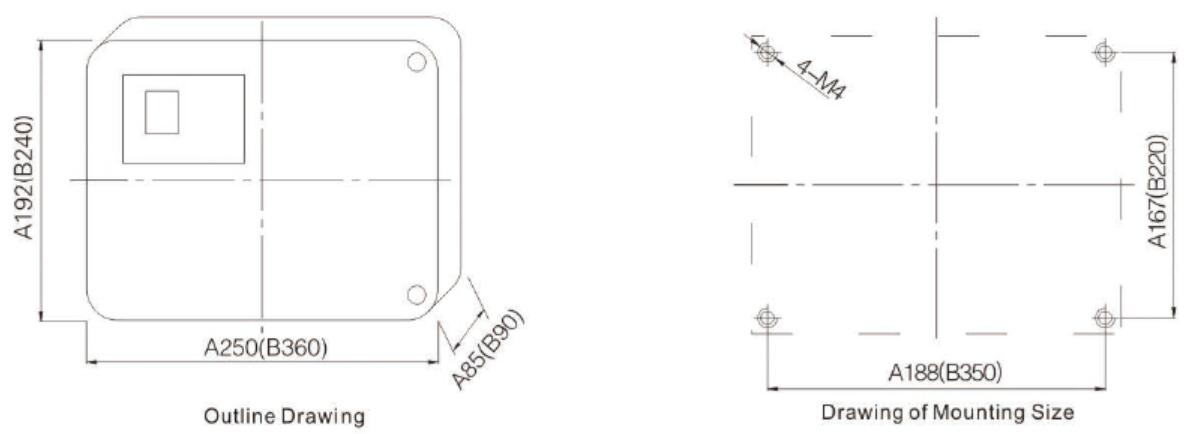

Type Specifications

Type	Output digits	Number of controlling electromagnetic valves	Size (L × W × H)
DMK-4CSA-6	6	1–6	A: 250 × 120 × 85 mm
DMK-4CSA-10	10	1–10	A: 250 × 120 × 85 mm
DMK-4CSA-14	14	9–14	A: 250 × 120 × 85 mm
DMK-4CSA-16	16	9–16	A: 250 × 120 × 85 mm
DMK-4CSA-20	20	9–20	A: 250 × 120 × 85 mm
DMK-4CSA-25	25	9–25	A: 250 × 120 × 85 mm
DMK-4CSA-28	28	9–28	A: 250 × 120 × 85 mm
DMK-4CSA-35	35	25–35	B: 360 × 240 × 90 mm
DMK-4CSA-40	40	25–40	B: 360 × 240 × 90 mm
DMK-4CSA-50	50	30–50	B: 360 × 240 × 90 mm
DMK-4CSA-60	60	40–60	B: 360 × 240 × 90 mm
DMK-4CSA-72	72	50–72	B: 360 × 240 × 90 mm

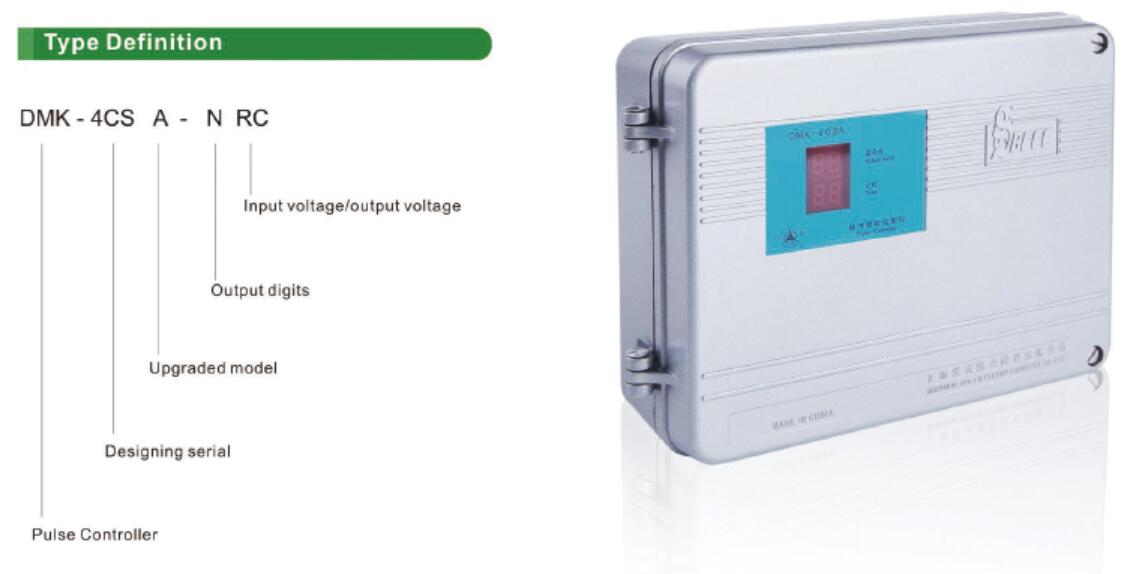

Ordering Code

Typical Applications

DMK-4CSA-10 is suited to baghouse dust collector systems that require timed and sequential pulse control for up to 10 electromagnetic valves.

Application Notes

Use this product according to the matching datasheet and machine requirements. Confirm port size, model code and operating conditions before replacement or installation.

Pulse Controller IV

The pulse controller employs an MCU for its core control over key parameter setup, digital dispiay, cycle interval, pulse interval and pulse duration. It controls dust cleaning according to the "Stop/Run” signal. The output terminals control opening of the electromagnetic pulse valve, then compressed air starts to blow for dust cleaning and the blowing sequence is displayed by an LED. The pulse controller has complete functions and easy to operate. @ Online and time mode. @ Remote or differential pressure controlling mode. ®@ Aluminum alloy housing can be used under any tough condition.

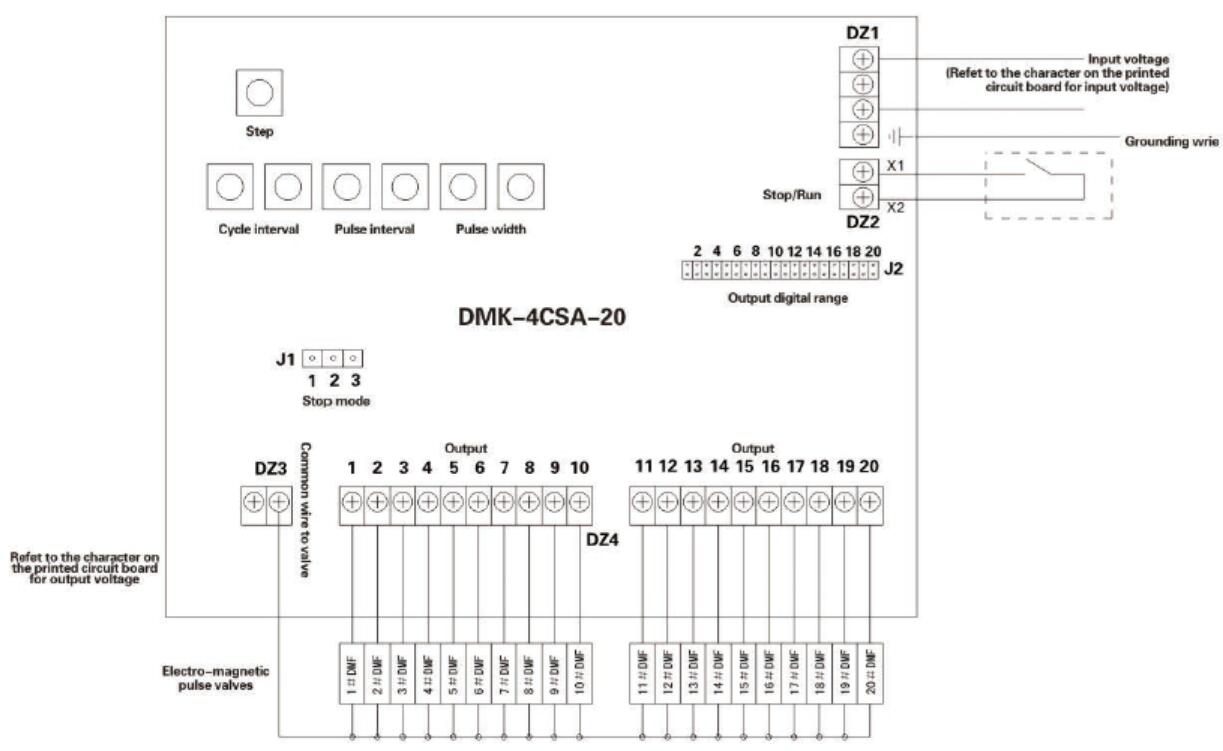

Wiring Diagram
