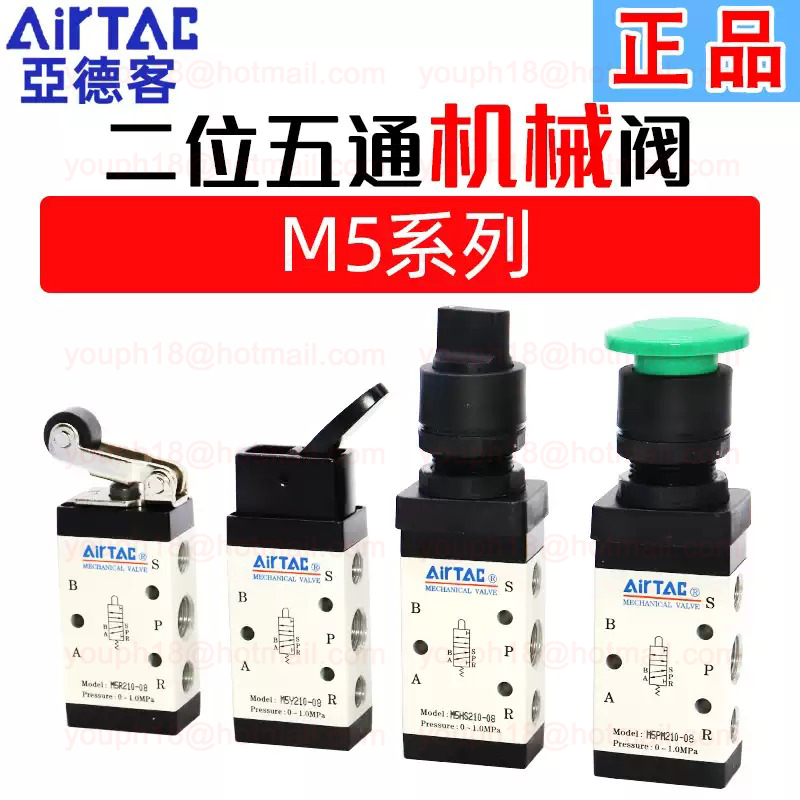

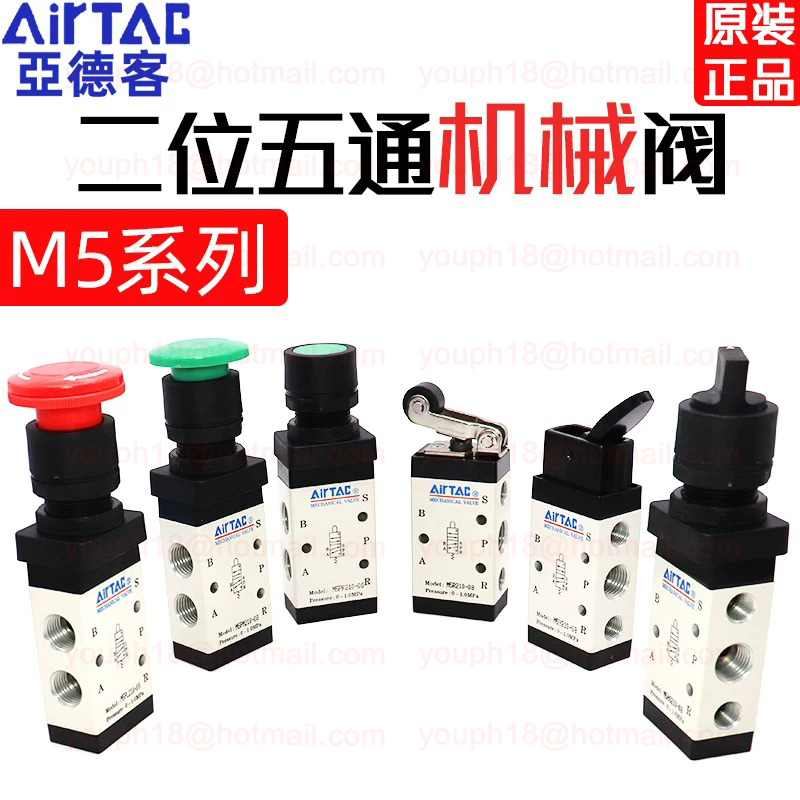

Brand: Airtac.
Model: M5PM210-08.
Product type: M5 Series Control Valve.
Category: Pneumatic Valves.
| Quantity: | |
|---|---|
M5PM210-08
Airtac
Airtac M5PM210-08 is an industrial M5 Series Control Valve for pneumatic automation and equipment control applications. It is also commonly referenced with compatible model code M5PM110-06, M5PM210-06.
Common type | Common type | Mini type | ||||||
Type | Spool | Button | Type | Spool | Roller(handle) | Type | Spool | Roller |
M5B | 2.0~3.3 | - | M5R | 2.0~3.0 | 4.6~6.8 | M5B05 | 2.0~3.3 | - |
M5PF | 2.0~3.3 | 3.8~5.1 | M5L | 2.0~3.0 | 5.0~7.8 | M5R05 | 2.0~3.0 | 6.0~8.5 |
M5PP | 2.0~3.3 | 3.8~5.1 | M5C | 2.0~3.0 | 11.0~16.0 | M5L05 | 2.0~3.0 | 7.0~10.0 |
M5PM | 2.0~3.3 | 3.8~5.1 | M5D | 2.0~3.0 | 5.5~8.0 |
|
|
|
M5PL | 2.0~3.3 | 5.9~7.2 |
|
|
|
|
|
|
M5HS | 2.0~3.3 | 5.1~6.4 |
|
|
|
|
|
|

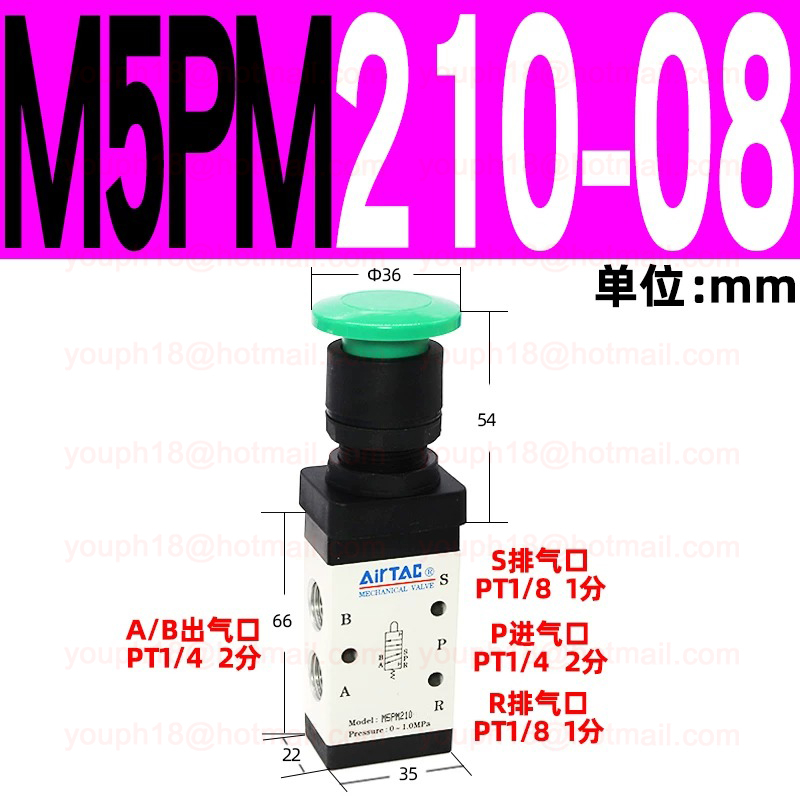

Unit:mm | ||||||||
Model | M5B | M5C | M5D | M5R | M5L | M5Y | M5PM | M5PP | M5PF | M5PL | M5HS | |
Fluid | Air (to be filtered by 40 μm filter element) | |||||||||||
Operating | External control direct acting type | |||||||||||
Port size [Note1] | 05:M5 06: 1/8" 08:1/4" | |||||||||||
Orifice size | Mini type | 05: 2.5mm² (Cv=0.14) | ||||||||||
110 | 06: 8.0mm² (Cv=0.45) | |||||||||||
210 | 06: 9.0mm² (Cv=0.50), 08: 12.0mm² (Cv=0.67) | |||||||||||
Valve type | 5/2 Way | |||||||||||
Lubrication [Note2] | Not required | |||||||||||
Pressure range | 0~1.0MPa(0~145psi) | |||||||||||
Proof pressure | 1.5MPa(215psi) | |||||||||||
Temperature °C | -20~70 | |||||||||||
Material of body | Aluminum alloy | |||||||||||
[Note1] PT thread, G thread and NPT thread are available. | ||||||||||||
[Note2] Once lubricated air is used, continue with same medium to optimise valve life span. | ||||||||||||
It is suggested to use ISO VG32 lubricant or the oil with the same grade. | ||||||||||||
1) Body and panel installation ( picture at right )
2) The control set is made of engineering plastic which only allows manual operation and switching valves through metal impact is forbidden.
3) The series of M5B, M5C, M5D, M5PM, M5PF and M5PP get the function of automatic restoration, The hand valves of MSY, M5HS and MS5PL are in the type of manual restoration, M5PL will be restored by turning the revolve button after being pressed
4) Pay attention to the reversing stroke. The reversing stroke can not surpass its stroke stipulated in stroke control table when the direction-change of the valve is forced by any external forces, otherwise it will cause the damage of the valve,
5)The MSL can only switch the valve in single direction (impact from right to left). The impact from the other direction is invalid (from left to right).

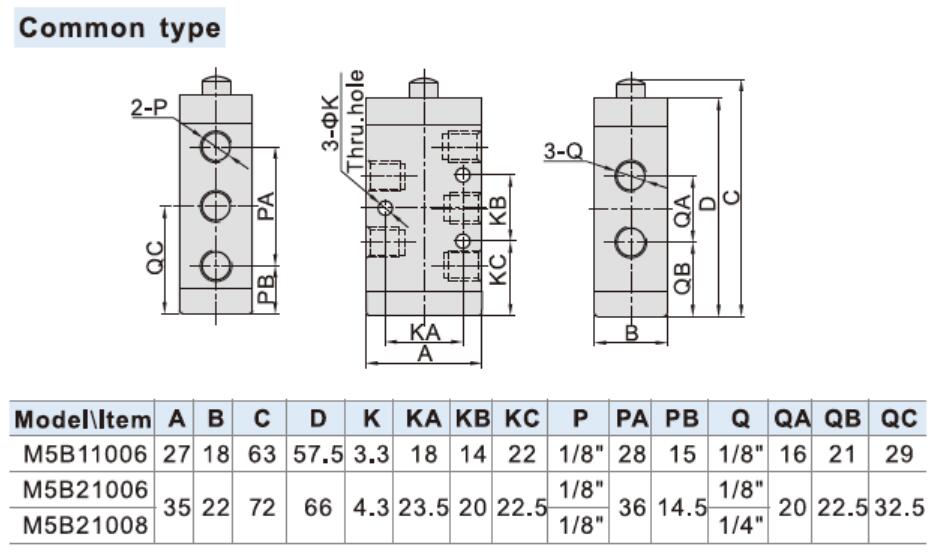

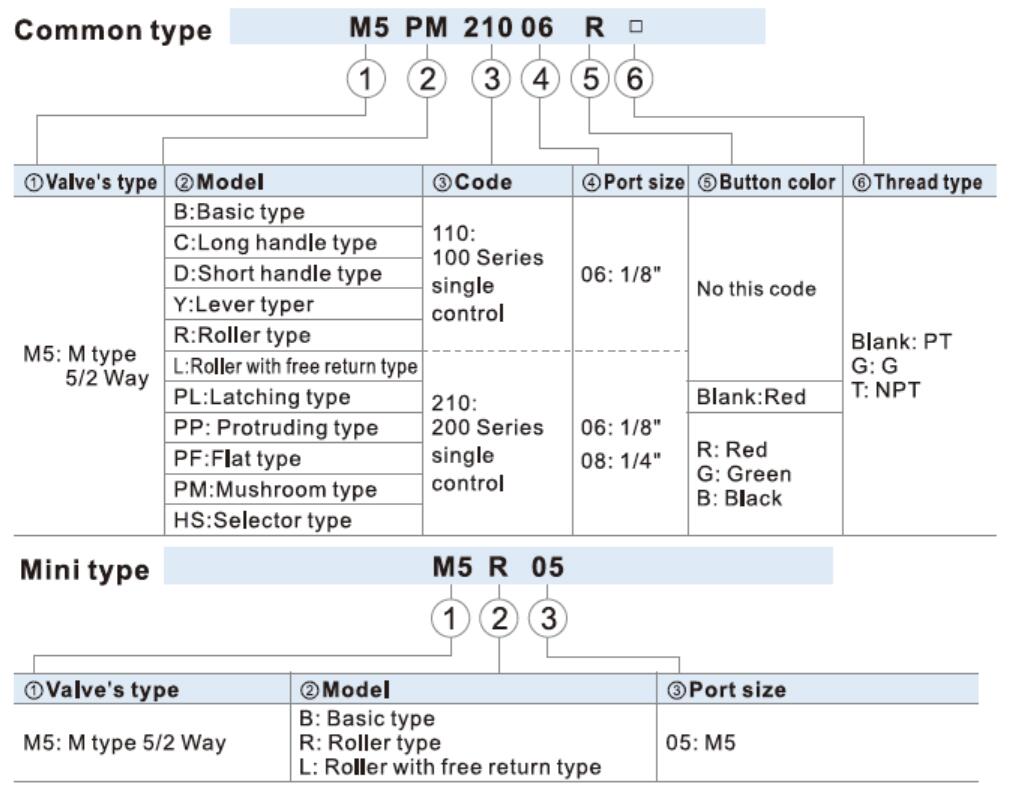

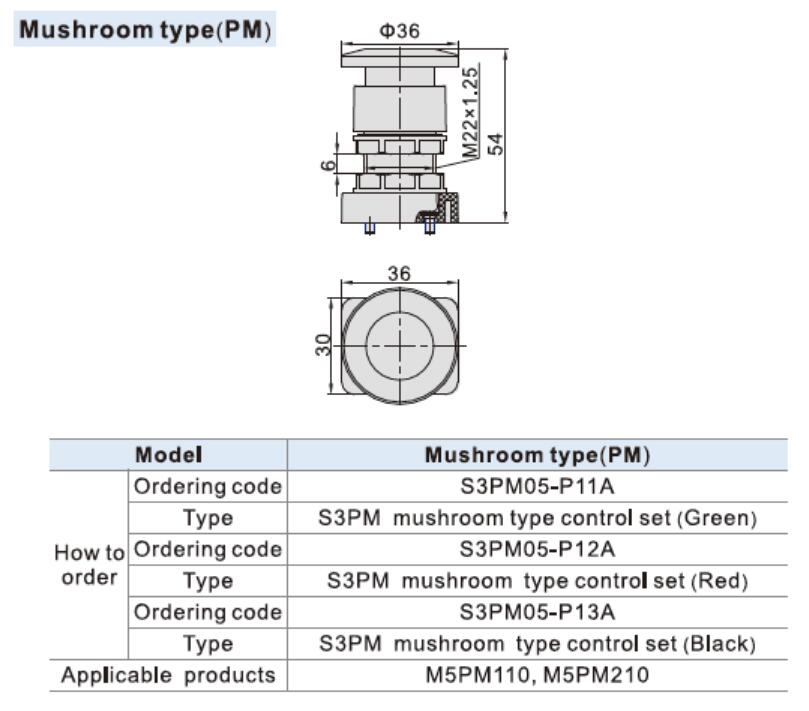

6) Control joint combination can be ordered individually. Please refer to the following tables for order details.

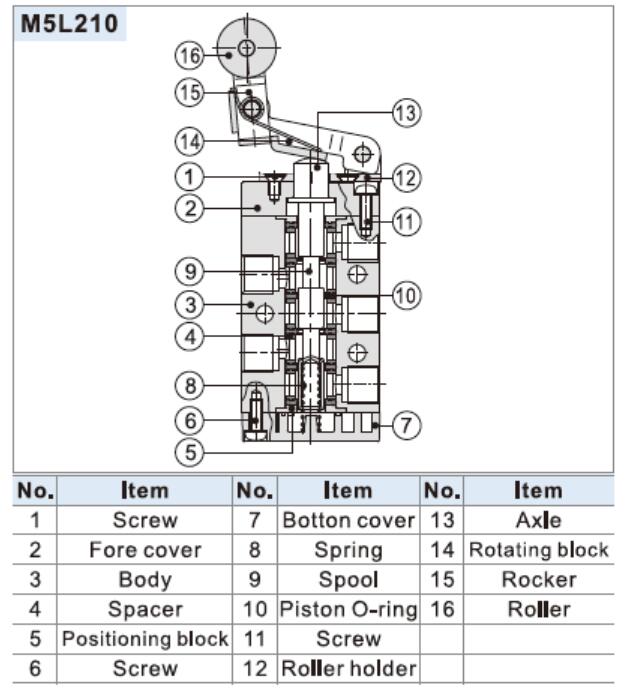

1. Exhaust outlet locates over the body, which is convenient to install muffler to decrease noise and pollution.
2. The external force required by direction-change of series of M5B, M5R and MBL is provided by external mechanism, which can be used for position test or [stroke switch]
3. M5C, M5D, MSY, M5PF, M5PM, M5PP, MSPL and M5HS are operated manually, owning control joints with several structure forms and suitable for application under different
4, It is in sliding column structure that the control force is not influenced by working pressure (that is, there is no back pressure effect); internal circle is sealed with good tightness and the direction=-change is sensitive.
5, Lubricant is not necessary.
6. Multi-mounting makes it convenient to install and apply.
7. The control joints of series of MSC, M5D, M5Y, M5R and MSL are made of metal which has longer service life and more reliable and steady performance,
Model M5PM210-08 with product information prepared from the supplied datasheet and images.
Suitable for Pneumatic Valves applications where reliable replacement parts are required.
Product images are kept in the gallery; PDF diagrams and ordering references are kept in the detail page.
Original Airtac product for industrial automation maintenance and machine building.
Brand | Airtac |
|---|---|
Model | M5PM210-08 |
Product Type | M5 Series Control Valve |
Category | Pneumatic Valves |
Compatible Models | M5PM110-06, M5PM210-06 |
In practical use, M5PM210-08 is a suitable choice for automation workshops, equipment maintenance departments and machine retrofit projects that rely on stable air signal control.
Use this product according to the matching datasheet and machine requirements. Confirm port size, model code and operating conditions before replacement or installation.
