Brand: Airtac.
Model: 4V130P-06.
Product type: 4V100 Series Solenoid Valve.
Category: Pneumatic Valves.
| Quantity: | |
|---|---|
4V130P-06
Airtac

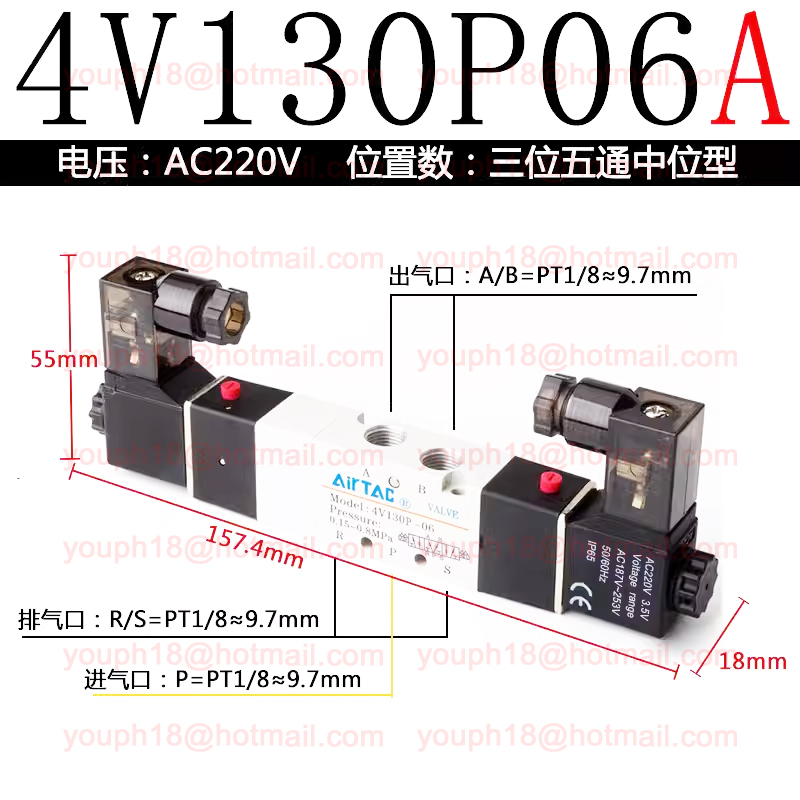

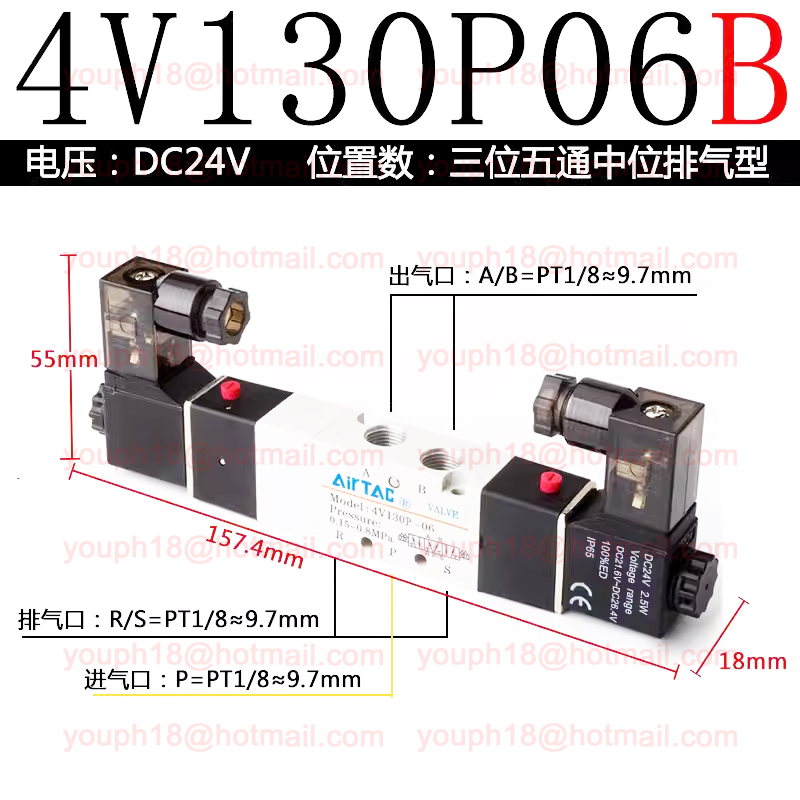

Airtac 4V130P-06 is an industrial 4V100 Series Solenoid Valve for pneumatic automation and equipment control applications. It is also commonly referenced with compatible model code 4V130E-06, 4V130C-06.
Pilot-oriented mode: Internal pilot or external pilot. Structure in sliding column mode: good tightness and sensitive reaction. Three position solenoid valves have three kinds of central function for your choice. Double control solenoid valves have memory function. Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life. No need to add oil for lubrication. It is available to form integrated valve group with the base to save installation space. Affiliated manual devices are equipped to facilitate installation and debugging. Several standard voltage grades are optional.
Brand | Airtac |
|---|---|
Model | 4V130P-06 |
Product Type | 4V100 Series Solenoid Valve |
Category | Pneumatic Valves |
Compatible Models | 4V130E-06, 4V130C-06 |
Model 4V130P-06 with product information prepared from the supplied datasheet and images.
Suitable for Pneumatic Valves applications where reliable replacement parts are required.

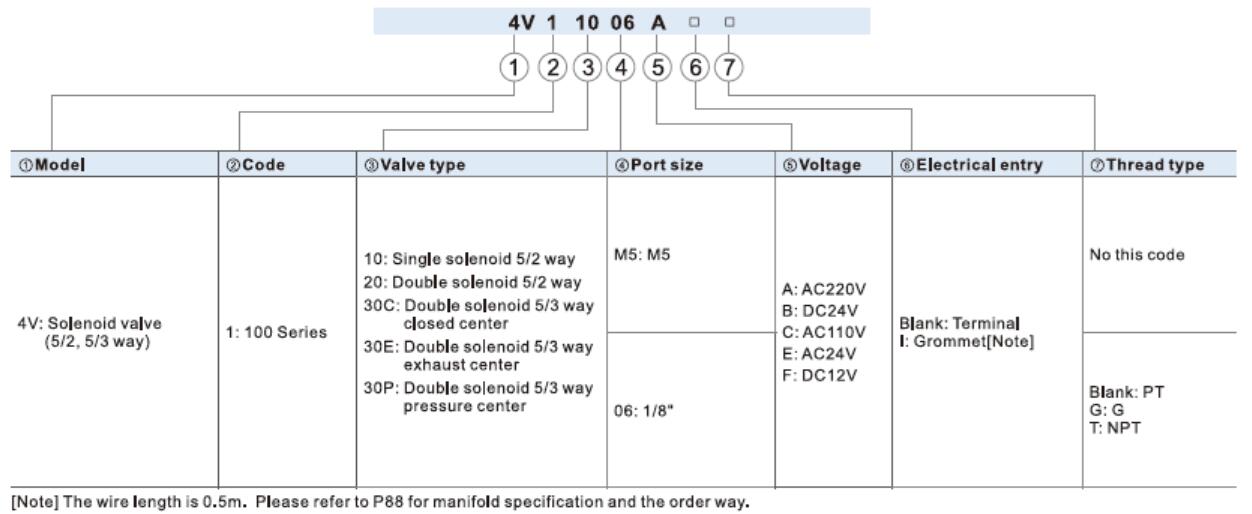

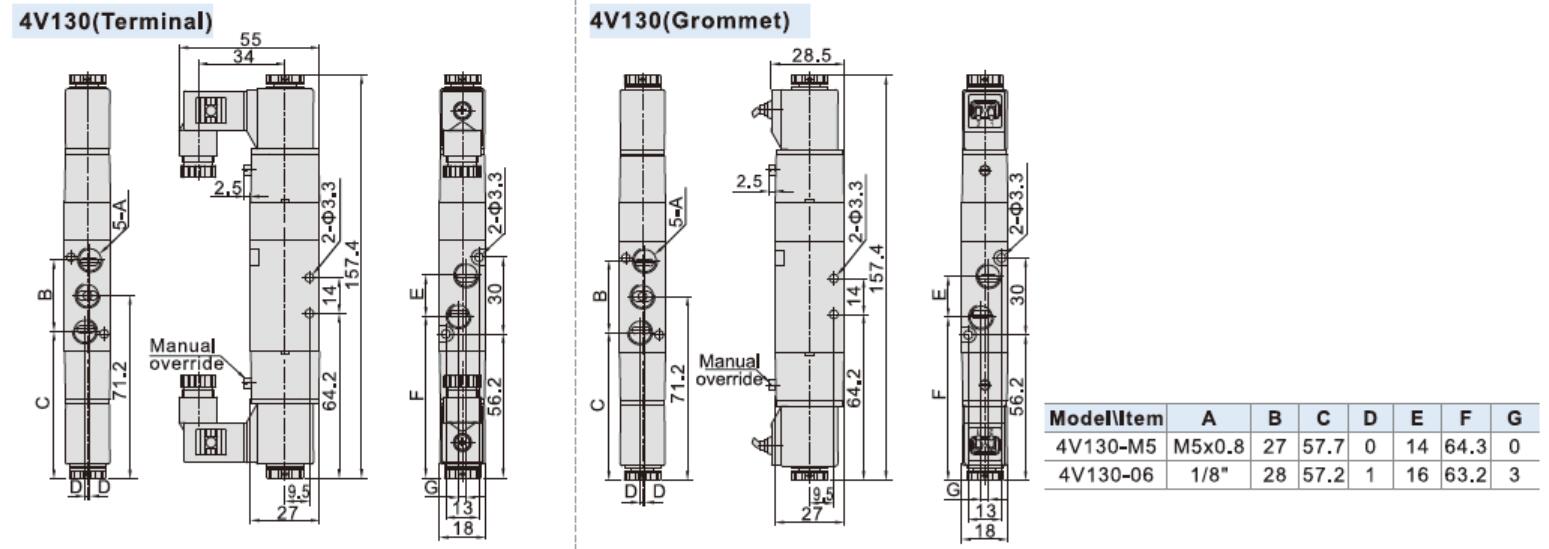

Product images are kept in the gallery; PDF diagrams and ordering references are kept in the detail page.
Original Airtac product for industrial automation maintenance and machine building.
Item | Specification | ||||
Standard voltage | AC220V | AC110V | AC24V | DC24V | DC12V |
Scope of voltage | AC: ±15% DC: ±10% | ||||
Power consumption | 3.5VA | 3.5VA | 4.0VA | 2.8W | 2.5W |
Protection | IP65(DIN40050) | ||||
Temperature classification | B Class | ||||
Electrical entry | Terminal, Grommet | ||||
Activating time | 0.05 sec and below | ||||
Model | 4V110-M5 | 4V130C-M5 | 4V110-06 | 4V130C-06 |
Fluid | Air(to be filtered by 40μm filter element) | |||
Acting | Internal pilot or external pilot | |||
Port size [Note1] | In=Out=M5 | In=Out=1/8" | ||
Orifice size(Cv) | 4V110-06,4V120-06:10.2mm²(Cv=0.6) | |||
Valve type | 5 port 2 position | 5 port 3 position | 5 port 2 position | 5 port 3 position |
Operating pressure | 0.15~0.8MPa(21~114psi) | |||
Proof pressure | 1.2MPa(175psi) | |||
Temperature | -20~70°C | |||
Material of body | Aluminum alloy | |||
Lubrication [Note2] | Not required | |||
Max.frequency [Note3] | 5 cycle/sec | 3 cycle/sec | 5 cycle/sec | 3 cycle/sec |
Weight (g) | 4V110-M5:120 | 200 | 4V110-06:120 | 200 |
[Note1] PT thread, G thread and NPT thread are available. | ||||
[Note2] Once lubricated air is used, continue with same medium to optimise valve life span. Lubricants like ISO VG32 or equivalent are recommended. | ||||
[Note3] The maximum actuation frequency is in the no-load state. | ||||
[Note4] Equivalent orifice S and Cv are all calculated from the flow rate data. | ||||
In practical use, 4V130P-06 is a suitable choice for automation workshops, equipment maintenance departments and machine retrofit projects that rely on stable air signal control.
This pneumatic valves item is often selected for assembly fixtures, pneumatic test benches and small control panels when the application involves mechanical valve actuation, signal switching and basic pneumatic control.
Use this product according to the matching datasheet and machine requirements. Confirm port size, model code and operating conditions before replacement or installation.
