| Quantity: | |
|---|---|
YT-1000RDn532S01
YTC
1. Title: YTC YT-1000R YT-1000RDn532S01 NAMUR Rod +SPTM Feedback Pneumatic Positioner
2. Order Code
3. Description
The Electro- Pneumatic Positioner YT-1000R is used for operation of pnuematic rotary valve actuators by means of electricalcontroller or control system with an analog output signal of DC 4 to 20mA or split ranges.
4. Specification
| Item. Type | Single | Double | |
| Input Signal | 4-20 mA DC | ||
| Impedance | 250±15 Ω | ||
| Supply Pressure | 0.14~0.7 Mpa | ||
| Stroke | 0~90° | ||
| Air Connedtion | PT(NPT) 1/4 | ||
| Gauge Connection | PT(NPT) 1/8 | ||
| Conduit | G(PF, NPT)1/2, M20 | ||
| Explosion | Exdmb ⅡB T5 (KTL) Exdmb ⅡC T5 (KTL) Exdmb ⅡB T6 (KTL) Exdmb ⅡC T6 (NEPSI) Exdmb ⅡC T5/T6 (NEPSI) | ||
| Enclosure | IP66 | ||
| Ambient Temp. | Operating | -20~70 ℃ | |
| Explosion | -20~60 ℃ | ||
| Linearity | ±1% F.S. | ±2% F.S. | |
| Hysteresis | ±1% F.S. | ||
| Sensitivity | ±0.2% F.S. | ±0.5% F.S. | |
| Repeatability | ±0.5% F.S. | ||
| Air Consumption | 2.5LPM (sup=0.14 MPa) | ||
| Flow Capacity | 80LPM (sup=0.14 MPa) | ||
| Material | Aluminium Diecasting | ||
| Weight | 2.8 kg | ||

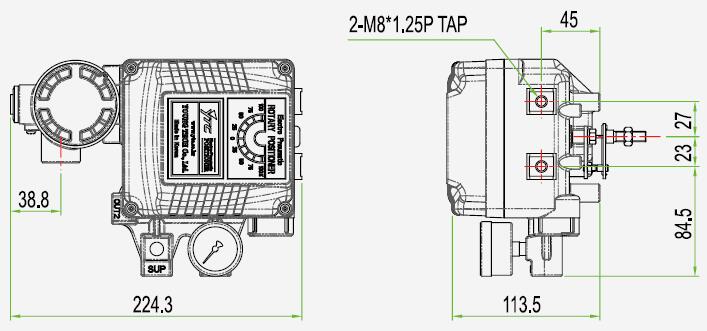

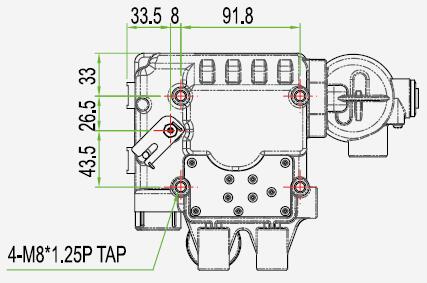

5. Drawing
6. Product Shape
7. Shipment
1. We ship from China, we ship all over the world.
2. If you want a cheaper shipment, write to us.
3. Due to the international transaction, the parcel arrival time depends on the weather conditions, pandemic, customs policy, public holidays etc.
4. We offer standard shipping on this auction, if express shipping is required please email us.
5. We can ship by DHL, Fedex, UPS, TNT, EMS, Aramex and so on, if you have an account, we can also ship by your account.
6. If you have any other questions, write to us.
8. Returns
We accept returns as per terms and conditions.
If you are not satisfied with the product - write to us.
