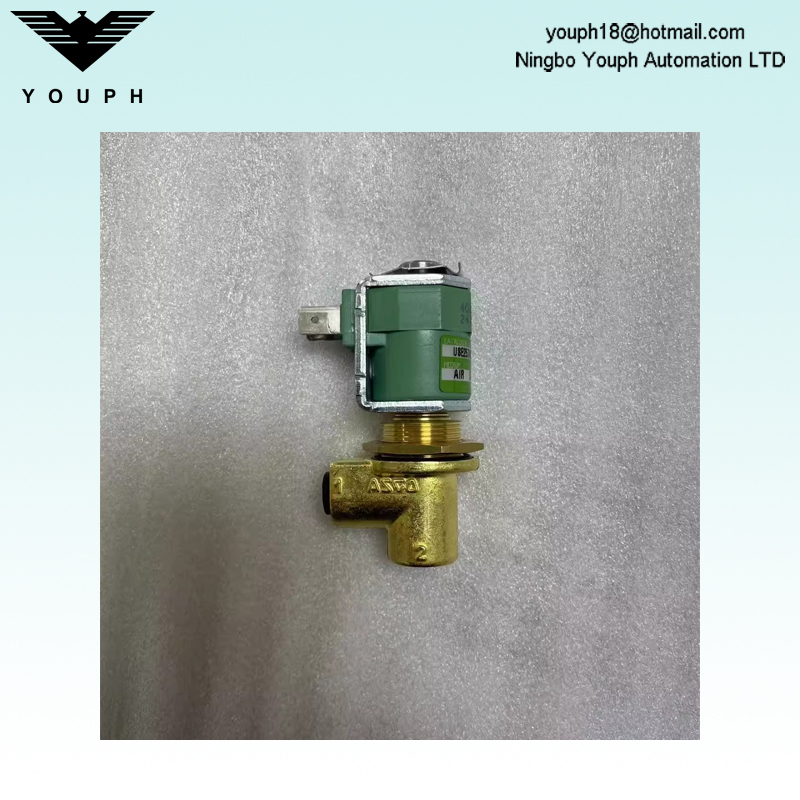

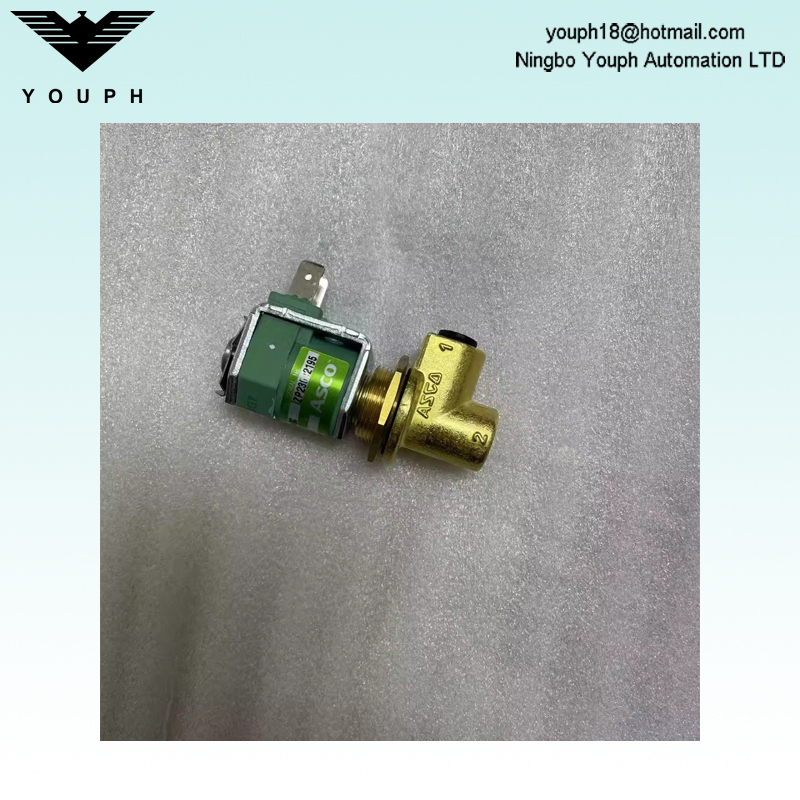

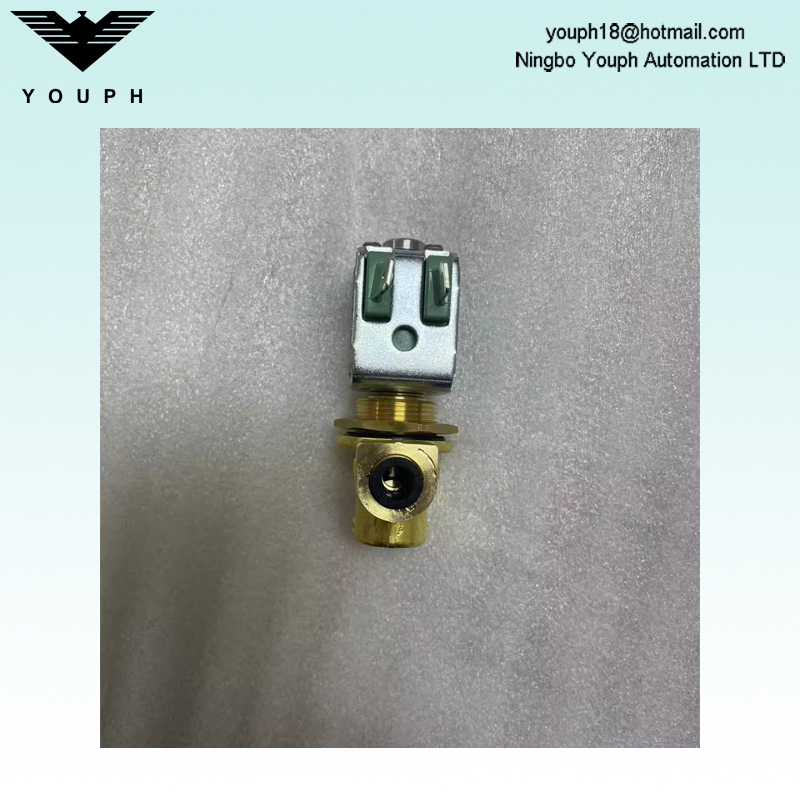

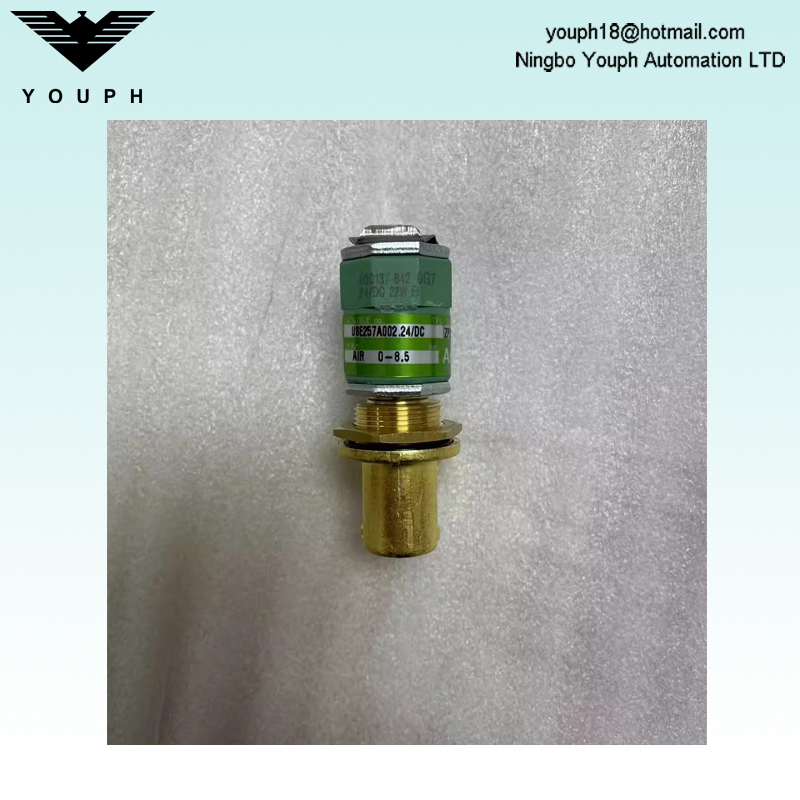

USE257A002-DC24V ASCO normally closed 2/2-way solenoid valve

USE257A002-DC24V ASCO normally closed 2/2-way solenoid valve

1. Normally closed, direct operation

2. Threaded 1/8"

3. 06mm plug-in connector

4. Epoxy resin molded bow | wire coil or coil with shovel shaped plug connector (3 x DIN-46244) pipe connection E=Rp (ISO 7/1) or compression type joint inlet

5. Specially designed for waterproof panel installation with a compact and lightweight structure

6. The pilot valve can be equipped with an explosion-proof solenoid valve for use in hazardous areas

7. ATEX and national standards

Datasheet

Body Material: Brass

Media: Air, inert gas

Working temperature: 0~75° C

Feature

1. Bidirectional NC pilot valve for dust collector maintenance

2. Normally closed direct action

3. Sturdy forged brass body structure

4. Specially designed for panel installation

5. Compact structure and light weight

6. The components comply with all relevant EC directives

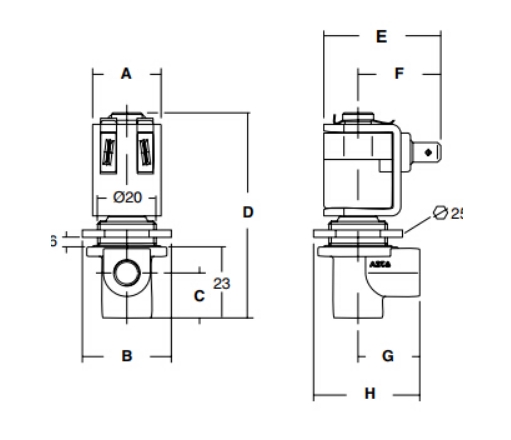

Dimension
