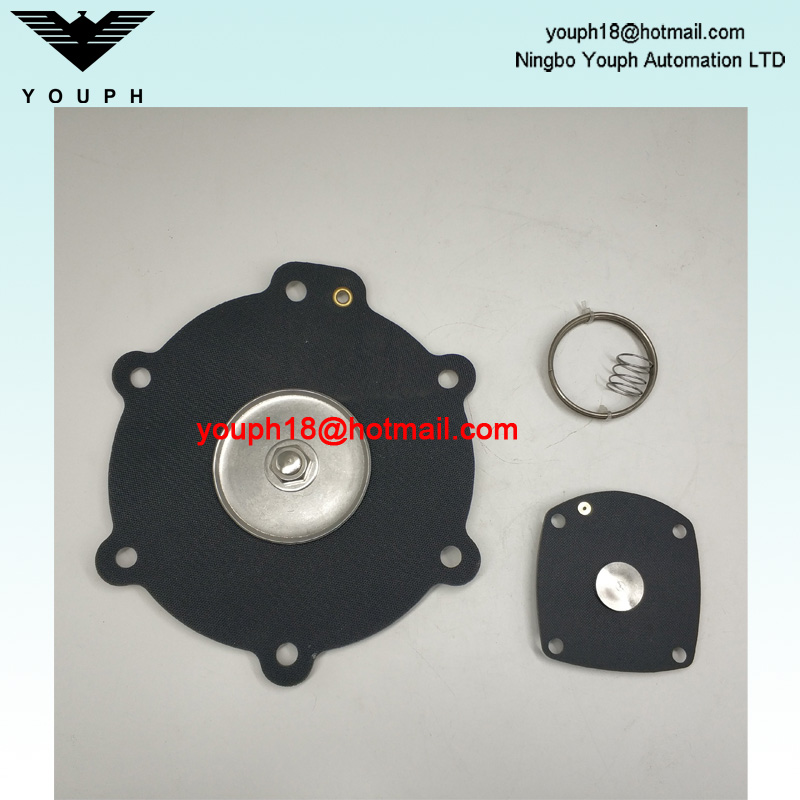

TURBO M75 M25 GLOBAL VALVE FOR SQUARE TANK PULSE VALVE SQP75 SQM75 Diaphragm Repair Kit

TURBO M75 M25 GLOBAL VALVE FOR SQUARE TANK PULSE VALVE SQP75 SQM75 Diaphragm Repair Kit

FEATURES

1. The pulse diaphragm valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation

2. The high flow, angle type bodies in combination with the special main diaphragm assemblies give the unique operating features required for dust collector service applications

3. The design with integral compression fittings will facilitate installation because there is no need for threaded piping

4. The high quality diaphragms are reinforced and wear resistant to guarantee a long operating life, even under harsh conditions

5. Integral pilot operated valves satisfy all relevant EC directives

GENERAL

Differential pressure: 0,15 - 8,5 bar [1 bar = 100kPa]

Ambient temperature range: -20 to +85°C

MATERIALS IN CONTACT WITH FLUID

Note: Ensure that the compatibility of the fluids in contact with the materials is verified

Body: Aluminium

Core tube: Stainless steel

Core and plugnut: Stainless steel

Springs: Stainless steel

Seals & disc: NBR (nitrile)

Diaphragms: CR (chloroprene)

Shading coil: Copper
