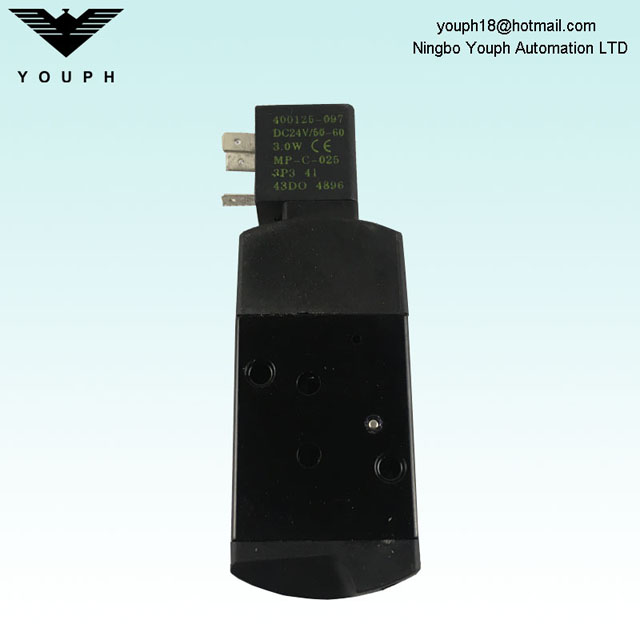

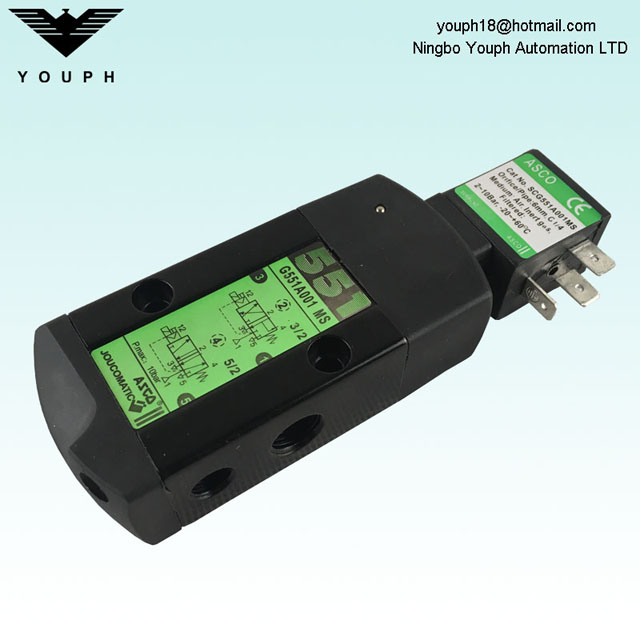

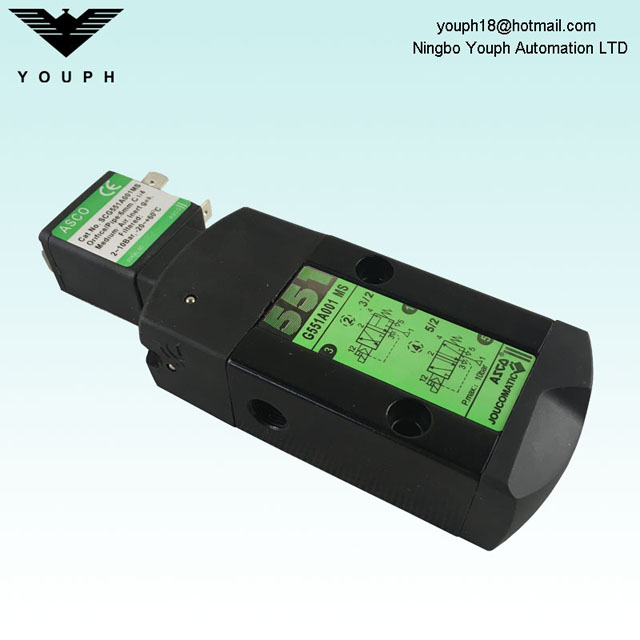

SCG551A001MS ASCO 3/2 ways 1/4 inch solenoid valve

FEATURES

1. The monostable spool valves have TüV-EXIDA certified IEC 61508 Functional Safety data and can be used up to SIL 4 (551/TüV)-SIL 3 (552-553/EXIDA)

2. The spool valves have threaded port connections and "NAMUR" style interface

3. The same spool valve can be adapted for 3/2 NC or 512 function for controllingdouble- acting and single-acting actuators

4. All the exhaust ports of this spool valve are connectable, providing better environmental protection, particularly recommended for sensitive areas such asclean rooms, and applications in the pharmaceutical and food processing sectors

5. The valve offers environmental protection against the ingress of liquids, dusts orany other foreign matter (environmentally-protected construction)

6. Epoxy moulded coil for general service applications

7. The solenoid valves satisfy all relevant EC Directives

ADDITIONAL OPTIONS

1. Other pipe threads are available on request

2. Coil type CM25 with connector size 30 ISO 4400 (Pg 11P) (series 551)

3. Polyamide coil

4. Ex mb/mD (prefix "PV") solenoid can be supplied with various cable lengths

5. Compliance with "UL" standard is available on request (552-553 ranges)

6. Set of stainless steel mounting screws, catalogue number 97802212 (series 551)

7. Set of two exhaust reducers, G1/8, catalogue number 881 00344 (series 551 )

8. Dustproof ATEX (SCDU) with a coil and spade plug connector with lead (2 m lead), TPL 20651

INSTALL ATION

1. Installation/maintenance instructions are included with each valve

2. The valves can be mounted in any position without affecting operation

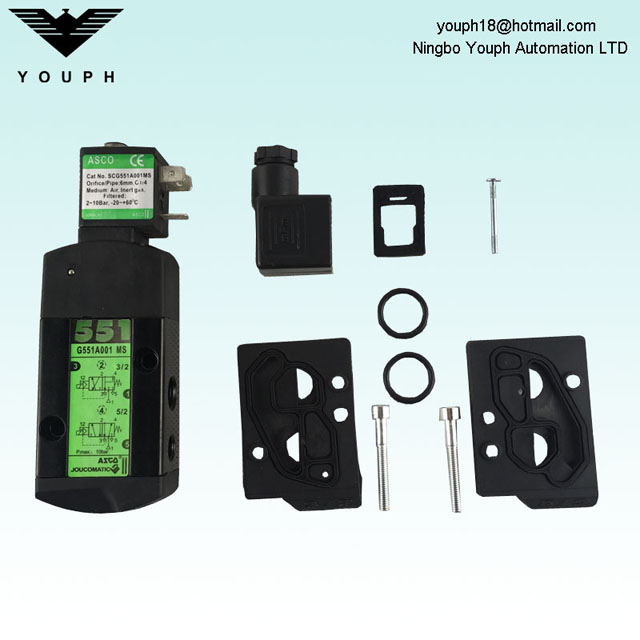

3. 3/2 NC-5/2 spool valve supplied with two interface plates with NAMUR mating surfaces. Depending on function (3/2 NC or5/2), position one of the two plates on the spool valve body before installing on actuator

4. IEC 61508 Functional Safety (Suffix SL), alowable temperature range: -25·C to +60"C. Probability of failure on demand,contact us

5. Spool valve supplied with two interface plates with NAMUR mating surfaces. Depending on function (NC 3/2 or 5/2),position one of the two plates on the spool valve body before installing on actuator

6. lt is necessary to connect pipes or fittings to the exhaust ports to protect the internal parts of the spool valve and itspneumatic operator if used outside or in harsh environments (dusts, liquids etc.)

7. Dowel pin (if necessary), bolts and gaskets are standard supplied

8. Threaded pipe connection identifier is: 8 = NPT (ANSI 1.20.3);G= G (ISO 228/1)
