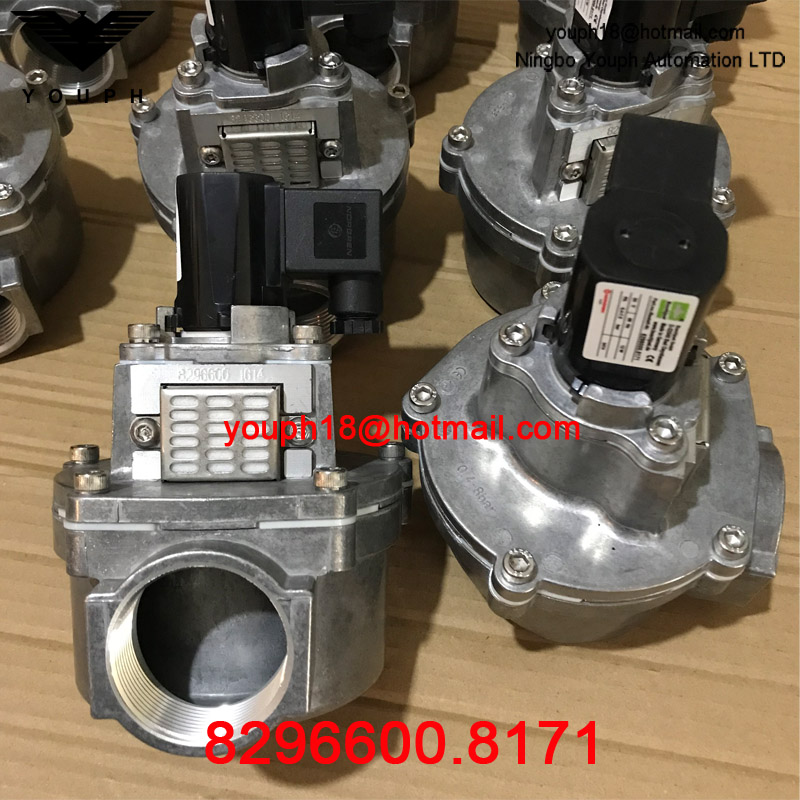

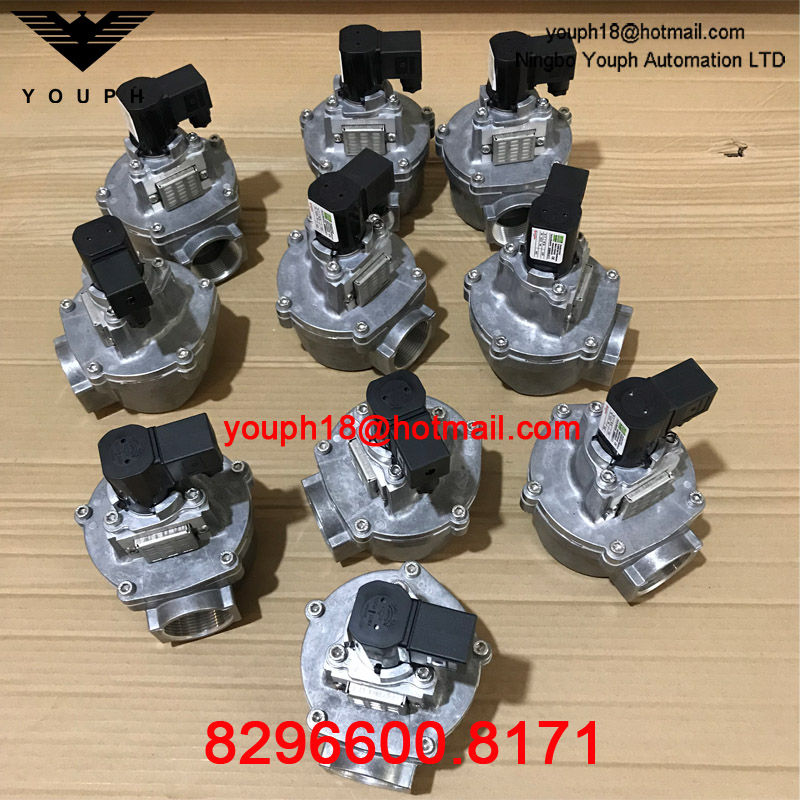

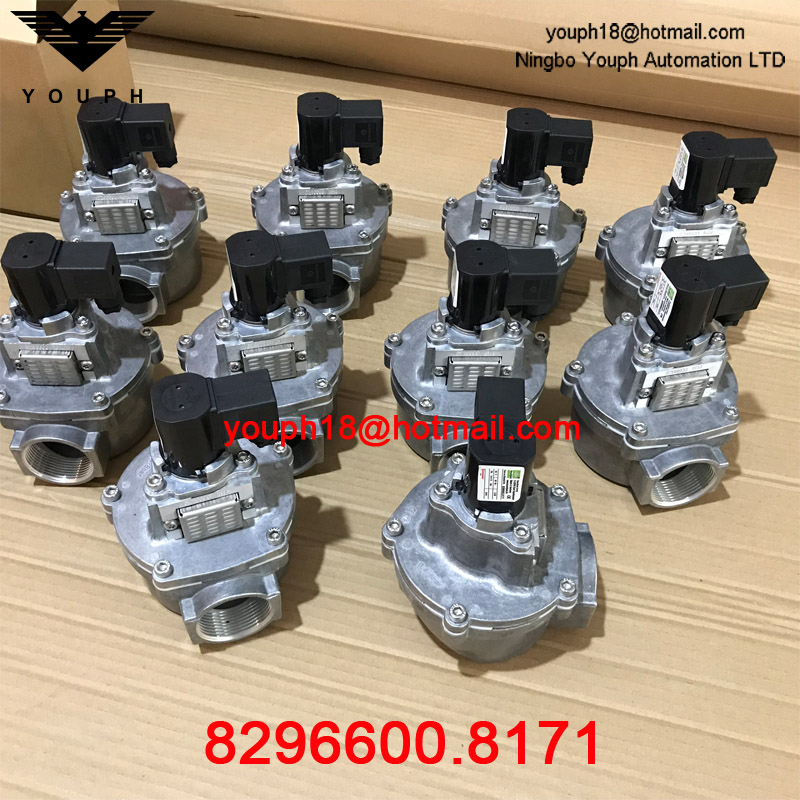

Norgren 82960 series 8296600 8296600.8171 DN40 Right Angle Pulse Solenoid Valve

Norgren 82960 series 8296600 8296600.8171 DN40 Right Angle Pulse Solenoid Valve

Series 82960

1. 2/2-way valves DN 20 to DN 65

2. For air

3. Indirectly solenoid actuated

4. Diaphragm valves

5. Internal thread G 3/4 to G 2 1/2 or 3/4" NPT to 2 1/2" NPT

6. Operating pressure: 0.4 to 8 bar

Description (standard valve)

Switching function: normally closed

Flow direction: determined

Fluid temperature: -40 °C up to max. +85 °C

Ambient temperature: -20 °C up to max. +85 °C

Mounting position: as required, preferably with solenoid vertical on top

Material

Body: Aluminium

Seat seal: TPE

Internal parts: TPU

Features

1. High flow rate

2. All internal components captive

3. Functional compact design

4. Solenoid interchangeable without tools

5. Integrated silencer

6. One-piece diaphragm for longer life

Service Kit
