NTP48
YOUPH

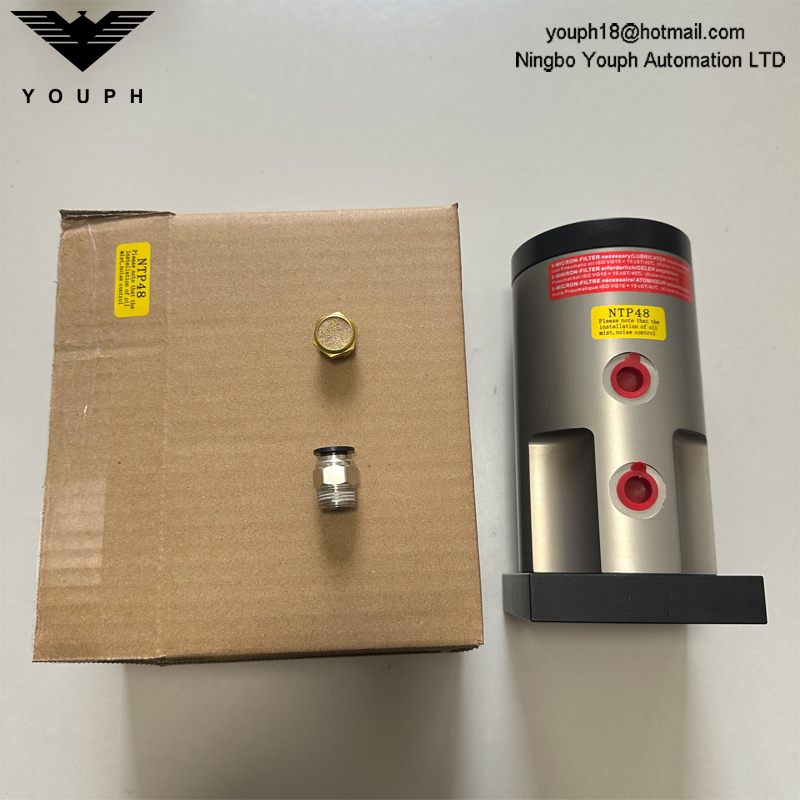

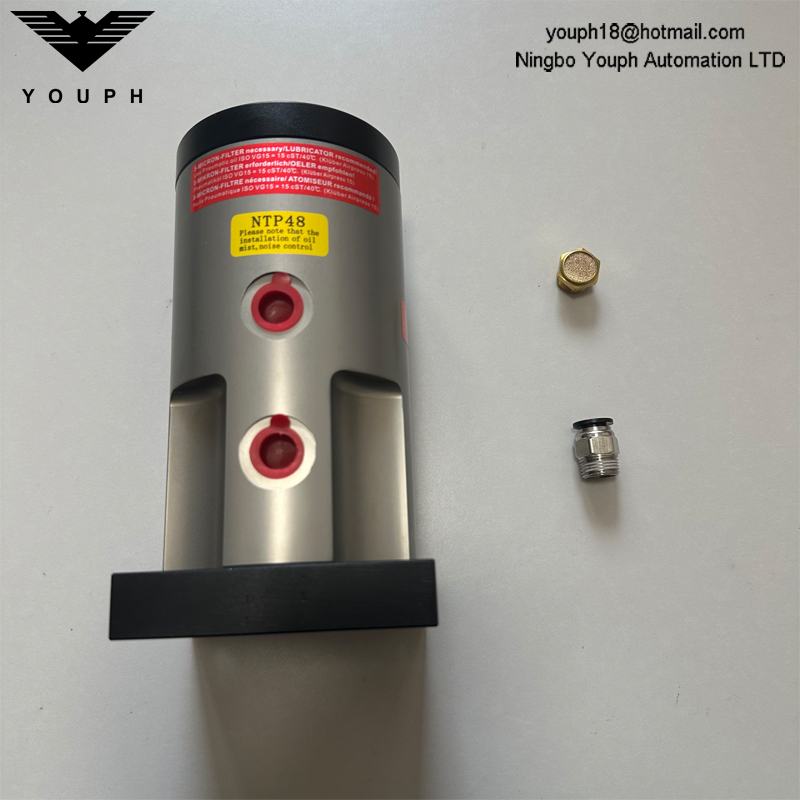

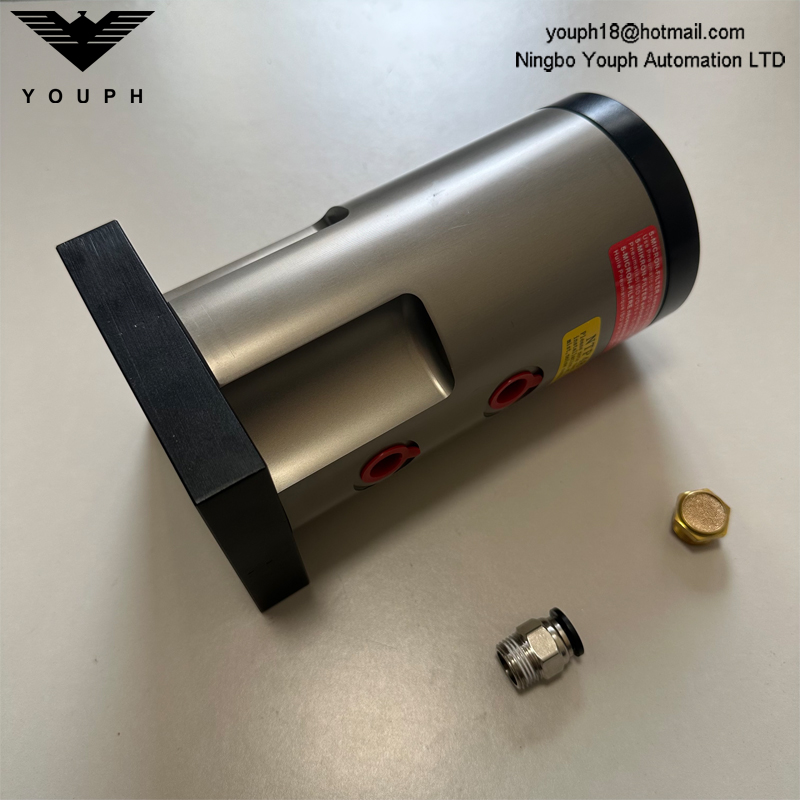

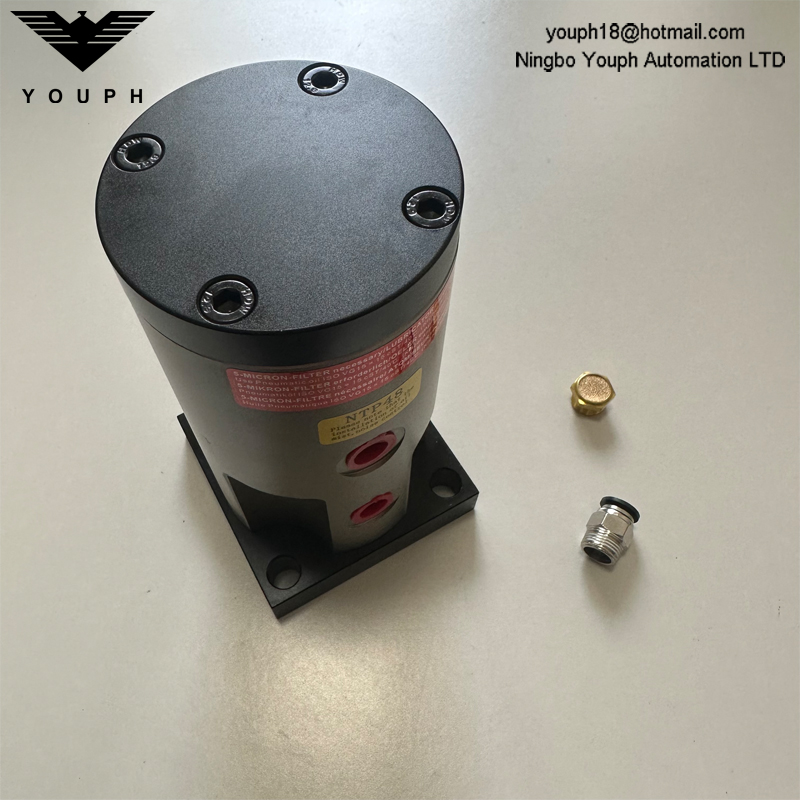

NTP48 Netter Piston Vibrator Pneumatic Hammer Air Knock knocking off adhering material
Feature:
• Strong impact & low pressure
• Low air consumption
• Full adjustable PTR
• No lubrication
• Working pressure for the 2-7bar
• High Efficiency
Applications:
The pneumatic piston vibrators series NTP are especially suitable for knocking off material adhering to container walls in funnels, containers, silos and hoppers.They can be used as drives for vibrating tables and chutes and as assistance for emptying containers.
Special features of NTP vibrators are:
impacts like a rubber hammer or vibration with high peak acceleration.
Selection:
NTP25 - applies to below 4mm thickness
NTP32 – applies to below 6mm thickness
NTP48 – applies to below 8mm thickness
Technical Parameters:
| TYPE | 频率 Frequency (V.P.M) | 振动力 Vibration Power (N) | 空气消耗量 Air consumption (L/min) | ||||
| 2bar | 4bar | 6bar | 2bar | 4bar | 6bar | ||
| NTP25 | 5.840 | 6.950 | 8.780 | 265 | 435 | 825 | 33-108 |
| NTP32 | 2.950 | 4.075 | 5.045 | 285 | 605 | 925 | 50-198 |
| NTP48 | 2.610 | 3.450 | 4.310 | 780 | 1300 | 2030 | 96-336 |
Dimensions:
| Type | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G | H (mm) | K (mm) | L (mm) | N | Weight (KG) |
| NTP25 | 90 | 60 | 46 | 6.5 | 36 | 14.5 | 1/8 | 15 | 8 | 51 | 1/8 | 0.61 |
| NTP32 | 140 | 75 | 51 | 11 | 48 | 32 | 1/4 | 20 | 10 | 70 | 1/4 | 1.47 |
| NTP48 | 194 | 100 | 78 | 13 | 60 | 51 | 3/8 | 25 | 15 | 95 | 3/8 | 3.95 |
