K0330 K0331 K0336 Remote Pilot Valve RCA3D RCA3D0 RCA3D1 RCA3D2 QT2 Soleniod Coil

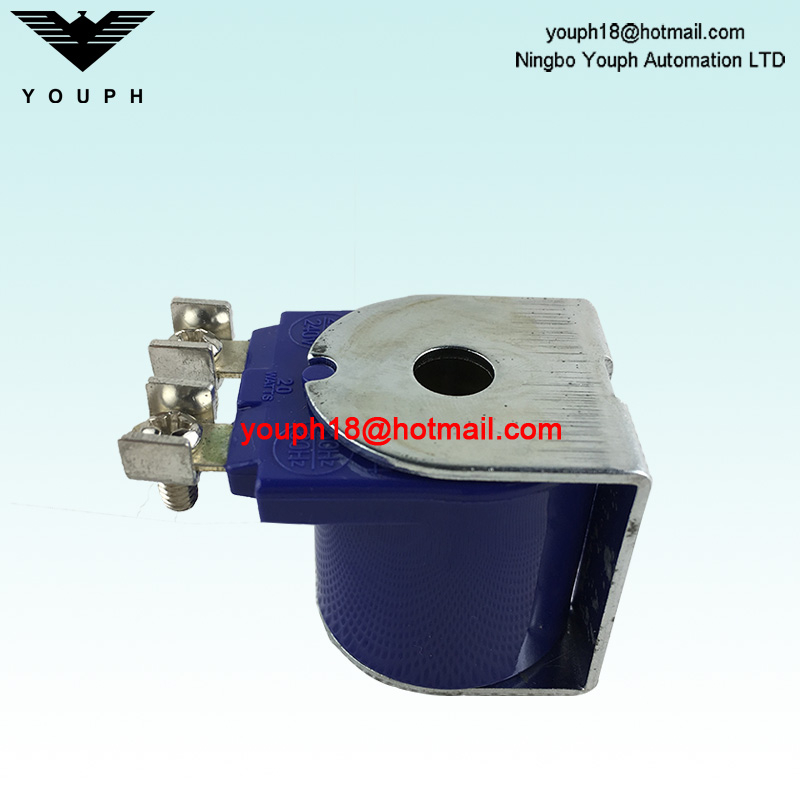

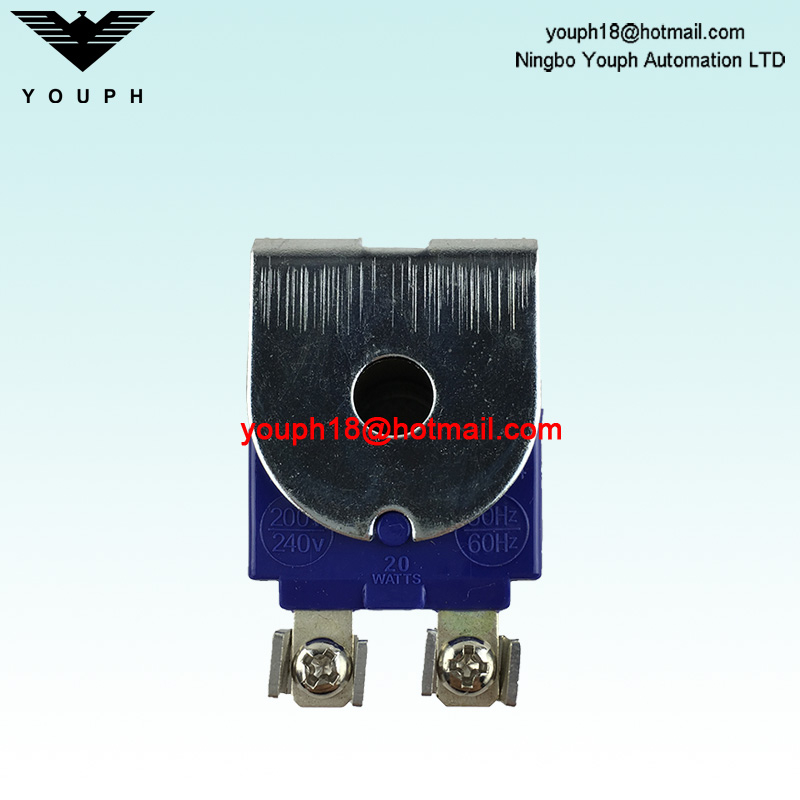

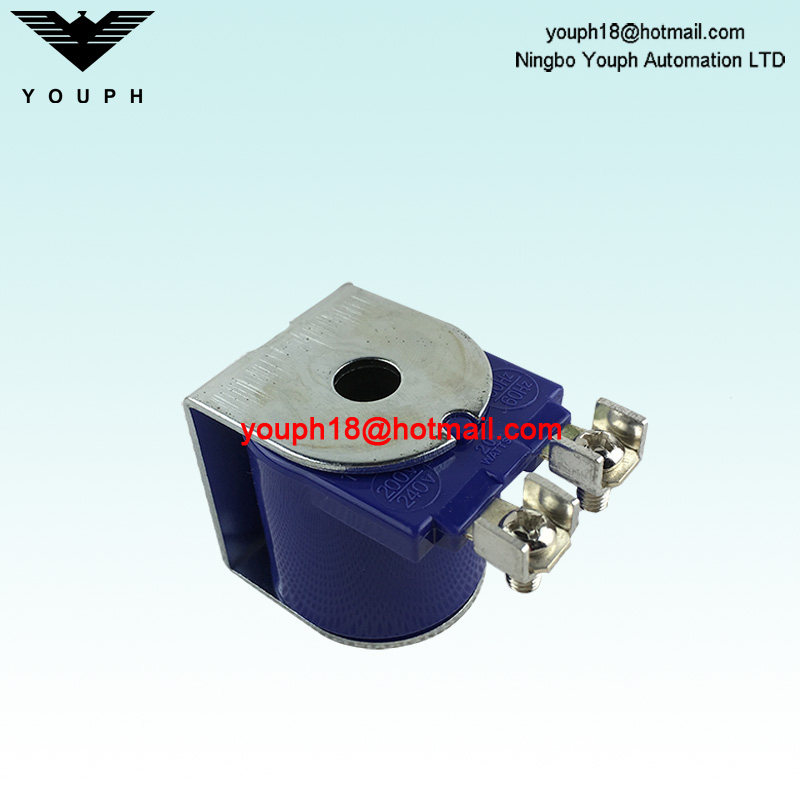

QT2 coil
Availability:
Quantity:
Inquire Add to Basket

K0330 K0331 K0336 Remote Pilot Valve RCA3D RCA3D0 RCA3D1 RCA3D2 QT2 Soleniod Coil
K0330 K0331 K0336 Remote Pilot Valve RCA3D RCA3D0 RCA3D1 RCA3D2 QT2 Soleniod Coil
K0330 K0331 K0336 Remote Pilot Valve RCA3D RCA3D0 RCA3D1 RCA3D2 QT2 Soleniod Coil

  • K0330 K0331 K0336

K0330 K0331 K0336 Remote Pilot Valve RCA3D RCA3D0 RCA3D1 RCA3D2 QT2 Soleniod Coil

Suitable for

All integrally piloted Goyen dust collector diaphragm valves, RCA3D series pilot valves and pilot valve enclosures, and 3DS pilot valves.


Installation

Slide solenoid over ferrule tube. Ensure terminals are on top. For QT and QF type solenoids ensure nylon washer is in place. Slide clip onto pilot iron top. Ensure voltage supplied to solenoid is within -10% and +1 5% of the solenoid rated voltage.


Operation

Recommended on time range: 50- 500ms

Recommended time between pulses: 1 minute or greater


Order Code and Electrical Characteristics

Code K- Type Connection Type Class Voltage Inrush mA Hold mA Power Colour
300 QR DIN 43650A IP64 200/240V 50/60Hz 148/143 105/94 23.1 VA Grey
301 QR DIN 43650A IP64 100/120V 50/60Hz 234/255 180/152 19.8 VA Grey
302 QR DIN 43650A IP64 24V 50/60 Hz 1338/1096 963/716 23.1 VA Grey
303 QR DIN 43650A IP64 110VDC 212 212 24 W Grey
304 QR DIN 43650A IP64 48VDC 429 429 20 W Grey
305 QR DIN 43650A IP64 24VDC 873 873 20 W Grey
306 QR DIN 43650A IP64 12VDC 1644 1644 20 W Grey
310 QD Conduit   (M20x1.5) IP31 200/240V 50/60Hz 148/143 105/94 23.1 VA Green
311 QD Conduit   (M20x1.5) IP31 100/120V 50/60Hz 234/255 180/152 19.8 VA Green
312 QD Conduit   (M20x1.5) IP31 24V 50/60  Hz 1338/1096 963/716 23.1 VA Green
313 QD Conduit   (M20x1.5) IP31 24VDC 873 873 20 W Green
314 QD Conduit   (M20x1.5) IP31 12VDC 1644 1644 20 W Green
320 QD Conduit (½"   NPSC) IP31 200/240V 50/60Hz 148/143 105/94 23.1 VA Green
321 QD Conduit (½"   NPSC) IP31 100/120V 50/60Hz 234/255 180/152 19.8 VA Green
322 QD Conduit (½"   NPSC) IP31 24V 50/60  Hz 1338/1096 963/716 23.1 VA Green
323 QD Conduit (½"   NPSC) IP31 24VDC 873 873 20 W Green
324 QD Conduit (½"   NPSC) IP31 12VDC 1644 1644 20 W Green
330 QT2 Screw / spade N/A 200/240V 50/60Hz 148/143 105/94 23.1 VA Purple
331 QT2 Screw / spade N/A 100/120V 50/60Hz 234/255 180/152 19.8 VA Purple
332 QT2 Screw / spade N/A 24V 50/60 Hz 1338/1096 963/716 23.1 VA Purple
333 QT2 Screw / spade N/A 240VDC 94 94 24 W Purple
334 QT2 Screw / spade N/A 110VDC 212 212 24 W Purple
335 QT2 Screw / spade N/A 48VDC 429 429 20 W Purple
336 QT2 Screw / spade N/A 24VDC 873 873 20 W Purple
337 QT2 Screw / spade N/A 12VDC 1644 1644 20 W Purple
338 QT2 Screw / spade N/A 12VDC 2500 2500 30 W Orange
340 QF Flying leads IP64 200/240V 50/60Hz 1338/1096 963/716 23.1 VA Purple
341 QF Flying leads IP64 100/120V 50/60Hz 94 94 19.8 VA Purple
342 QF Flying leads IP64 24V 50/60  Hz 212 212 23.1 VA Purple
343 QF Flying leads IP64 24VDC 873 873 20 W Purple
344 QF Flying leads IP64 12VDC 1644 1644 20 W Purple
348 QF Flying leads IP64 12VDC 2500 2500 30 W Orange
349 QF Flying leads IP64 36V 50Hz 555 350 15.6 VA Purple
