K0300

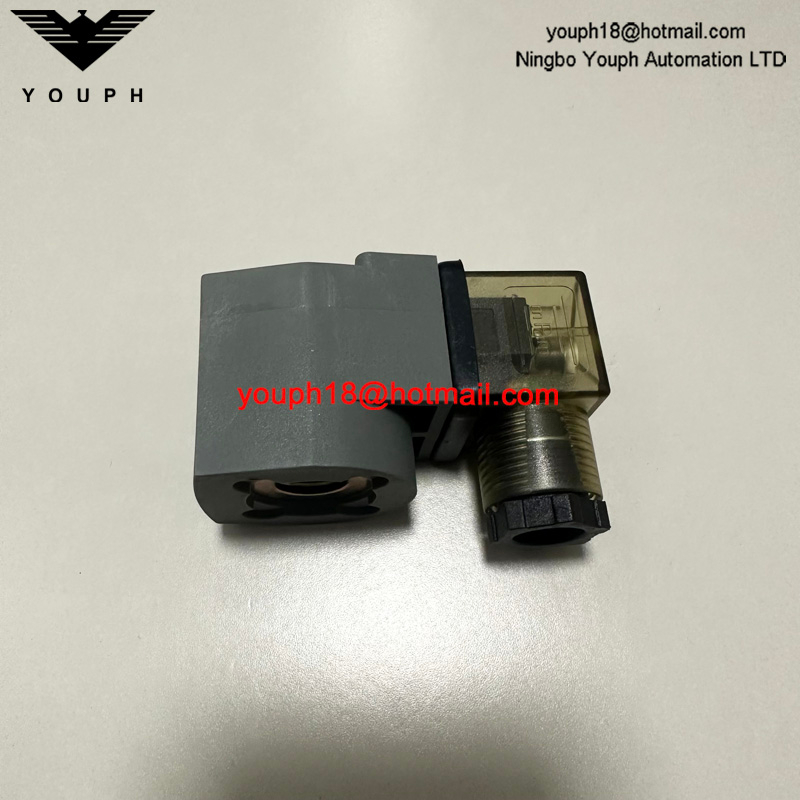

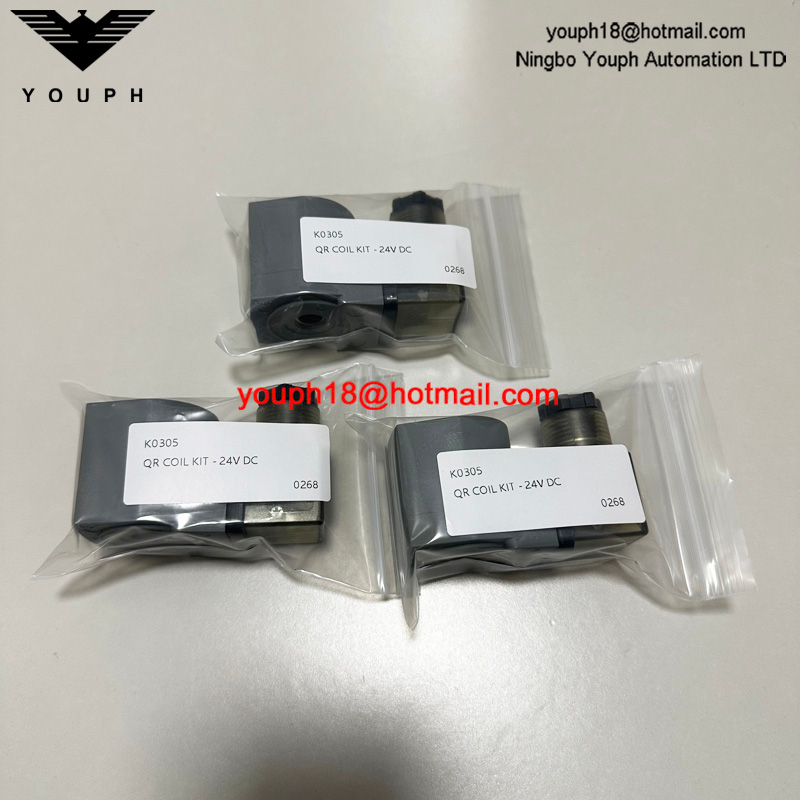

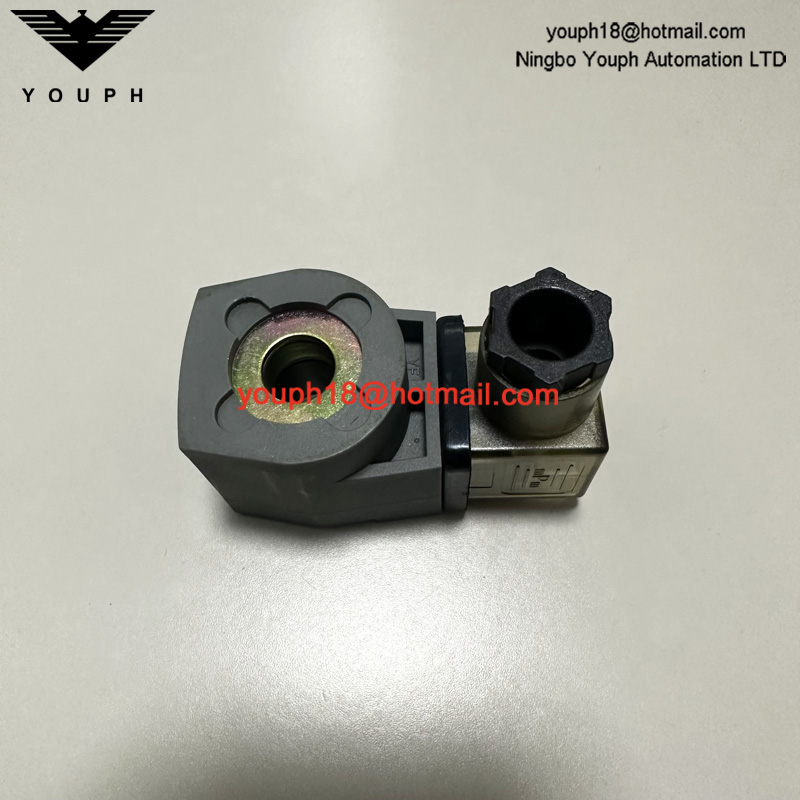

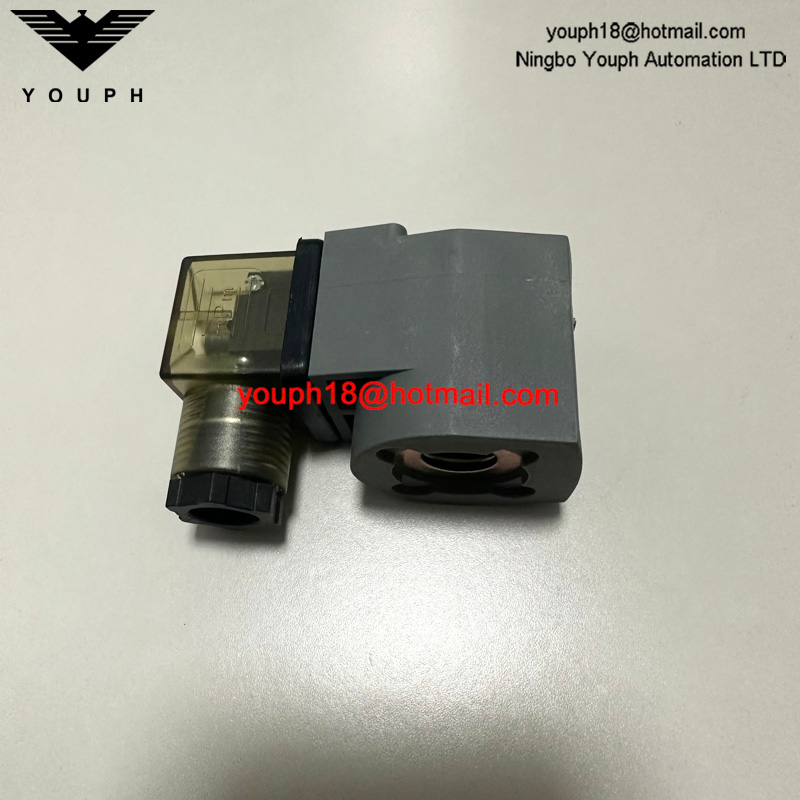

K0300 K300 K-300 C53056N 200/240V 50/60Hz Pulse valve CA25T010 CA45FS CA76MM040-305 QR Soleniod Coil
Suitable for
All integrally piloted Goyen dust collector diaphragm valves, RCA3D series pilot valves and pilot valve enclosures, and 3DS pilot valves.
Installation
Slide solenoid over ferrule tube. Ensure terminals are on top. For QT and QF type solenoids ensure nylon washer is in place. Slide clip onto pilot iron top. Ensure voltage supplied to solenoid is within -10% and +1 5% of the solenoid rated voltage.
Operation
Recommended on time range: 50- 500ms
Recommended time between pulses: 1 minute or greater
Order Code and Electrical Characteristics
| Code K- | Type | Connection Type | Class | Voltage | Inrush mA | Hold mA | Power | Colour |
| 300 | QR | DIN 43650A | IP64 | 200/240V 50/60Hz | 148/143 | 105/94 | 23.1 VA | Grey |
| 301 | QR | DIN 43650A | IP64 | 100/120V 50/60Hz | 234/255 | 180/152 | 19.8 VA | Grey |
| 302 | QR | DIN 43650A | IP64 | 24V 50/60 Hz | 1338/1096 | 963/716 | 23.1 VA | Grey |
| 303 | QR | DIN 43650A | IP64 | 110VDC | 212 | 212 | 24 W | Grey |
| 304 | QR | DIN 43650A | IP64 | 48VDC | 429 | 429 | 20 W | Grey |
| 305 | QR | DIN 43650A | IP64 | 24VDC | 873 | 873 | 20 W | Grey |
| 306 | QR | DIN 43650A | IP64 | 12VDC | 1644 | 1644 | 20 W | Grey |
| 310 | QD | Conduit (M20x1.5) | IP31 | 200/240V 50/60Hz | 148/143 | 105/94 | 23.1 VA | Green |
| 311 | QD | Conduit (M20x1.5) | IP31 | 100/120V 50/60Hz | 234/255 | 180/152 | 19.8 VA | Green |
| 312 | QD | Conduit (M20x1.5) | IP31 | 24V 50/60 Hz | 1338/1096 | 963/716 | 23.1 VA | Green |
| 313 | QD | Conduit (M20x1.5) | IP31 | 24VDC | 873 | 873 | 20 W | Green |
| 314 | QD | Conduit (M20x1.5) | IP31 | 12VDC | 1644 | 1644 | 20 W | Green |
| 320 | QD | Conduit (½" NPSC) | IP31 | 200/240V 50/60Hz | 148/143 | 105/94 | 23.1 VA | Green |
| 321 | QD | Conduit (½" NPSC) | IP31 | 100/120V 50/60Hz | 234/255 | 180/152 | 19.8 VA | Green |
| 322 | QD | Conduit (½" NPSC) | IP31 | 24V 50/60 Hz | 1338/1096 | 963/716 | 23.1 VA | Green |
| 323 | QD | Conduit (½" NPSC) | IP31 | 24VDC | 873 | 873 | 20 W | Green |
| 324 | QD | Conduit (½" NPSC) | IP31 | 12VDC | 1644 | 1644 | 20 W | Green |
| 330 | QT2 | Screw / spade | N/A | 200/240V 50/60Hz | 148/143 | 105/94 | 23.1 VA | Purple |
| 331 | QT2 | Screw / spade | N/A | 100/120V 50/60Hz | 234/255 | 180/152 | 19.8 VA | Purple |
| 332 | QT2 | Screw / spade | N/A | 24V 50/60 Hz | 1338/1096 | 963/716 | 23.1 VA | Purple |
| 333 | QT2 | Screw / spade | N/A | 240VDC | 94 | 94 | 24 W | Purple |
| 334 | QT2 | Screw / spade | N/A | 110VDC | 212 | 212 | 24 W | Purple |
| 335 | QT2 | Screw / spade | N/A | 48VDC | 429 | 429 | 20 W | Purple |
| 336 | QT2 | Screw / spade | N/A | 24VDC | 873 | 873 | 20 W | Purple |
| 337 | QT2 | Screw / spade | N/A | 12VDC | 1644 | 1644 | 20 W | Purple |
| 338 | QT2 | Screw / spade | N/A | 12VDC | 2500 | 2500 | 30 W | Orange |
| 340 | QF | Flying leads | IP64 | 200/240V 50/60Hz | 1338/1096 | 963/716 | 23.1 VA | Purple |
| 341 | QF | Flying leads | IP64 | 100/120V 50/60Hz | 94 | 94 | 19.8 VA | Purple |
| 342 | QF | Flying leads | IP64 | 24V 50/60 Hz | 212 | 212 | 23.1 VA | Purple |
| 343 | QF | Flying leads | IP64 | 24VDC | 873 | 873 | 20 W | Purple |
| 344 | QF | Flying leads | IP64 | 12VDC | 1644 | 1644 | 20 W | Purple |
| 348 | QF | Flying leads | IP64 | 12VDC | 2500 | 2500 | 30 W | Orange |
| 349 | QF | Flying leads | IP64 | 36V 50Hz | 555 | 350 | 15.6 VA | Purple |
