FP65

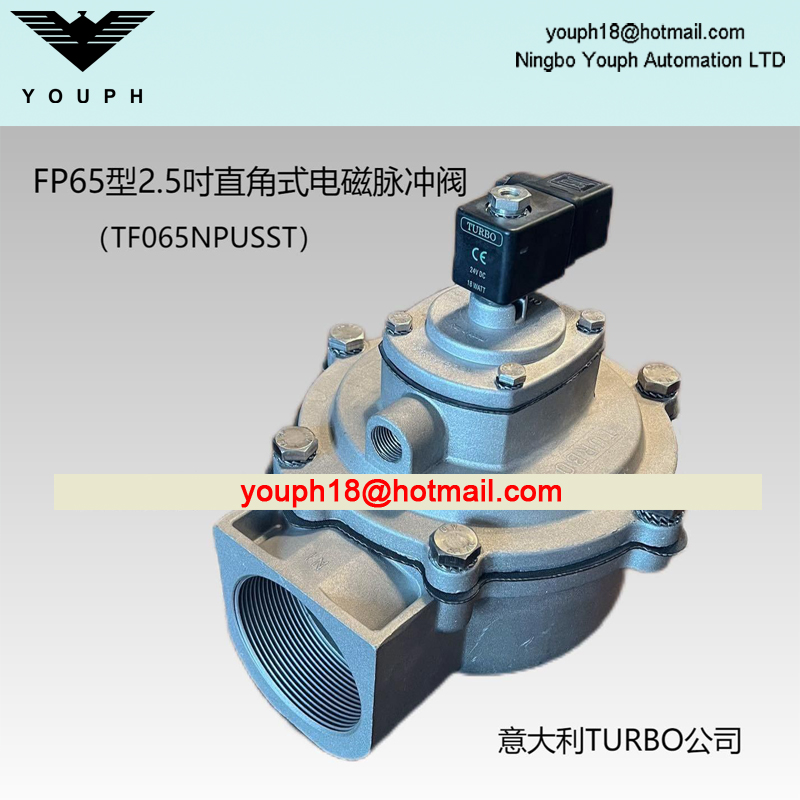

Italy Turbo FP65 TF065NPUSST 2.5" Diaphragm Threaded Pulse Jet VALVE
How to order
Characteristics
| Fluid | Filtered and oilfree compressed air |
| Temperature range | STD diaphragm -40°C~+80°C |
| Viton diaphragm -30°C~+200°C | |
| Operating pressure | 0.5~7.5 bar |
| Body e cover | Die cast aluminium |
| Core tube | Stainless Steel |
| Plunger | Stainless Steel |
| Screws | Stainless Steel |
| Coil insulation | Class H |
| Class H | Class H |
| Standard voltage | 230 -110 - 24V / 50-60VHz 19 VA 24VDC 15W |
Structure
INSTALLATION
1. For compression fitting types tightness is achieved by the compressed gasket on the blow tube
2. Installation/maintenance instructions are included with each valve
3. The valves can be mounted in any position without affecting operation
4. The use of the rubber gaskets as sealing members will allow a slight misalignment in piping
5. Threaded pipe connection is: G (ISO 228/1) or compression fitting
6. Spare Parts Kit and replacement coils are available
7. Other pipe threads are available on request
