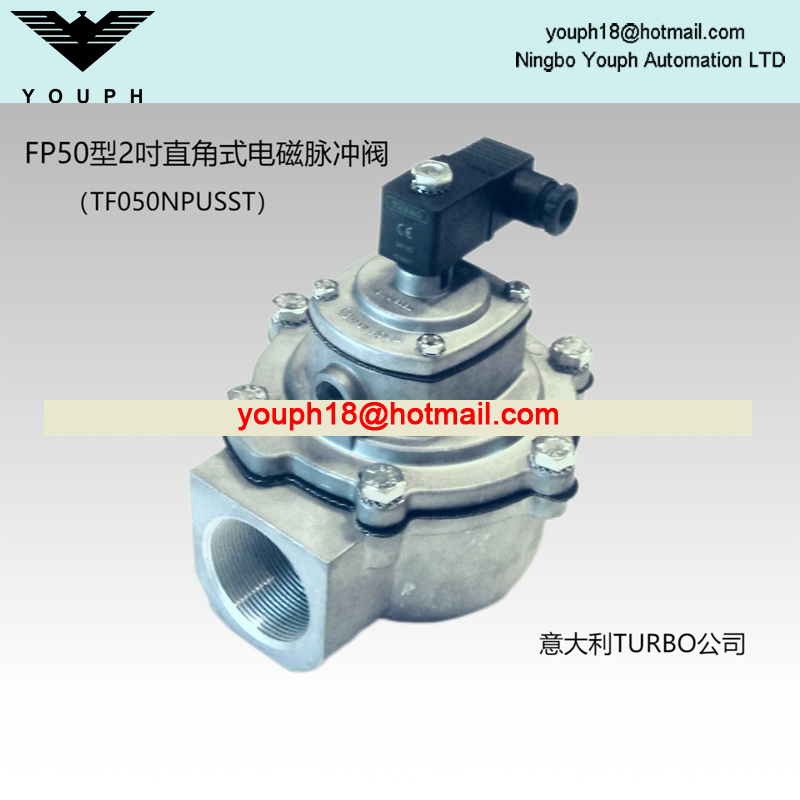

Italy Turbo FP50 TF050NPUSST 2" F Series Threaded Diaphragm Pulse VALVE

Made in Italy, Turbo original.

Welcome to inquire！

youph18@hotmail.com

Italy Turbo FP50 TF050NPUSST 2" F Series Threaded Diaphragm Pulse VALVE

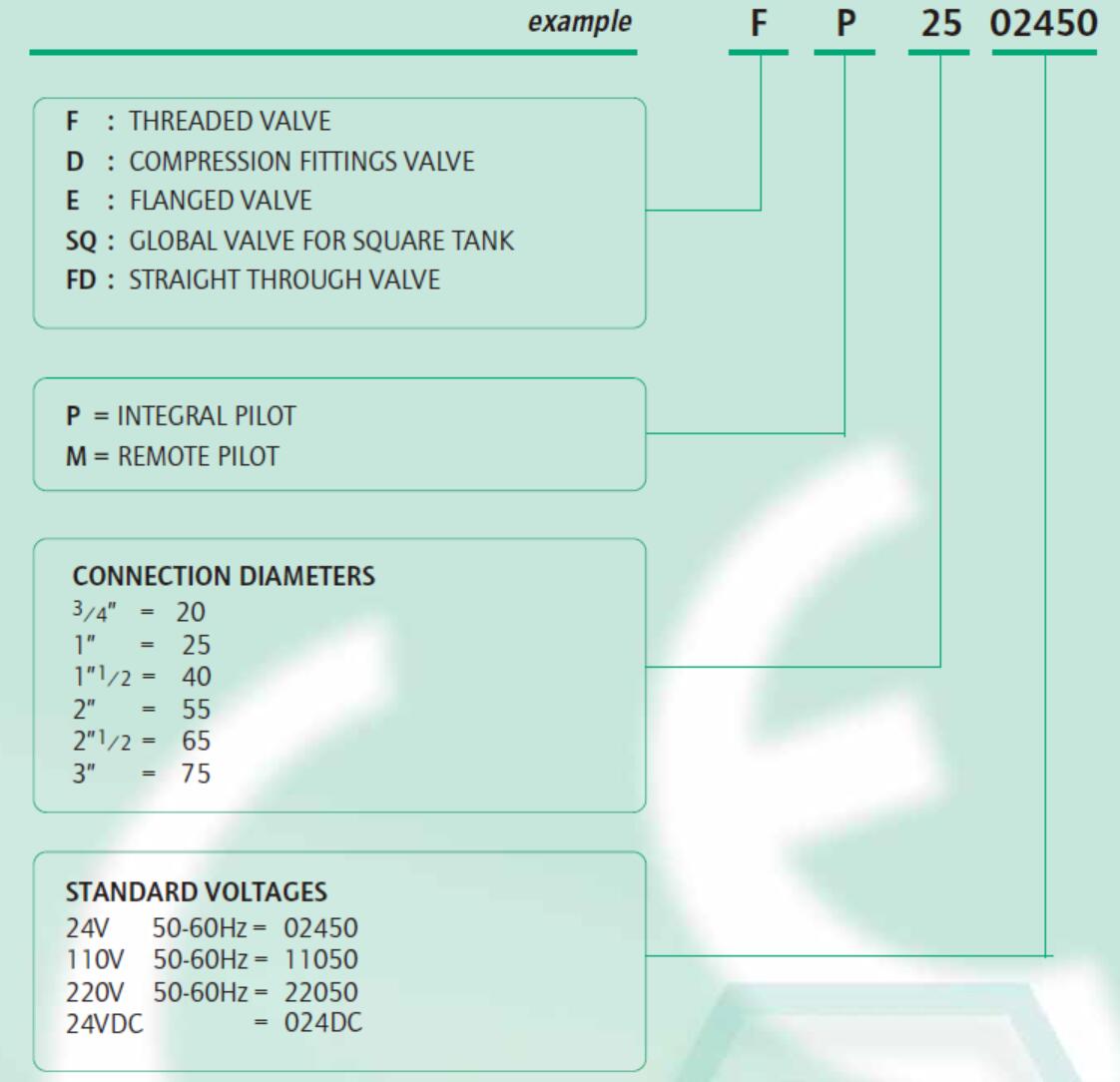

How to order

Characteristics

Fluid	Filtered and oilfree compressed air
Temperature range	STD diaphragm -40°C~+80°C
Temperature range	Viton diaphragm -30°C~+200°C
Operating pressure	0.5~7.5 bar
Body e cover	Die cast aluminium
Core tube	Stainless Steel
Plunger	Stainless Steel
Screws	Stainless Steel
Coil insulation	Class H
Class H	Class H
Standard voltage	230 -110 - 24V / 50-60VHz 19 VA 24VDC 15W

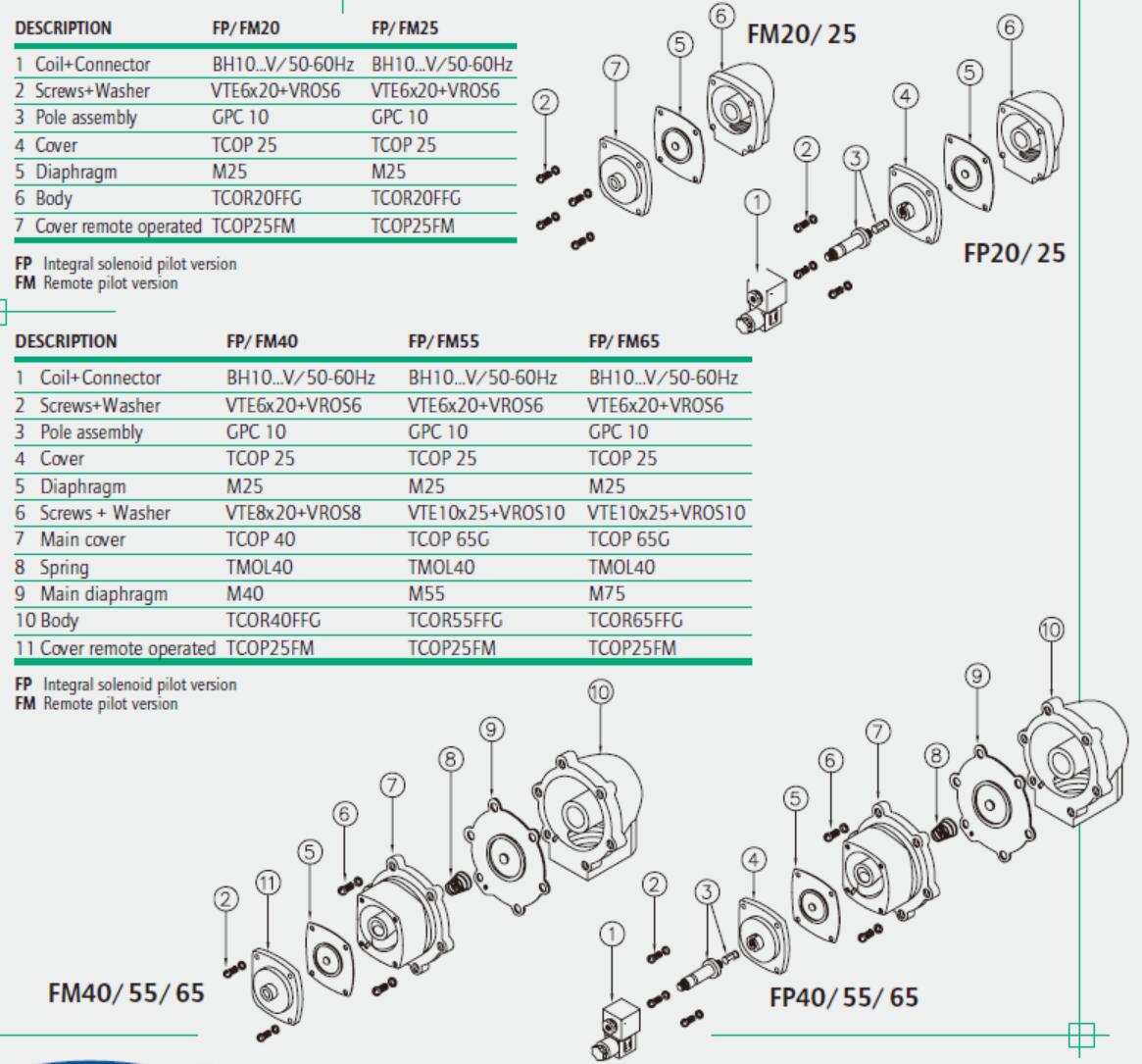

Structure

structure

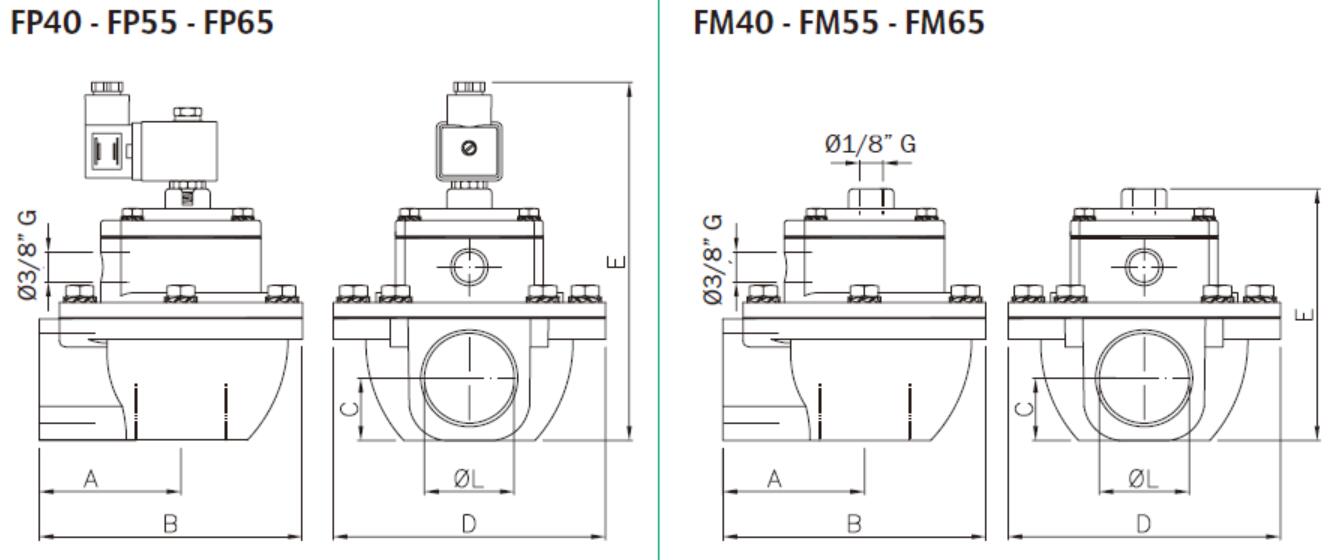

FP FM 40 55 65

INSTALLATION

1. The valves can be mounted in any position without affecting operation

2. Spare Parts Kit and replacement coils are available

3. For compression fitting types tightness is achieved by the compressed gasket on the blow tube

4. Threaded pipe connection is: G (ISO 228/1) or compression fitting

5. The use of the rubber gaskets as sealing members will allow a slight misalignment in piping

6. Installation/maintenance instructions are included with each valve

7. Other pipe threads are available on request
