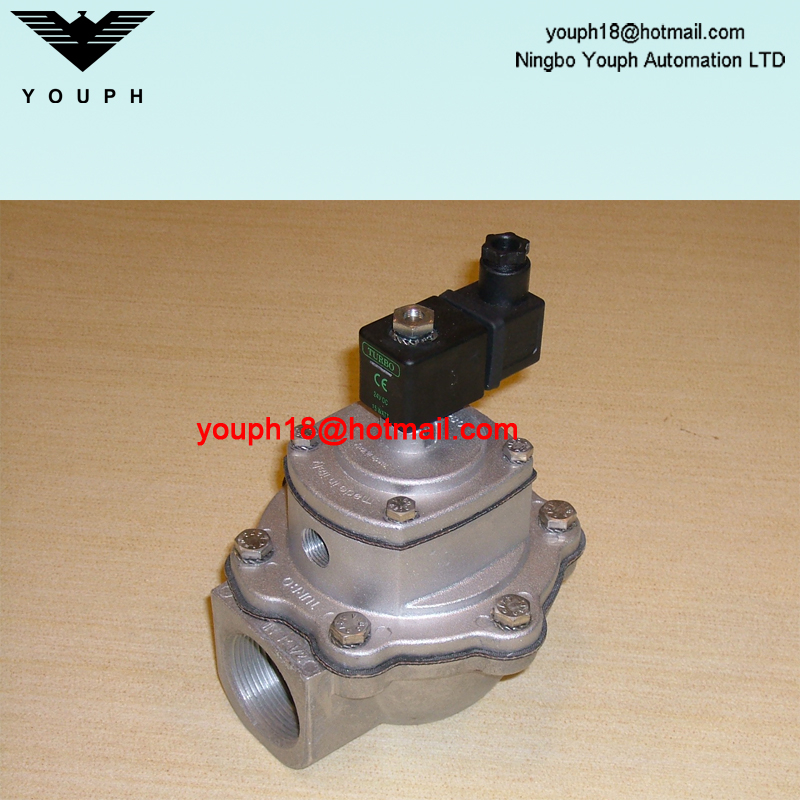

Italy Turbo FP40 TF040NPUSST G1-1/2" F Series DN40 Threaded Diaphragm Pulse VALVE

Made in Italy, Turbo original.

Welcome to inquire！

youph18@hotmail.com

Italy Turbo FP40 TF040NPUSST G1-1/2" F Series DN40 Threaded Diaphragm Pulse VALVE

How to order

Characteristics

Fluid	Filtered and oilfree compressed air
Temperature range	STD diaphragm -40°C~+80°C
Temperature range	Viton diaphragm -30°C~+200°C
Operating pressure	0.5~7.5 bar
Body e cover	Die cast aluminium
Core tube	Stainless Steel
Plunger	Stainless Steel
Screws	Stainless Steel
Coil insulation	Class H
Class H	Class H
Standard voltage	230 -110 - 24V / 50-60VHz 19 VA 24VDC 15W

Structure

structure

FP FM 40 55 65

INSTALLATION

1. The valves can be mounted in any position without affecting operation

2. Threaded pipe connection is: G (ISO 228/1) or compression fitting

3. For compression fitting types tightness is achieved by the compressed gasket on the blow tube

4. The use of the rubber gaskets as sealing members will allow a slight misalignment in piping

5. Other pipe threads are available on request

6. Installation/maintenance instructions are included with each valve

7. Spare Parts Kit and replacement coils are available
