FP25

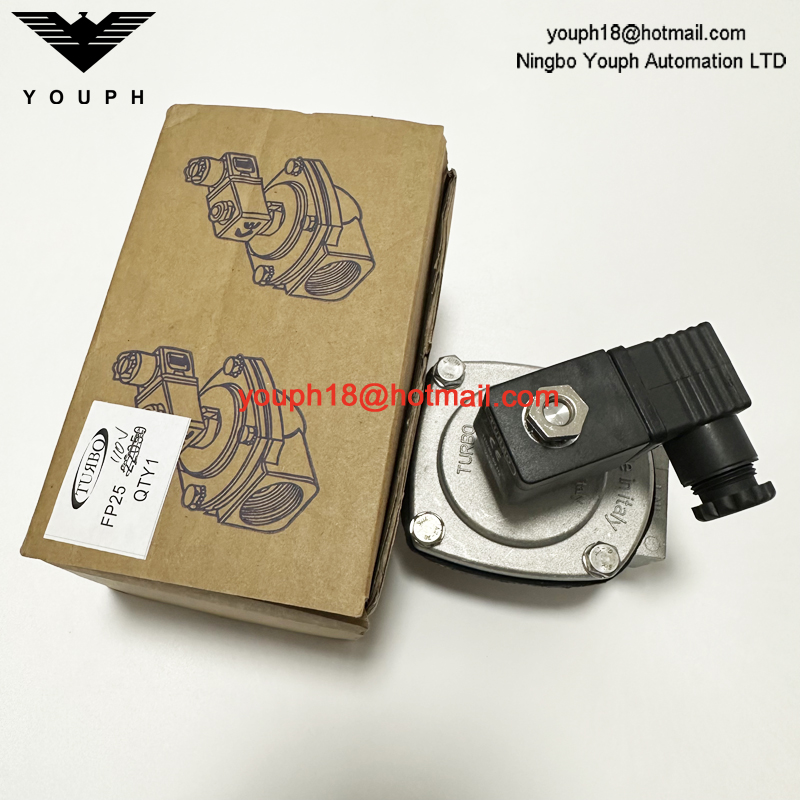

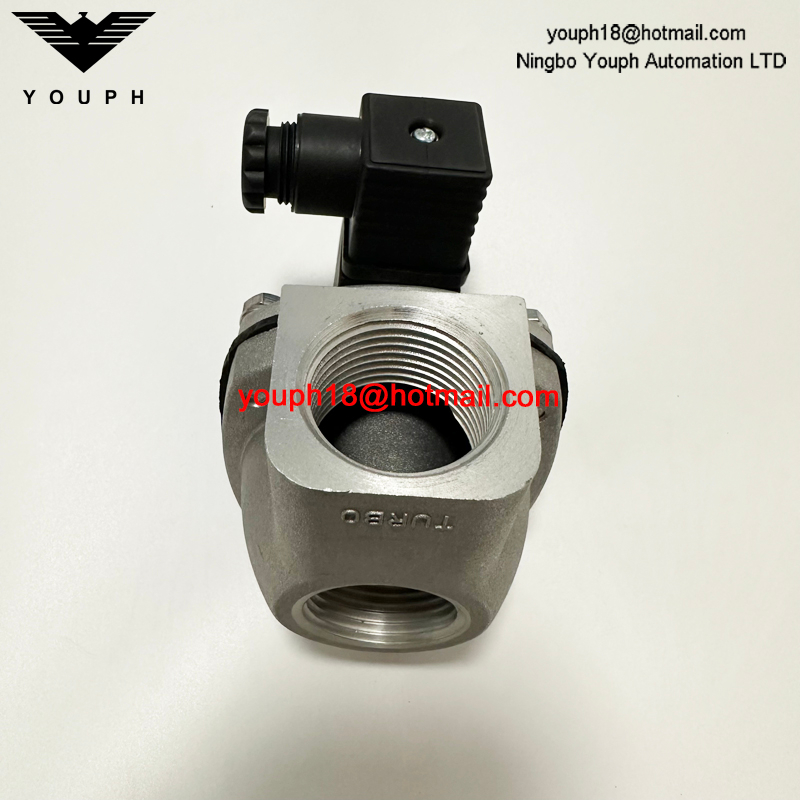

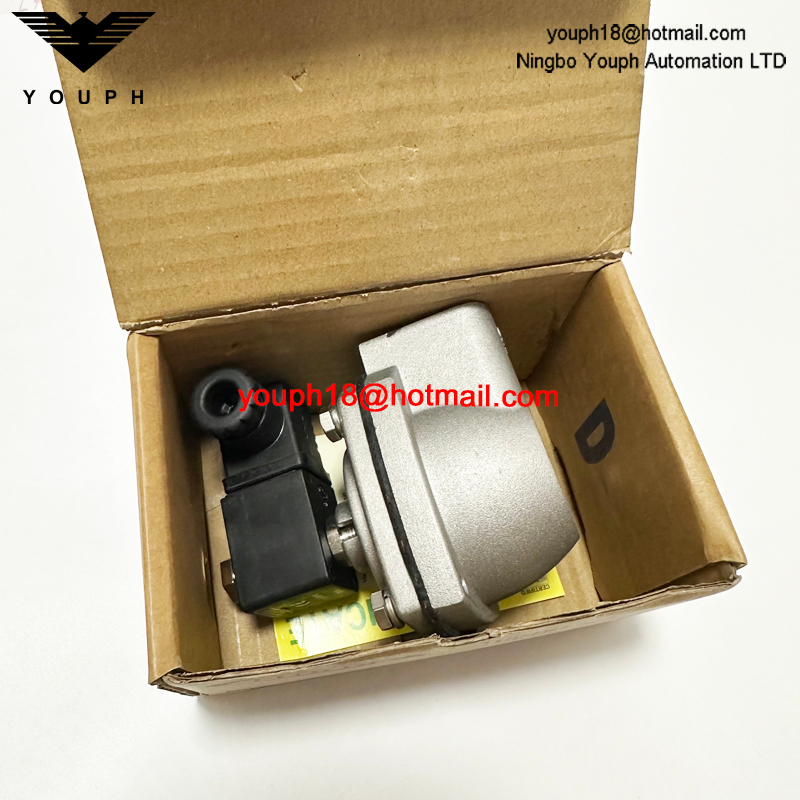

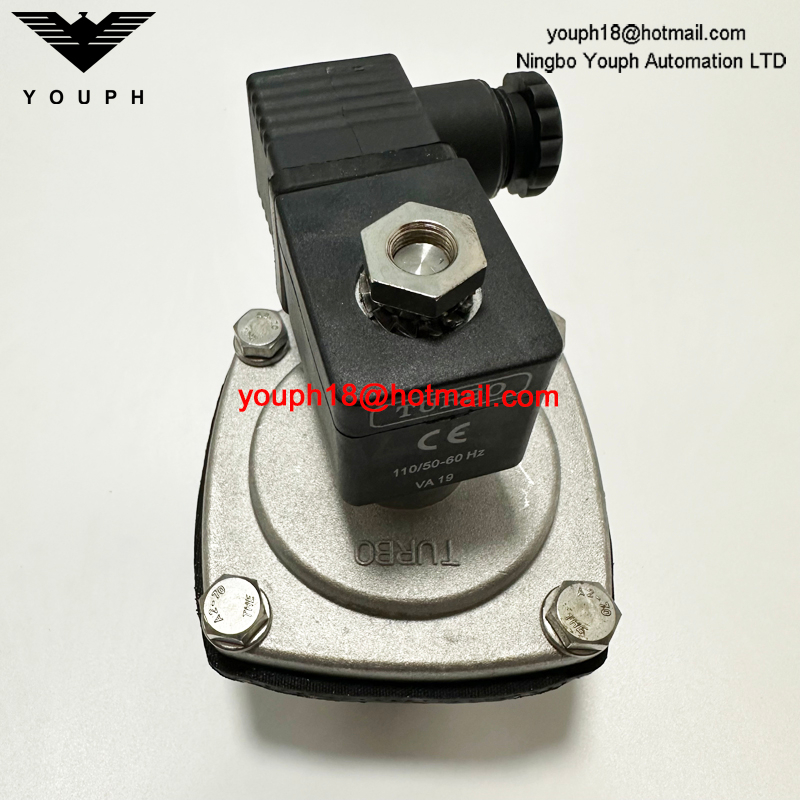

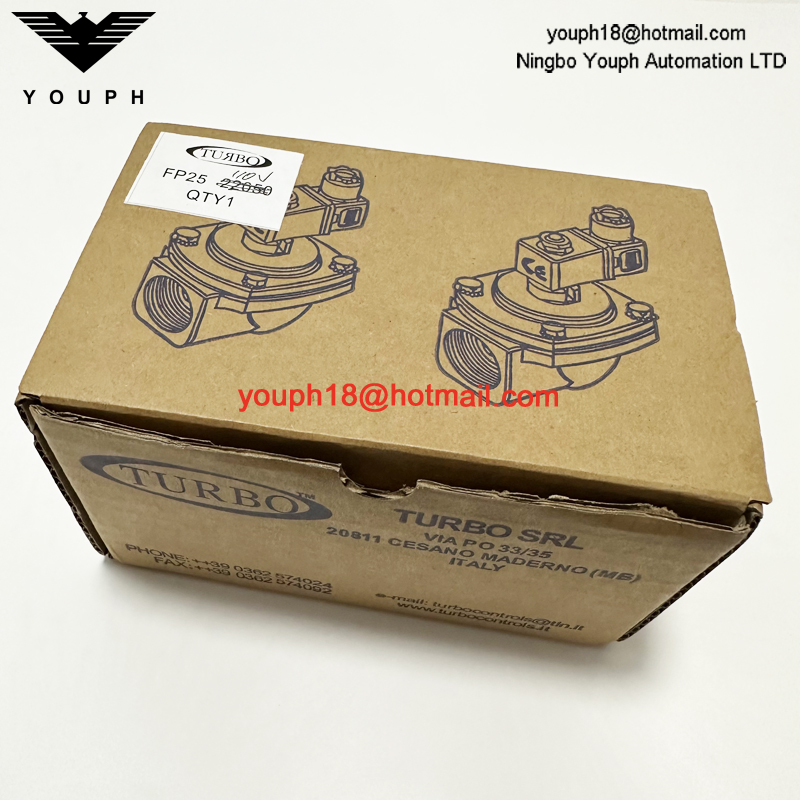

Italy Turbo FP25 TF025NPMSST G1 F series DN25 Threaded Pulse VALVE
How to order
Characteristics
| Fluid | Filtered and oilfree compressed air |
| Temperature range | STD diaphragm -40°C~+80°C |
| Viton diaphragm -30°C~+200°C | |
| Operating pressure | 0.5~7.5 bar |
| Body e cover | Die cast aluminium |
| Core tube | Stainless Steel |
| Plunger | Stainless Steel |
| Screws | Stainless Steel |
| Coil insulation | Class H |
| Class H | Class H |
| Standard voltage | 230 -110 - 24V / 50-60VHz 19 VA 24VDC 15W |
Structure
INSTALLATION
1. The valves can be mounted in any position without affecting operation
2. Threaded pipe connection is: G (ISO 228/1) or compression fitting
3. For compression fitting types tightness is achieved by the compressed gasket on the blow tube
4. The use of the rubber gaskets as sealing members will allow a slight misalignment in piping
5. Other pipe threads are available on request
6. Installation/maintenance instructions are included with each valve
7. Spare Parts Kit and replacement coils are available
