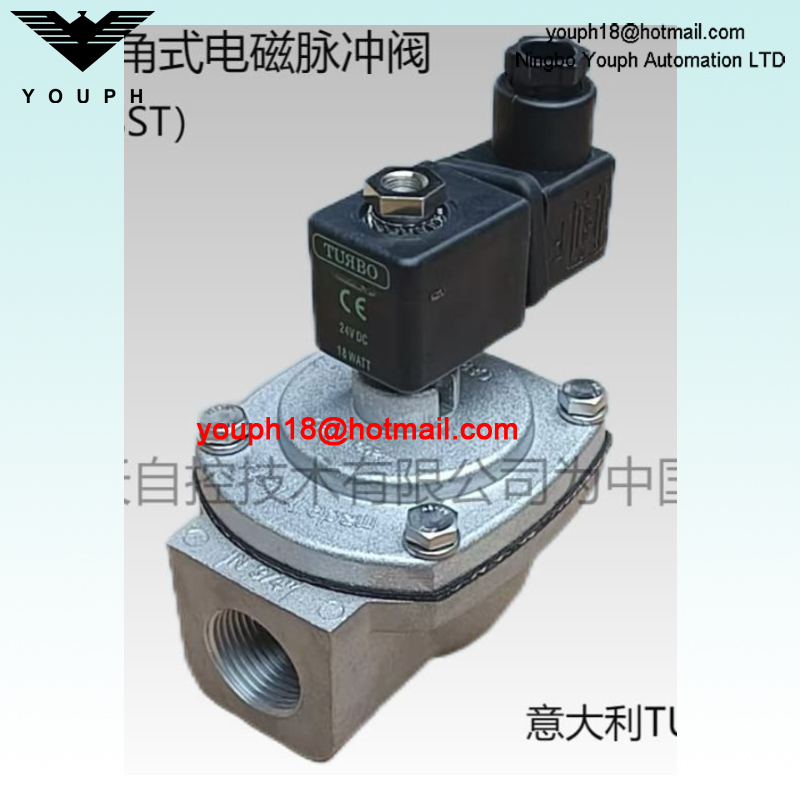

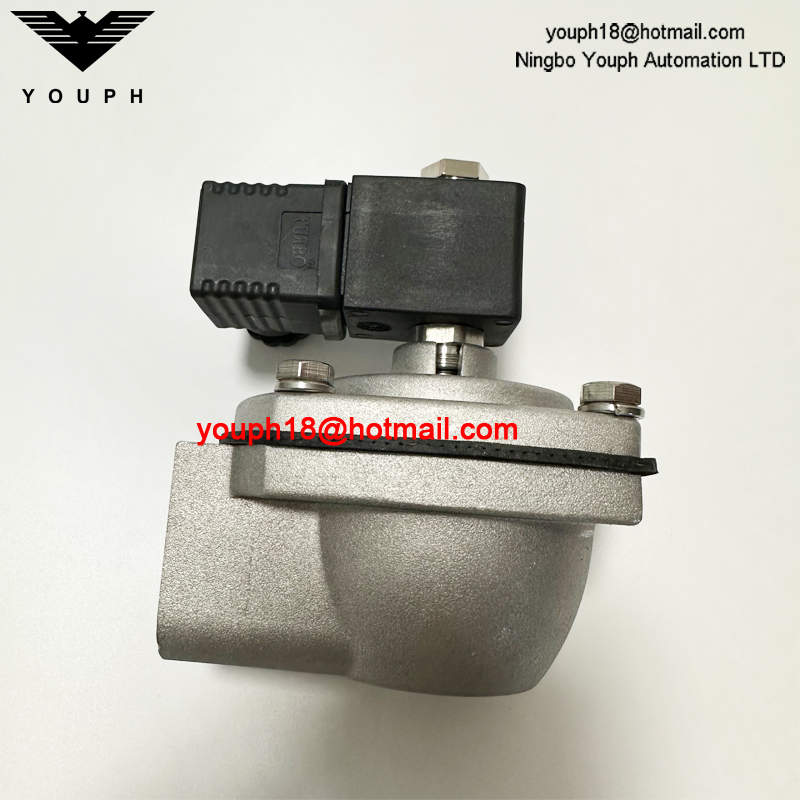

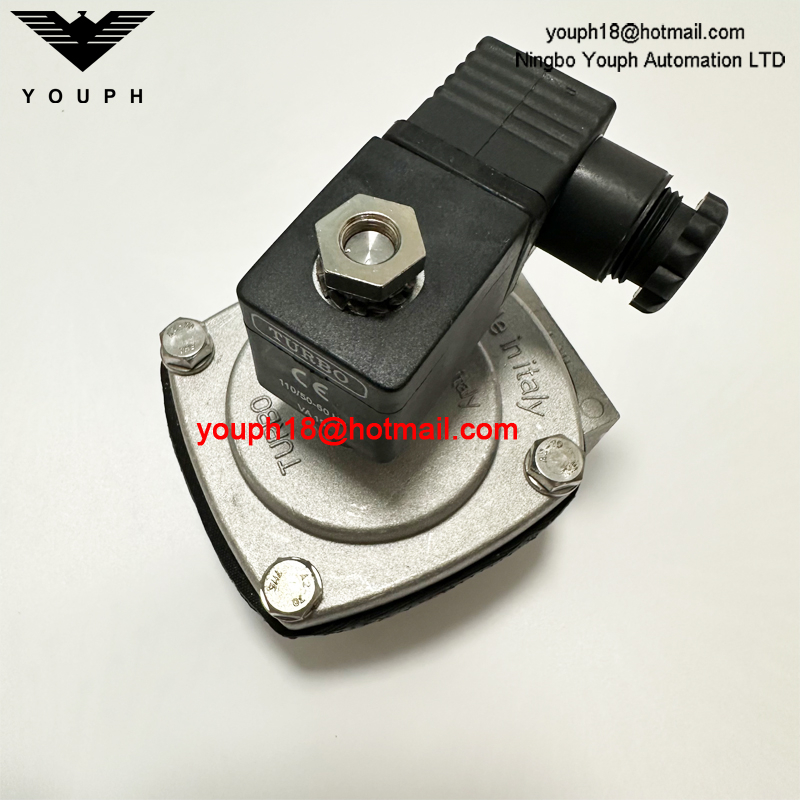

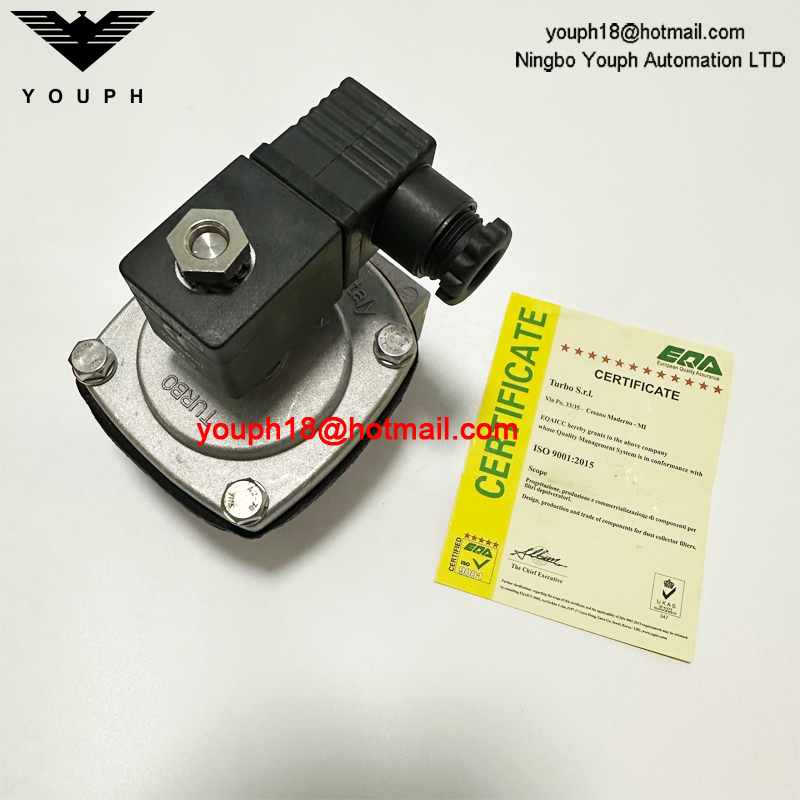

Italy Turbo FP20 TF020NPUSST G3/4 F series Threaded Pulse VALVE

Italy Turbo FP20 TF020NPUSST G3/4 F series Threaded Pulse VALVE

Characteristics

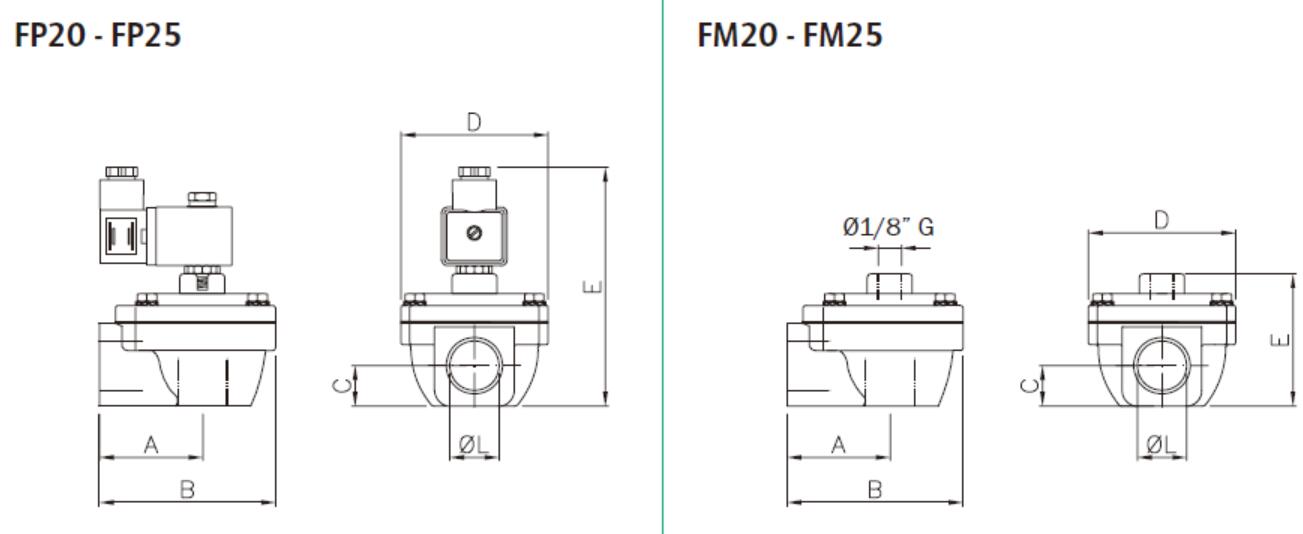

Structure

GENERAL

Differential pressure: 0,35 - 8,5 bar [1 bar = 100kPa]

Ambient temperature range: -20 to +85°C

MATERIALS IN CONTACT WITH FLUID

Note: Ensure that the compatibility of the fluids in contact with the materials is verified

Core tube: Stainless steel

Core and plugnut: Stainless steel

Springs: Stainless steel

Seals & disc: NBR (nitrile)

Diaphragms: CR (chloroprene)

Shading coil: Copper

INSTALLATION

1. The valves can be mounted in any position without affecting operation

2. Threaded pipe connection is: G (ISO 228/1) or compression fitting

3. For compression fitting types tightness is achieved by the compressed gasket on the blow tube

4. The use of the rubber gaskets as sealing members will allow a slight misalignment in piping

5. Other pipe threads are available on request

6. Installation/maintenance instructions are included with each valve

7. Spare Parts Kit and replacement coils are available
