Goyen CA45FS CAC45FS CA45FS010-300 FS Series Flanged Diaphragm Pulse Valve

FS series, voltage 24VDC, 110VAC, and 220VAC are available
Availability:
Quantity:

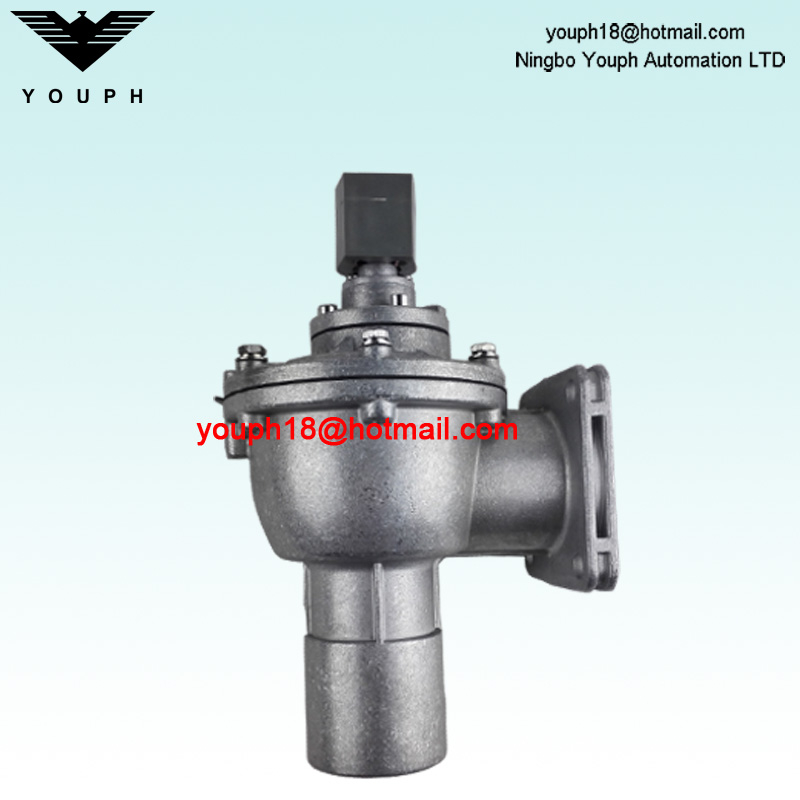

Goyen CA45FS CAC45FS CA45FS010-300 FS Series Flanged Diaphragm Pulse Valve

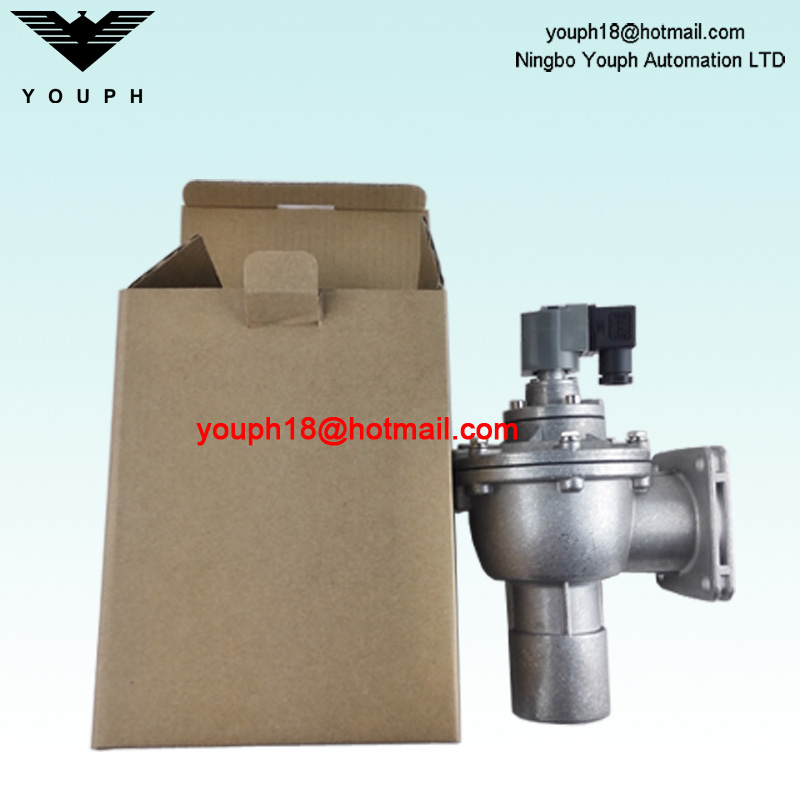

Goyen CA45FS CAC45FS CA45FS010-300 FS Series Flanged Diaphragm Pulse Valve

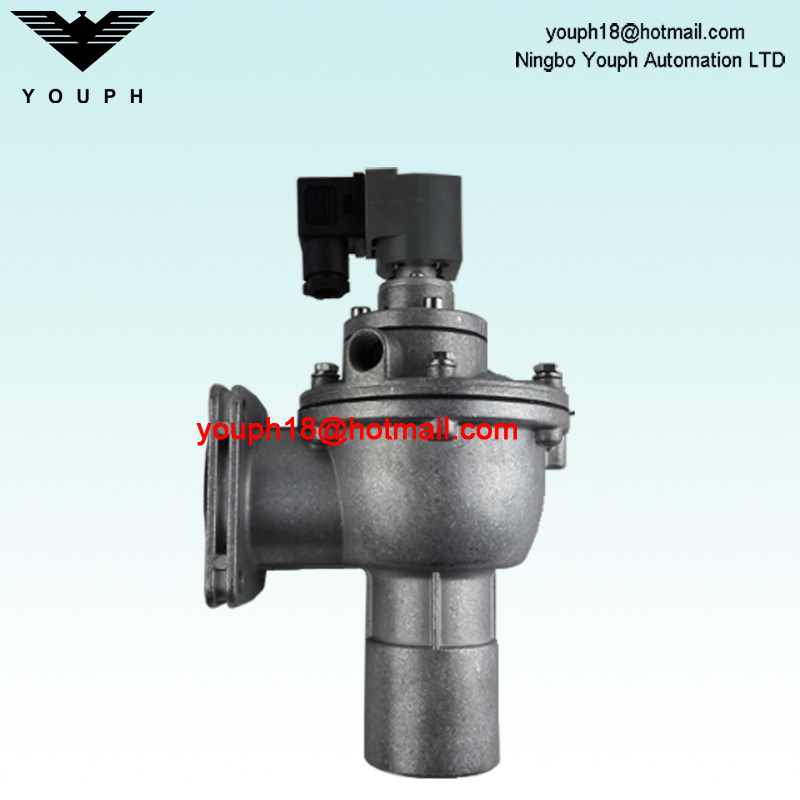

Goyen CA45FS CAC45FS CA45FS010-300 FS Series Flanged Diaphragm Pulse Valve
  • CAC45FS

Goyen CA45FS CAC45FS CA45FS010-300 FS Series Flanged Diaphragm Pulse Valve


Description

Very high performance diaphragm valve with flanged inlet port and slide seal outlet port for easy valve installation and removal. Available with integral pilot or as remotely piloted valve. Outlet at 90° to inlet.


Suitable for

Dust collector applications, in particular for reverse pulse jet filter cleaning and its variations including bag filters, cartridge filters, envelope filters, ceramic filters, and sintered metal fibre filters.


Construction

Body and Dresser

Nuts: Aluminium (diecast)

Ferrule: 304 SS

Armature: 430FR SS

Seals: Nitrile or Viton (reinforced)

Spring: 304 SS

Screws: 302 SS

Dresser Nut Seals: Nitrile or Viton

Diaphragm Seat: PA-6 (standard), Viton coated mild steel or High Density PE


Operation

Recommended on time range: 50-500ms

Recommended time between pulses: 1 minute or greater


Maintenance

Before conducting any maintenance activity on the system ensure that components are fully isolated from pressure and power supplies. Pressure and power should not be reapplied until the valve has been fully assembled. Diaphragm and pilot inspection should be conducted annually.


Diaphragm Repair Kit

Nitrile: K4516

Viton: K4519


Solenoid Kit

Nitrile: K0380

Viton: K0384


Installation

For your safety do not pressurise system until all valves and pipes are fully secured. Do not attempt to remove a fitted valve while system is under pressure.

1. Prepare supply and blowtube pipes* to suit valve specification. Avoid installing valves underneath the tank.

2. Ensure tank and pipes are free from dirt, rust or other particulate.

3. Ensure supply air is clean and dry.

4. Mount valves to inlet pipes and blowtube to valves, tighten dresser nuts.

5. Tanks and pipes must be independently restrained from valve.

6. Make electrical connections to solenoid or connect RCA pilot port to pilot valve (RCA valves only).

7. Apply moderate pressure to system and check for installation leaks.

8. Fully pressurise system.

9. Test fire and listen for proper actuation and crisp pulse noise.
