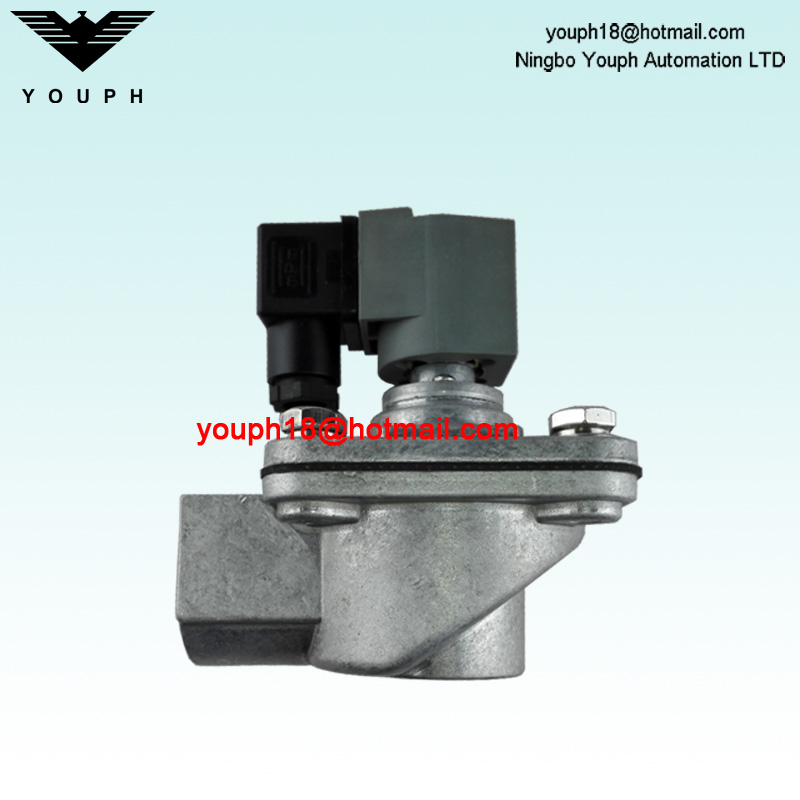

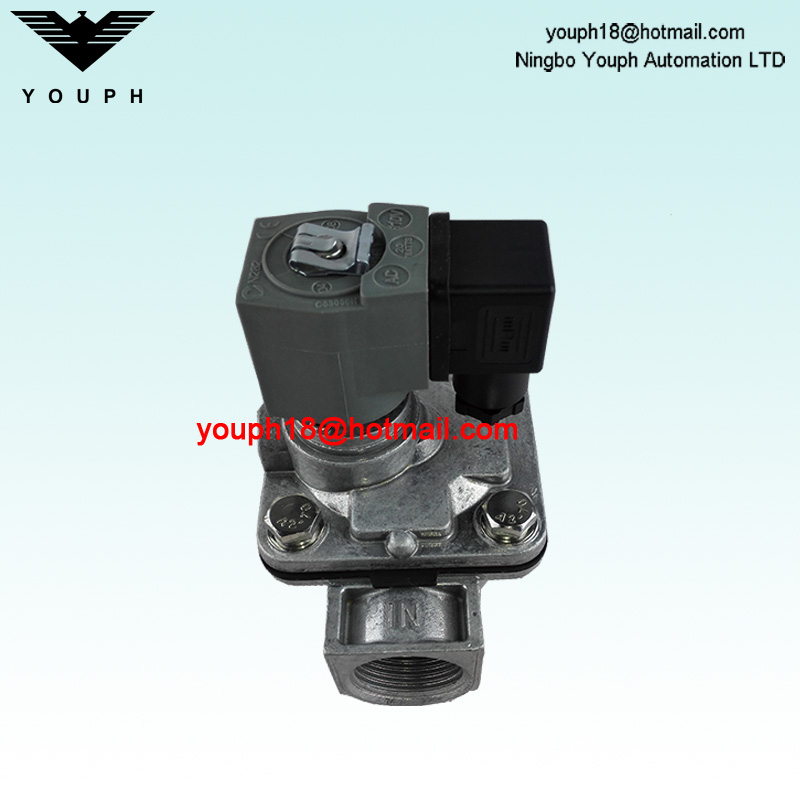

Goyen CA25T020 CA25T010-300 CA25T010-305 G1" DN25 Pulse Jet Valve

Goyen CA25T020 CA25T010-300 CA25T010-305 G1" DN25 Pulse Jet Valve

Description

High performance diaphragm valve with threaded ports. Available with integral pilot or as remotely piloted valve. Outlet at 90° to inlet.

Suitable for

Dust collector applications, in particular for reverse pulse jet filter cleaning including bag filters, cartridge filters, envelope filters, ceramic filters, and sintered metal fibre filters.

Construction

Body: Aluminium (diecast)

Ferrule: 304 SS

Armature: 430FR SS

Seals: Nitrile or Viton (reinforced)

Spring: 304 SS

Screws: 302 SS

Diaphragm Seat: PA-6 (standard), Viton coated mild steel or High Density PE Refer to Q Series Solenoid product data sheet for solenoid construction details.

Operation

Recommended on time range: 50-500ms

Recommended time between pulses: 1 minute or greater

Maintenance

Before conducting any maintenance activity on the system ensure that components are fully isolated from pressure and power supplies. Pressure and power should not be reapplied until the valve has been fully assembled. Diaphragm and pilot inspection should be conducted annually.

Diaphragm Repair Kit

Nitrile: K2501

Viton: K2503

Solenoid Kit

Nitrile: K0380

Viton: K0384

Installation

1. Prepare supply and blowtube pipes to suit valve specification. Avoid installing valves underneath the tank.

2. Ensure tank and pipes are free from dirt, rust or other particulate.

3. Ensure supply air is clean and dry.

4, Mount valves to inlet pipes and blowtube to valves, ensuring no excess thread sealant can enter the valve itself.

5. Make electrical connections to solenoid or connect RCA pilot port to pilot valve (RCA valves only).

6. Apply moderate pressure to system and check for installation leaks.

7. Fully pressurise system.

8. Test fire and listen for proper actuation and crisp pulse noise.
