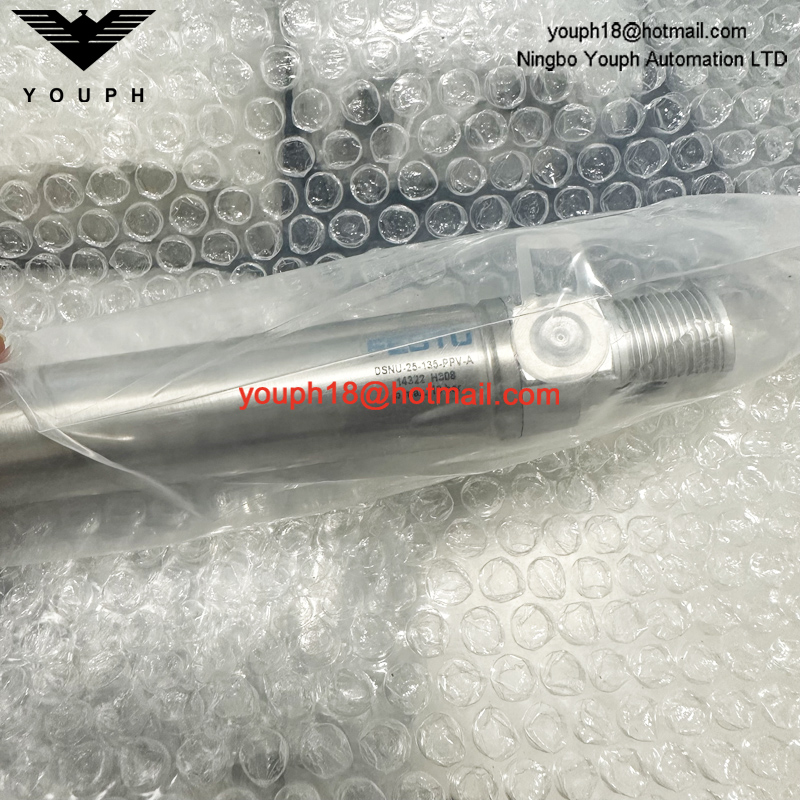

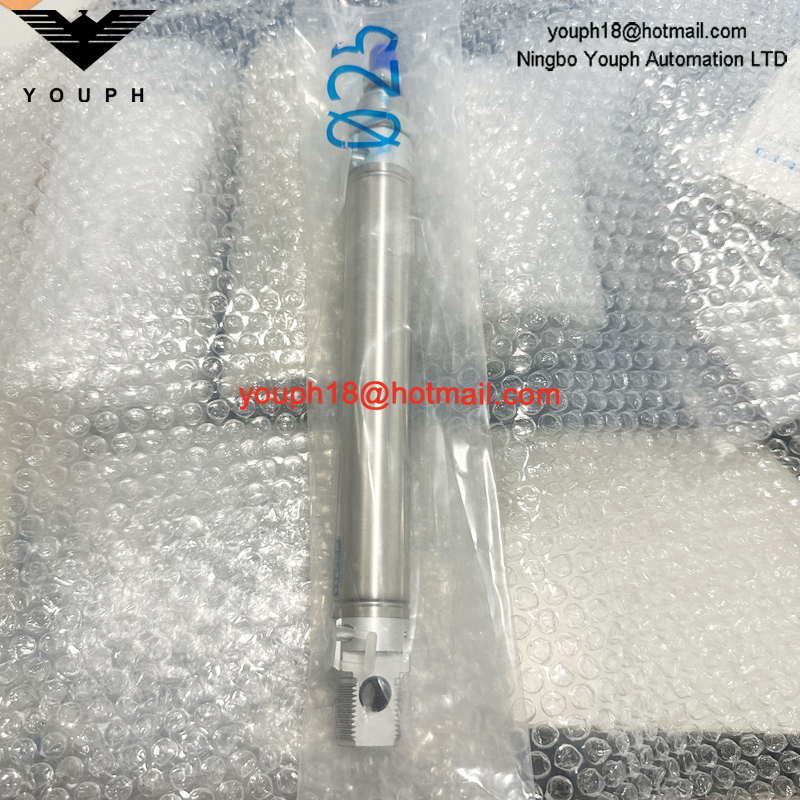

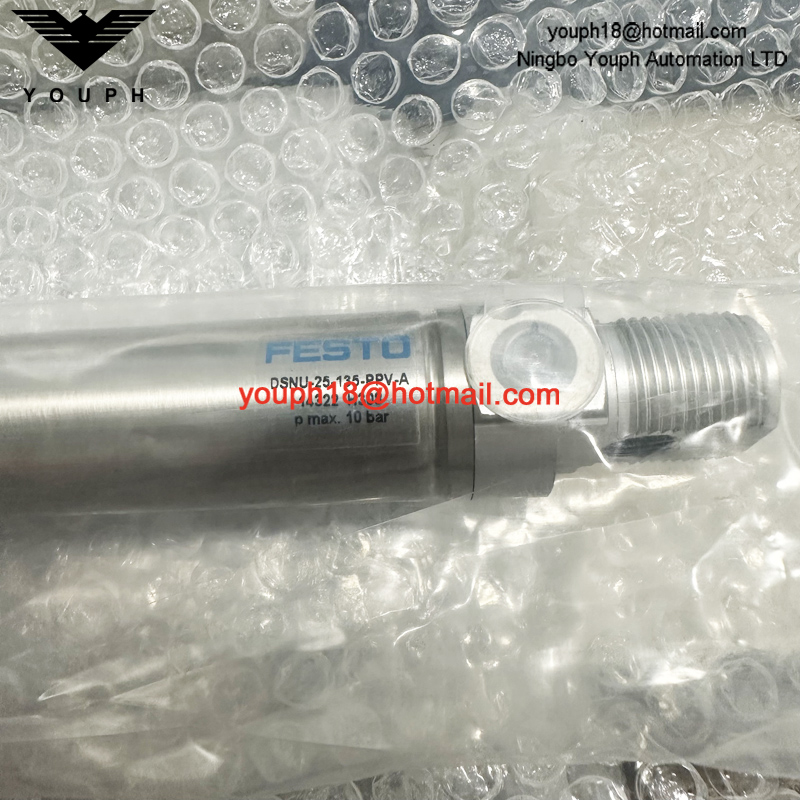

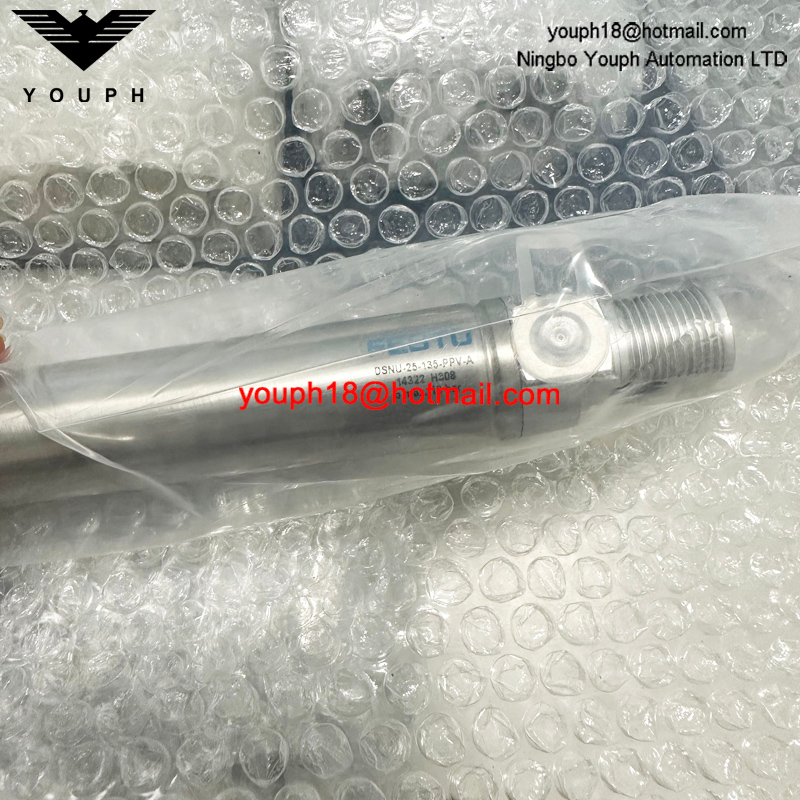

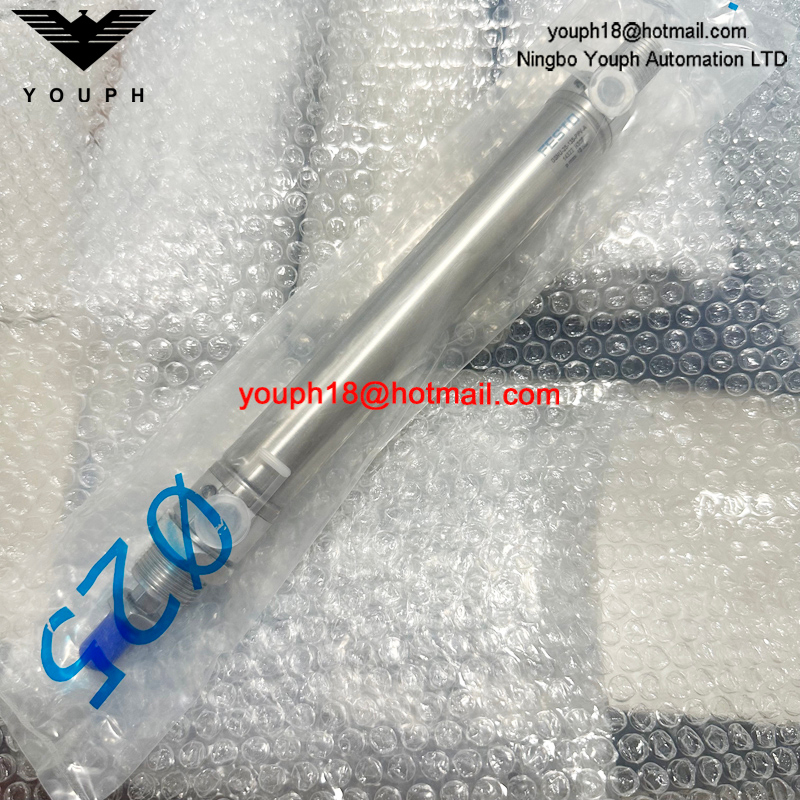

Festo DSNU-25-135-PPV-A 14322 DSNU Double-acting ISO cylinder

Festo DSNU-25-135-PPV-A 14322 DSNU Double-acting ISO cylinder

Technical Data

• Stroke 135 mm

• Piston diameter 25 mm

• Piston rod thread M10x1.25

• Cushioning Pneumatic cushioning, adjustable at both ends

• Mounting position optional

• Conforms to standard CETOP RP 52 P ISO 6432

• Piston-rod end Male thread

• Design Piston Piston rod Cylinder barrel

• Position detection Via proximity switch

• Variants Piston rod at one end

• Operating pressure 0.1 MPa ... 1 MPa

• Operating pressure 1 bar ... 10 bar

• Mode of operation Double-acting

• Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]

• Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required)

• Corrosion resistance class CRC 2 - Moderate corrosion stress

• LABS (PWIS) conformity VDMA24364-B1/B2-L

• Cleanroom class Class 6 according to ISO 14644-1

• Ambient temperature -20 °C ... 80 °C

• Impact energy in end positions 0.3 J

• Cushioning length 17 mm

• Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke 247.4 N

• Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 294.5 N

• Moving mass for 0 mm stroke 71 g

• Additional moving mass per 10 mm stroke 6 g

• Basic weight for 0 mm stroke 238 g

• Additional weight per 10 mm stroke 11 g

• Type of mounting With accessories

• Pneumatic connection G1/8

• Note on materials RoHS-compliant

• Material cover Wrought aluminium alloy Colourless anodised

• Material seals NBR TPE-U(PU)

• Material piston rod High-alloy stainless steel

• Material cylinder barrel High-alloy stainless steel
