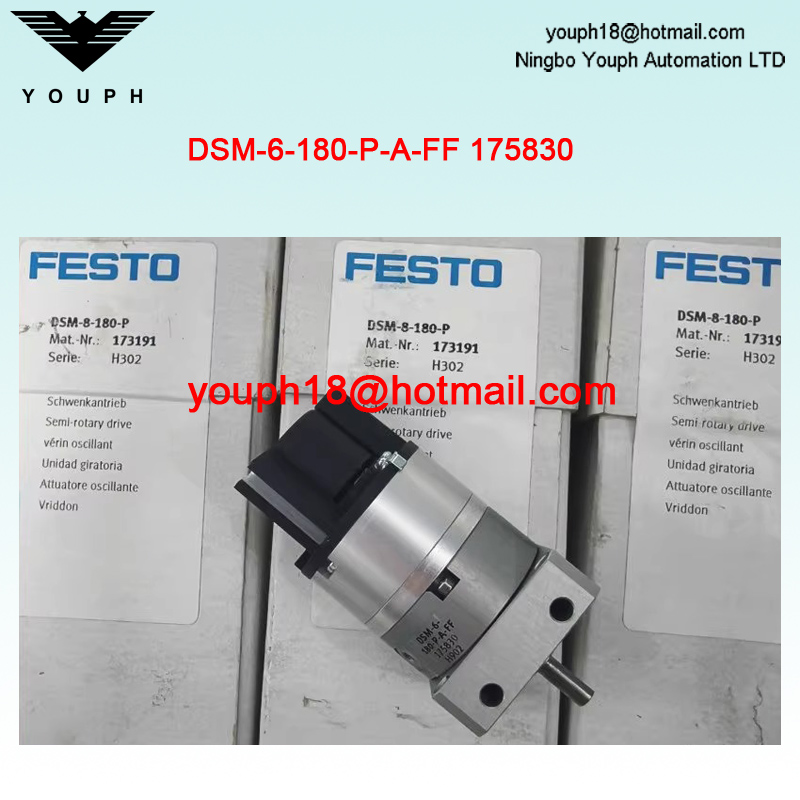

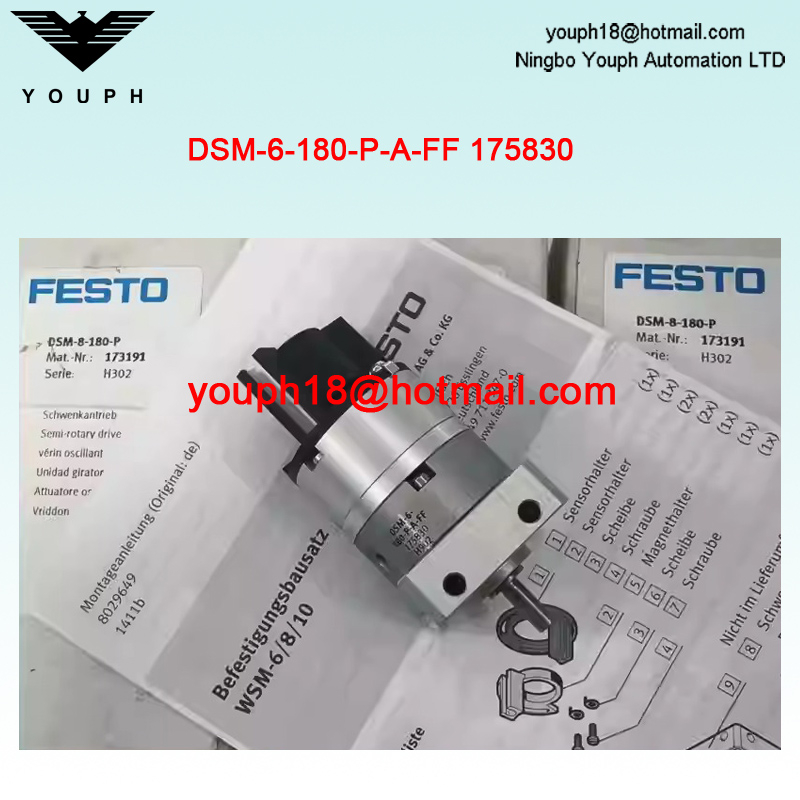

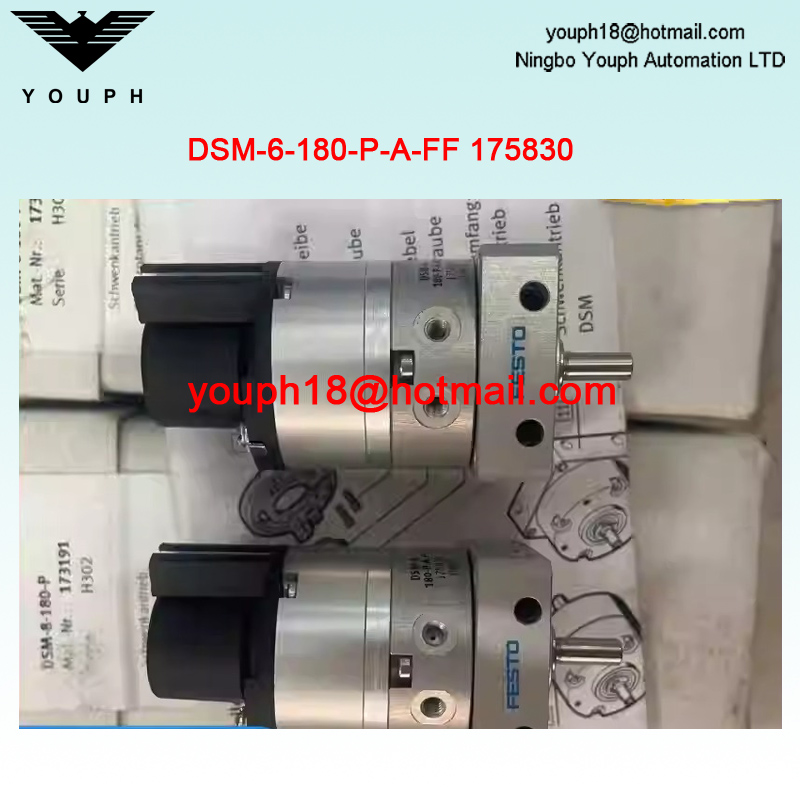

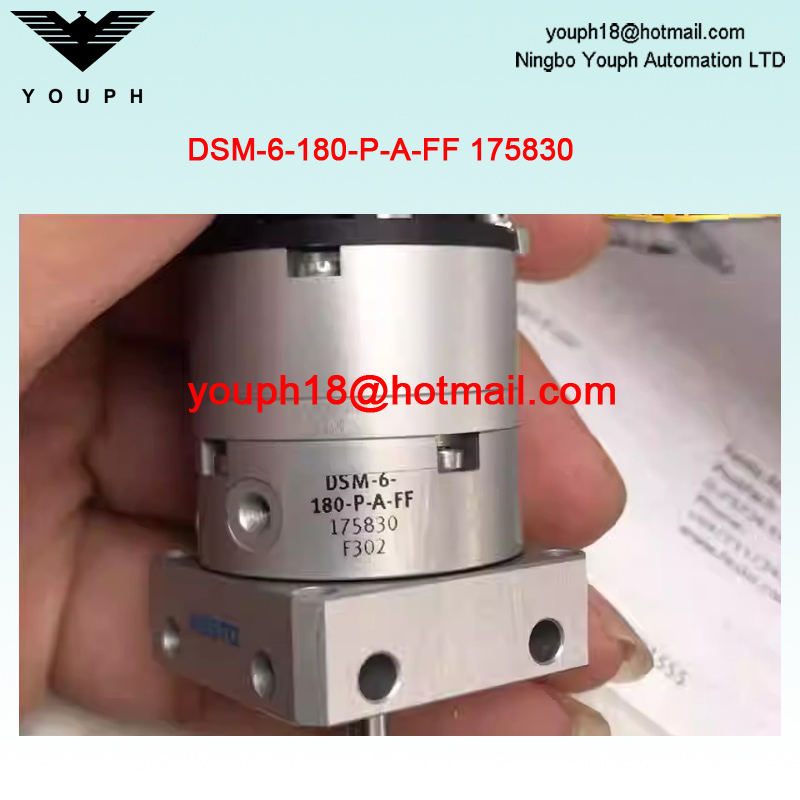

Festo DSM-6-180-P-A-FF 175830 Swivel angle 180° DSM Semi-rotary drive

Festo DSM-6-180-P-A-FF 175830, all new and orginal

Festo DSM-6-180-P-A-FF 175830 Swivel angle 180° DSM Semi-rotary drive

Size 6
Cushioning angle 0 deg
Rotation angle adjustment range 0 deg ... 180 deg
Swivel angle 0 deg ... 180 deg
Mounting position optional
Fine adjustment -5 deg
Mode of operation Double-acting
Design Vane
Position detection Via proximity switch
Symbol 00991265
Operating pressure 3.5 bar ... 8 bar
Max. swivel frequency at 0.6 MPa (6 bar, 87 psi) 3 Hz
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required)
LABS (PWIS) conformity VDMA24364-B1/B2-L
Ambient temperature 0 °C ... 60 °C
Theoretical torque at 0.6 MPa (6 bar, 87 psi) 0.15 Nm
Permissible mass moment of inertia 6.5E-4 kgm²
Product weight 85 g
Type of mounting Via female thread
Pneumatic connection M3
Note on materials RoHS-compliant
Material drive shaft High-alloy stainless steel
Material seals TPE-U(PU)
Material housing Aluminium Anodised

Spigot shaft Order Code

Characteristics	Swivel angle	Size [mm]	Part no.	Type
Elastic cushioning rings/plates at both ends	90°	6	173188	DSM-6-90-P
		8	173190	DSM-8-90-P
		10	173192	DSM-10-90-P
	180°	6	173189	DSM-6-180-P
		8	173191	DSM-8-180-P
		10	173193	DSM-10-180-P
	240°	10	173194	DSM-10-240-P
1. Position sensing 2. Elastic cushioning rings/plates at both ends	90°	6	173195	DSM-6-90-P-A
		8	173197	DSM-8-90-P-A
		10	173199	DSM-10-90-P-A
	180°	6	173196	DSM-6-180-P-A
		8	173198	DSM-8-180-P-A
		10	173200	DSM-10-180-P-A
	240°	10	173201	DSM-10-240-P-A
1. Adjustable swivel angle 2. Elastic cushioning rings/plates at both ends	180°	6	175827	DSM-6-180-P-FF
	180°	8	175828	DSM-8-180-P-FF
	200°	10	175829	DSM-10-240-P-FF
1. Position sensing 2. Adjustable swivel angle 3. Elastic cushioning rings/plates at both ends	180°	6	175830	DSM-6-180-P-A-FF
	180°	8	175831	DSM-8-180-P-A-FF
	200°	10	175832	DSM-10-240-P-A-FF
1. Tandem rotary vanes 2. Elastic cushioning rings/plates at both ends	90°	6	1564894	DSM-T-6-90-P
		8	1563451	DSM-T-8-90-P
		10	1559484	DSM-T-10-90-P
	180°	6	1565579	DSM-T-6-180-P
		8	1564407	DSM-T-8-180-P
		10	1561689	DSM-T-10-180-P
	240°	10	1562093	DSM-T-10- 240-P

Flange shaft Order Code

Characteristics	Swivel angle	Size [mm]	Part no.	Type
Elastic cushioning rings/plates at both ends	90°	6	185928	DSM-6-90-P-FW
		8	185934	DSM-8-90-P-FW
		10	185940	DSM-10-90-P-FW
	180°	6	185929	DSM-6-180-P-FW
		8	185935	DSM-8-180-P-FW
		10	185941	DSM-10-1 80-P-FW
	240°	10	185942	DSM-10-240-P-FW
1. Position sensing 2. Elastic cushioning rings/plates at both ends	90°	6	185930	DSM-6-90-P-A-FW
		8	185936	DSM-8-90-P-A-FW
		10	185943	DSM-10-90-P-A-FW
	180°	6	185931	DSM-6-180-P-A-FW
		8	185937	DSM-8-180-P-A-FW
		10	185944	DSM-10-180-P-A-FW
	240°	10	185945	DSM-10-240-P-A-FW
1. Adjustable swivel angle 2. Elastic cushioning rings/plates at both ends	180°	6	185932	DSM-6-180-P-FF-FW
	180°	8	185938	DSM-8-180-P-FF-FW
	200°	10	185946	DSM-10-240-P-FF-FW
1. Position sensing 2. Adjustable swivel angle 3. Elastic cushioning rings/plates at both ends	180°	6	185933	DSM-6-180-P-A-FF-FW
	180°	8	185939	DSM-8-180-P-A-FF-FW
	200°	10	185947	DSM-10-240-P-A-FF-FW
1. Tandem rotary vanes 2. Elastic cushioning rings/plates at both ends	90°	6	1565425	DSM-T-6-90-P-FW
		8	1564334	DSM-T-8-90-P-FW
		10	1560818	DSM-T-10-90-P-FW
	180°	6	1565483	DSM-T-6-1 80-P-FW
		8	1564669	DSM-T-8-1 80-P-FW
		10	1561556	DSM-T-10-180-P-FW
	240°	10	1562318	DSM-T-10-240-P-FW
